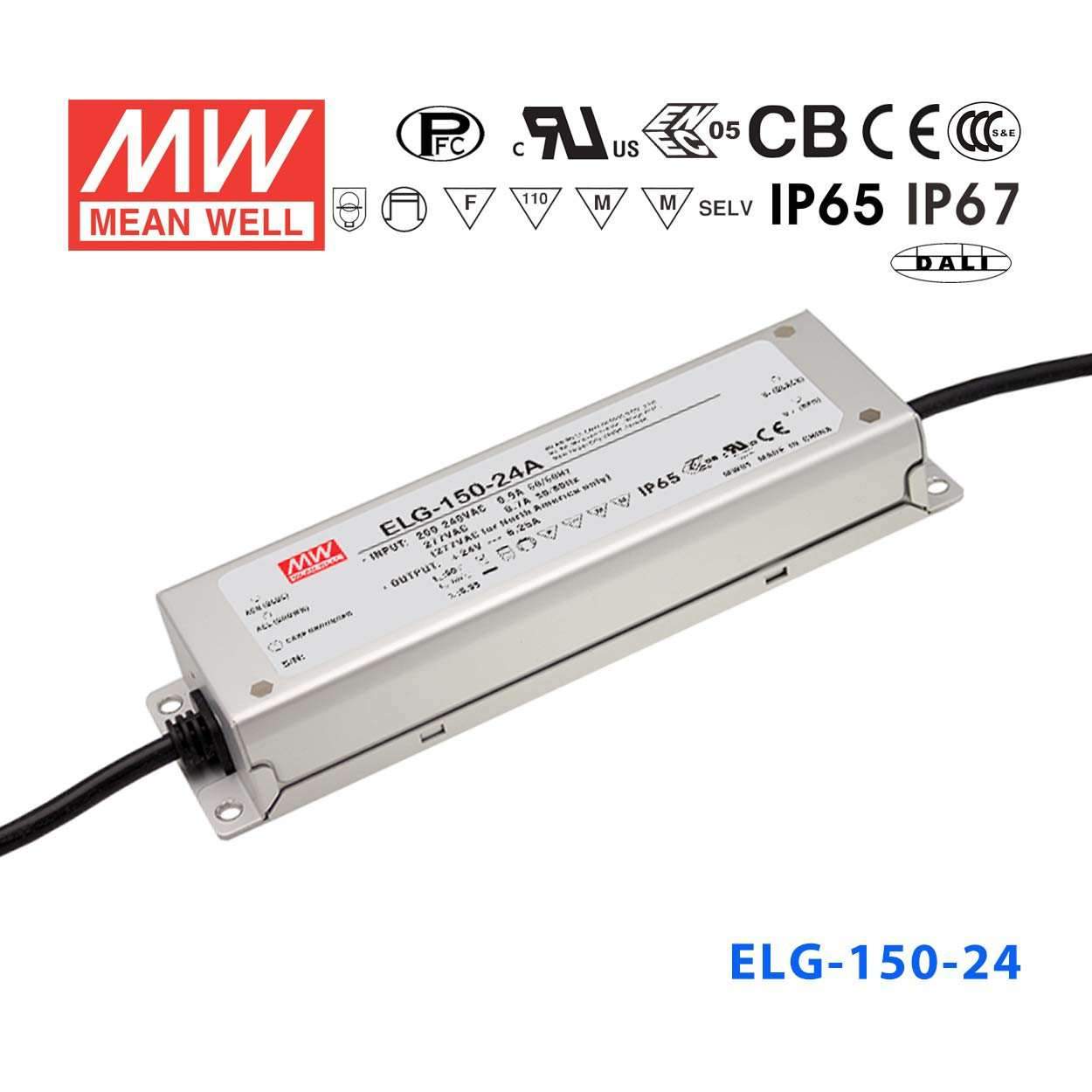

Mean Well ELG-150-24A-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 6.25A

Yes. The ELG-150-24A-3Y is rated IP65, providing protection against low-pressure water jets from any direction, which is appropriate for covered outdoor areas with rain splash and humidity. Its operating range of -40°C to +90°C handles the temperature swings typical of open-air installations.

The ELG-150-24A-3Y outputs 150W at 24V. For a 10 W/m strip, that supports up to 15 meters; for a 14.4 W/m strip, up to approximately 10.4 meters. Always check your strip's rated power per meter and derate by 20% for long-term thermal reliability.

Yes. At 150W and 24V, the ELG-150-24A-3Y can handle substantial LED strip runs needed for retail shelf lighting, bar backlighting, or lobby accent installations. The 6.25A output supports higher-density strip types used in these environments.

Yes. The IP65 rating protects against directed water spray and dust, making it viable for exterior sign cabinets in typical weather conditions. For installations at risk of water immersion or submersion, consider the IP67-rated variants in this series.

Yes. The 'A' suffix indicates a built-in potentiometer for output voltage adjustment, allowing fine-tuning of the drive level. This is useful for compensating voltage drop across long LED strip runs or matching specific LED module requirements.

The ELG-150-24A-3Y delivers 150W at 24V / 6.25A, offering 50% more power than the 100W siblings. The ELG-100-24D2 (100W, 24V, 4A) adds DALI dimming; the ELG-100-24DA (96W, 24V, 4A) also adds DALI. The ELG-150-24A-3Y is the higher-capacity constant-voltage option without DALI but with output adjustment.
