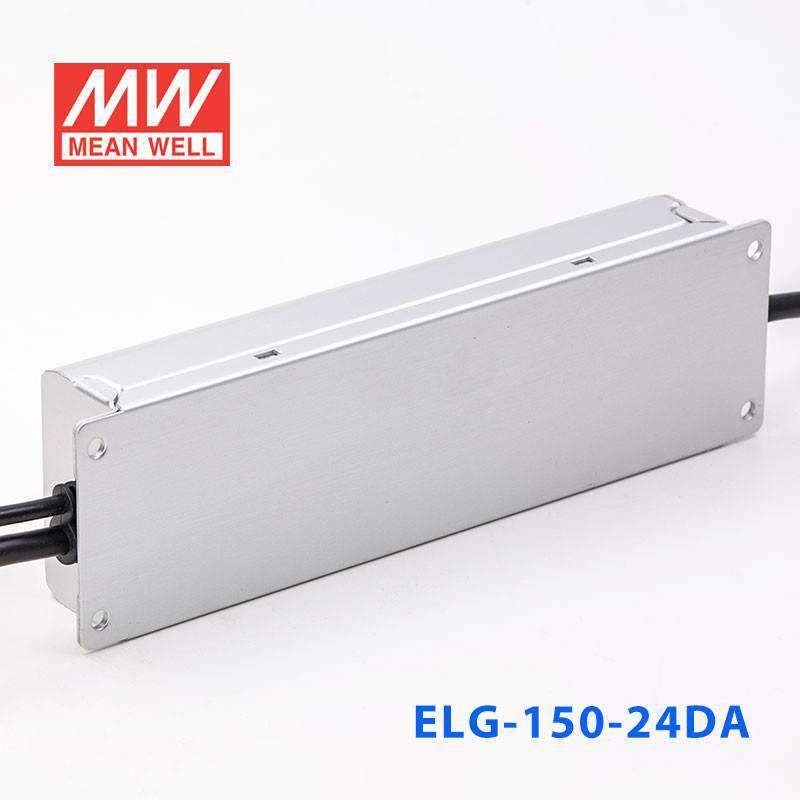

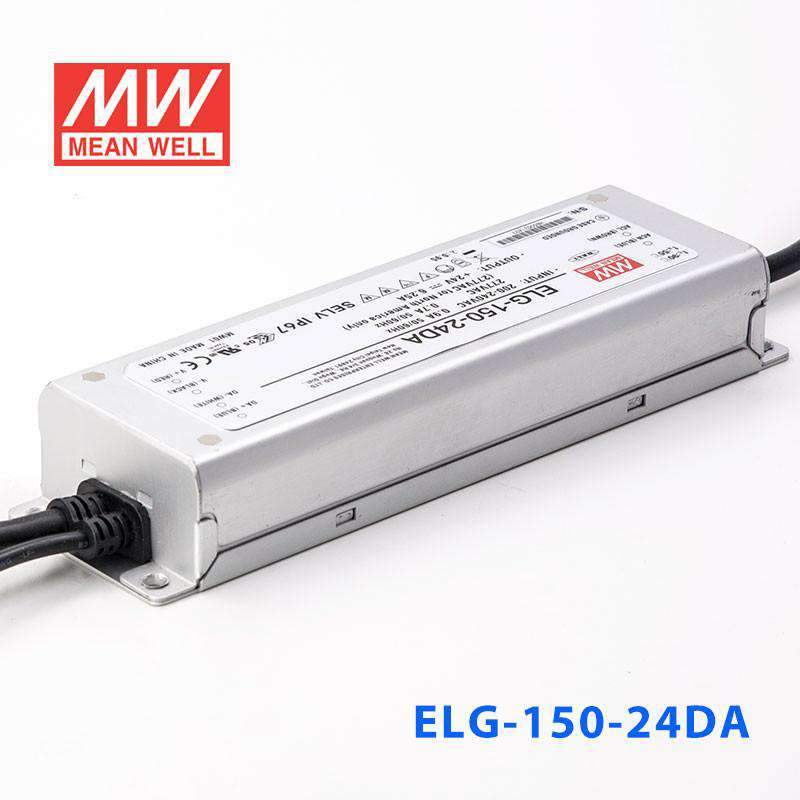

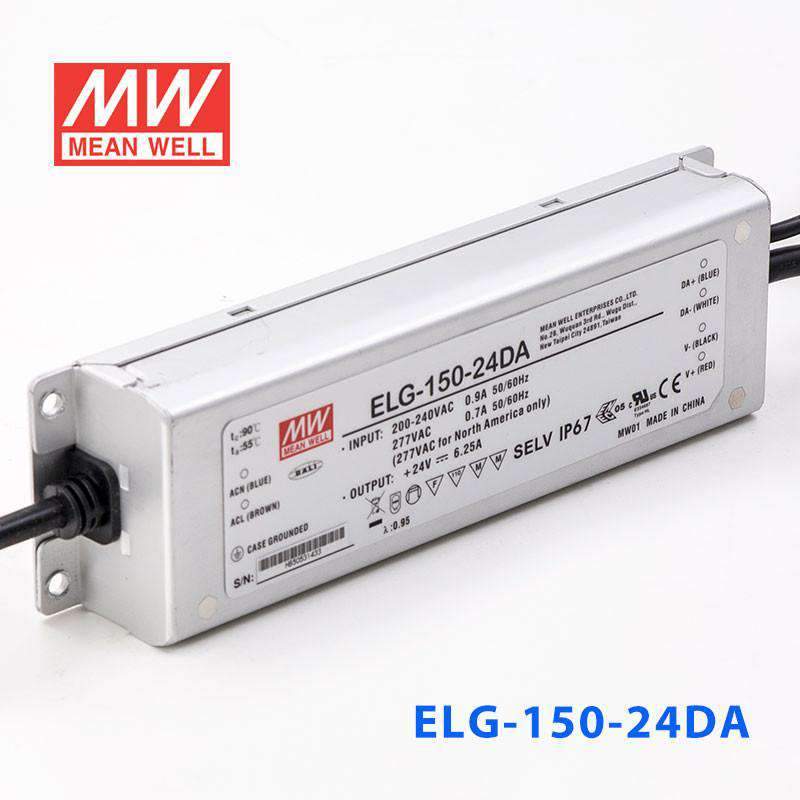

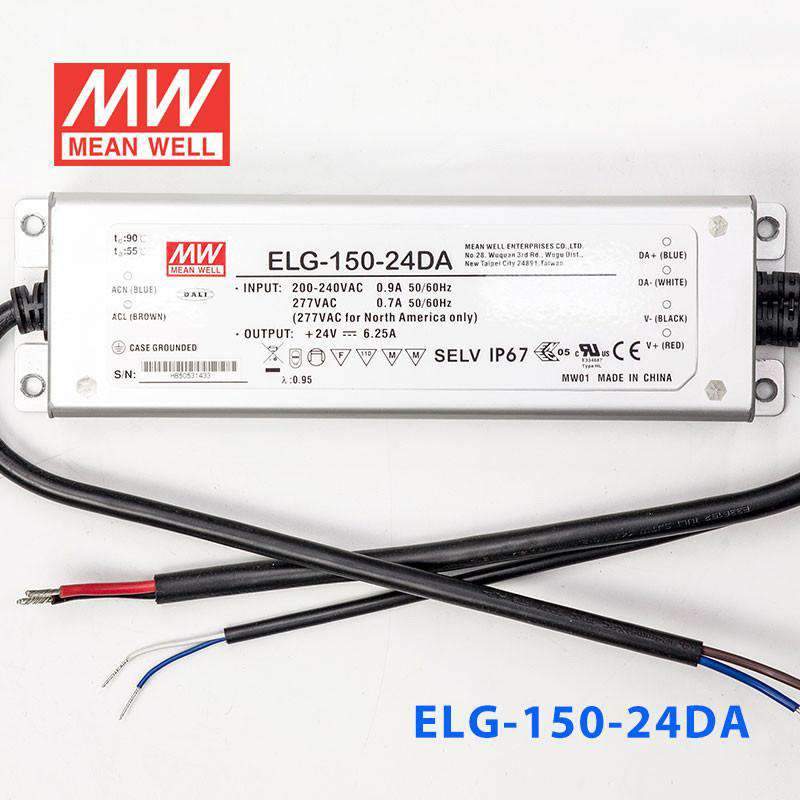

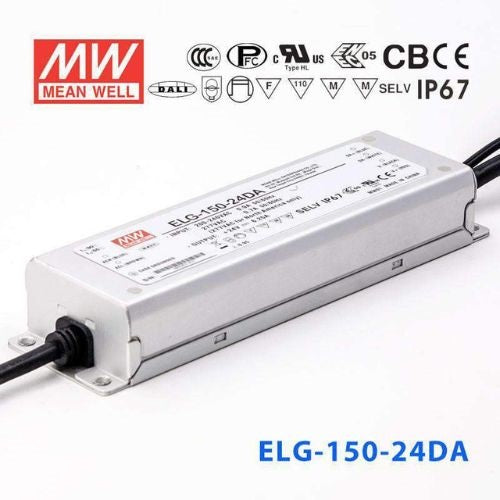

Mean Well ELG-150-24DA Power Supply 150W 24V - DALI 6.25A
Log in to see priceThe ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage100V~305V
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length21.9 cm
-
Width6.3 cm
-
Height3.55 cm
-
Weight0.95 kg
::specification::
Frequently Asked Questions
What is the DALI interface on the ELG-150-24DA and what systems is it compatible with?
The DA suffix indicates this driver has a DALI (Digital Addressable Lighting Interface) input compliant with IEC 62386. DALI is a two-wire digital bus used in commercial building lighting control systems, allowing each driver on the bus to be individually addressed and dimmed from a DALI controller without additional analog wiring.
Can the ELG-150-24DA be used to retrofit DALI-controlled LED strip lighting in a commercial office?
Yes. The ELG-150-24DA is designed for this use case. It accepts DALI commands to smoothly dim 24V LED strips and can be individually addressed on a shared DALI bus, enabling scene control and occupancy-based dimming as expected in commercial office environments.
Is the ELG-150-24DA suitable for outdoor DALI-controlled signage or facade lighting?
Yes. The IP67 waterproof rating allows the ELG-150-24DA to be placed in outdoor enclosures subject to rain and moisture. Combined with its -40°C to +90°C operating range, it is appropriate for outdoor DALI lighting networks controlling facade strips or illuminated outdoor signs.
How much 24V LED strip can the ELG-150-24DA support?
The driver delivers up to 150W at 24V (6.25A maximum). For a 9.6 W/m strip, that supports approximately 15.6 m (150 ÷ 9.6). For a 20 W/m high-output strip, about 7.5 m (150 ÷ 20). Confirm your strip's rated wattage per meter before sizing the installation.
Can the ELG-150-24DA replace a non-dimmable 24V driver in an existing LED strip installation if DALI control is added later?
Yes. The ELG-150-24DA is electrically compatible with 24V LED loads and operates as a standard 24V driver when no DALI signal is present (typically defaults to full output). Adding a DALI controller and bus wiring later enables dimming without replacing the driver again.
Does the ELG-150-24DA work across a wide mains input range, including 277V?
Yes. The input range is 100–305VAC, accommodating all common single-phase supply voltages from 120V to 277V without any selector switch. This makes it suitable for North American commercial buildings wired at 277V as well as international 230V installations.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other ELG-150 Models
9 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well S-ELG-150-24-3Y Power Supply 150W 24V 6.25A — 3-Wire Input (with Earth) | 150W | 24V | 6.25A | IP67 | View |
| Mean Well ELG-150-12-3Y Power Supply 120W 12V 10A — 3-Wire Input (with Earth) | 150W | 12V | 10A | IP67 | View |
| Mean Well ELG-150-24A-3Y Power Supply 150W 24V - Adjustable 6.25A — 3-Wire Input (with Earth) | 150W | 24V | 6.25A | IP65 | View |
| Mean Well S-ELG-150-12-3Y Power Supply 120W 12V 10A — 3-Wire Input (with Earth) | 120W | 12V | 10A | IP67 | View |
| Mean Well ELG-150-48DA Power Supply 150W 48V -DALI 3.13A | 150.2W | 48V | 3.13A | IP67 | View |
| Mean Well ELG-150-48A-3Y Power Supply 150W 48V - Adjustable 3.13A — 3-Wire Input (with Earth) | 150W | 48V | 3.13A | IP65 | View |
| Mean Well ELG-150-24DA-3Y Power Supply 150W 24V - DALI 6.25A — 3-Wire Input (with Earth) | 150W | 24V | 6.25A | IP67 | View |
| Mean Well ELG-150-24-3Y Power Supply 150W 24V 6.25A — 3-Wire Input (with Earth) | 150W | 24V | 6.25A | IP67 | View |
| Mean Well ELG-150-12B-3Y Power Supply 120W 12V - Dimmable 10A — 3-Wire Input (with Earth) | 120W | 12V | 10A | IP67 | View |
