Vimar Arke Metal 3 Gang switch - Matt Graphite - 16A
Log in to see priceOverview
This kit is assembled from Vimar parts: 1 × classic plate 3M metal matt graphite (VM-19653.01); 1 × frame 3M +screws (VM-19613); 3 × 1P 16AX 1-way switch (VM-19001 / VM-19001.B). Each part's specifications follow, with a link to its own page.
Specifications
Vimar Arke Metal 3 Gang switch - Matt Graphite - 16ASpecifications from the official datasheet
Variants
| SKU | Module Colour |
|---|---|
| Z-VM23GG-MCMG | Grey |
| Z-VM23GW-MCMG | White |
Kit contents
- Cover plate × 1
- VM-19653.01 · classic plate 3M metal matt graphite
- Frame × 1
- VM-19613 · frame 3M +screws
- Installation switch × 3
- Grey: VM-19001 · 1P 16AX 1-way switch greyWhite: VM-19001.B · 1P 16AX 1-way switch white
Cover plate (VM-19653.01)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 3
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 3
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 2
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Metal
- Halogen free
- Yes
- Surface protection
- Lacquered
- Surface finishing
- Matt
- Colour
- Anthracite
- RAL-number (similar)
- 9001
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 122 mm
- Height
- 90 mm
- Depth
- 8.6 mm
- Built-in width
- 122 mm
- Built-in height
- 90 mm
- Certifications
- CE marking (EU), Product Environm. Profile, IMQ (Italy)
Frame (VM-19613)
- Product type
- Holder for modular domestic switching devices
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 3
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), Product Environm. Profile, IMQ (Italy)
Installation switch (VM-19001 / VM-19001.B)
- Product type
- Installation switch
- Wiring system
- Switch 1-pole
- Operating method
- Rocker/button
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 1
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Matt
- Label space/information surface
- Yes
- Lighting
- Optional
- Function lighting
- Control and orientation
- Type of lighting
- LED exchangeable
- Suitable for degree of protection (IP)
- IP40
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Connection type
- Screwed terminal
- Device width
- 22.3 mm
- Device height
- 49 mm
- Device depth
- 36.8 mm
- Built-in depth
- 25 mm
- Certifications
- CE marking (EU), PSE (Japan), IMQ (Italy), RCM (Australia), INGCER (Chile), ISI (India), TSE (Turkey), CCC (China), Product Environm. Profile, NOM (Mexico), SASO (Saudi Arabia), WEEE Directive, TISI (Thailand)

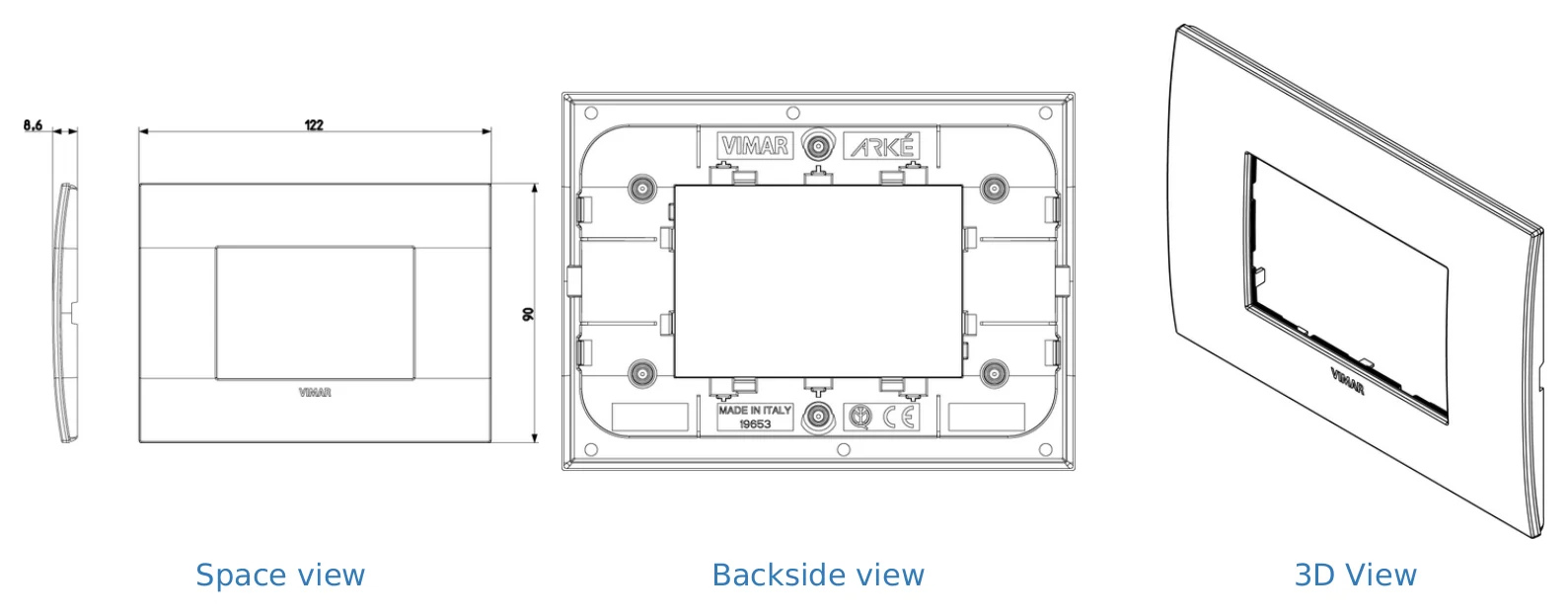

Technical drawings
