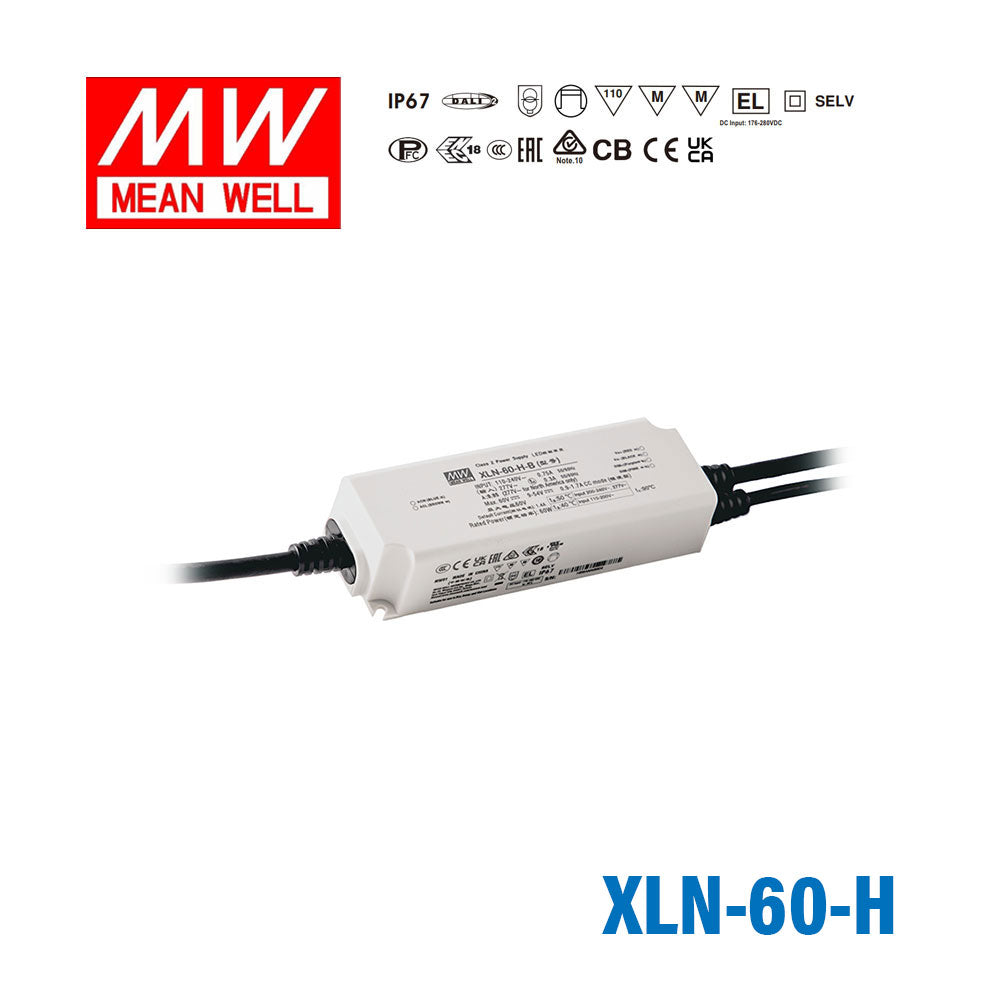

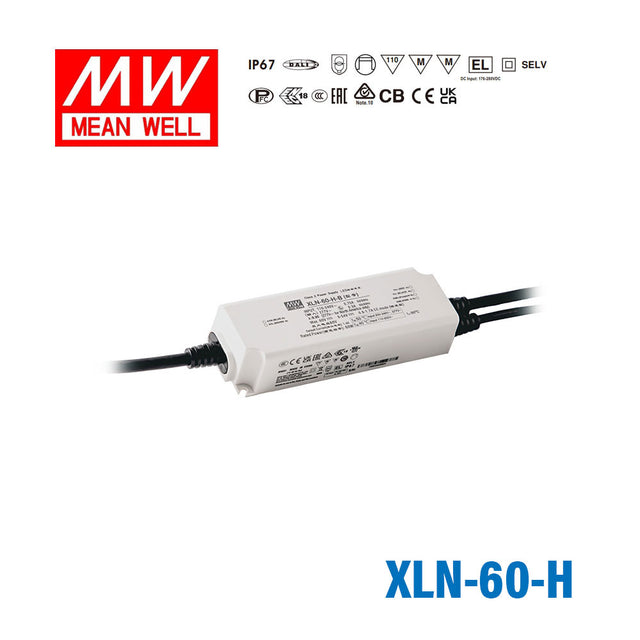

Mean Well XLN-60-H LED Driver 60W 1400mA 9~54V Constant Power IP67, NFC Current Setting

Q: What is the Mean Well XLN-60-H used for?

The Mean Well XLN-60-H is a 60W AC/DC LED driver for LED lighting applications that need a constant power output profile. It is listed in LED driver and power supply categories and is suited for B2B lighting supply use where an IP67 encapsulated driver is required.

Q: What output current does the XLN-60-H provide?

The XLN-60-H is rated for 1400mA output current. The product name also identifies it as a 60W constant power LED driver with a 9~54V output range.

Q: Is the XLN-60-H waterproof?

The XLN-60-H has an IP67 rating and is fully encapsulated according to the product description. This makes it appropriate for environments where a sealed LED driver is needed, within the stated operating temperature limits.

Q: What temperature range is specified for the XLN-60-H?

The listed temperature range for this model is -25°C to 90°C. Buyers should confirm that the product location and operating conditions stay within those limits.

Q: Does the XLN-60-H support NFC current setting?

Yes. The product name and description identify the XLN-60-H as an H-type model with NFC current setting for selectable output stages.

Q: Is the XLN-60-H dimmable?

The catalog field for this item lists the dimming control as non_dimmable. The description references dimming functions in the broader series information, so buyers should use the listed dimming control for this specific SKU when matching requirements.

Q: What warranty is provided for the XLN-60-H?

The XLN-60-H is listed with a 5-year warranty period. This warranty length is part of the product data for this specific model.

current adjustment range 0.9~1.7Aclass II and PFCflicker-free

SKU XLN-60-H

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Key Features

✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
✓Constant voltage mode output (12V/24V/48V)
✓Plastic housing with class II/2 and PFC design
✓Flicker-free, complying with IEEE1789/ErP
✓Standby power consumption <0.5W
✓Meet emergency lighting (EL) application
✓Fully encapsulated with IP67
✓Minimum dimming level <1% (DALI-2 DT6)
✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
✓5 years warranty

Frequently Asked Questions

What is the Mean Well XLN-60-H used for?

The Mean Well XLN-60-H is a 60W AC/DC LED driver for LED lighting applications that need a constant power output profile. It is listed in LED driver and power supply categories and is suited for B2B lighting supply use where an IP67 encapsulated driver is required.

What output current does the XLN-60-H provide?

The XLN-60-H is rated for 1400mA output current. The product name also identifies it as a 60W constant power LED driver with a 9~54V output range.

Is the XLN-60-H waterproof?

The XLN-60-H has an IP67 rating and is fully encapsulated according to the product description. This makes it appropriate for environments where a sealed LED driver is needed, within the stated operating temperature limits.

What temperature range is specified for the XLN-60-H?

The listed temperature range for this model is -25°C to 90°C. Buyers should confirm that the product location and operating conditions stay within those limits.

Does the XLN-60-H support NFC current setting?

Yes. The product name and description identify the XLN-60-H as an H-type model with NFC current setting for selectable output stages.

Is the XLN-60-H dimmable?

The catalog field for this item lists the dimming control as non_dimmable. The description references dimming functions in the broader series information, so buyers should use the listed dimming control for this specific SKU when matching requirements.

What warranty is provided for the XLN-60-H?

The XLN-60-H is listed with a 5-year warranty period. This warranty length is part of the product data for this specific model.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well XLN-60-H-DA2 LED Driver 60W 1400mA 9~54V Constant Power IP67, DALI2 + Push Dimming, NFC Current Setting	60W	60V	1.4A	IP67	View
Mean Well XLN-60-H-B LED Driver 60W 1400mA 9~54V Constant Power IP67, 3 in 1 Dimming, NFC Current Setting	60W	60V	1.4A	IP67	View
Mean Well XLN-60-48-DA2 LED Driver 60W 48V IP67, DALI2 + Push Dimming 1.25A	60W	48V	1.25A	IP67	View
Mean Well XLN-60-48-B LED Driver 60W 48V IP67, 3 in 1 Dimming	60W	48V	1.25A	IP67	View
Mean Well XLN-60-48 LED Driver 60W 48V IP67 1.25A	60W	48V	1.25A	IP67	View
Mean Well XLN-60-24-DA2 LED Driver 60W 24V IP67, DALI2 + Push Dimming 2.5A	60W	24V	2.5A	IP67	View
Mean Well XLN-60-24-B LED Driver 60W 24V IP67, 3 in 1 Dimming	60W	24V	2.5A	IP67	View
Mean Well XLN-60-24 LED Driver 60W 24V IP67 2.5A	60W	24V	2.5A	IP67	View
Mean Well XLN-60-12-DA2 LED Driver 60W 12V IP67, DALI2 + Push Dimming 5A	60W	12V	5A	IP67	View
Mean Well XLN-60-12-B LED Driver 60W 12V IP67, 3 in 1 Dimming	60W	12V	5A	IP67	View
Mean Well XLN-60-12 LED Driver 60W 12V IP67 5A	60W	12V	5A	IP67	View
