Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

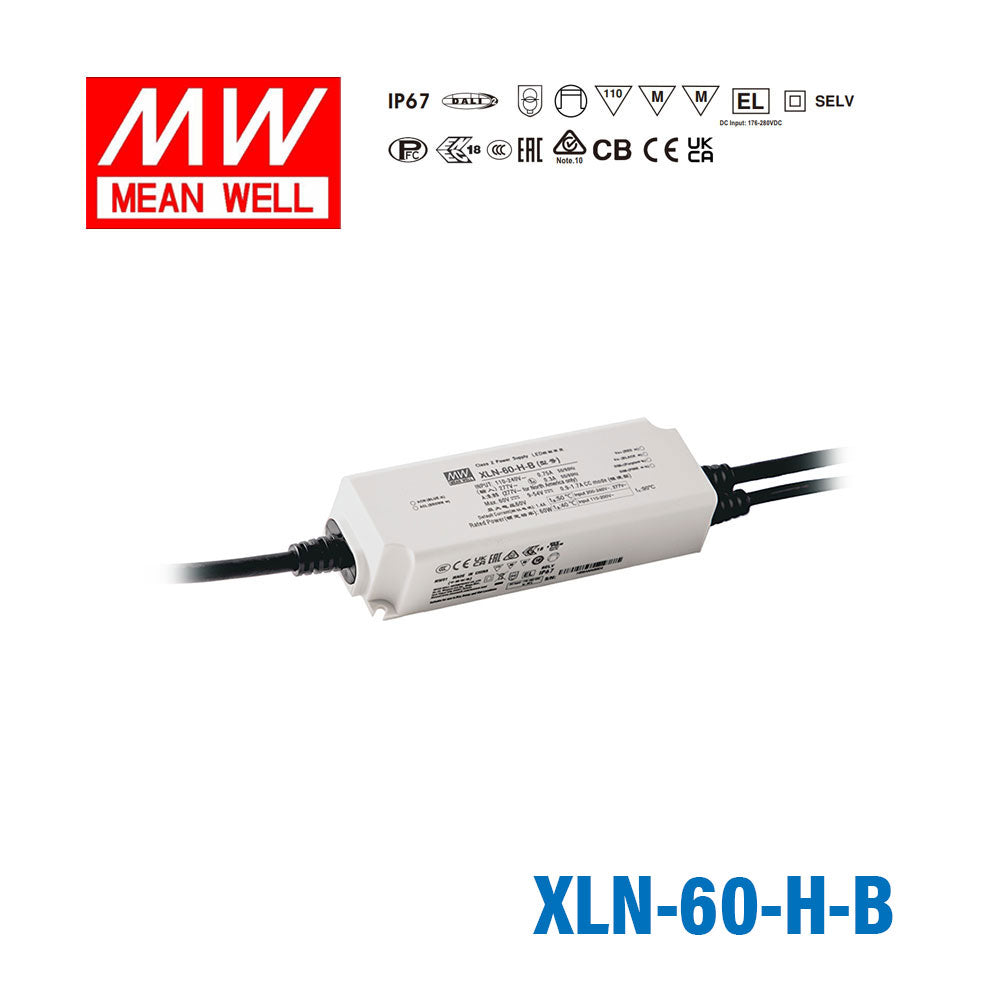

Mean Well XLN-60-H-B LED Driver 60W 1400mA 9~54V Constant Power IP67, 3 in 1 Dimming, NFC Current Setting

current adjustment range 0.9~1.7Aclass II and PFCflicker-free

SKU XLN-60-H-B

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

XLN-60-H-B is the model of this series: rated power 60W, typical efficiency 90%.

XLN-60 Series is a 60W with constant power and constant voltage output LED driver . It can operate from 100~305VAC and output current ranging between 900 mA to 1700 mA selectable by NFC setting. Thanks to high efficiency up to 90%, it is able to operate for -25℃~90℃ case temperature under free air convection. XLN-60 is designed based on latest safety regulation with 3 in 1 and DALI-2 dimming. XLN-60 can be adjusted for brightness with a push button as a simple way dimming, so it provides more flexibility for LED Lighting application.

Features

Constant power mode output with multiple stage selectable by NFC setting (H-type)
Constant voltage mode output available(12/24/48V)
Plastic housing with class Ⅱ and PFC design
Meet UL8750 Class 2 / Class P power unit
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) application
Fully encapsulated with IP67
Minimum dimming level 0.1% (DALI-2 DT6)
Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
5 years warranty

Specifications

XLN-60-H-BSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

OPEN CIRCUIT VOLTAGE^Note15: 60V
DEFAULT CURRENT: 1400mA
CURRENT ADJ. RANGE (BY NFC): 0.9~1.7A
CONSTANT CURRENT REGION: 9~54V
RATED POWER: 60W
CURRENT RIPPLE^Note4: <4%
CURRENT TOLERANCE: ±5%
DIMMING RANGE: 0~100%
SETUP,RISE TIME: 800ms,100ms/230VAC ,1000ms,100ms/115VAC

INPUT

VOLTAGE RANGE: 100~305VAC 155~400VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≥0.95/115VAC, PF≥0.95/230VAC,PF≥0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load ≥60%/230VAC; @load ≥75%/277VAC), THD<10%@load 100%/230VAC (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY(Typ.): 90%
AC CURRENT: 0.75A/115VAC, 0.35A/230VAC, 0.3A/277VAC
INRUSH CURRENT: COLD START 15A(twidth=310μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 25 units (circuit breaker of type B) / 36 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION^Note5: Standby power consumption<0.5W(Dimming OFF, only for standard version B/DA2-type)

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: DA2 type: Stage 1: Derating to 75% loading; stage2: Derating to 50% loading; Recovers automatically after fault condition is removed. Blank & B type: Derating to lowest output level, Recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-25~90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP.,HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY&EMC

SAFETY STANDARDS: UL8750(type "HL" and Class P),CSA C22.2 No. 250.13-12;ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC); BS EN/EN62384 independent, BIS IS15885(Part2/Sec13)(NOTE 13), GB/T19510.1, GB/T19510.213, EAC TP TC 004 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
DALI STANDARDS: Comply with IEC62386-101, 102, 207
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥60%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 , GB17625.1	Class C @load≥60%
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11	70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

OTHERS

FLICKER^Note.9: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 4053.7K hrs min. Telcordia SR-332 (Bellcore) 329.4Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 141.5*49*32mm(L*W*H)
PACKING: 0.49Kg ; 30pcs/15.7Kg/0.81CUFT

Certifications & ratings

Class: 2

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. Current ripple is measured 50%~100% of maximum voltage under rated power delivery.
5. Standby power consumption is measured at 230VAC.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
9. Flicker is measured at full load with the light source provided by MEAN WELL.
10. RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations.
11. This series meets the typical life expectancy of 50000 hours of operation when Tcase,particularly tc point(or TMP,per DLC), is about 75℃ or less.
12. For more information, please contact with MEAN WELL sales.
13. Products sourced from the China regions and some models sourced from India may not have the BIS logo,please refer to BIS certificate for details and contact your MEAN WELL sales for more information.

Technical drawings

XLN-60-H-B BLOCK DIAGRAM — BLOCK DIAGRAM

XLN-60-H-B DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

XLN-60-H-B NFC Function Description — NFC Function Description

XLN-60-H-B DIMMING OPERATION — DIMMING OPERATION

XLN-60-H-B OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

XLN-60-H-B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

XLN-60-H-B POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

XLN-60-H-B EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

XLN-60-H-B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Downloads

Datasheet1

XLN-60-H-B datasheetXLN_60_spec_sheet.pdf · 2026-02-04 edition PDF Download

FAQ

What type of LED load is the Mean Well XLN-60-H-B designed for?

The XLN-60-H-B is a 60W constant power LED driver with a 1400mA rated output current and a 9~54V output range listed in the product name. It is suited to compatible constant-current LED lighting products that fall within those stated output limits.

Does the XLN-60-H-B support dimming?

Yes. This model supports 3 in 1 dimming, with the product data listing 0-10V, 1-10V, PWM, and resistance dimming control options. It also includes dim-to-off functionality according to the description.

Can the output current be adjusted on the XLN-60-H-B?

Yes. The XLN-60-H-B includes NFC current setting, and the description notes multiple stages selectable by NFC setting for H-type models. This helps buyers match the driver to compatible LED loads within the model's supported rating.

Is the XLN-60-H-B suitable for damp or outdoor environments?

The XLN-60-H-B is fully encapsulated and rated IP67. That rating indicates strong protection against dust and water ingress, making it appropriate for demanding lighting environments where an IP67 LED driver is required.

What operating temperature range is listed for this LED driver?

The product data lists an operating temperature range from -25 °C to 90 °C. Buyers should confirm that the final fixture or enclosure environment stays within that rated range.

How does this model differ from a basic non-dimming LED driver?

Compared with a basic fixed-output driver, the XLN-60-H-B adds 3 in 1 dimming support, NFC current setting, IP67 encapsulation, and flicker-free performance listed as compliant with CE ErP directive. It also carries a 5-year warranty.

What warranty is included with the XLN-60-H-B?

The XLN-60-H-B is listed with a 5-year warranty. That makes it a stronger fit for commercial and B2B lighting projects where long service life and manufacturer support matter.
