Over 15 years experience of providing support of MEAN WELL Power Supplies

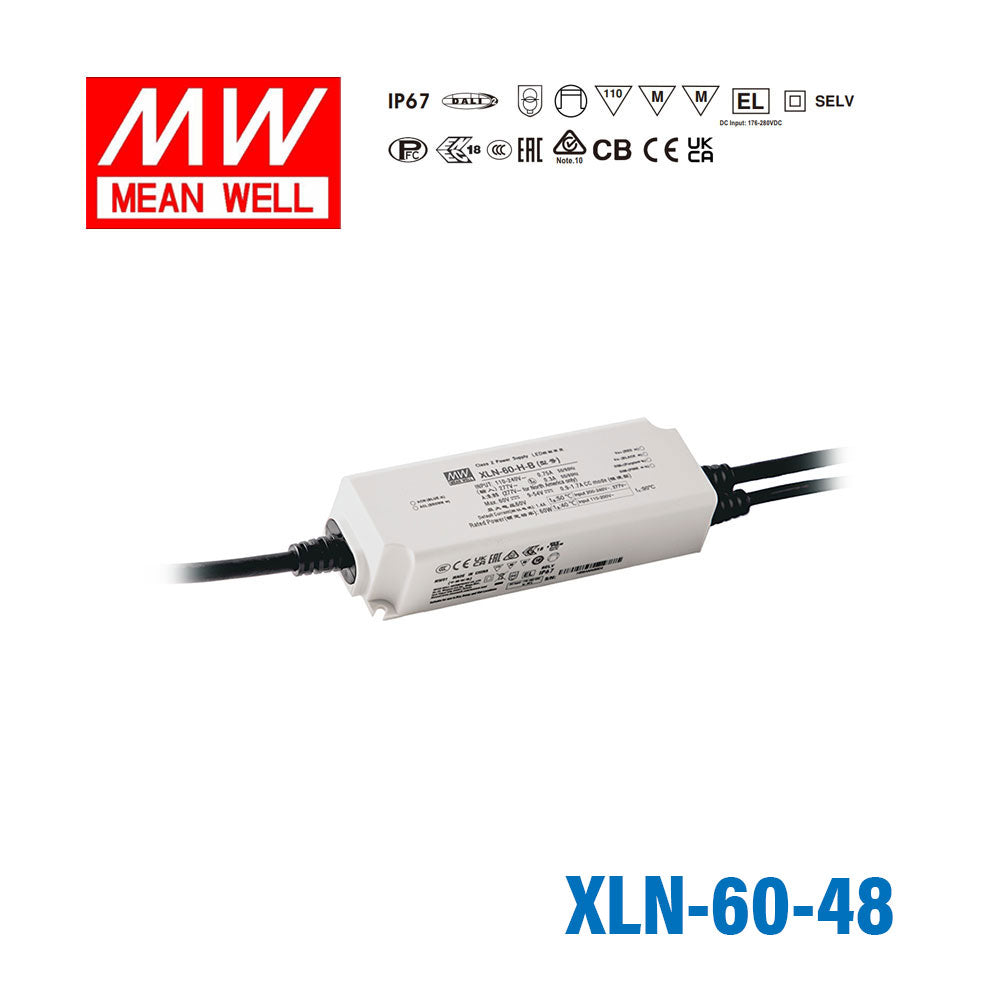

Mean Well XLN-60-48 LED Driver 60W 48V IP67 1.25A
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Fully encapsulated with IP67
- ✓Minimum dimming level <1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length14.15 cm
-
Width3.2 cm
-
Height4.9 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the key electrical ratings of the Mean Well XLN-60-48?
The Mean Well XLN-60-48 is a 60 W LED driver with a 48 V output. Its rated output current is 1.25 A, making it suitable for constant-voltage LED applications that match those ratings.
Is the XLN-60-48 suitable for outdoor or damp environments?
Yes, the XLN-60-48 has a fully encapsulated IP67 design. That rating supports use in demanding environments where protection against dust and water ingress is required.
What types of applications is the XLN-60-48 designed for?
This model is designed for LED driver and AC-DC power supply applications requiring 48 V constant-voltage output. It is also listed as meeting emergency lighting application requirements.
Is the XLN-60-48 dimmable?
The provided product data lists this specific XLN-60-48 configuration as non-dimmable. Buyers needing dimming should confirm they are selecting a version with the required dimming control feature.
What operating temperature range does the XLN-60-48 support?
The listed operating temperature range for the XLN-60-48 is -25 °C to 90 °C. This wide range supports use in many commercial and industrial LED power applications.
How does the XLN-60-48 differ from lower-voltage LED drivers?
The XLN-60-48 provides a 48 V output, while lower-voltage drivers are designed for systems such as 12 V or 24 V loads. It should be selected when the LED system requires a 48 V constant-voltage supply within the 60 W power limit.
What warranty is provided with the Mean Well XLN-60-48?
The XLN-60-48 is listed with a 5-year warranty. This warranty period is part of the product data for this specific Mean Well LED driver model.
