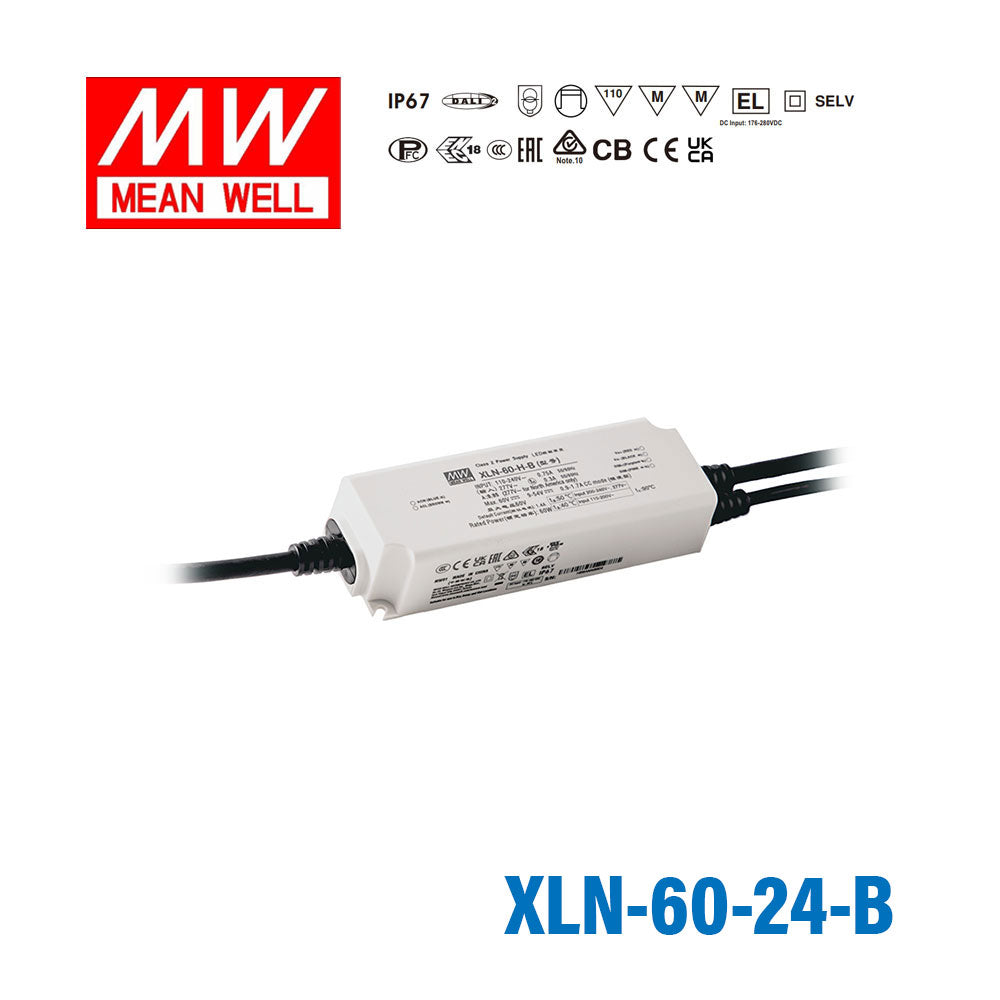

Mean Well XLN-60-24-B LED Driver 60W 24V IP67, 3 in 1 Dimming

Q: What are the main output specifications of the Mean Well XLN-60-24-B?

The XLN-60-24-B is a 60 W LED driver with a 24 V output and a rated current of 2.5 A. It is designed for constant voltage LED applications that match these electrical requirements.

Q: What dimming controls does the XLN-60-24-B support?

This model supports 3-in-1 dimming control using 0-10 V PWM, 1-10 V, and resistance-based dimming inputs. It is intended for projects where dimming control is required, while still using a 24 V constant voltage LED driver.

Q: Can the XLN-60-24-B be used in outdoor or damp environments?

The XLN-60-24-B is fully encapsulated and rated IP67. That rating makes it suitable for many demanding LED driver environments where protection from dust and water ingress is required.

Q: What types of LED projects is the XLN-60-24-B typically used for?

This driver is a fit for 24 V LED lighting systems that need up to 60 W of power and dimming capability. Its IP67 enclosure and flicker-free design make it relevant for commercial, architectural, and B2B lighting applications.

Q: What operating temperature range is specified for the XLN-60-24-B?

The listed temperature range for this model is -25 °C to 90 °C. Buyers should confirm that the product location and application conditions stay within that specified range.

Q: How is the XLN-60-24-B different from a non-dimming 24 V LED driver?

Unlike a basic fixed-output 24 V driver, the XLN-60-24-B includes 3-in-1 dimming support. It also combines a 60 W power rating, IP67 encapsulation, flicker-free performance, and a 5-year warranty in this specific model.

Q: What warranty period applies to the Mean Well XLN-60-24-B?

The XLN-60-24-B is listed with a 5-year warranty. This can be an important factor for B2B lighting projects where long service life and product support matter.

constant voltageclass II and PFCflicker-free

SKU XLN-60-24-B

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well XLN-60-24-B is a 60W constant voltage LED driver with a regulated output of 24V DC at up to 2.5A. Housed in a fully potted IP67 plastic case with built-in active PFC, it requires no earth connection and is flicker-free to the CE ErP directive.

Accepting 110~305VAC universal input, the XLN-60-24-B operates at a case temperature of -25°C to 90°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It supports 1-10V, 10V PWM and resistance dimming. Protected against short circuit and over temperature, and backed by a 5-year warranty.

Key Features

✓Constant voltage mode output (12V/24V/48V)
✓Plastic housing with class II/2 and PFC design
✓Flicker-free, complying with IEEE1789/ErP
✓Standby power consumption <0.5W
✓Meet emergency lighting (EL) application
✓Fully encapsulated with IP67
✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
✓5 years warranty

Frequently Asked Questions

What are the main output specifications of the Mean Well XLN-60-24-B?

The XLN-60-24-B is a 60 W LED driver with a 24 V output and a rated current of 2.5 A. It is designed for constant voltage LED applications that match these electrical requirements.

What dimming controls does the XLN-60-24-B support?

This model supports 3-in-1 dimming control using 0-10 V PWM, 1-10 V, and resistance-based dimming inputs. It is intended for projects where dimming control is required, while still using a 24 V constant voltage LED driver.

Can the XLN-60-24-B be used in outdoor or damp environments?

The XLN-60-24-B is fully encapsulated and rated IP67. That rating makes it suitable for many demanding LED driver environments where protection from dust and water ingress is required.

What types of LED projects is the XLN-60-24-B typically used for?

This driver is a fit for 24 V LED lighting systems that need up to 60 W of power and dimming capability. Its IP67 enclosure and flicker-free design make it relevant for commercial, architectural, and B2B lighting applications.

What operating temperature range is specified for the XLN-60-24-B?

The listed temperature range for this model is -25 °C to 90 °C. Buyers should confirm that the product location and application conditions stay within that specified range.

How is the XLN-60-24-B different from a non-dimming 24 V LED driver?

Unlike a basic fixed-output 24 V driver, the XLN-60-24-B includes 3-in-1 dimming support. It also combines a 60 W power rating, IP67 encapsulation, flicker-free performance, and a 5-year warranty in this specific model.

What warranty period applies to the Mean Well XLN-60-24-B?

The XLN-60-24-B is listed with a 5-year warranty. This can be an important factor for B2B lighting projects where long service life and product support matter.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well XLN-60-H LED Driver 60W 1400mA 9~54V Constant Power IP67, NFC Current Setting	60W	60V	1.4A	IP67	View
Mean Well XLN-60-H-DA2 LED Driver 60W 1400mA 9~54V Constant Power IP67, DALI2 + Push Dimming, NFC Current Setting	60W	60V	1.4A	IP67	View
Mean Well XLN-60-H-B LED Driver 60W 1400mA 9~54V Constant Power IP67, 3 in 1 Dimming, NFC Current Setting	60W	60V	1.4A	IP67	View
Mean Well XLN-60-48-DA2 LED Driver 60W 48V IP67, DALI2 + Push Dimming 1.25A	60W	48V	1.25A	IP67	View
Mean Well XLN-60-48-B LED Driver 60W 48V IP67, 3 in 1 Dimming	60W	48V	1.25A	IP67	View
Mean Well XLN-60-48 LED Driver 60W 48V IP67 1.25A	60W	48V	1.25A	IP67	View
Mean Well XLN-60-24-DA2 LED Driver 60W 24V IP67, DALI2 + Push Dimming 2.5A	60W	24V	2.5A	IP67	View
Mean Well XLN-60-24 LED Driver 60W 24V IP67 2.5A	60W	24V	2.5A	IP67	View
Mean Well XLN-60-12-DA2 LED Driver 60W 12V IP67, DALI2 + Push Dimming 5A	60W	12V	5A	IP67	View
Mean Well XLN-60-12-B LED Driver 60W 12V IP67, 3 in 1 Dimming	60W	12V	5A	IP67	View
Mean Well XLN-60-12 LED Driver 60W 12V IP67 5A	60W	12V	5A	IP67	View
