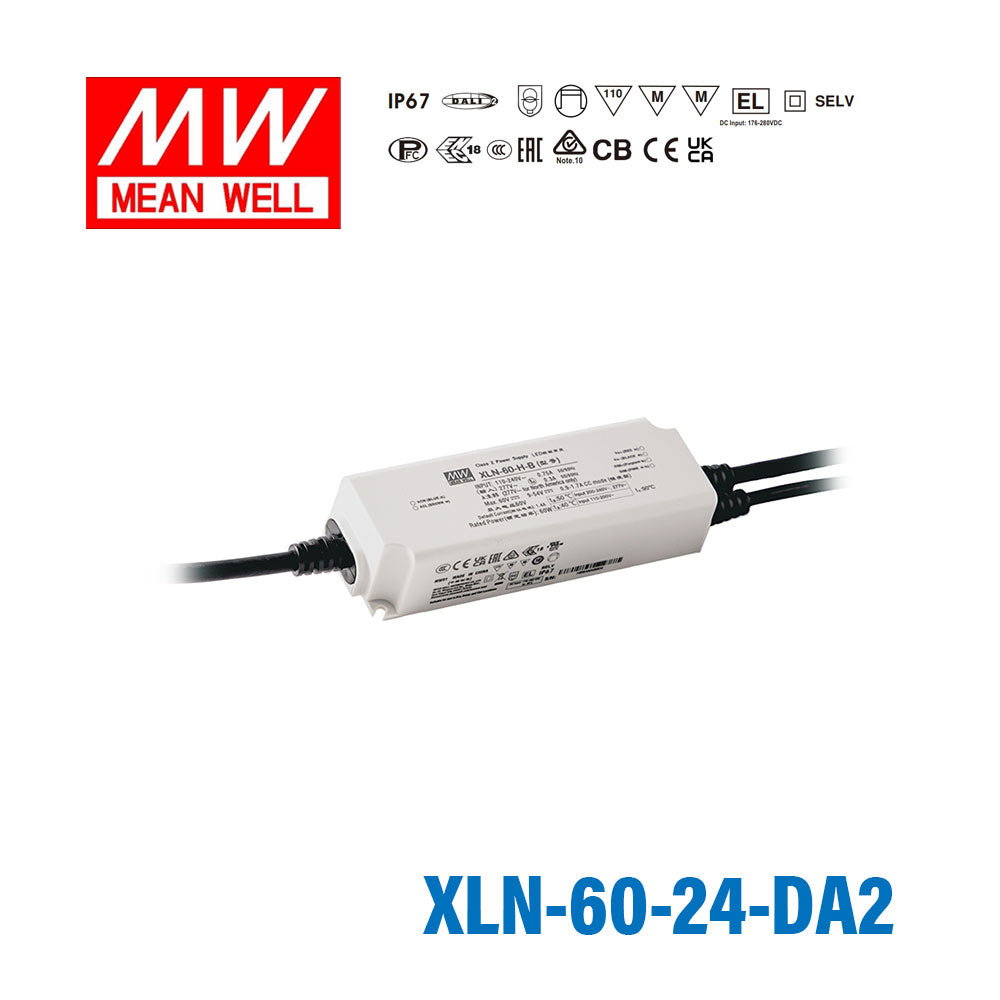

Mean Well XLN-60-24-DA2 LED Driver 60W 24V IP67, DALI2 + Push Dimmi...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Fully encapsulated with IP67
- ✓Minimum dimming level <1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length14.15 cm
-
Width3.2 cm
-
Height4.9 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED load is the Mean Well XLN-60-24-DA2 intended for?
The XLN-60-24-DA2 is a 24V constant-voltage LED driver rated for 60W output. It is suited to 24V LED lighting products that stay within the listed 2.5A rated current and 60W power rating.
Does the XLN-60-24-DA2 support DALI dimming?
Yes. This model is listed with DALI dimming control and the product description references DALI-2 DT6 dimming with a minimum dimming level below 1%. It also includes push dimming support.
Can the XLN-60-24-DA2 be used in damp or outdoor-rated lighting applications?
The XLN-60-24-DA2 is fully encapsulated and rated IP67. That rating makes it appropriate for applications where a waterproof LED driver is required, provided the application stays within the product's electrical and temperature ratings.
What are the main output specifications of the XLN-60-24-DA2?
This model provides 60W of rated output power at 24V. Its rated output current is 2.5A, making it a constant-voltage LED driver for 24V systems.
Is the XLN-60-24-DA2 designed for low-flicker lighting?
Yes. The product description lists flicker-free performance and compliance with IEEE1789 and ErP. That makes it relevant for buyers comparing LED drivers for lighting quality and visual comfort.
What operating temperature range is listed for the XLN-60-24-DA2?
The listed temperature range for this model is -25°C to 90°C. Buyers should keep the product within those stated limits for the intended lighting application.
What warranty does the Mean Well XLN-60-24-DA2 include?
The XLN-60-24-DA2 is listed with a 5-year warranty. This is useful for B2B buyers comparing LED drivers for long-term projects and maintenance planning.
