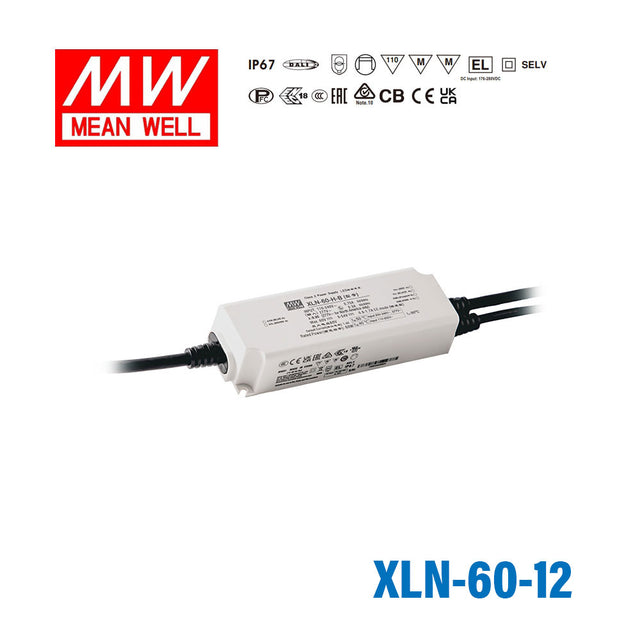

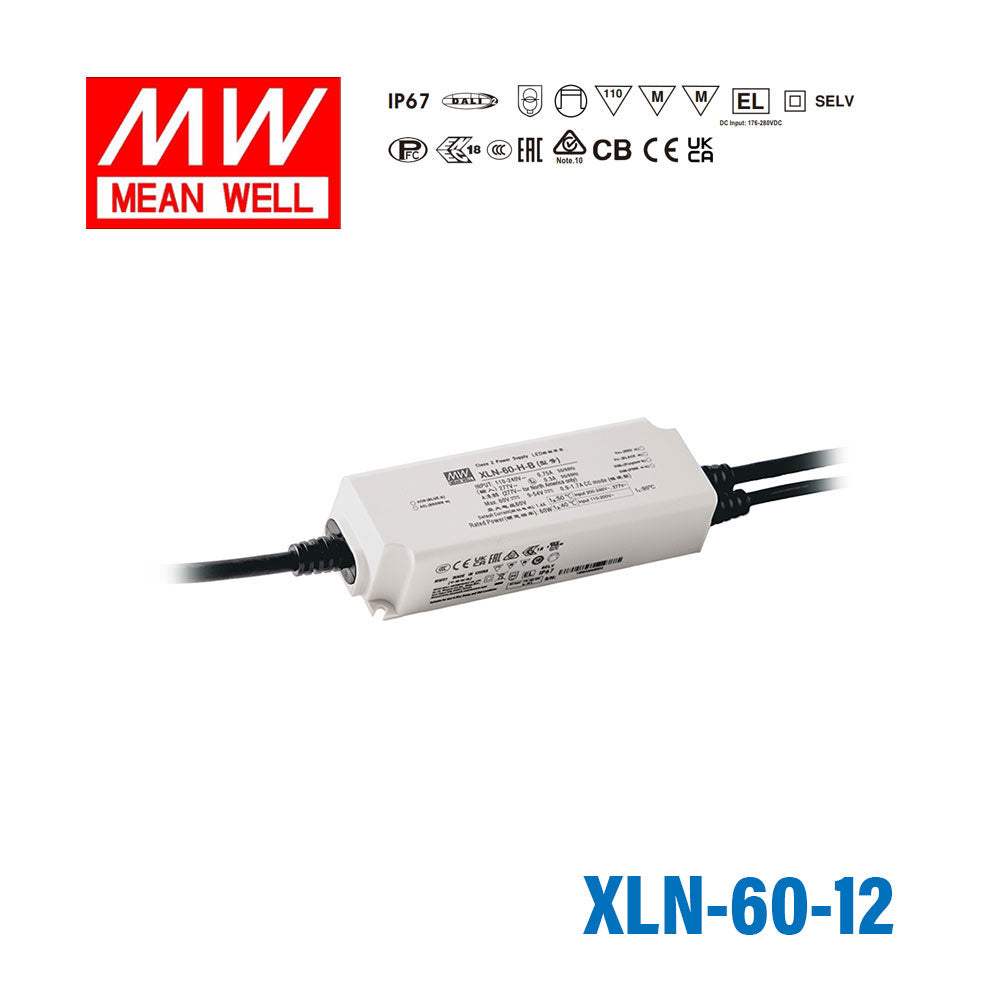

Mean Well XLN-60-12 LED Driver 60W 12V IP67 5A
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Fully encapsulated with IP67
- ✓Minimum dimming level <1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length14.15 cm
-
Width3.2 cm
-
Height4.9 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well XLN-60-12?
The Mean Well XLN-60-12 is a 60W constant-voltage LED driver with a 12V output. Its rated output current is 5A, making it suitable for 12V LED loads within the 60W power limit.
What type of LED applications is the XLN-60-12 used for?
The XLN-60-12 is intended for 12V constant-voltage LED applications. Its 60W rating makes it a fit for commercial or project-based LED lighting where a compact AC/DC LED driver is required.
Is the Mean Well XLN-60-12 suitable for damp or outdoor environments?
The XLN-60-12 is fully encapsulated and rated IP67. That rating supports use in demanding environments where protection against dust and water exposure is required.
What temperature range does the XLN-60-12 support?
This model is specified for operation from -25°C to 90°C. Buyers should confirm that the planned application stays within that temperature range.
How does the XLN-60-12 differ from higher-voltage XLN models?
The XLN-60-12 is the 12V version in the XLN 60W constant-voltage range. Other listed output voltage options in the family include 24V and 48V, so the XLN-60-12 is selected when the application requires 12V output.
Is the XLN-60-12 a dimmable LED driver?
The provided product data identifies this SKU with dimming control listed as non-dimmable. If dimming is required, buyers should verify the exact XLN variant and control type before selecting a model.
What warranty does the Mean Well XLN-60-12 include?
The XLN-60-12 is listed with a 5-year warranty. This is useful for B2B buyers comparing long-term support across LED driver options.
