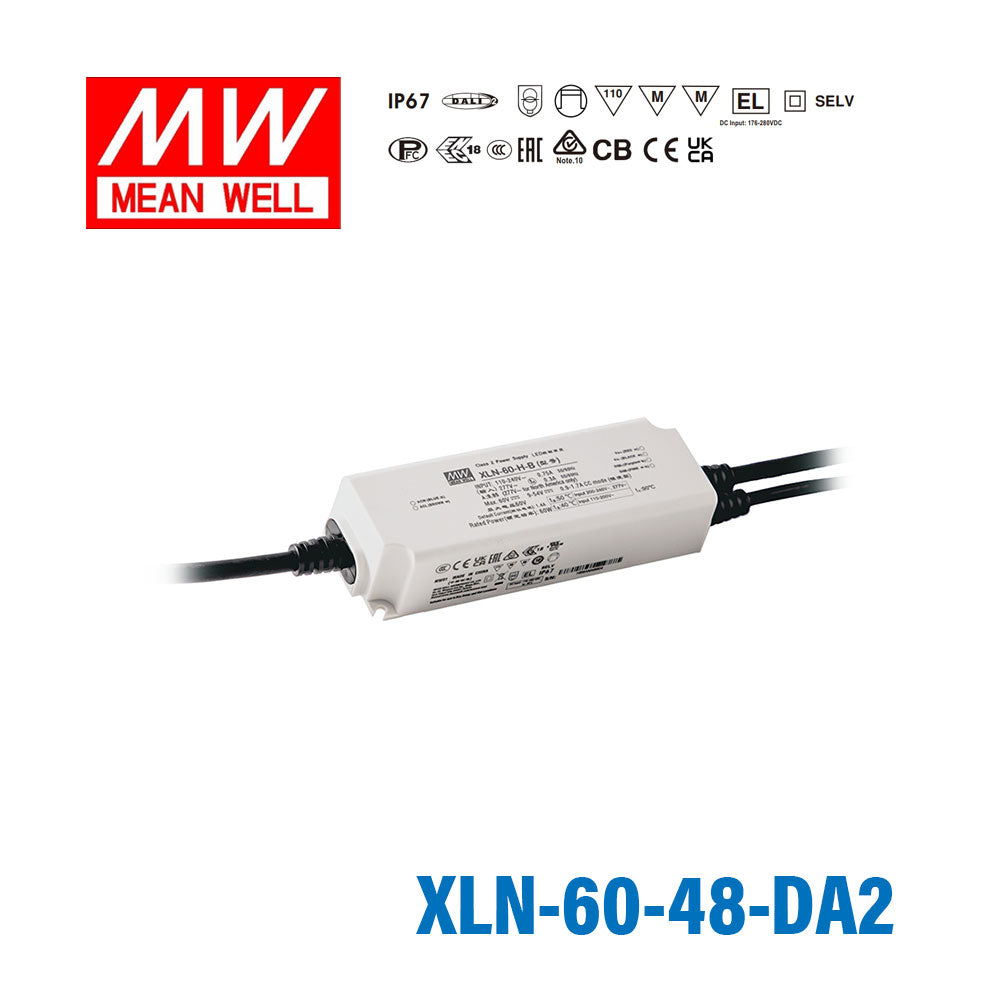

Mean Well XLN-60-48-DA2 LED Driver 60W 48V IP67, DALI2 + Push Dimmi...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Fully encapsulated with IP67
- ✓Minimum dimming level <1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length14.15 cm
-
Width3.2 cm
-
Height4.9 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well XLN-60-48-DA2 provide?
The XLN-60-48-DA2 is a 60 W constant voltage LED driver with a 48 V output. Its rated output current is 1.25 A, making it suitable for compatible 48 V LED loads within the listed power rating.
Does the XLN-60-48-DA2 support DALI dimming?
Yes. This model supports DALI dimming and is listed with DALI-2 DT6 capability, with a minimum dimming level below 1%. It also includes push dimming as part of its dimming functions.
Can the XLN-60-48-DA2 be used in wet or demanding environments?
The XLN-60-48-DA2 is fully encapsulated and rated IP67. It is specified for an operating temperature range from -25 °C to 90 °C, supporting use in demanding LED driver applications where that rating is required.
What types of LED applications is this driver intended for?
This model is intended for 48 V constant voltage LED applications requiring up to 60 W of power. Its DALI dimming, push dimming, flicker-free design, and IP67 rating make it relevant for professional LED lighting projects with dimming and environmental requirements.
Is the XLN-60-48-DA2 designed for low standby power?
Yes. The product description lists standby power consumption below 0.5 W. It also includes PFC design and a plastic housing with class II/2 construction.
What distinguishes the DA2 version of the XLN-60-48 from a basic 48 V LED driver?
The DA2 version includes DALI dimming support and push dimming, which are not features of every basic 48 V LED driver. It also lists flicker-free performance, IP67 encapsulation, and a 5-year warranty for this model.
What warranty is listed for the Mean Well XLN-60-48-DA2?
The XLN-60-48-DA2 is listed with a 5-year warranty. That warranty period applies to this specific 60 W, 48 V IP67 LED driver model as provided in the product data.
