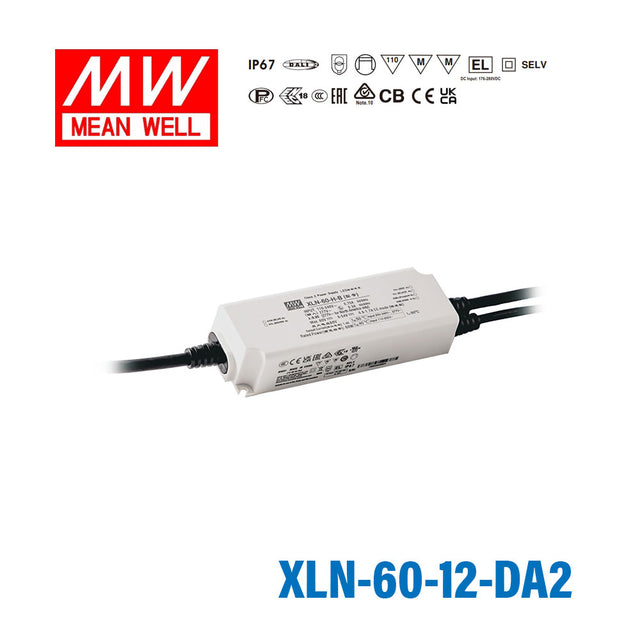

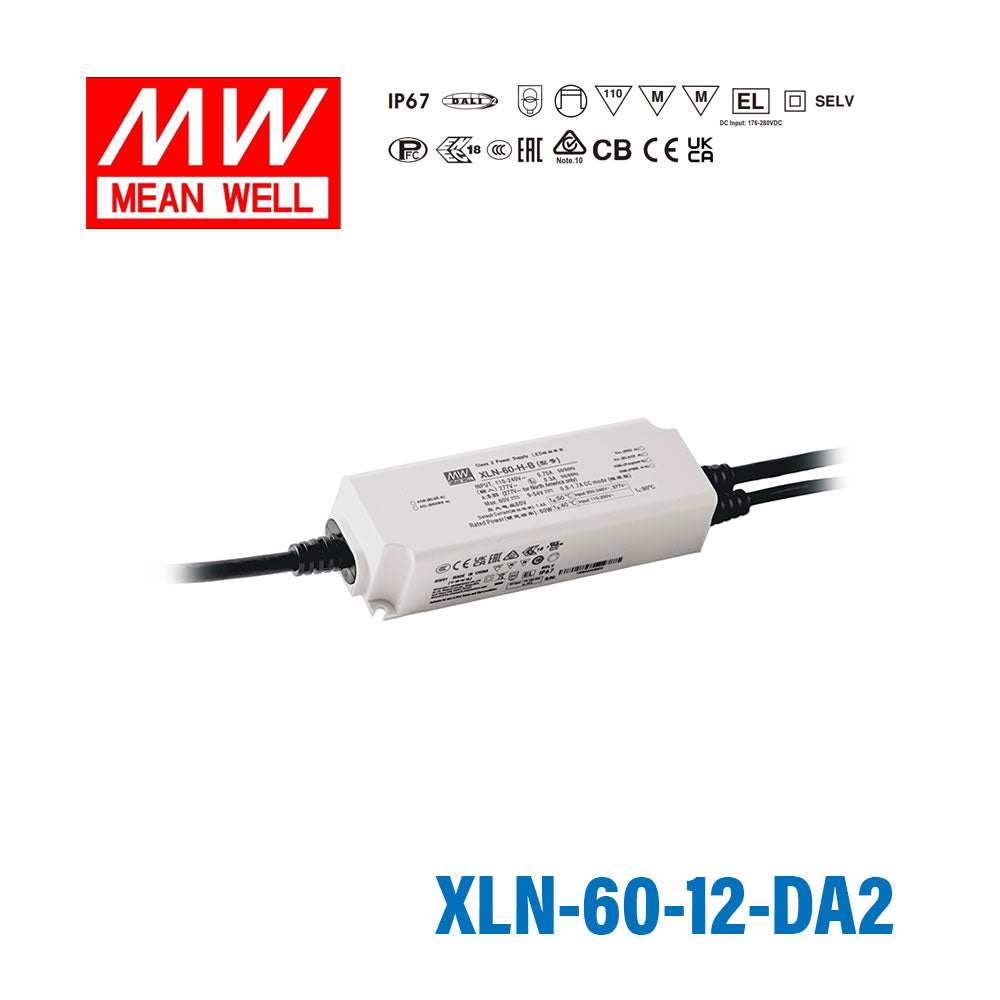

Mean Well XLN-60-12-DA2 LED Driver 60W 12V IP67, DALI2 + Push Dimmi...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Fully encapsulated with IP67
- ✓Minimum dimming level <1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage110V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length14.15 cm
-
Width3.2 cm
-
Height4.9 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the key output ratings of the Mean Well XLN-60-12-DA2?
The XLN-60-12-DA2 is a 60 W LED driver with a 12 V constant voltage output. Its rated output current is 5 A, making it suitable for compatible 12 V LED loads within the 60 W power rating.
Does the XLN-60-12-DA2 support DALI dimming?
Yes. This model supports DALI dimming and is described as DALI-2 DT6 capable, with a minimum dimming level below 1%. It also includes push dimming support according to the provided product data.
Is the XLN-60-12-DA2 suitable for wet or outdoor environments?
The XLN-60-12-DA2 is fully encapsulated and rated IP67. That rating indicates strong protection against dust and water ingress for demanding LED driver environments.
What operating temperature range is listed for the XLN-60-12-DA2?
The listed temperature range for this model is -25 °C to 90 °C. Buyers should confirm that the intended application stays within the specified limits for the driver.
What types of lighting applications is this LED driver intended for?
The XLN-60-12-DA2 is intended for constant voltage LED driver applications requiring 12 V output and up to 60 W of power. Its DALI dimming, push dimming, IP67 rating, and flicker-free design make it relevant for commercial LED lighting projects where those features are required.
How is the XLN-60-12-DA2 different from a basic non-dimmable 12 V LED driver?
This model includes DALI dimming and push dimming rather than only fixed-output operation. It also lists features such as flicker-free operation, IP67 encapsulation, PFC design, standby power below 0.5 W, and a 5-year warranty.
What warranty period is provided for the XLN-60-12-DA2?
The listed warranty period for the Mean Well XLN-60-12-DA2 is 5 years. This is part of the product information provided for this specific LED driver model.
