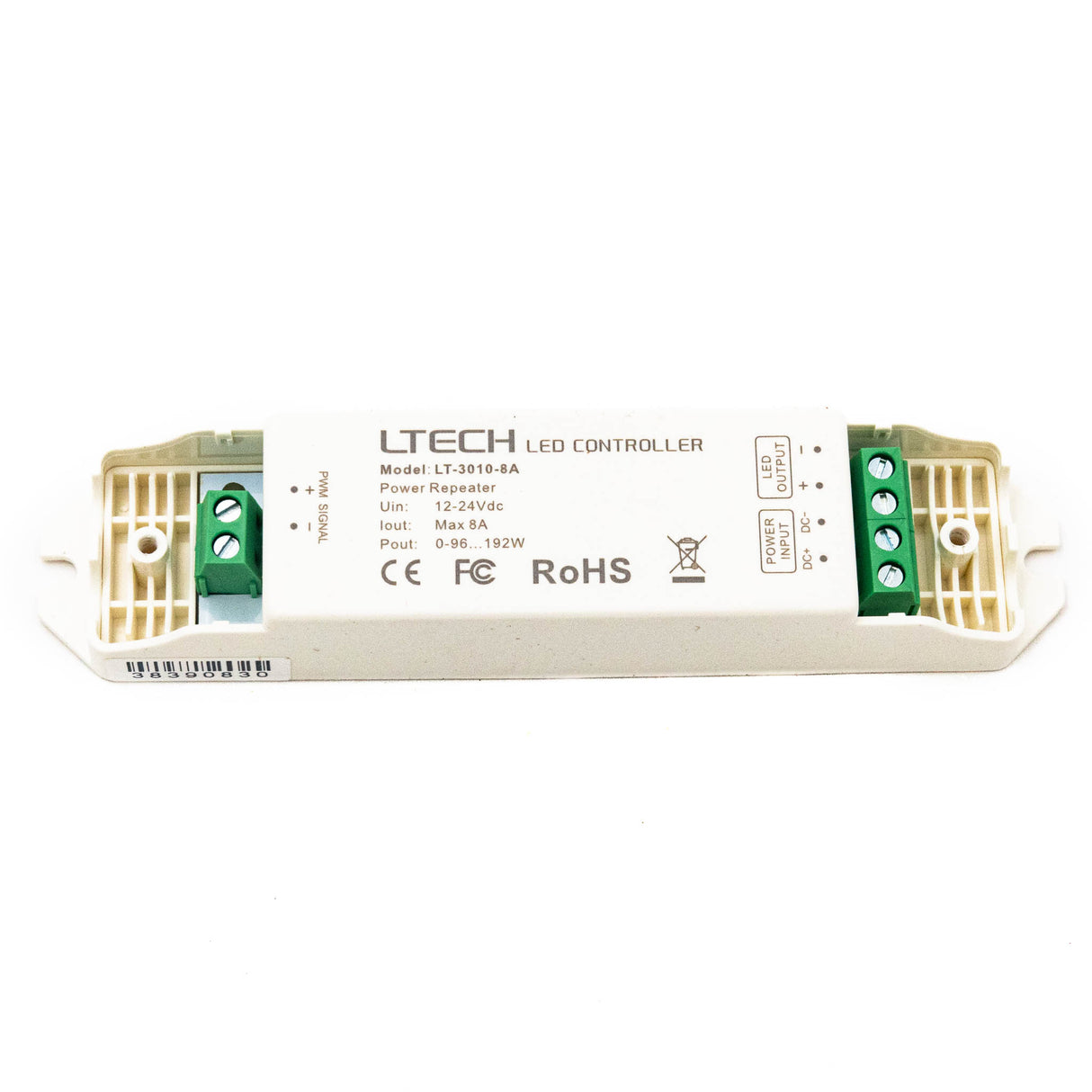

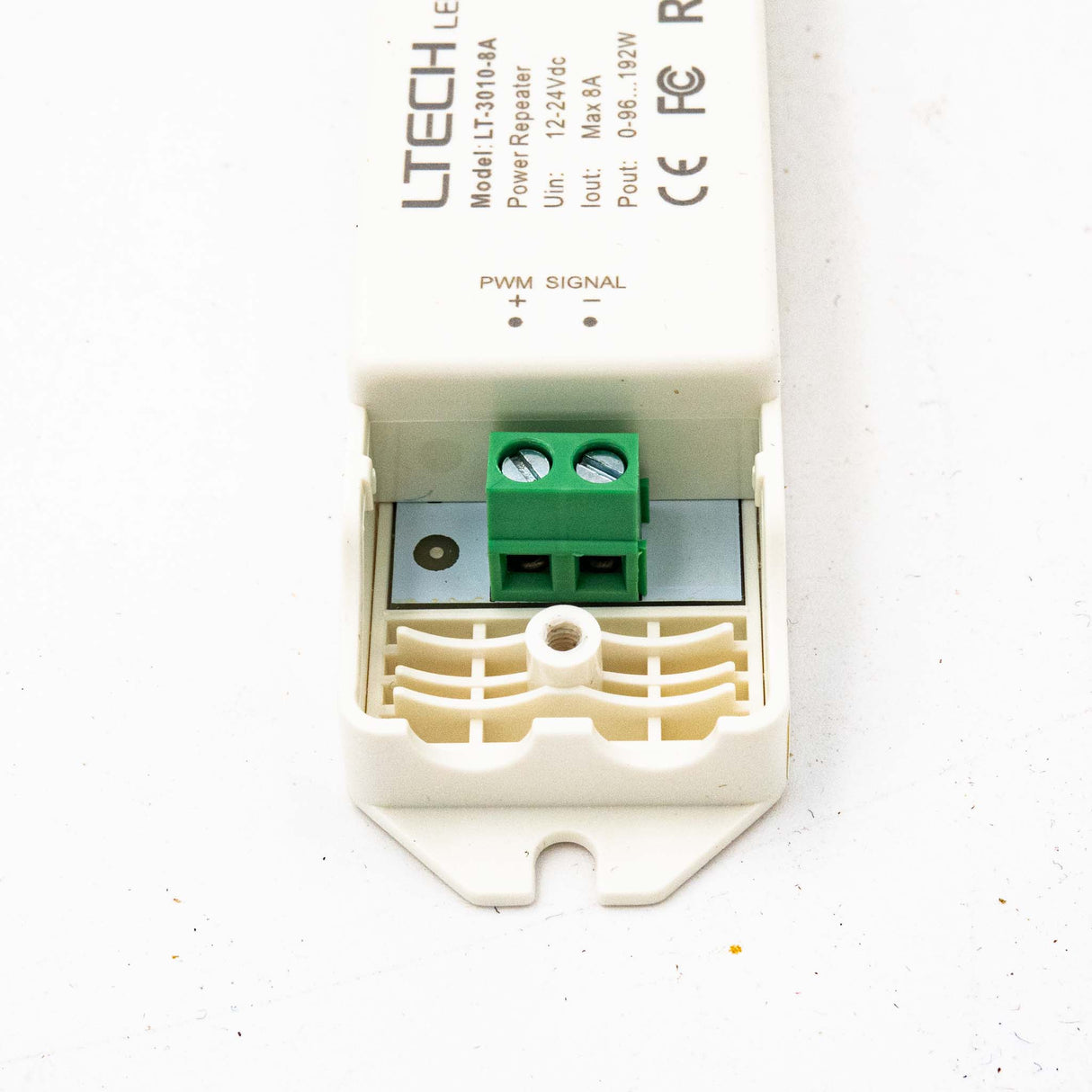

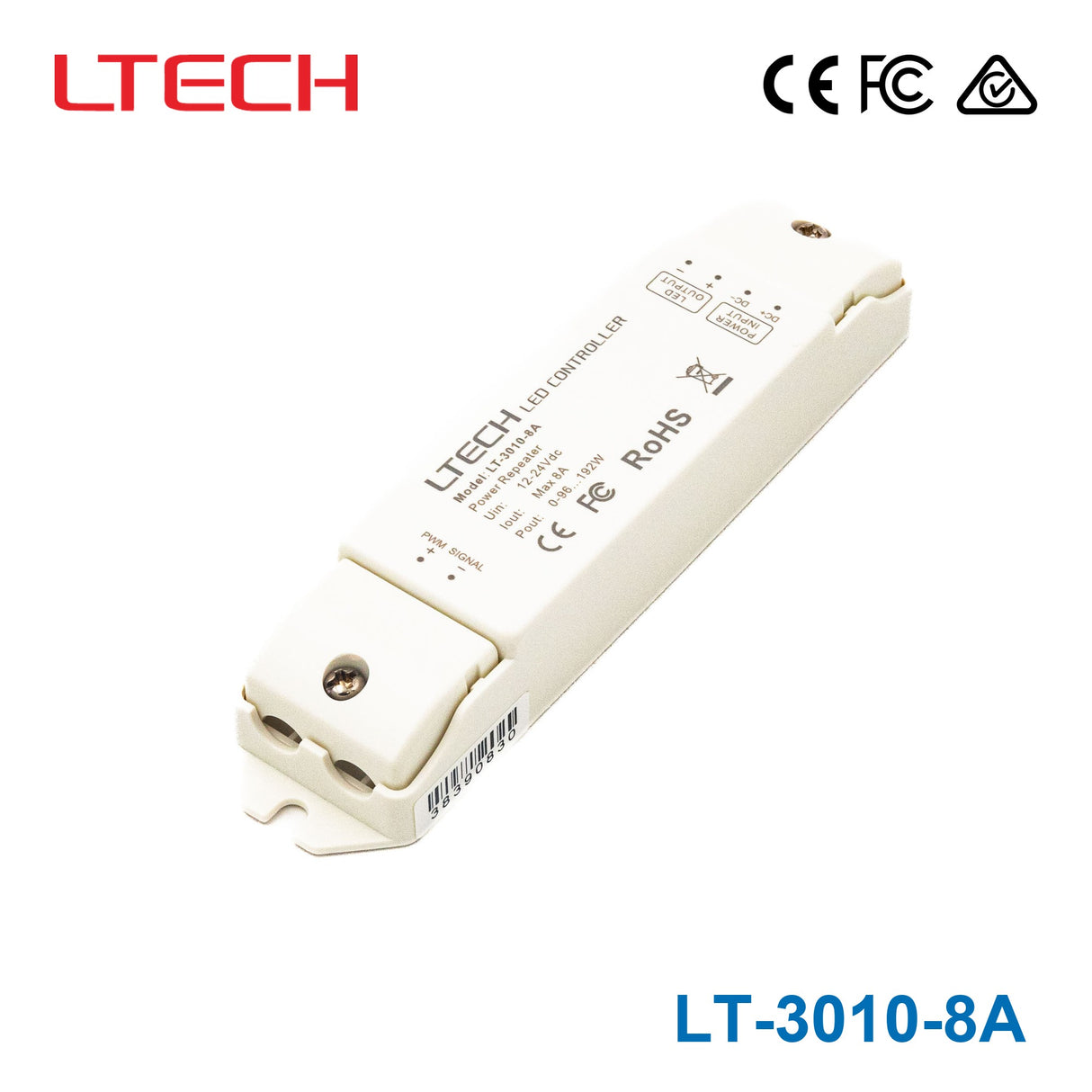

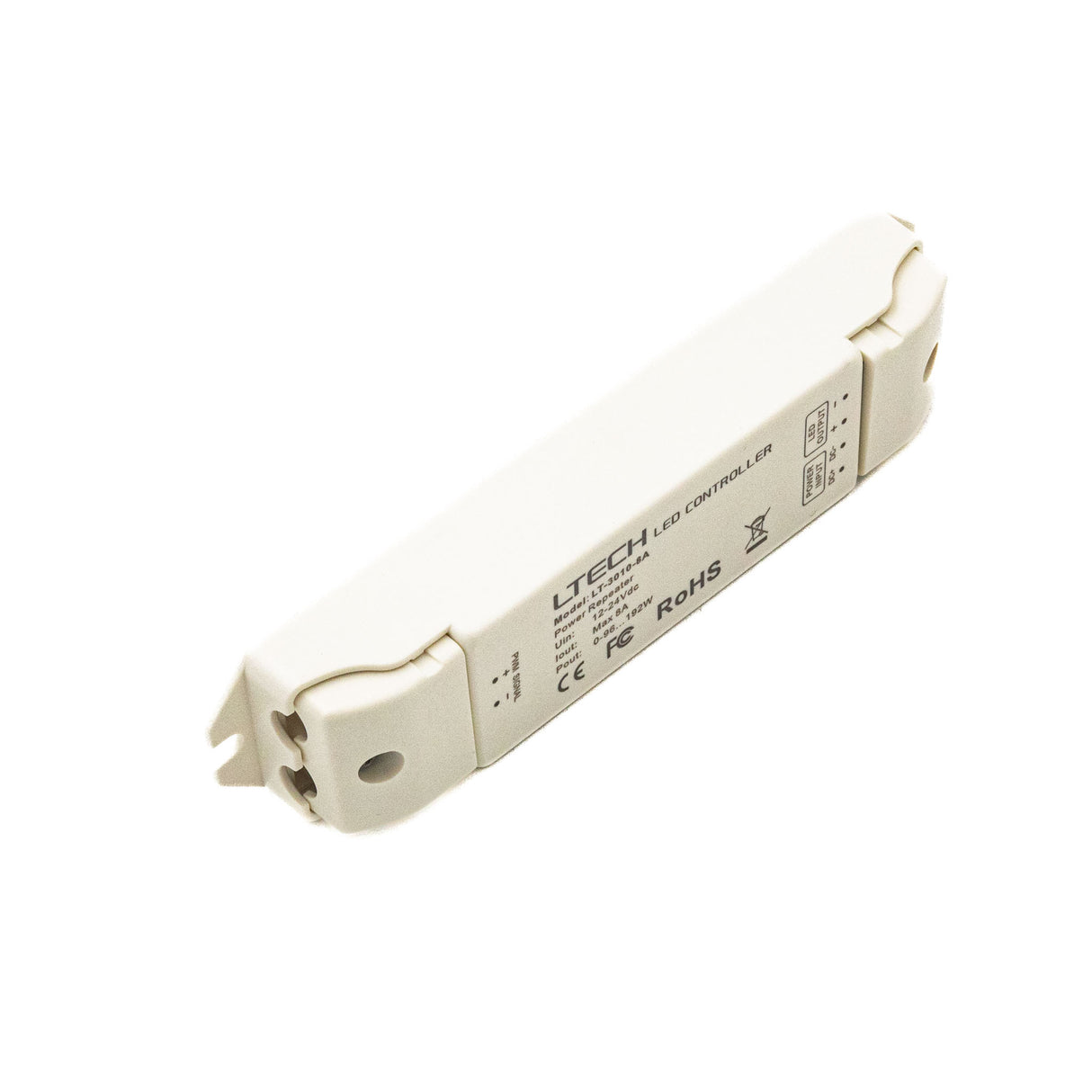

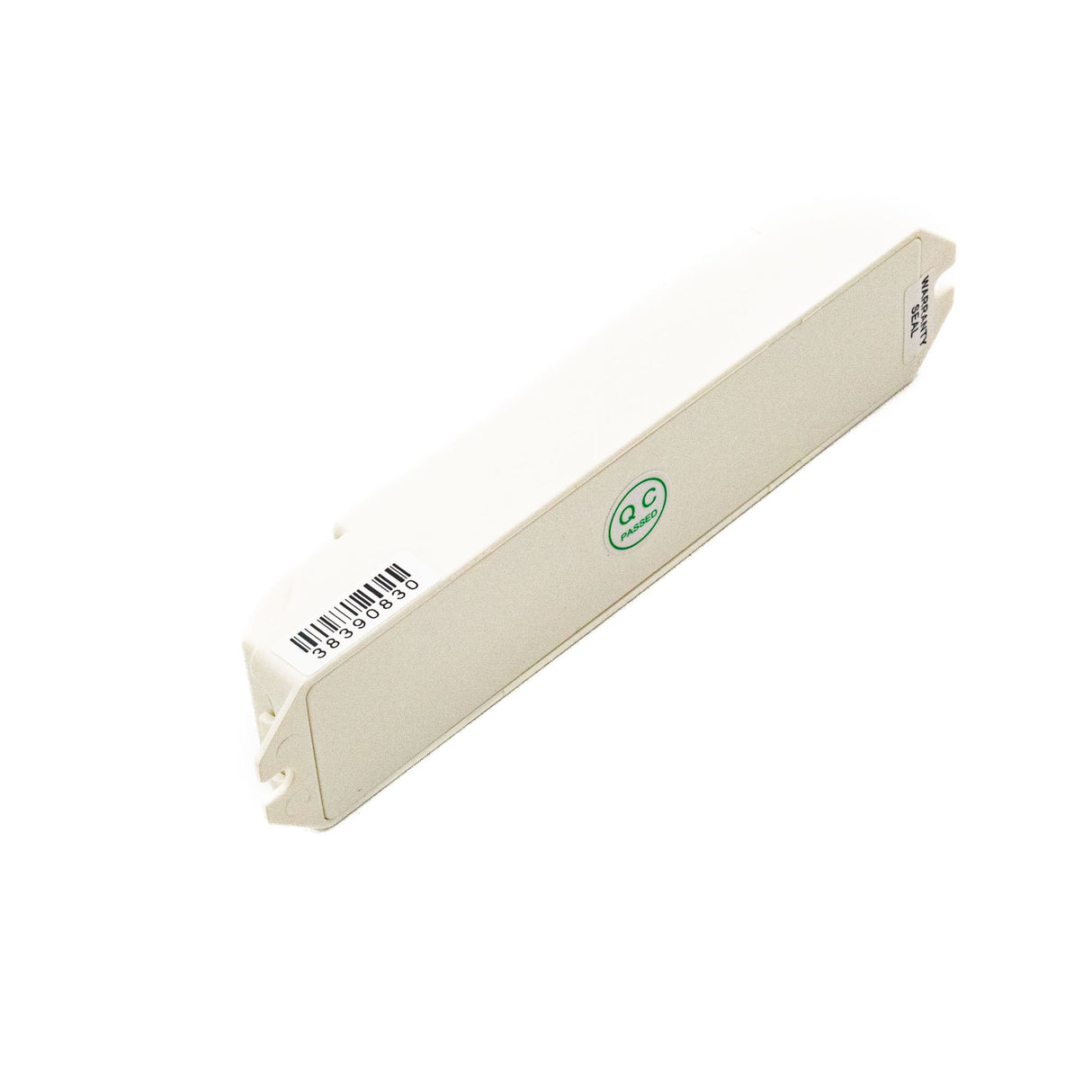

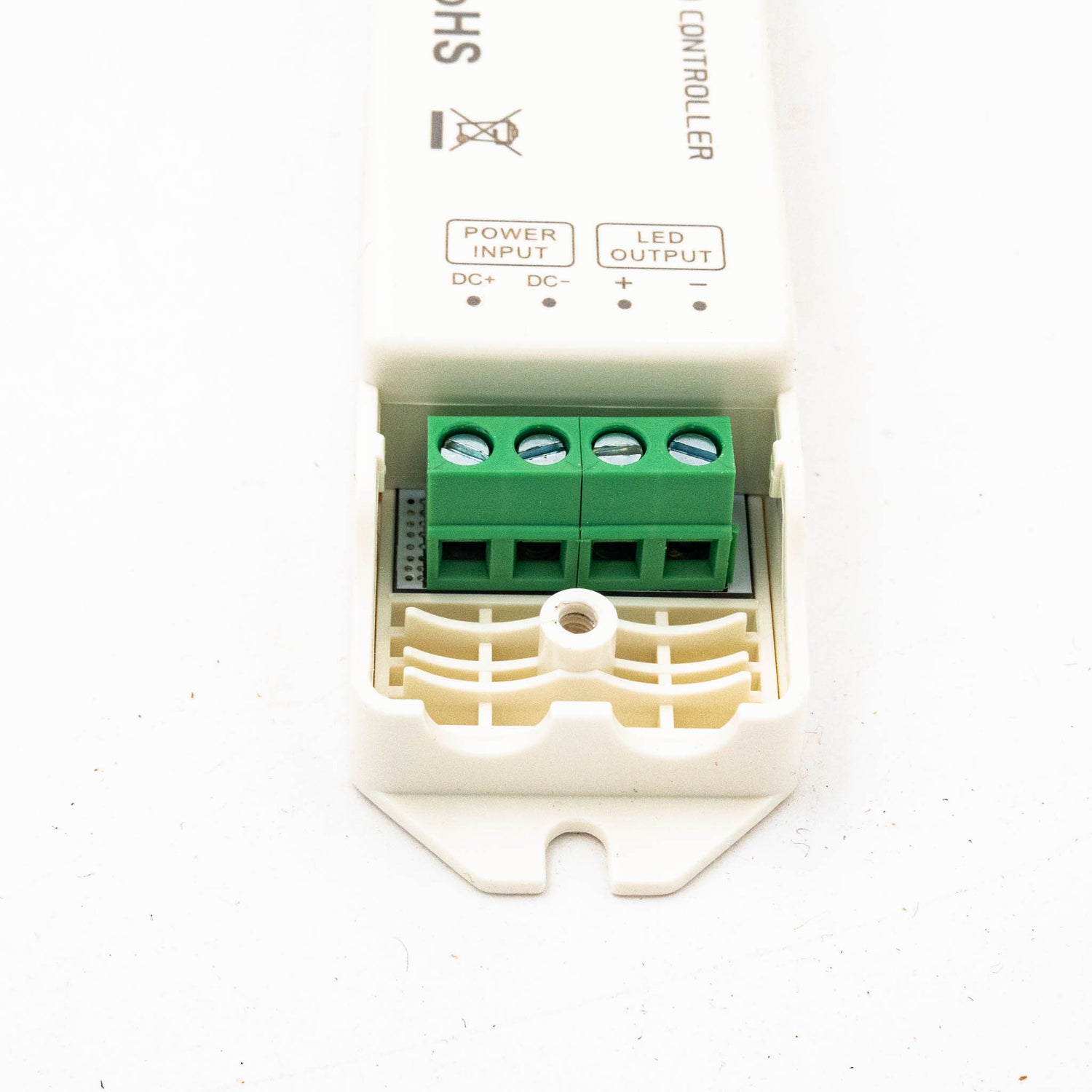

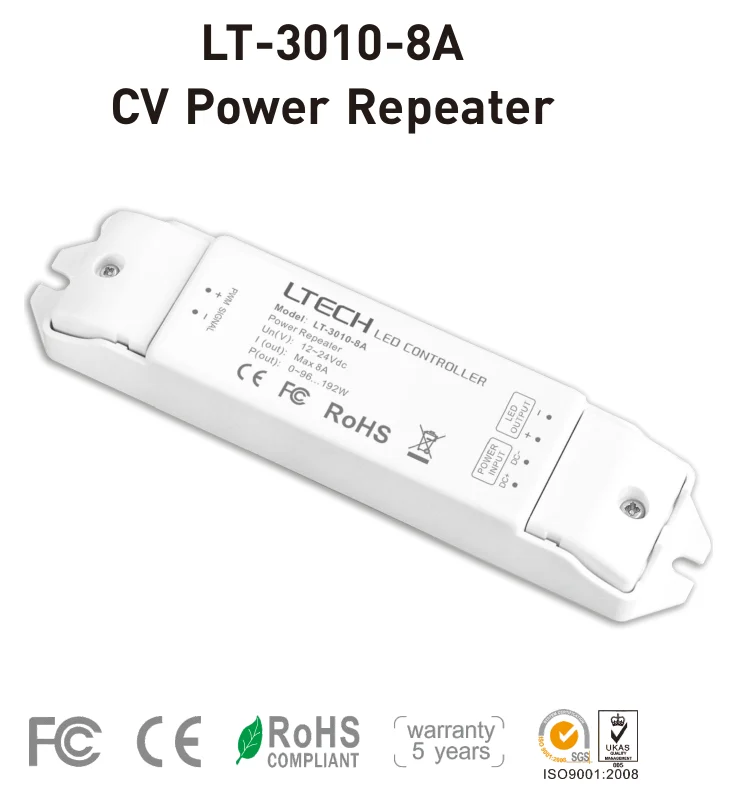

Ltech LT-3010-8A PWM Constant Voltage Repeater - Dimming
Log in to see priceOverview

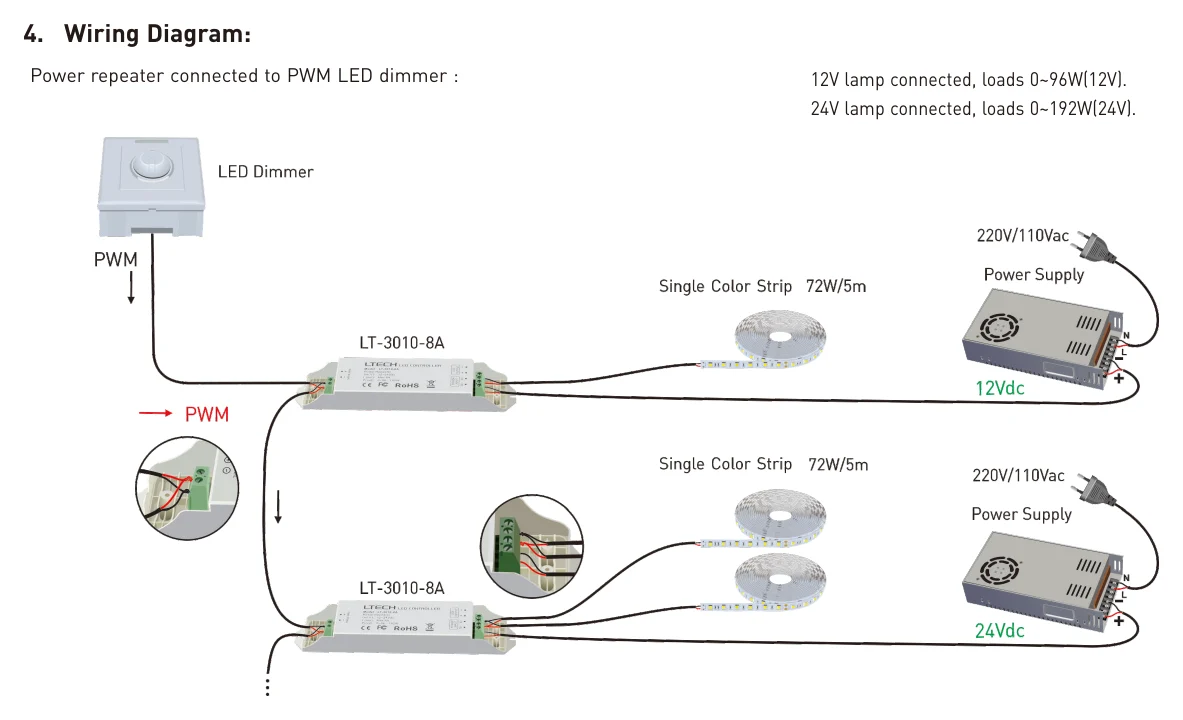

LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion, it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically. Signal input and output of LED power repeater have security protection function with photoelectricity isolation of 5KV.
Specifications
Technical Specs
- Input Signal
- PWM
- Input Voltage
- 12~24Vdc
- Current Load
- 8A max per channel
- Power Load
- Max. 96W/192W(12V/24V)
- Working Temp.
- -30 ℃ ~55 ℃
- Dimensions
- L135×W30×H20(mm)
- Package Size
- L140×W34×H23(mm)
- Weight (G.W.)
- 65g
Certifications & ratings
- Certification marks
- FCC, CE, RoHS, ISO9001:2008

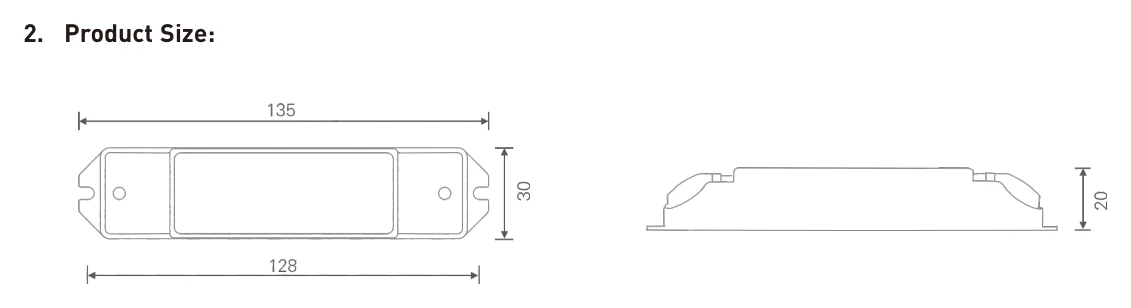

Technical drawings
Downloads
FAQ
What does the Ltech LT-3010-8A do?
The LT-3010-8A is a PWM constant-voltage repeater used to expand the power output capacity of compatible LED control systems. It is intended for dimming applications where additional load handling is needed beyond the original controller's output.
What are the electrical ratings of the LT-3010-8A?
This model supports 12~24Vdc input, with a current load of 8A max per channel. The power load is up to 96W at 12V or 192W at 24V. These ratings make it suitable for constant-voltage LED dimming systems that need higher output capacity.
Is the LT-3010-8A a controller or a repeater?
The LT-3010-8A is a repeater, not a standalone dimming controller. Its role is to repeat PWM control signals and extend output capability within a compatible constant-voltage lighting setup.
What kind of control signal is this model designed for?
According to the product description, the LT-3010-8A accepts PWM control. That makes it appropriate for systems built around PWM-based constant-voltage dimming rather than products that require a different control method.
Can the LT-3010-8A be used in demanding environments?
This repeater is rated for operation from -30 ℃ to 55 ℃, which supports use across a broad temperature range.
What warranty is offered for the LT-3010-8A?
The LT-3010-8A is certified to FCC, CE, RoHS, and ISO9001:2008 standards. It is a compact LED control accessory designed for commercial lighting applications.
