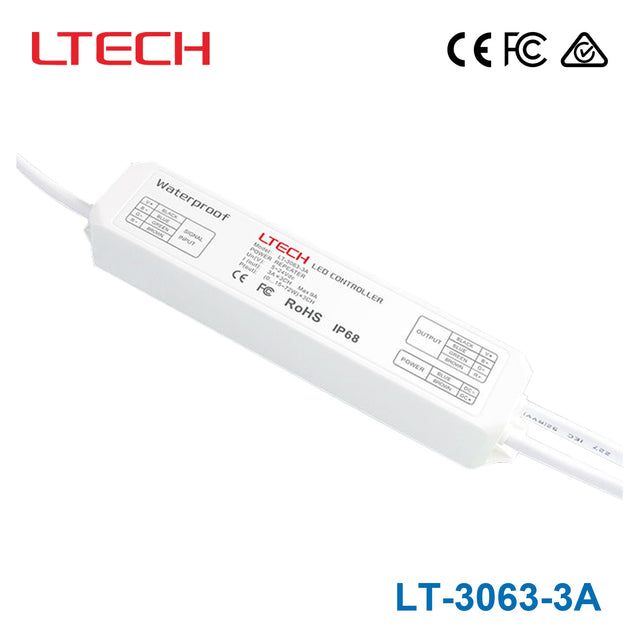

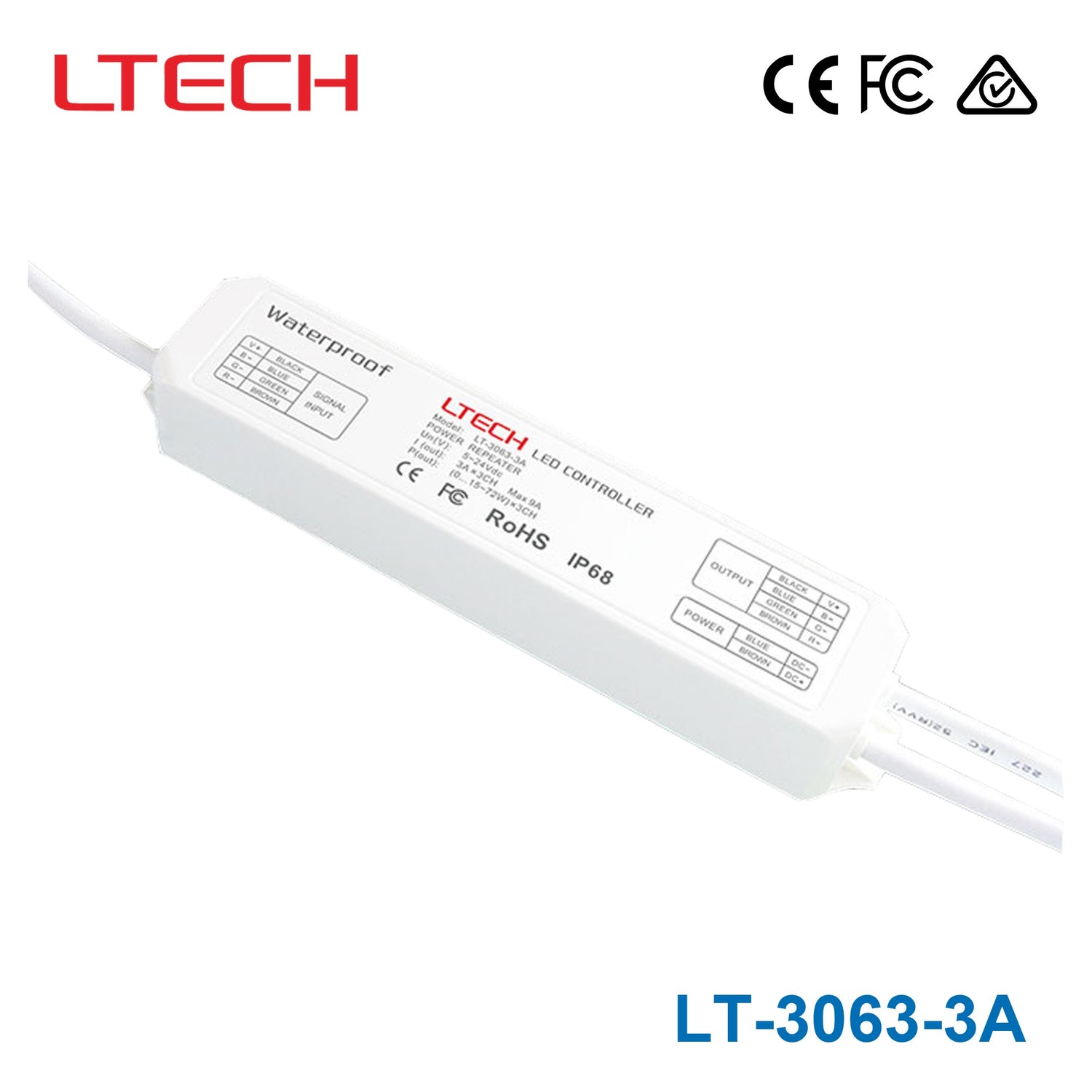

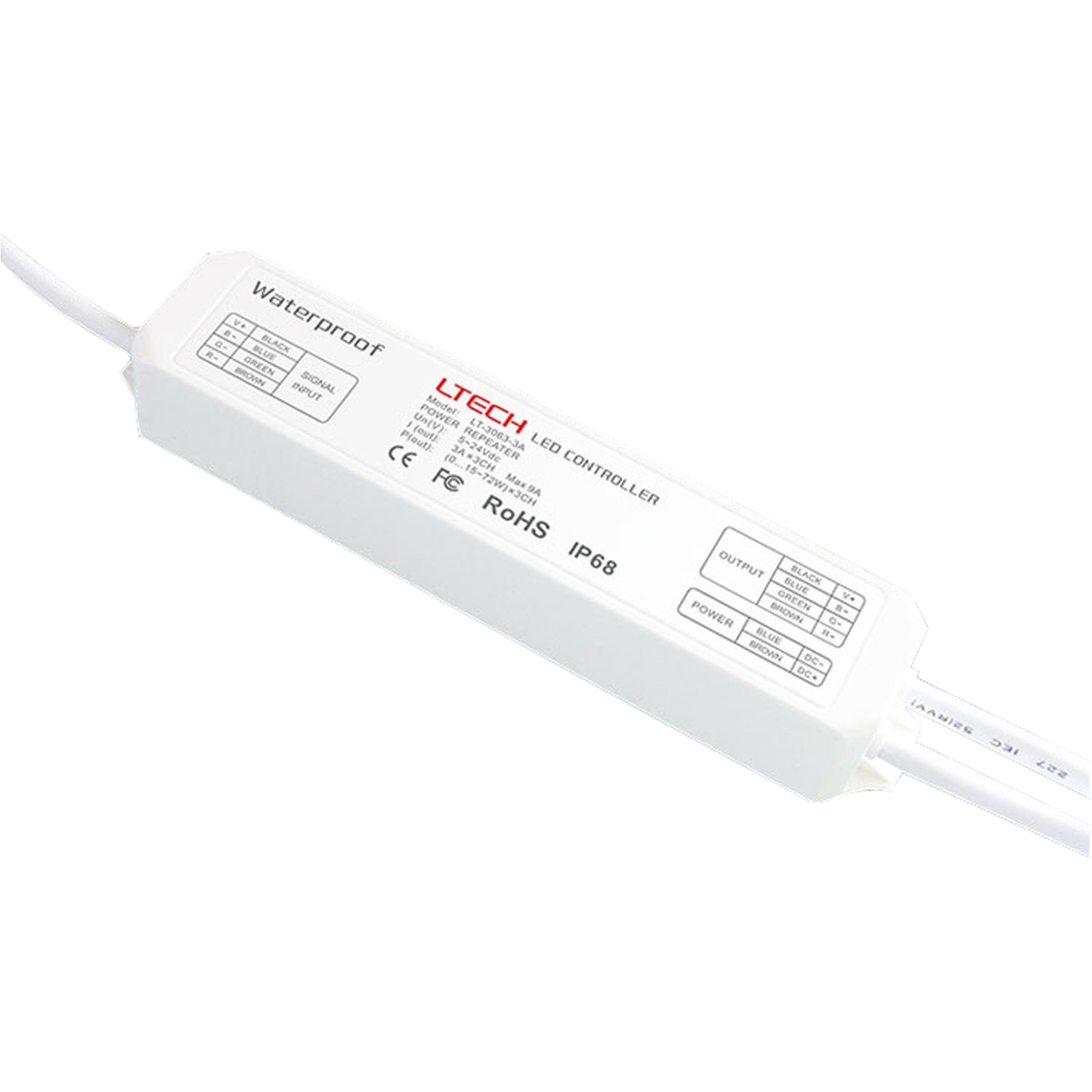

Ltech LT-3063-3A PWM Constant Voltage Repeater - RGB

SKU LT-3063-3A

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion, it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically.

Specifications

LT-3063-3ASpecifications from the official datasheet (2016-03-11 edition)Download datasheet PDF

Technical Specs

Input Voltage: 5~24Vdc
Max Current Load: 3A × 3CH Max 9A
Max Output Power: 45W/108W/216W(5V/12V/24V)
Waterproof Level: IP68
Working Temperature: -30℃~55℃
Dimensions: L181×W35×H28(mm)
Package Size: L213×W44×H38(mm)
Weight(G.W.): 235g

Certifications & ratings

Certification marks: FCC, CE, RoHS, ISO9001:2008

Technical drawings

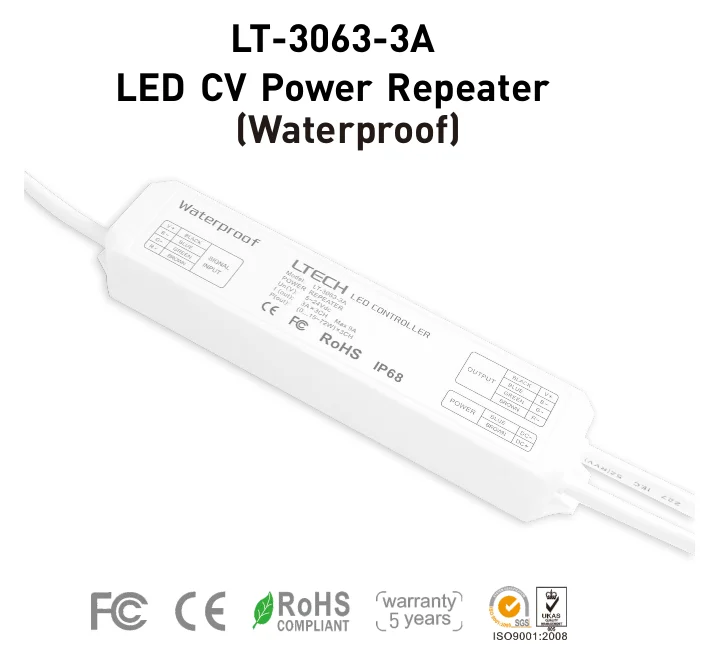

LT-3063-3A Illustration (page 1) — Illustration (page 1)

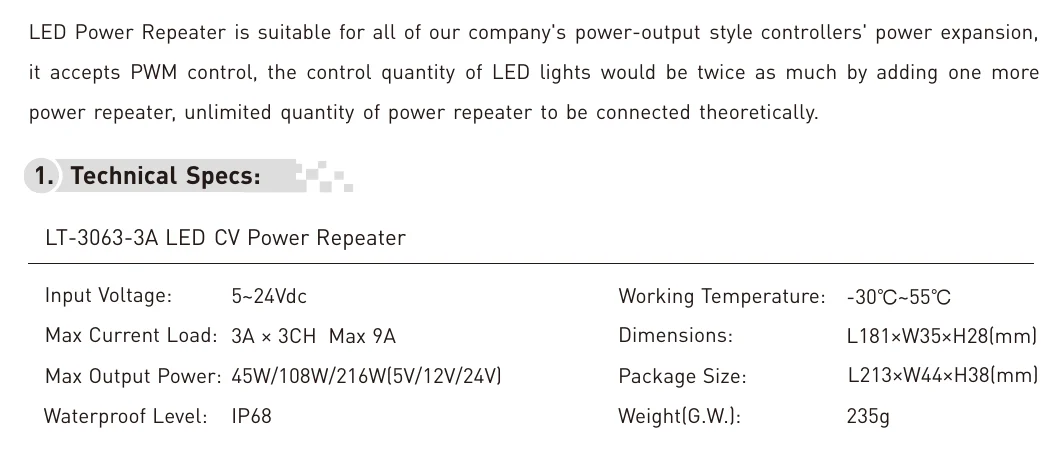

LT-3063-3A 1. Technical Specs — 1. Technical Specs

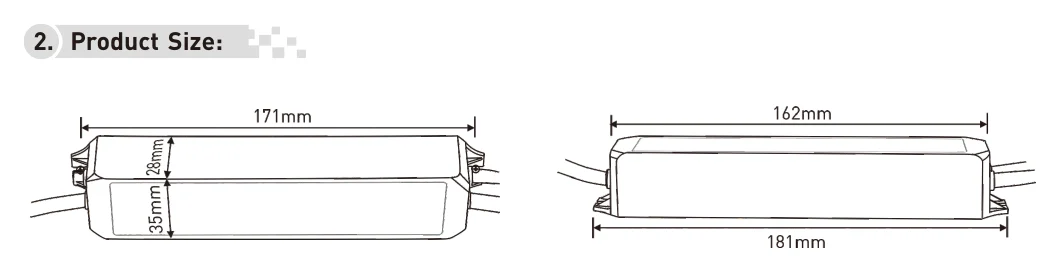

LT-3063-3A 2. Product Size — 2. Product Size

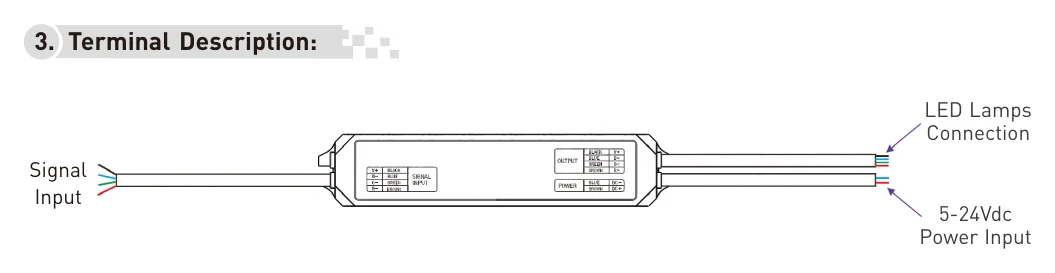

LT-3063-3A 3. Terminal Description — 3. Terminal Description

Downloads

Datasheet1

LT-3063-3A datasheetlt_3063_3a_spec.pdf · 2016-03-11 edition PDF Download

Catalogues1

Ltech Catalog PDF Download

FAQ

What does the Ltech LT-3063-3A do?

The LT-3063-3A is a PWM constant voltage repeater designed to expand the power output of compatible LED control systems. It is intended for RGB applications and allows a controller's load capacity to be increased by adding repeater capacity.

What are the electrical ratings of the LT-3063-3A?

This model supports input voltages of 5V, 12V, and 24V. The maximum current load is 3A per channel (9A total), with a maximum output power of 45W at 5V, 108W at 12V, and 216W at 24V. These ratings make it a constant voltage repeater for appropriately matched LED systems.

Is the LT-3063-3A a standalone dimmer or controller?

No. This product is a repeater, not a standalone dimmer, and its listed dimming control is none. Its role is power expansion for compatible PWM-controlled systems rather than direct standalone dimming control.

What type of control signal is the LT-3063-3A compatible with?

According to the product description, the LT-3063-3A accepts PWM control. It is intended to work with power-output style controllers where additional repeater capacity is needed for larger LED loads.

Can this repeater be used for RGB LED applications?

Yes. The product name identifies the LT-3063-3A as an RGB model, so it is intended for RGB constant voltage LED applications. Buyers looking for a repeater specifically for RGB systems should ensure the rest of the system matches the product's 5V, 12V, or 24V constant voltage rating.

What operating environment is the LT-3063-3A rated for?

The published operating temperature range is -30 C to 55 C. This gives it a relatively broad environmental range for commercial and professional LED control applications, provided the rest of the system is rated for the same conditions.

What warranty and physical weight are listed for this model?

The published weight is 235g, which can be useful when comparing compact repeater options for panel or enclosure planning. The unit features an IP68 waterproof rating and dimensions of L181×W35×H28(mm).
