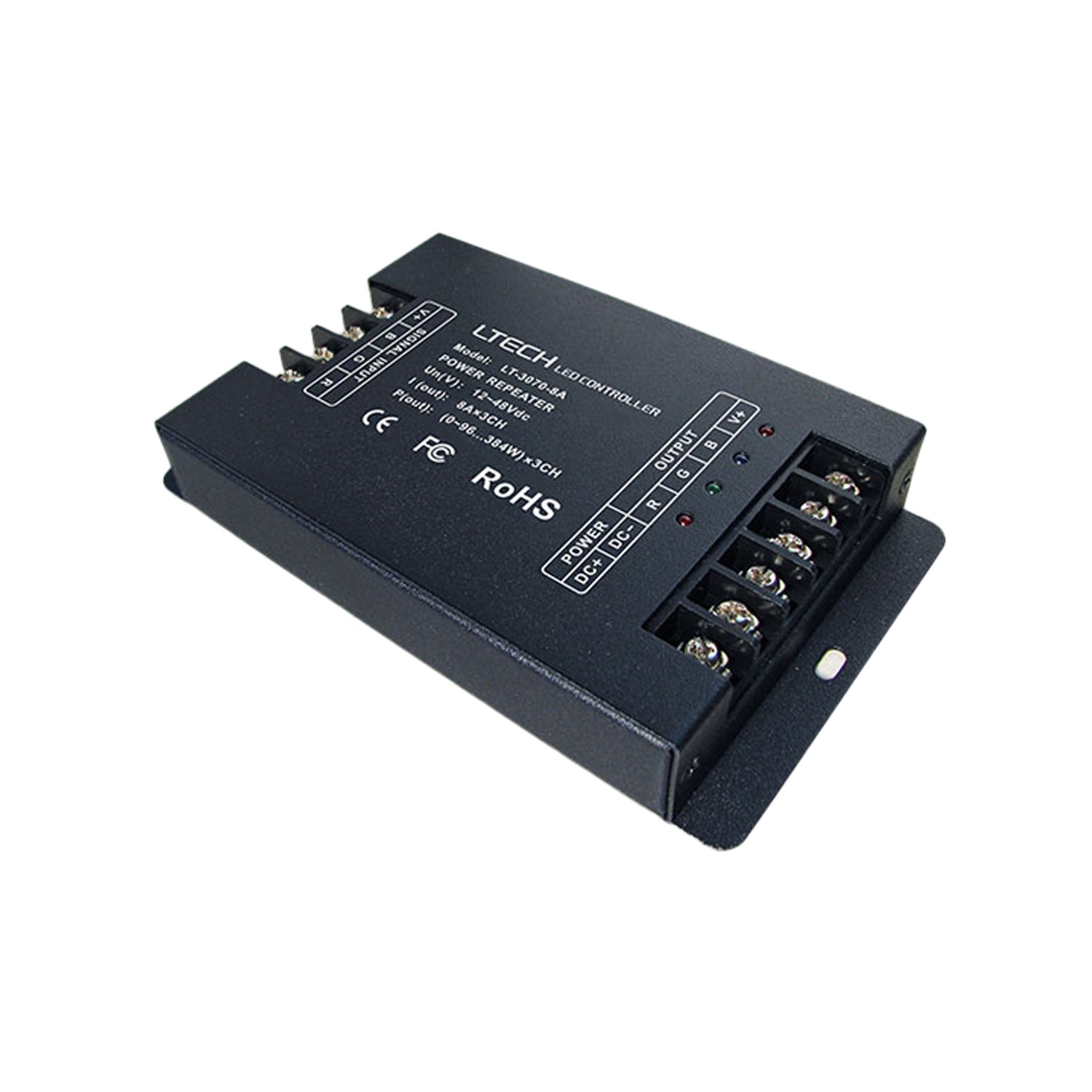

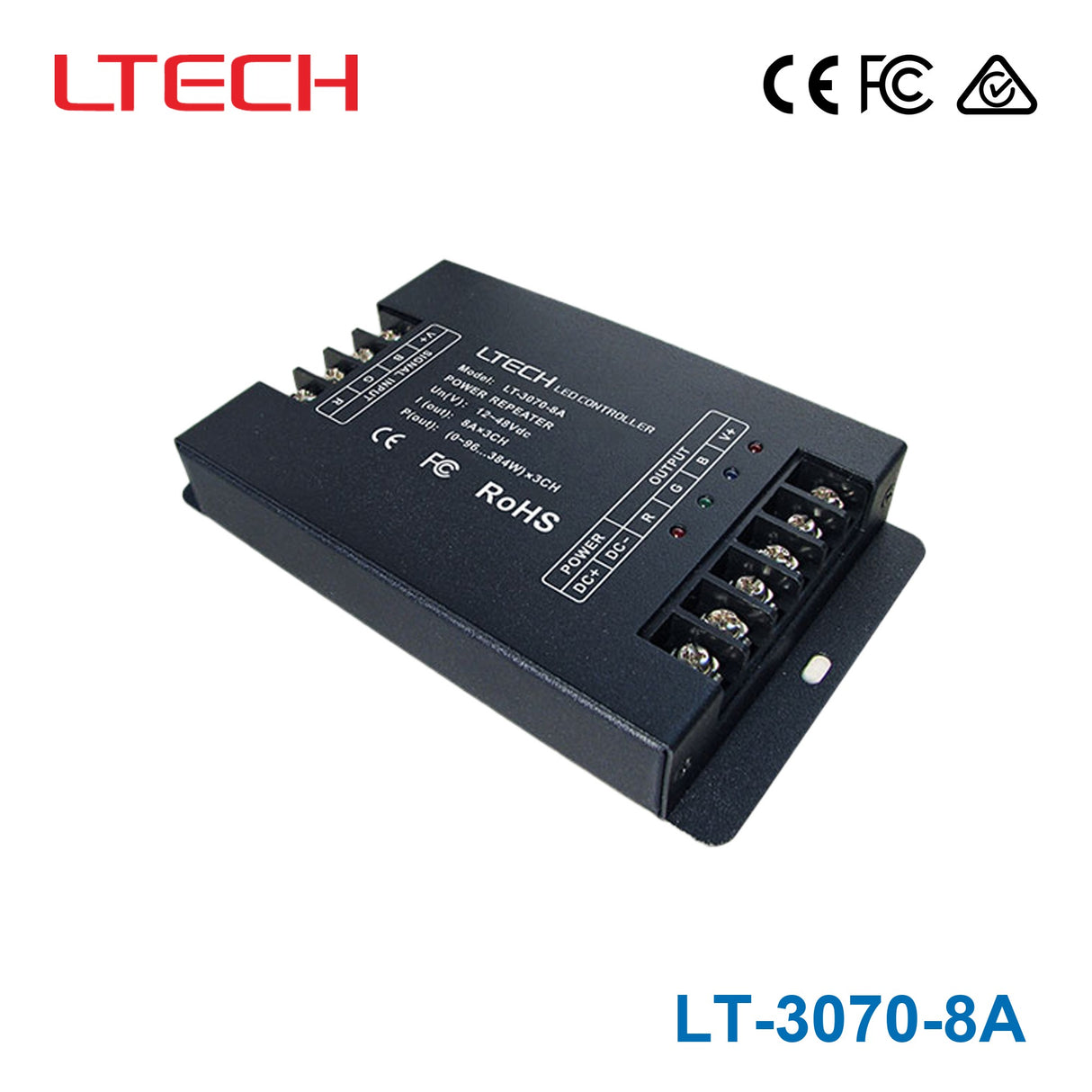

Ltech LT-3070-8A PWM Constant Voltage Repeater - RGB
Log in to see priceOverview
LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion, it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically.
Specifications
1. Product Parameter:
- Input Signal
- PWM
- Input Voltage
- 12 ~ 48Vdc
- Max Current Load
- 8A×3CH Max 24A
- Output Power
- 288W/576W/864W/1152W (12V/24V/36V/48V)
- Working Temperature
- -30℃~65℃
- Dimension
- L148×W87×H23(mm)
- Package Size
- L158×W94×H31(mm)
- Weight (G.W.)
- 380g
Certifications & ratings
- warranty
- 5 years
- Certification marks
- FCC, CE, RoHS, ISO9001-2008
Test conditions and notes11
- 4.1 The product shall be installed and serviced by the qualified person.
- 4.2 This product is non-waterproof. Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.
- 4.3 Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
- 4.4 Please check if the output voltage of the LED power supply used comply with the working voltage of the product.
- 4.5 Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
- 4.6 Ensure all wire connections and polarities are correct before applying power to avoid any damages to the lights.
- 4.7 If a fault occurs, please return the product to your supplier. Do not attempt to fix this product by yourself.
- 5.1 We provide lifelong technical assistance with this product:
- 5.2 Warranty exclusions below:
- 5.3 Repair or replacement as provided under this warranty is the exclusive remedy to the customer. We shall not be liable for any incidental or consequential damages for breach of any stipulation in this warranty.
- 5.4 Any amendment or adjustment to this warranty must be approved in writing by our company only.
Downloads
FAQ
What is the Ltech LT-3070-8A used for?
The LT-3070-8A is a PWM constant-voltage repeater designed to expand output capacity in RGB LED control systems. It is used when a controller needs to support more LED load than its own output stage can handle. This model is intended for power expansion rather than standalone control.
What output capacity does the LT-3070-8A provide?
The LT-3070-8A supports input voltages from 12 to 48 Vdc. Its maximum power rating varies by voltage: 288 W at 12 V, 576 W at 24 V, 864 W at 36 V, and 1152 W at 48 V. It provides up to 8 A per channel across 3 channels, for a total maximum current of 24 A.
Is the LT-3070-8A a controller or a repeater?
The LT-3070-8A is a repeater, not a standalone LED controller. Its role is to repeat PWM control signals and extend the load capacity of a compatible constant-voltage control system. If you need direct dimming or standalone control functions, this model is not intended for that purpose.
Is the LT-3070-8A compatible with PWM LED control systems?
Yes, this model accepts PWM control and is intended for constant-voltage LED systems that need output expansion. It is specifically described as a power repeater for PWM-based control setups. Buyers should match it to a constant-voltage PWM system rather than a standalone dimming application.
Can the LT-3070-8A be used in demanding commercial environments?
The LT-3070-8A is specified for operation from -30 C to 65 C, which supports use in a wide range of indoor or protected commercial environments. It also carries a 5-year warranty, which is relevant for long-term project planning and maintenance expectations. For buyers comparing hardware for reliability, those are strong practical indicators for this model.
