Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

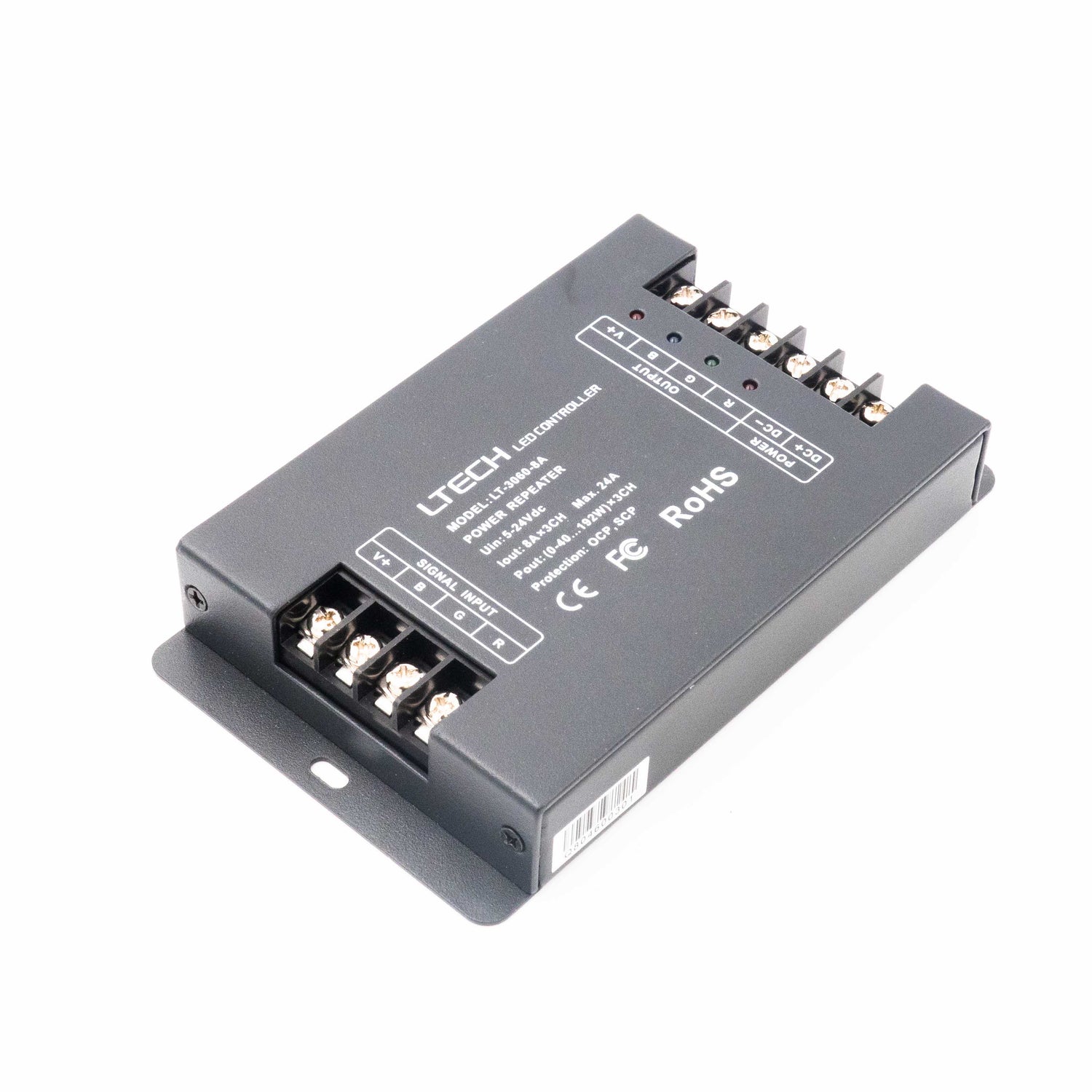

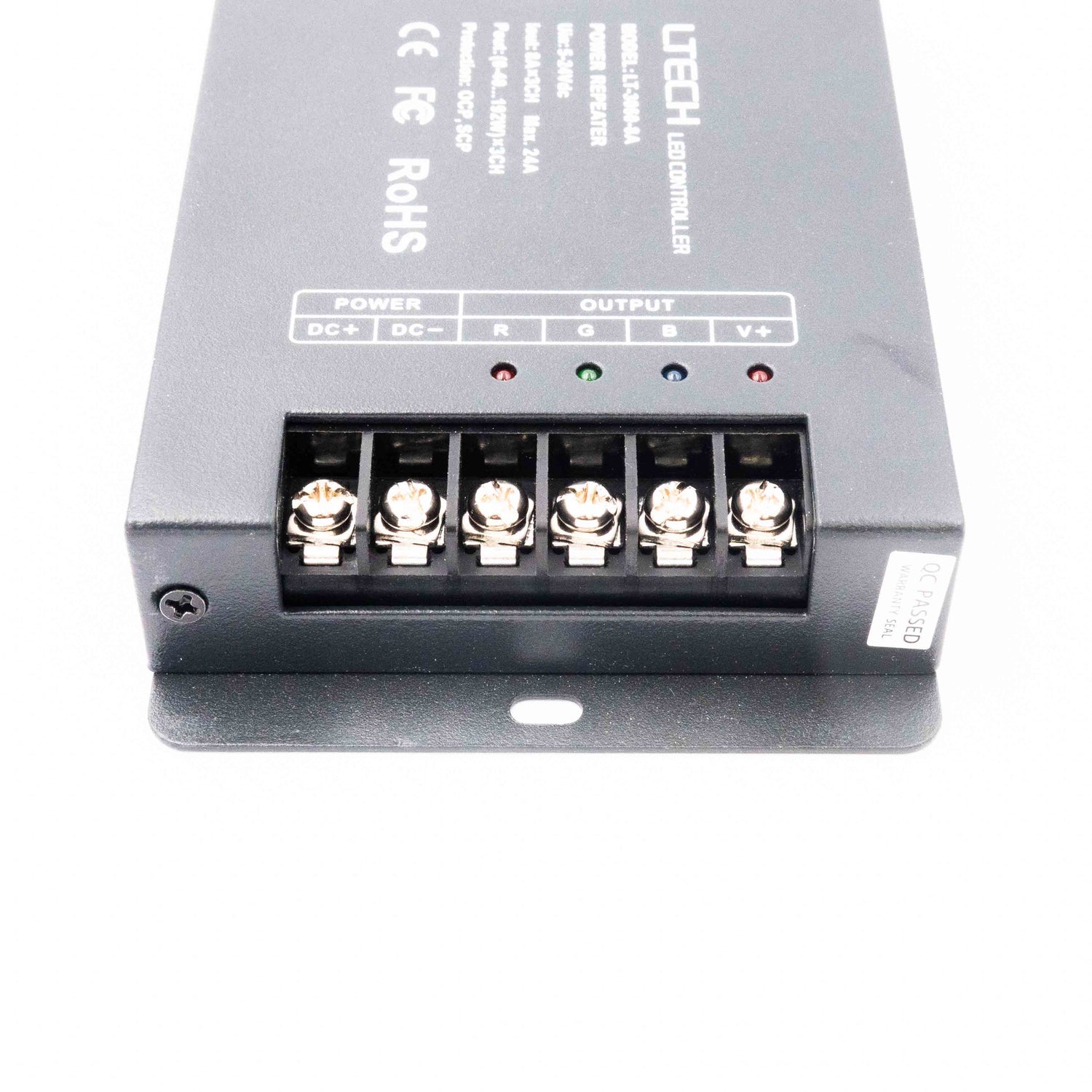

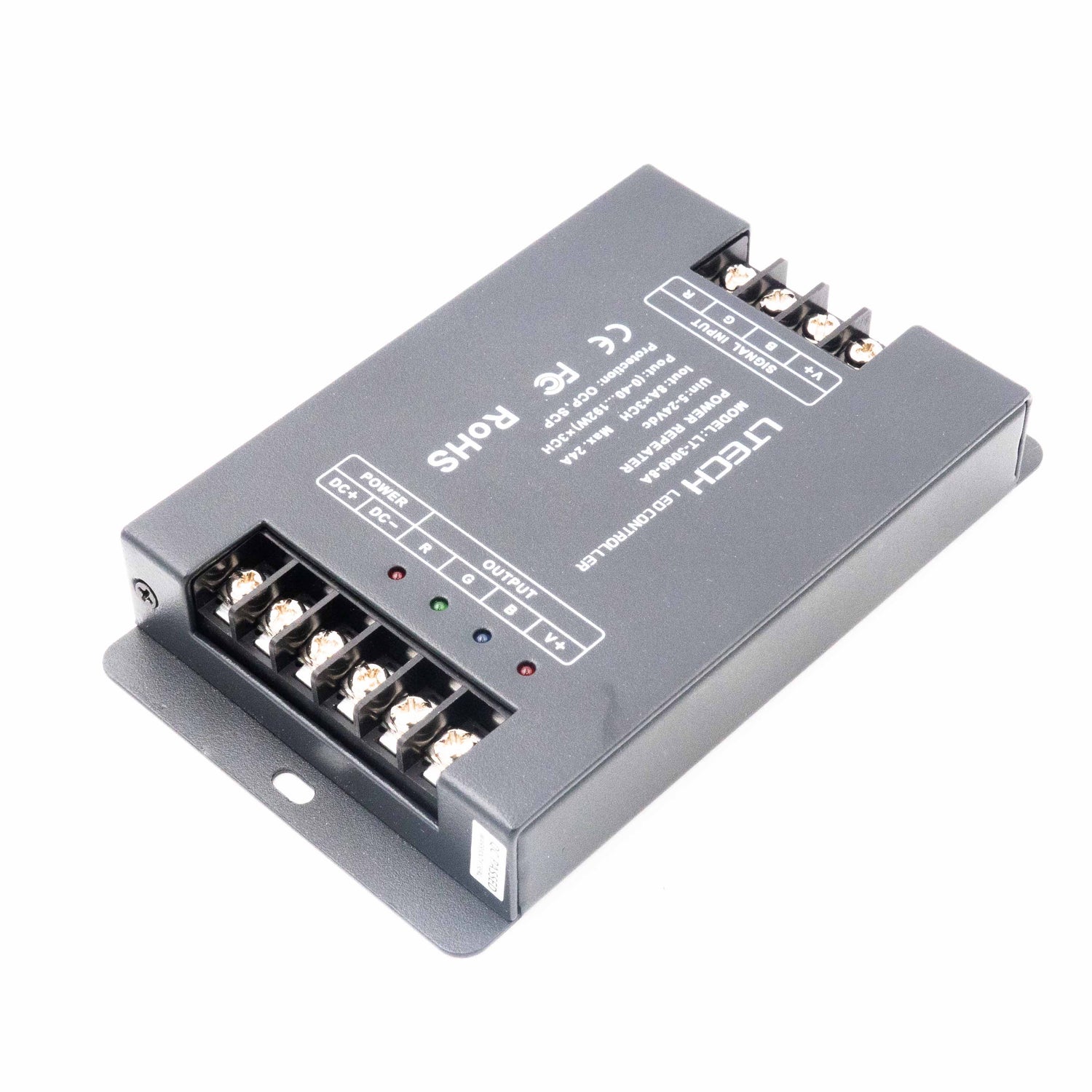

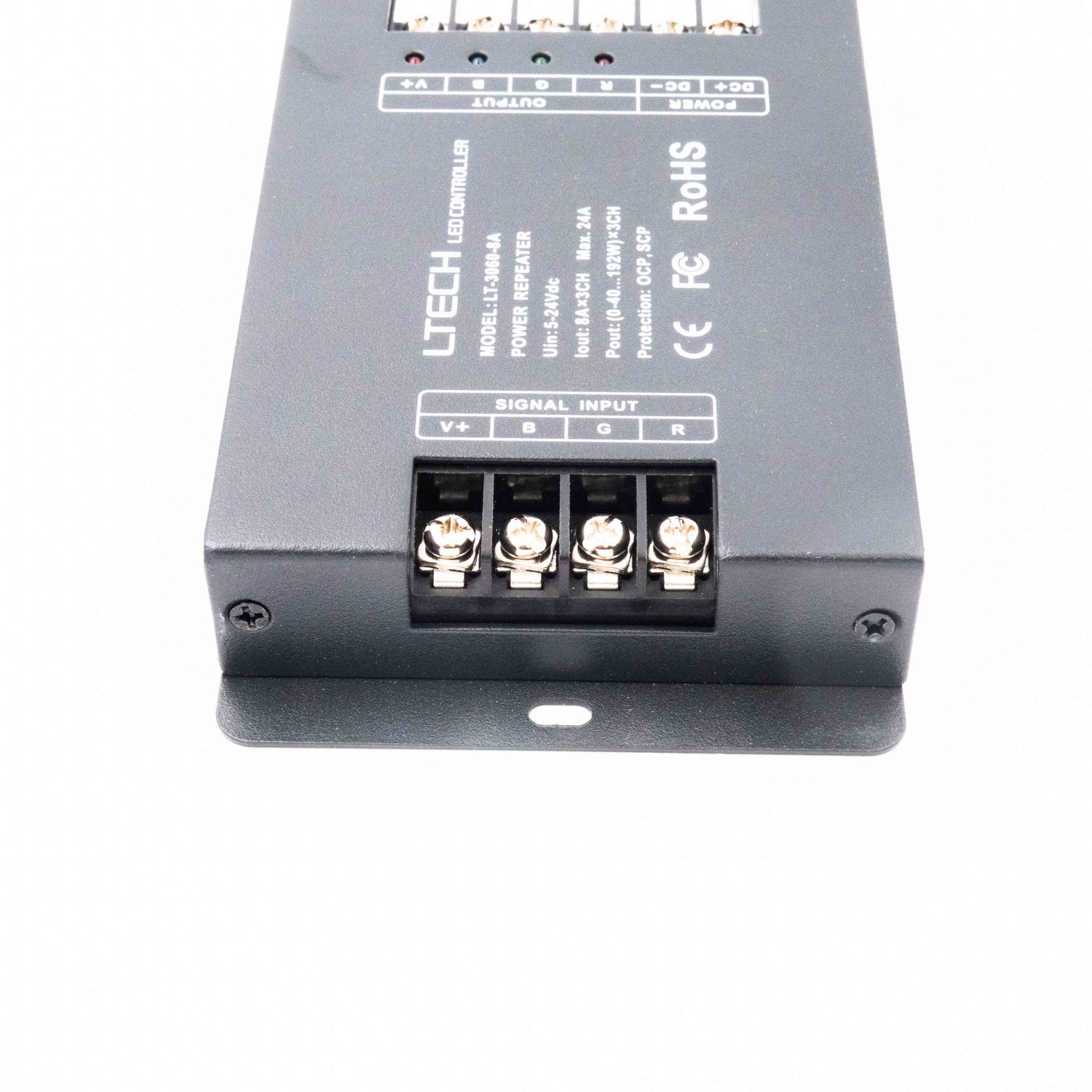

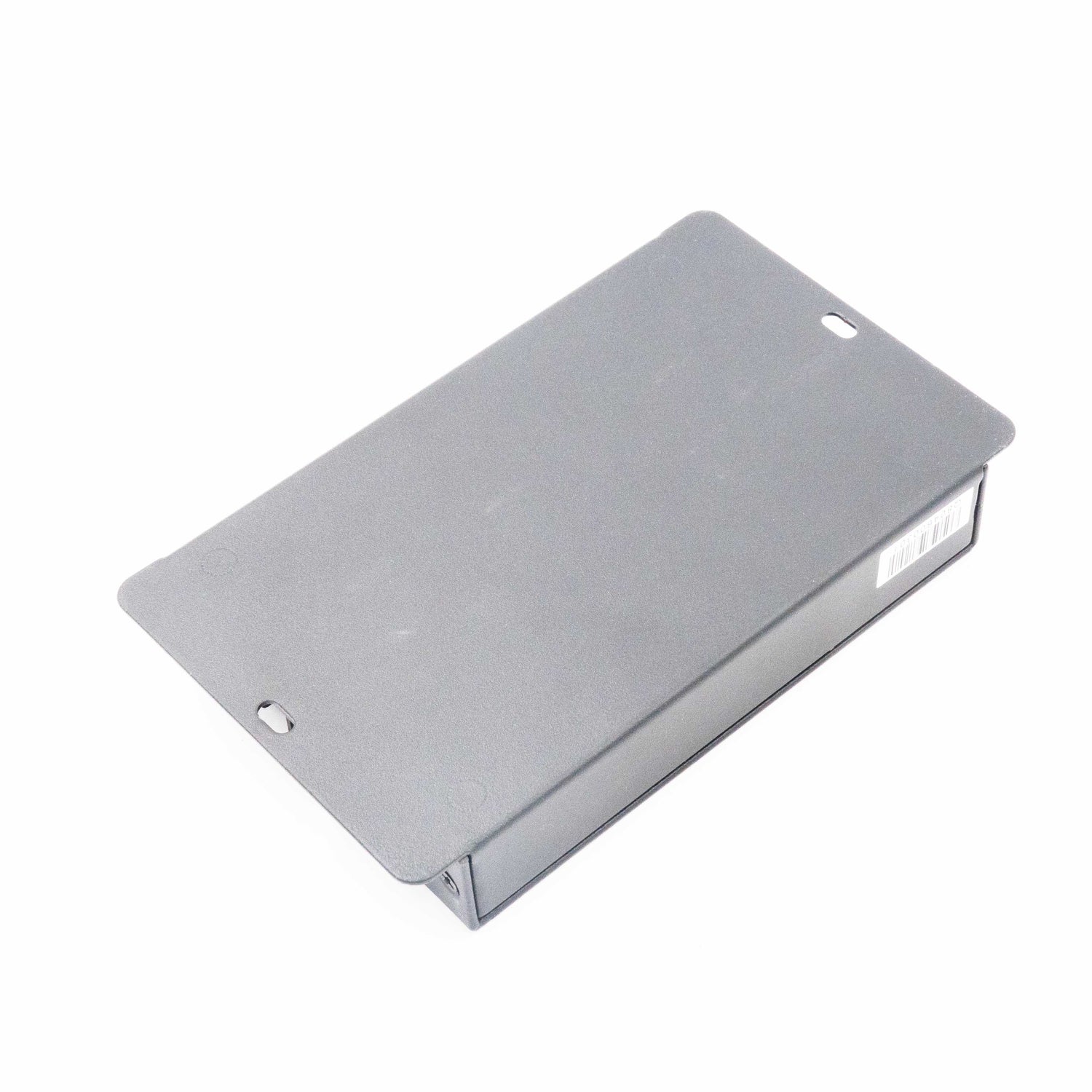

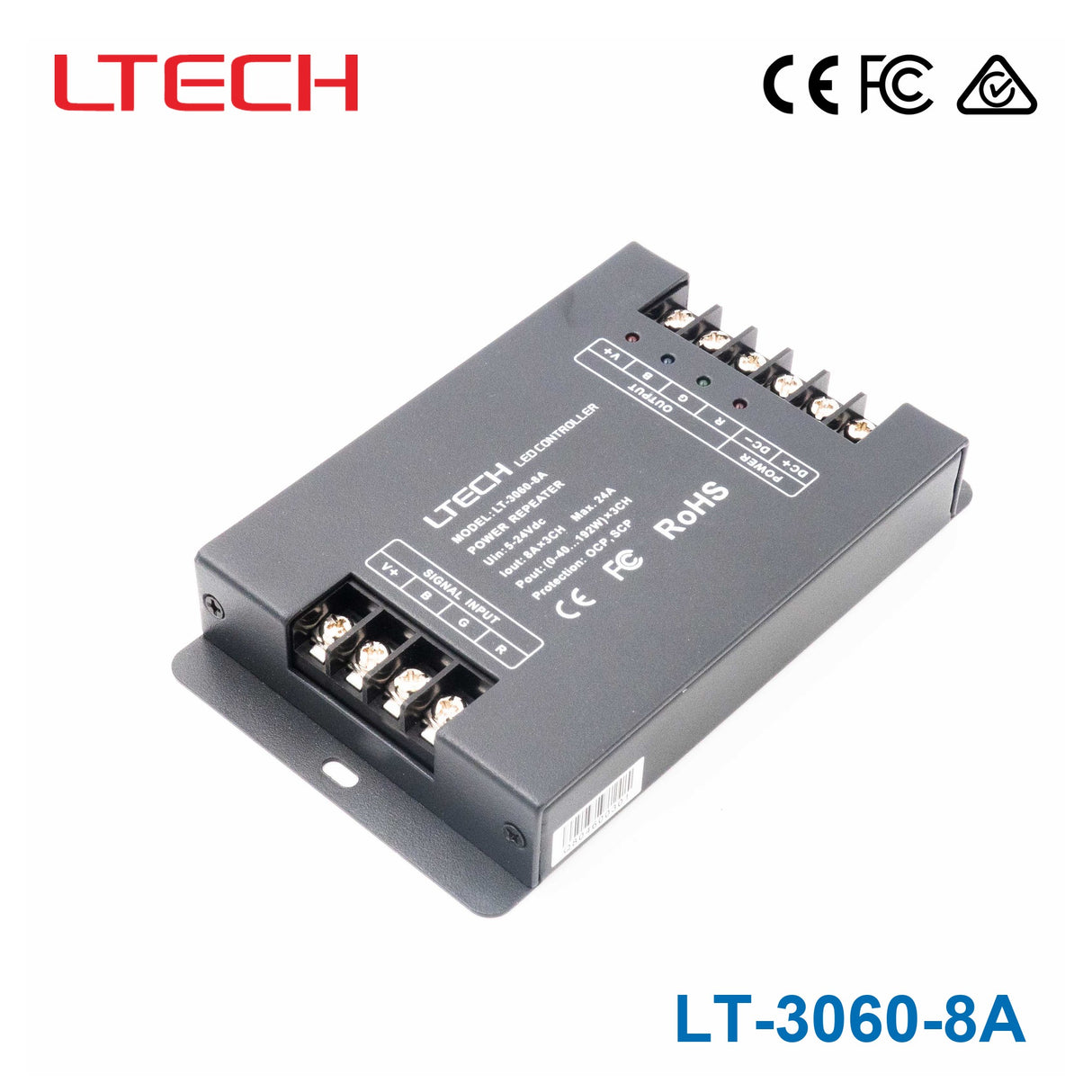

Ltech LT-3060-8A PWM Constant Voltage Repeater - RGB

SKU LT-3060-8A

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

LED power repeater is suitable for all of LTECH power types(DIM,CT,RGB) LED controller’s power expansion. It accepts PWM control. The controlled LED quantities would be double or triple by adding one more power repeater. Unlimited power repeaters could be connected theoretically. It has Short circuit/Over current/anti-reverse connection safety protection. Constant voltage and constant current LED power repeater can be mixed connect, facilitate different voltage, high power and low power LED lamps controlled by one controller.

Frequently Asked Questions

What does the Ltech LT-3060-8A do?

The LT-3060-8A is a PWM constant voltage repeater designed to expand the output capacity of compatible LTECH LED control systems. This RGB model is used when a controller needs to handle more LED load than its original output can support.

Is the LT-3060-8A a standalone LED controller?

No. The LT-3060-8A is a repeater, not a standalone controller, so its role is power expansion within a PWM-controlled LED system. It is intended to extend the controlled LED quantity for compatible LTECH control types such as DIM, CT, and RGB systems.

What are the electrical ratings of the LT-3060-8A?

This model is rated for 24 V output voltage, 24 A rated current, and 576 W power. Those specs make it suitable for higher-load constant-voltage LED applications that need output expansion.

What type of LED systems is this repeater compatible with?

According to the product description, it is suitable for LTECH power-type LED controller expansion and accepts PWM control. It is described as supporting DIM, CT, and RGB controller power expansion, with this specific model identified as an RGB repeater.

Can the LT-3060-8A be used in demanding commercial environments?

It is built for a wide operating temperature range of -30°C to 65°C, which supports use in challenging environments. The unit also includes short circuit, over current, and anti-reverse connection protection for added operating safety.

Does the LT-3060-8A include a warranty?

Yes. The listed warranty period for the LT-3060-8A is 5 years. That can be a useful consideration for buyers specifying components for long-term commercial or professional LED projects.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Outputs	Output Type	Dimming
Ltech LT-3010-12A PWM Constant Voltage Repeater - Dimming	1	PWM	None	View
Ltech LT-3070-8A PWM Constant Voltage Repeater - RGB	3	PWM	None	View
Ltech LT-3063-3A PWM Constant Voltage Repeater - RGB	3	PWM	None	View
Ltech LT-3060S PWM Constant Voltage Repeater - RGB	3	PWM	None	View
Ltech LT-3040-CC PWM Constant Current Repeater - RGBW	4	PWM	None	View
Ltech LT-3040-5A PWM Constant Voltage Repeater - RGBW	4	PWM	None	View
Ltech LT-3030-6A PWM Constant Voltage Repeater - RGB	3	PWM	None	View
Ltech LT-3010-CC PWM Constant Current Repeater - Dimming	1	PWM	None	View
Ltech LT-3010-8A PWM Constant Voltage Repeater - Dimming	1	PWM	None	View
