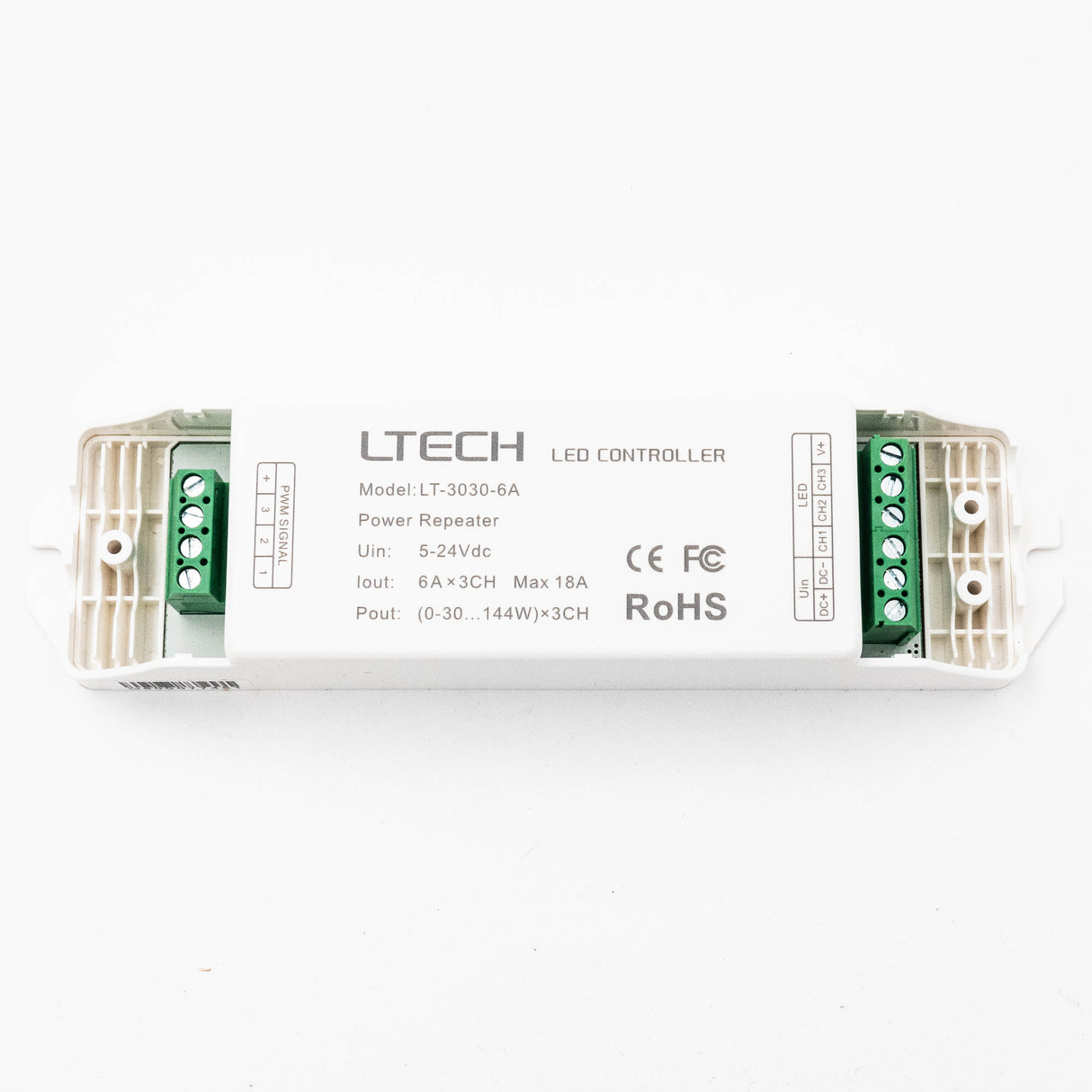

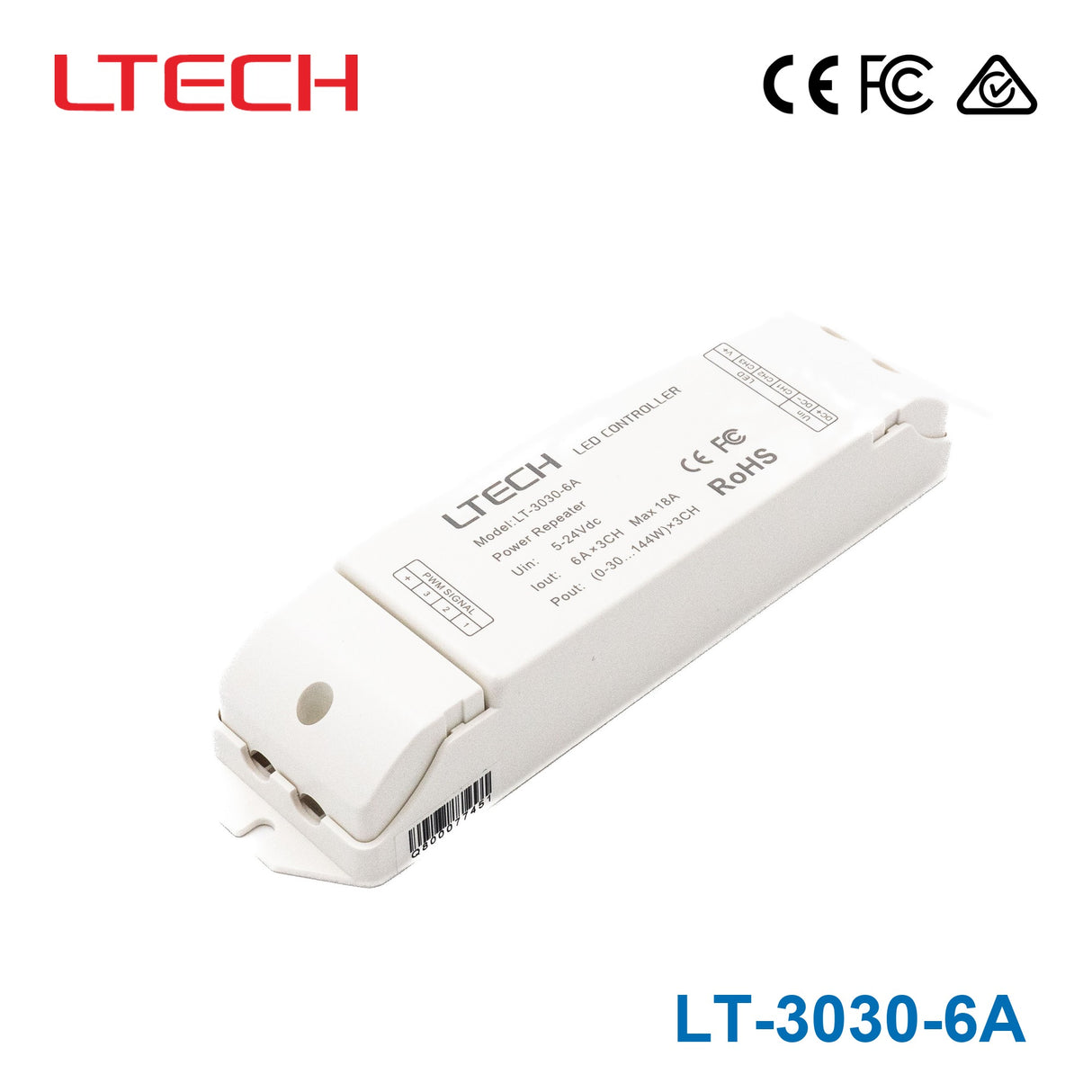

Ltech LT-3030-6A PWM Constant Voltage Repeater - RGB
Log in to see priceOverview
LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion, it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically. Signal input and output of LED power repeater have security protection function with photoelectricity isolation of 5KV.
Specifications
Technical Specs
- Input Signal
- PWM
- Input Voltage
- 5~24Vdc
- Max Current Load
- 6A × 3CH Max 18A
- Max Power Load
- (0~30...144W) × 3CH, Max. 18A
- Working Temp.
- -30℃ ~55 ℃
- Dimensions
- L175×W44×H30(mm)
- Package Size
- L178×W48×H33(mm)
- Weight (G.W.)
- 135g
Certifications & ratings
- Certification marks
- FCC, CE, RoHS, ISO9001:2008

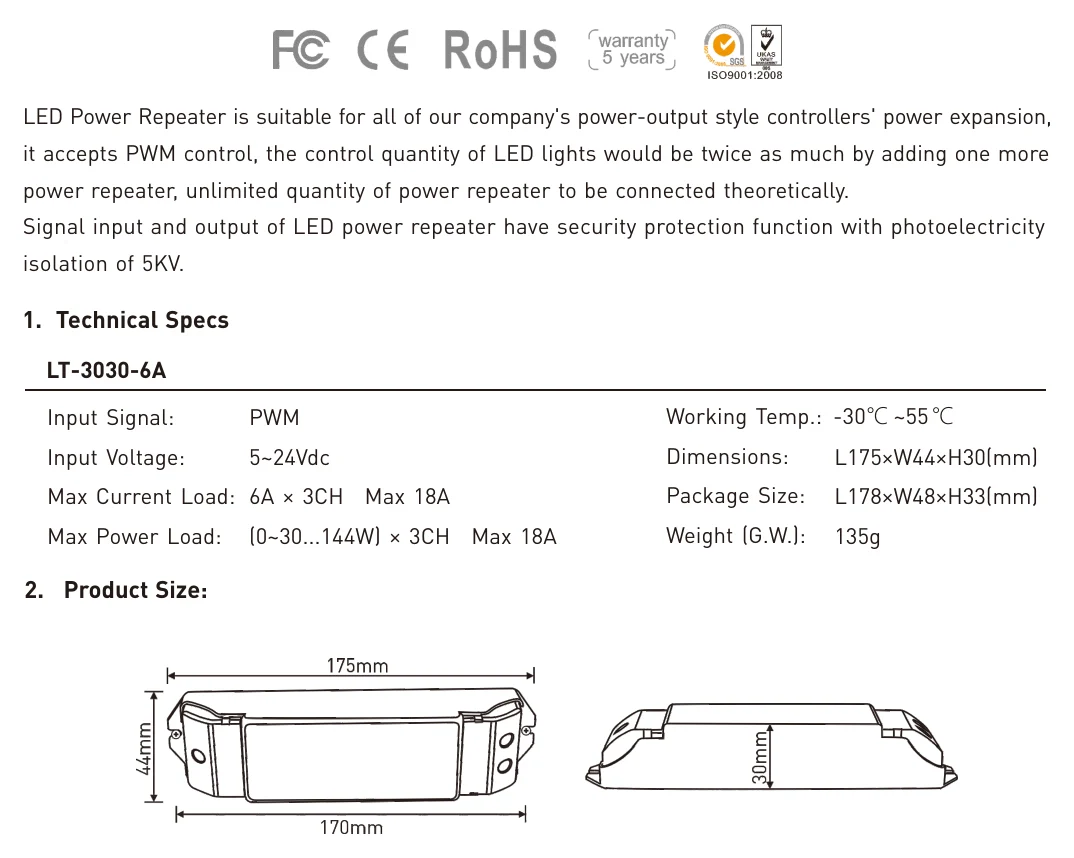

Technical drawings
Downloads
FAQ
What is the Ltech LT-3030-6A used for?
The LT-3030-6A is a PWM constant voltage repeater designed to expand the output capacity of compatible LED control systems. It is intended for RGB lighting applications where the original controller needs additional power handling without changing the control signal.
Is the LT-3030-6A a standalone LED controller?
No. This model is a repeater, not a standalone controller, so its role is power expansion for compatible PWM-controlled systems. Buyers choosing between a controller and a repeater should use the LT-3030-6A when they need to extend capacity rather than add independent control functions.

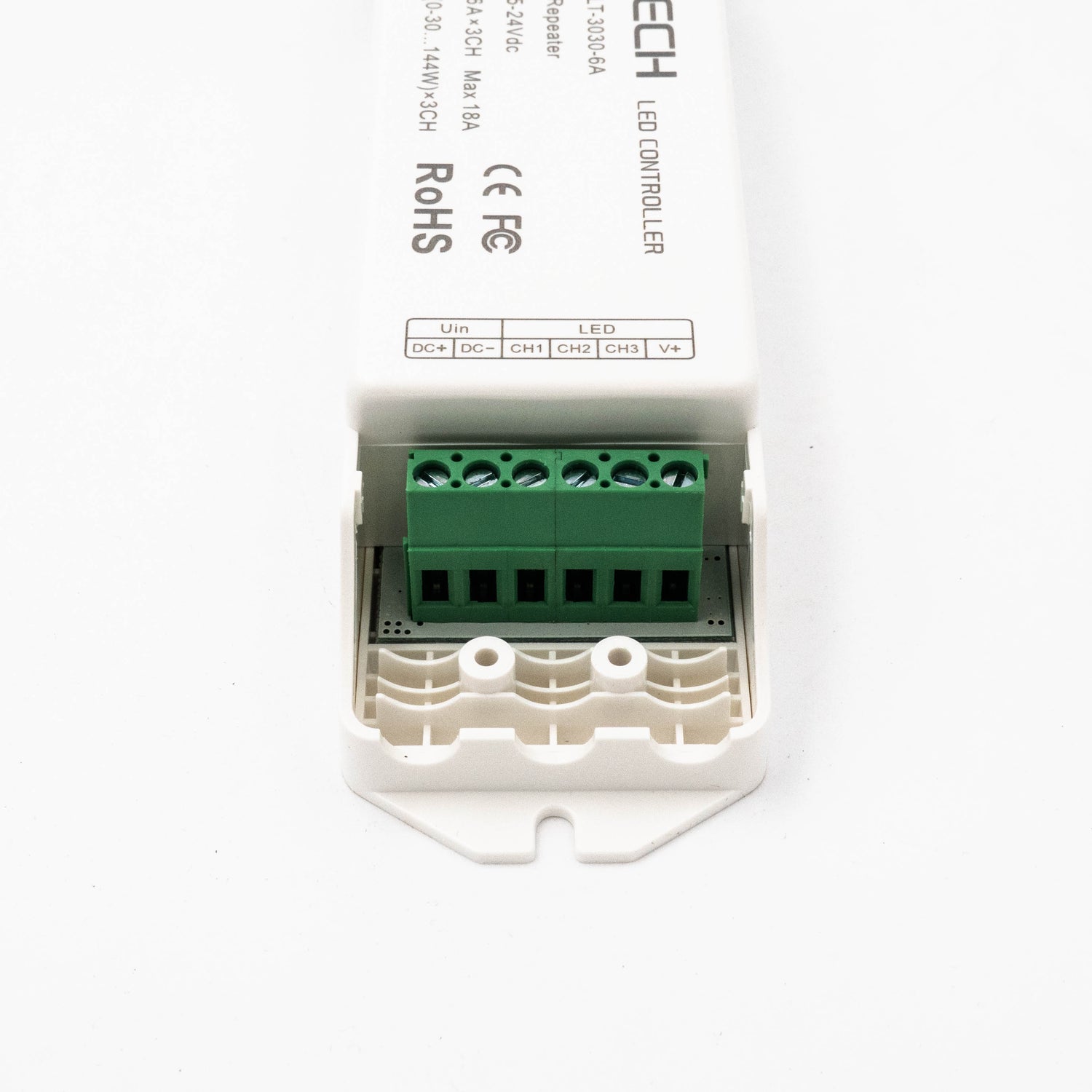

What are the key electrical ratings of the LT-3030-6A?
The LT-3030-6A supports an input voltage of 5~24Vdc, with a maximum current load of 6A per channel (18A total across 3 channels) and a maximum power load of 144W per channel. These ratings make it suitable for higher-load RGB constant-voltage LED applications that need signal-following power expansion.

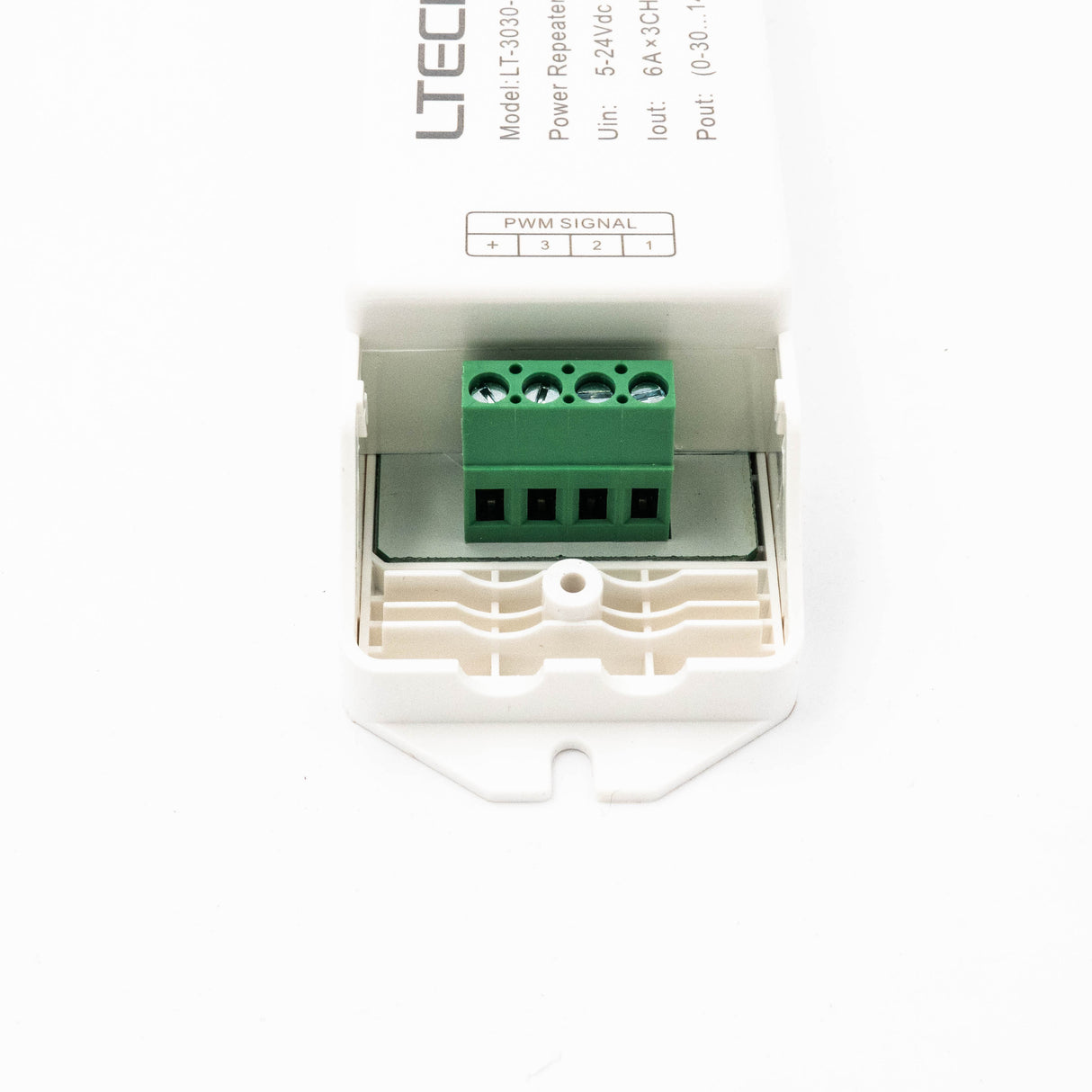

What kind of control signal does the LT-3030-6A support?
The LT-3030-6A accepts PWM control, which is the basis for its repeater function. It is built to follow and expand the power side of compatible PWM-controlled LED systems rather than operate as a separate dimming controller.
Can the LT-3030-6A be used in demanding indoor or outdoor equipment environments?
The LT-3030-6A has a specified operating temperature range of -30°C to 55°C, which supports use in a wide range of equipment environments. Buyers should still confirm that the surrounding enclosure and overall system design stay within that temperature window.
Does the LT-3030-6A include signal isolation or protection features?
The LT-3030-6A is designed for RGB lighting applications where the original controller needs additional power handling without changing the control signal. It is suitable for commercial and industrial buyers who want an added protection feature in LED control expansion hardware.
