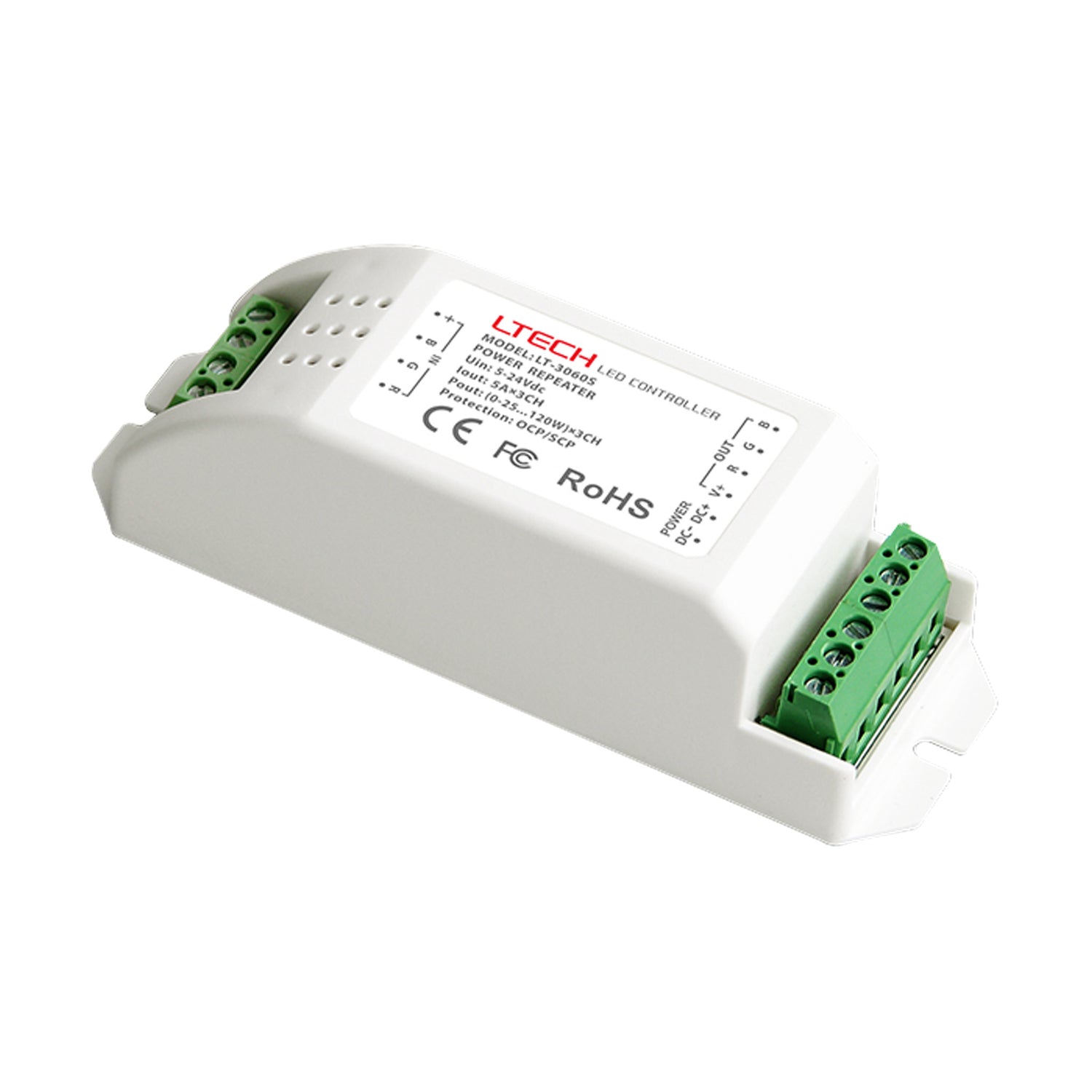

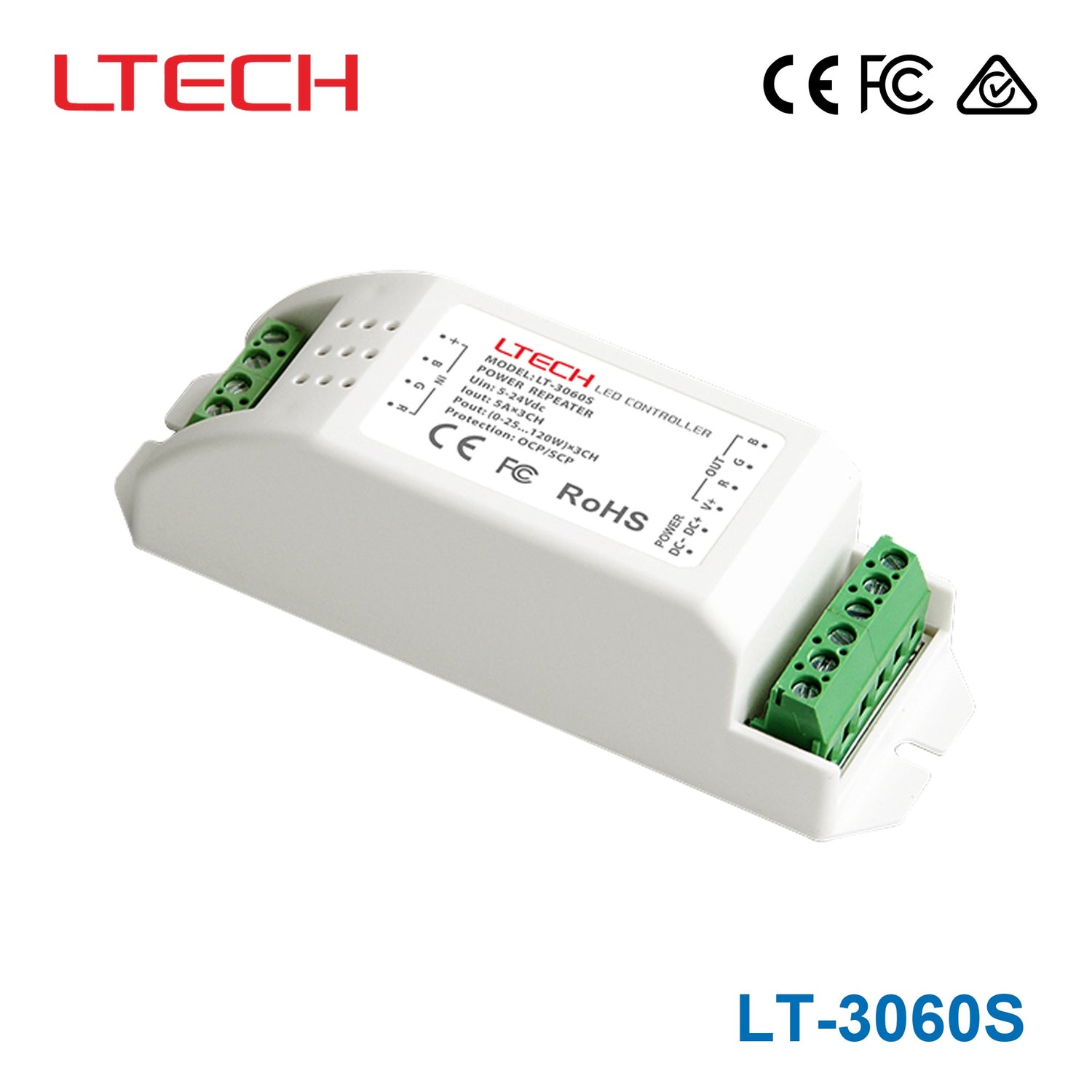

Ltech LT-3060S PWM Constant Voltage Repeater - RGB
Log in to see priceOverview
LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion, it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically.
Specifications
1. Technical specs:
- Input signal:
- PWM (200Hz-2000Hz)
- Input voltage:
- 5~24Vdc
- Current load:
- 5A × 3CH Max. 15A
- Output power:
- (0~25W...120W) × 3CH Max. 360W
- Protection:
- Over current / Short circuit / Reverse connection protection
- Working temperature:
- -30°C~55°C
- Dimensions:
- L121×W39×H39(mm)
- Package size:
- L123×W42×H42(mm)
- Weight(G.W.):
- 210g
Certifications & ratings
- warranty
- 5 years
- Certification marks
- FCC, CE, RoHS, ISO9001:2008

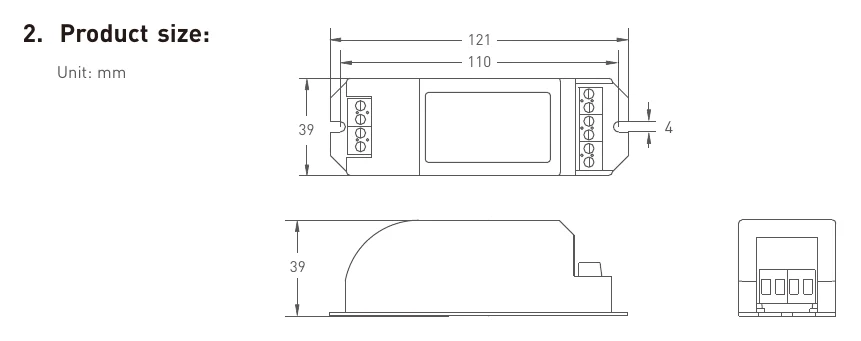

Technical drawings
Downloads
FAQ
What does the Ltech LT-3060S do?
The LT-3060S is a PWM constant voltage repeater designed to expand the power output capacity of compatible LED control systems. It is intended for RGB lighting applications where additional load capacity is needed beyond the original controller output.
What type of lighting is the LT-3060S intended for?
This model is intended for RGB constant voltage LED lighting systems. Its product name and repeater function make it suitable for applications where RGB loads need PWM signal-based power expansion.
What are the electrical ratings of the Ltech LT-3060S?
The LT-3060S supports an input voltage of 5~24Vdc. It provides 3 channels with a maximum current of 5A per channel (15A total) and an output power of up to 120W per channel (360W total).
Is the LT-3060S a dimmer or standalone lighting controller?
No, this model is described as a power repeater rather than a standalone dimming controller. Its role is to accept PWM control and expand output capacity for compatible control systems.
What operating environment is the LT-3060S rated for?
The specified operating temperature range is -30°C to 55°C. That range makes it suitable for demanding environments as long as the application stays within the stated limits.
Does the Ltech LT-3060S include a warranty?
Yes, the listed warranty period for the LT-3060S is 5 years. That gives buyers a clearly defined coverage term for this model.
