Ltech

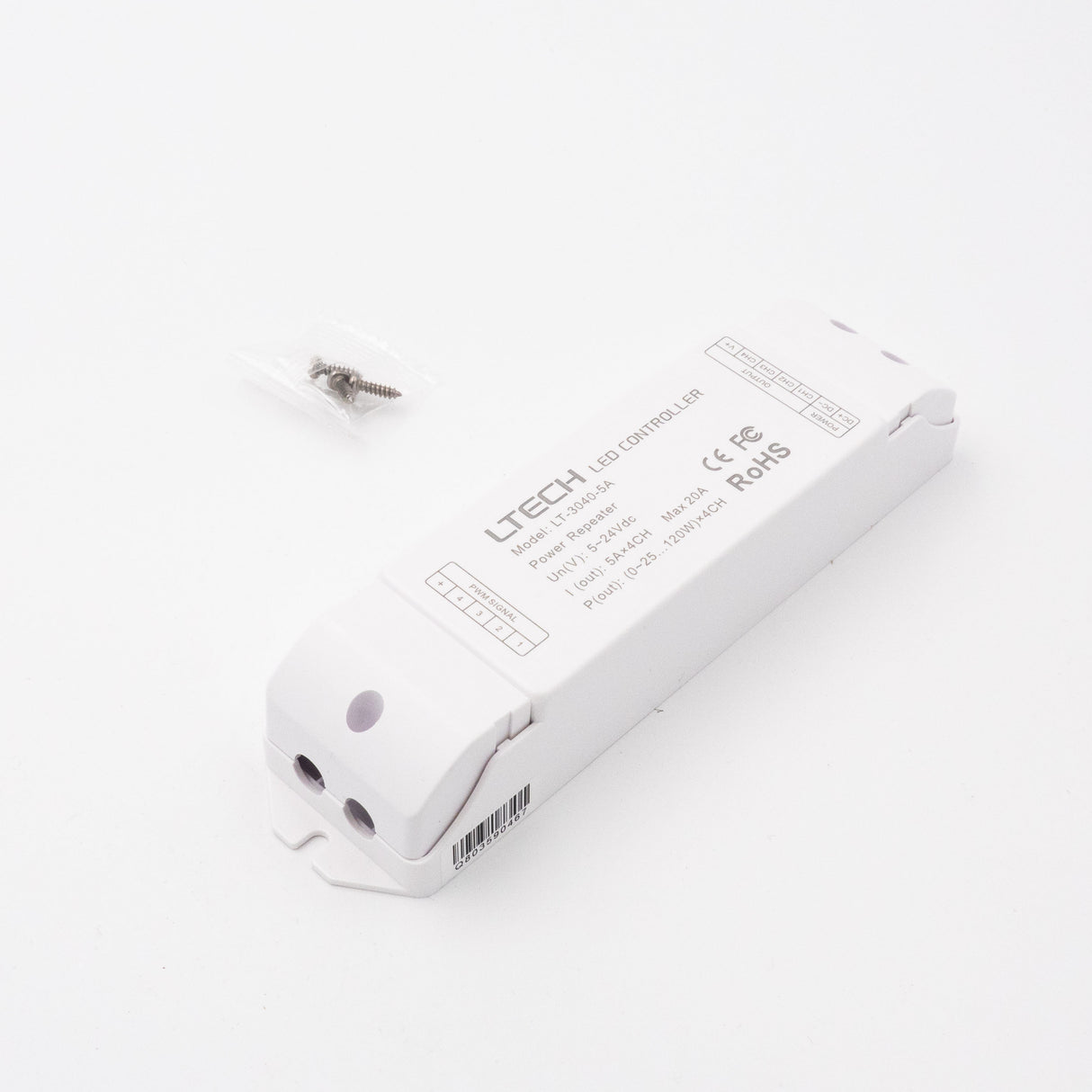

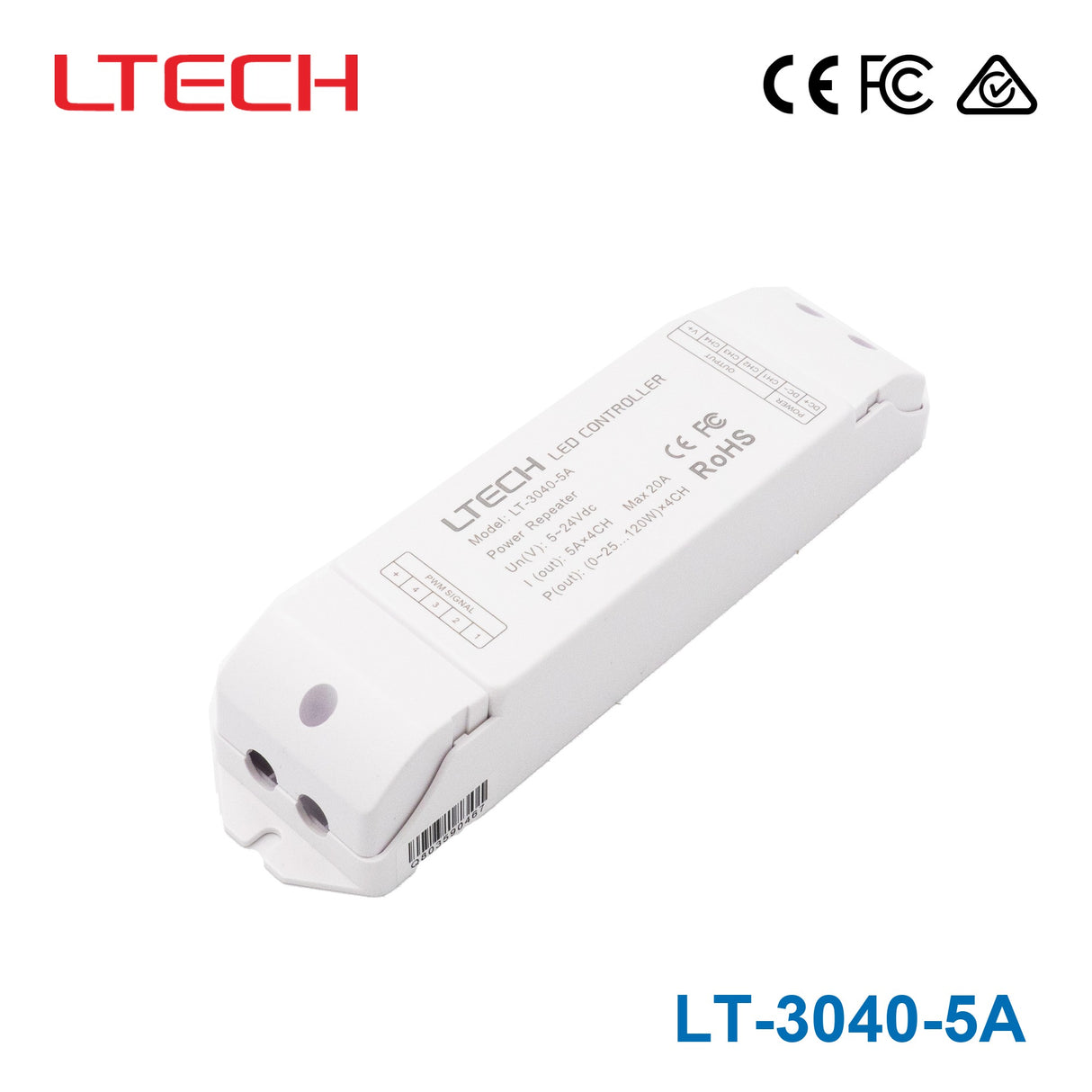

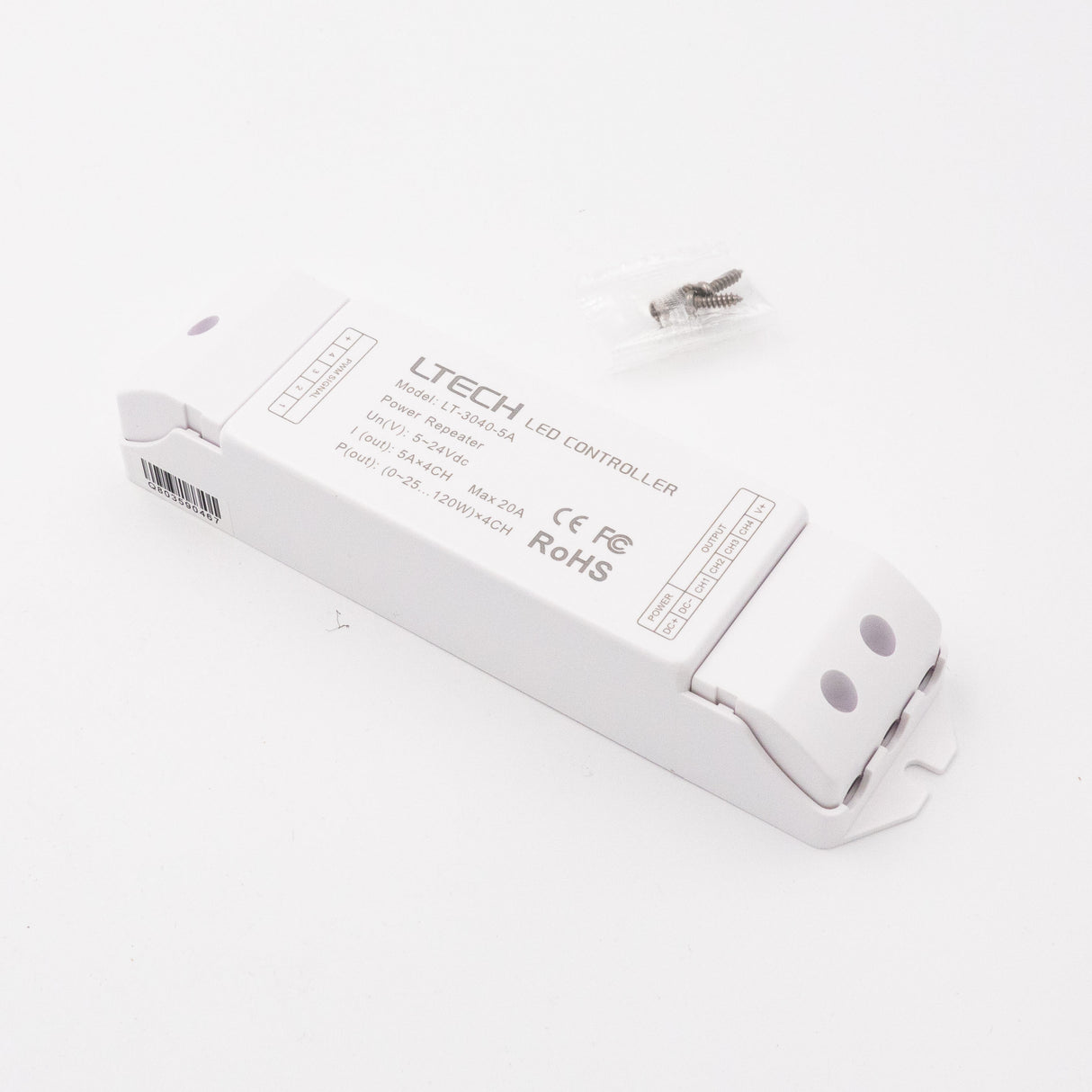

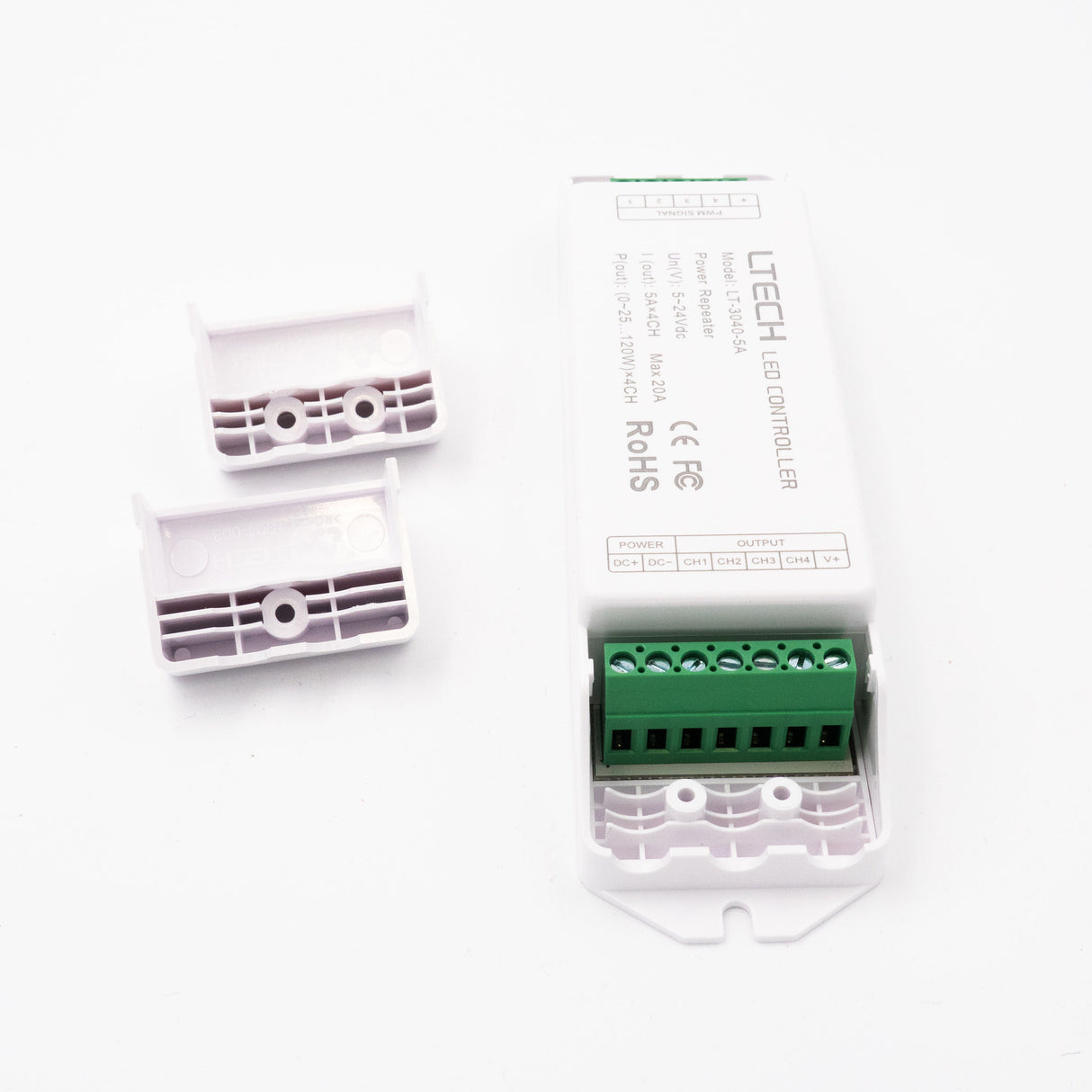

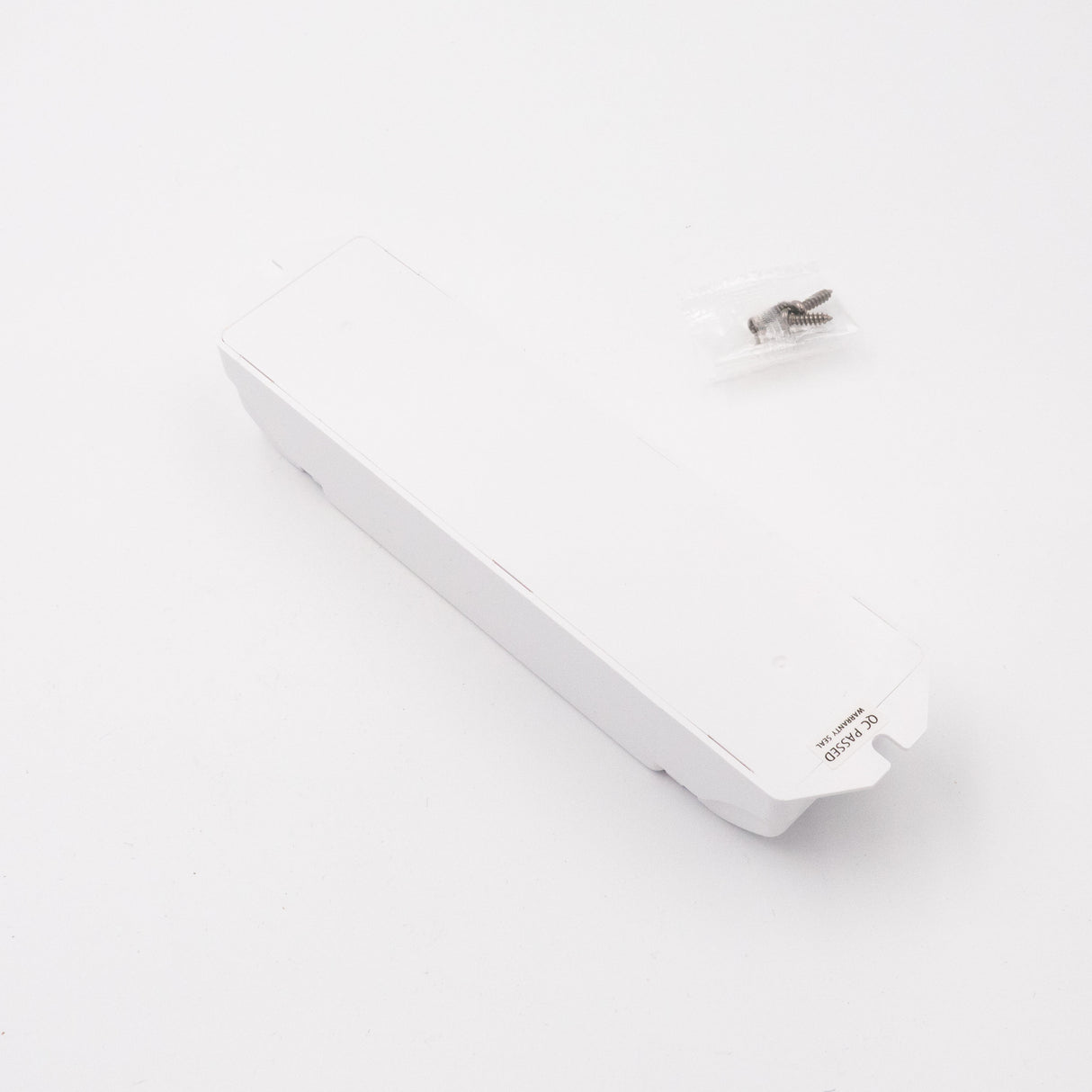

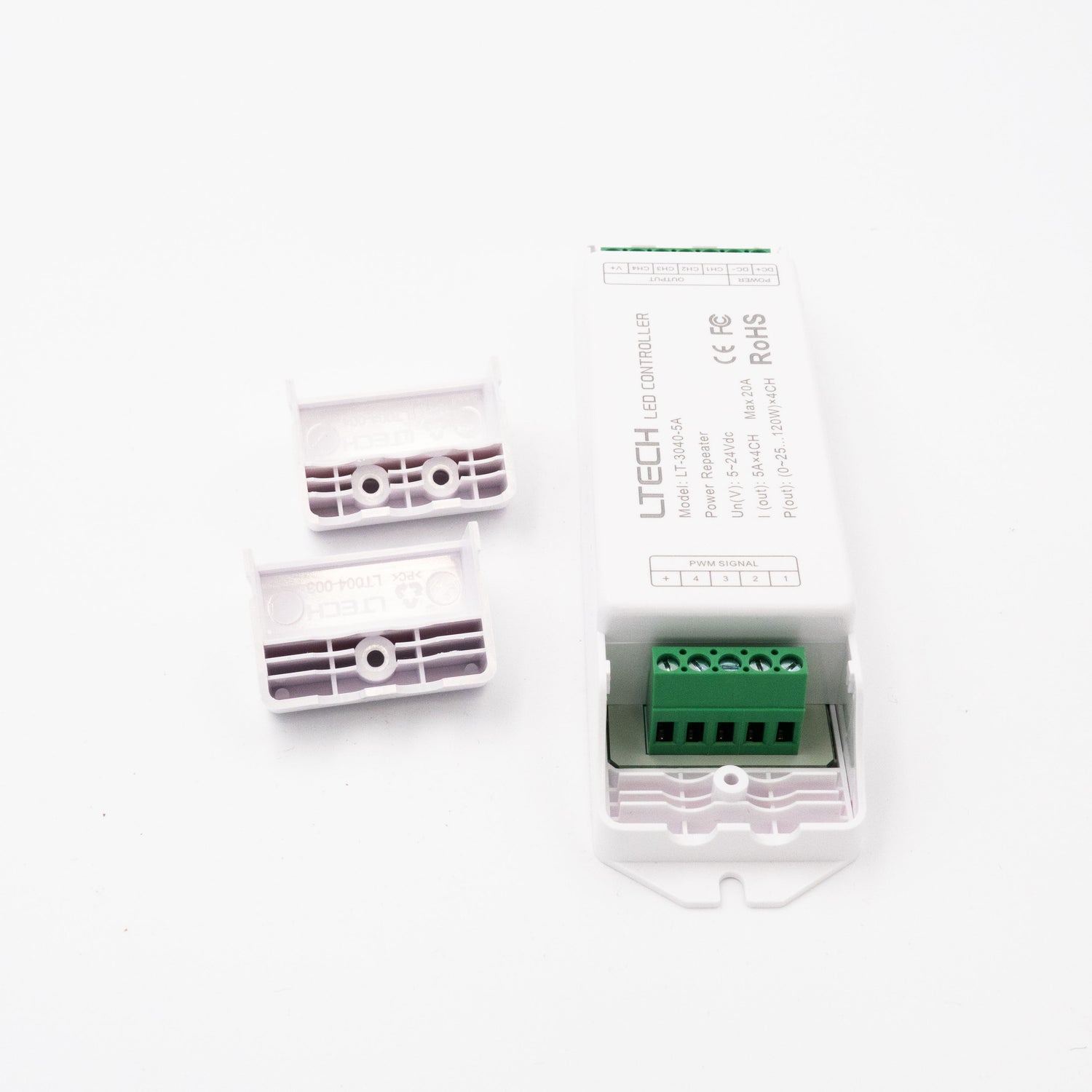

Ltech LT-3040-5A PWM Constant Voltage Repeater - RGBW

SKU LT-3040-5A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion, it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically. Signal input and output of LED power repeater have security protection function with photoelectricity isolation of 3KV.

Specifications

LT-3040-5ASpecifications from the official datasheet (2018-05-16 edition)Download datasheet PDF

Technical Specs

Input Signal
PWM (200Hz~2000Hz)
Input Voltage
5~24Vdc
Max Current Load
5A × 4CH Max. 20A
Max Power Load
(0~25...120W) × 4CH, Max. 480W
Working Temperature
-30℃ ~55 ℃
Dimensions
L175×W44×H30(mm)
Package Size
L178×W48×H33(mm)
Weight (G.W.)
145g

Certifications & ratings

Certification marks
FCC, CE, RoHS, SAA, ISO9001:2008

Technical drawings

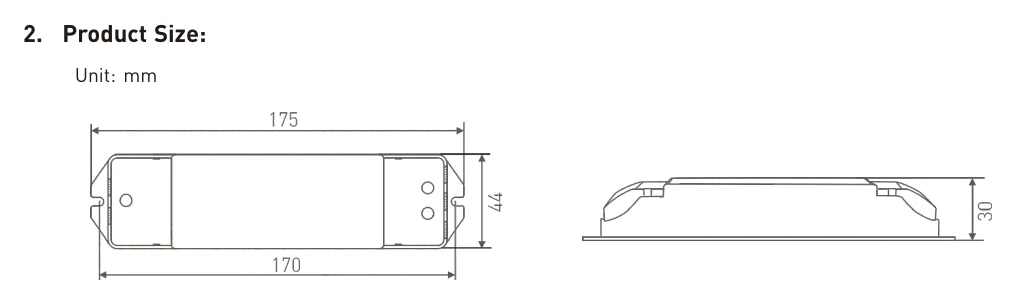

LT-3040-5A 2. Product Size
2. Product Size

Downloads

FAQ

What does the Ltech LT-3040-5A do in an LED control system?

The LT-3040-5A is a PWM constant voltage repeater designed to expand the power capacity of compatible LED control systems. It is intended for RGBW applications and accepts PWM control so larger lighting loads can be supported without changing the control method.

What voltage and power rating does the LT-3040-5A support?

This model supports an input voltage range of 5~24Vdc and up to 480 W total power. It also has a rated current of 20 A, which makes it suitable for higher-capacity constant voltage LED loads within that rating.

Is the LT-3040-5A compatible with RGBW LED control applications?

Yes. This repeater is designed for RGBW applications, so it is intended for RGBW constant voltage LED control setups that use PWM control. Buyers looking for a repeater for single-color or different channel formats should confirm they are selecting the correct model family.

What kind of control signal does the LT-3040-5A use?

The LT-3040-5A accepts PWM control. That makes it appropriate for systems using PWM-based constant voltage LED control rather than products that rely on a different dimming method.

Can this repeater be used in demanding commercial environments?

It is built for a wide operating temperature range of -30 °C to 55 °C, which supports use in many demanding indoor or protected commercial environments.

What warranty comes with the Ltech LT-3040-5A?

The LT-3040-5A is a PWM constant voltage repeater designed to expand the power capacity of compatible LED control systems. It is intended for RGBW applications and accepts PWM control so larger lighting loads can be supported without changing the control method.
