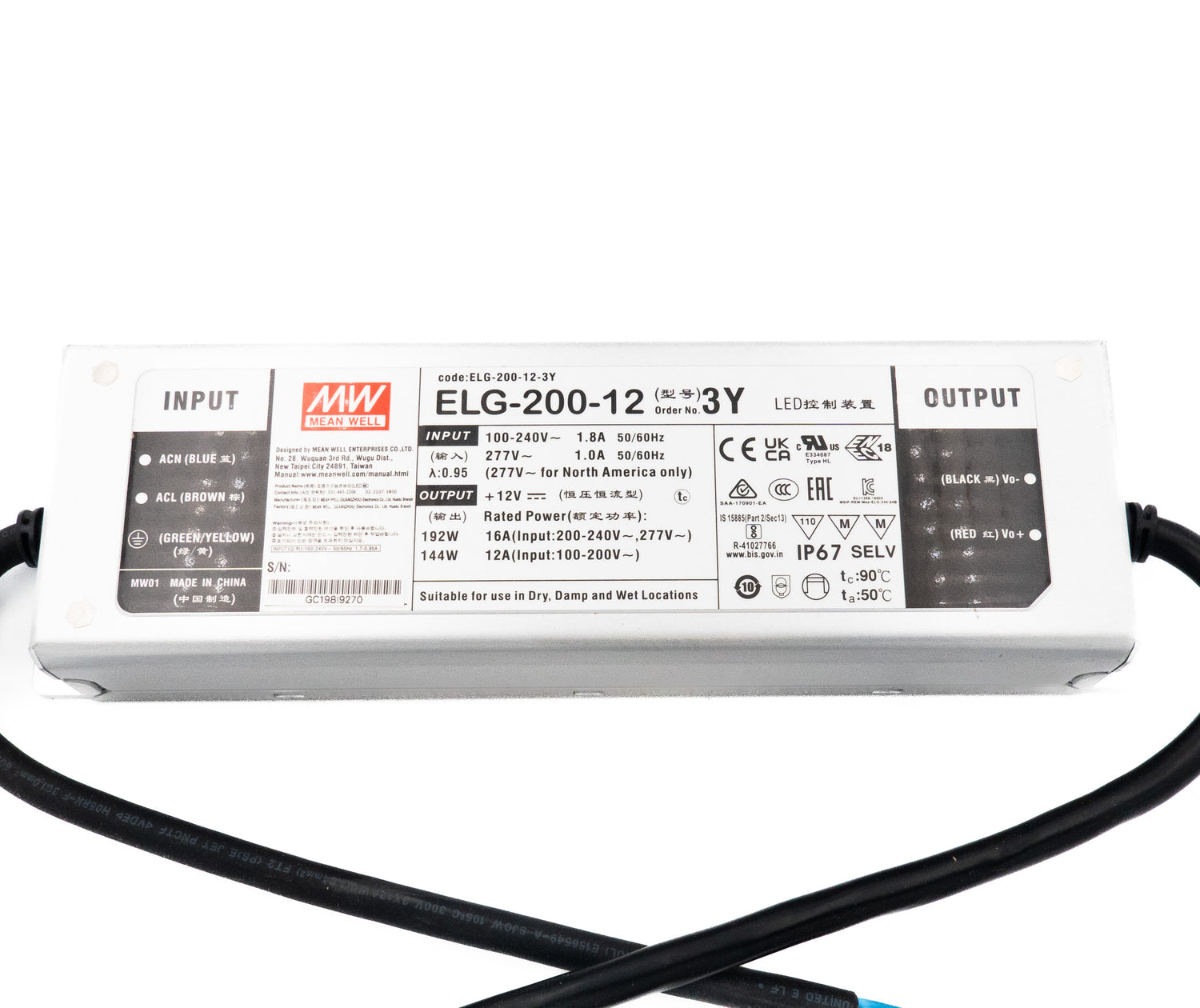

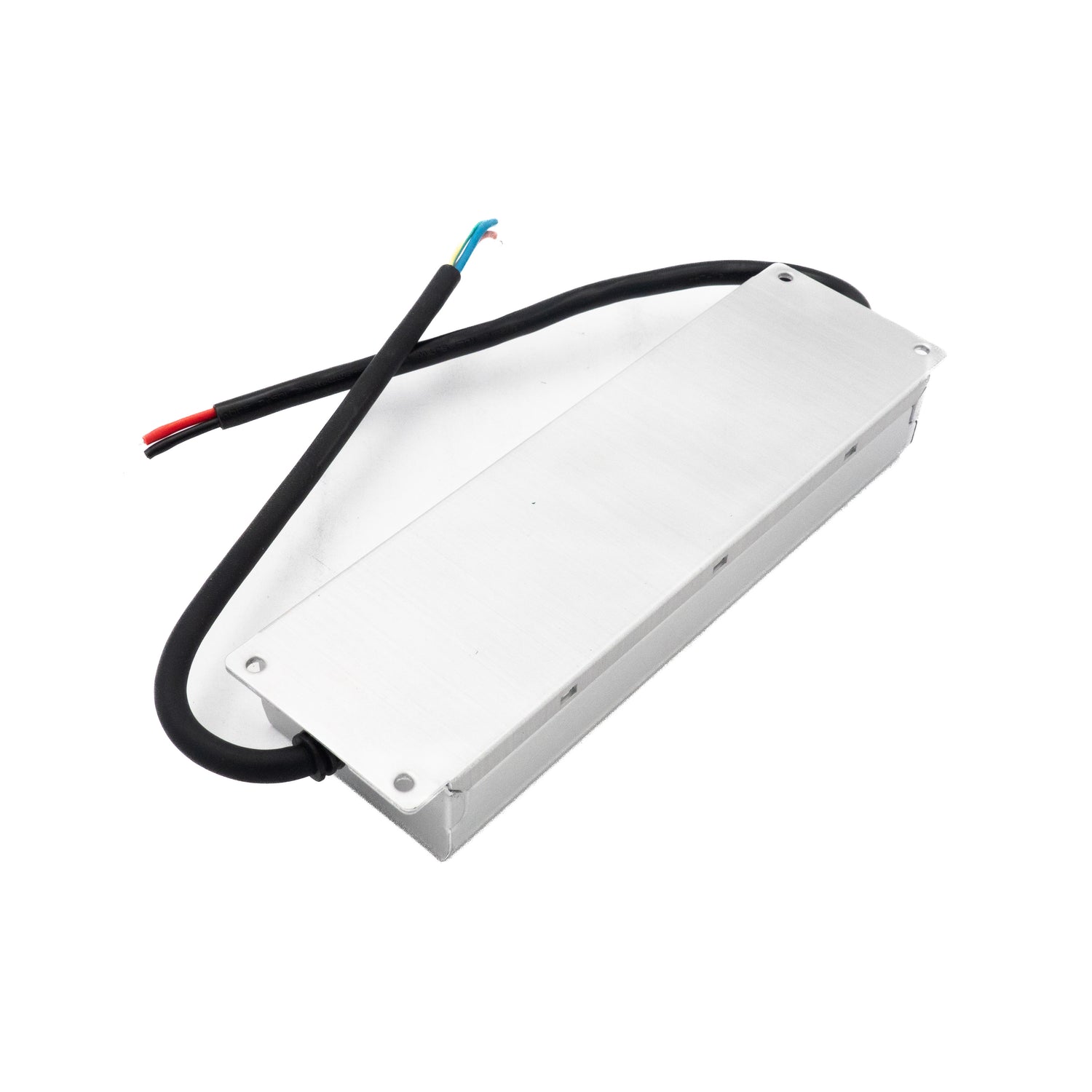

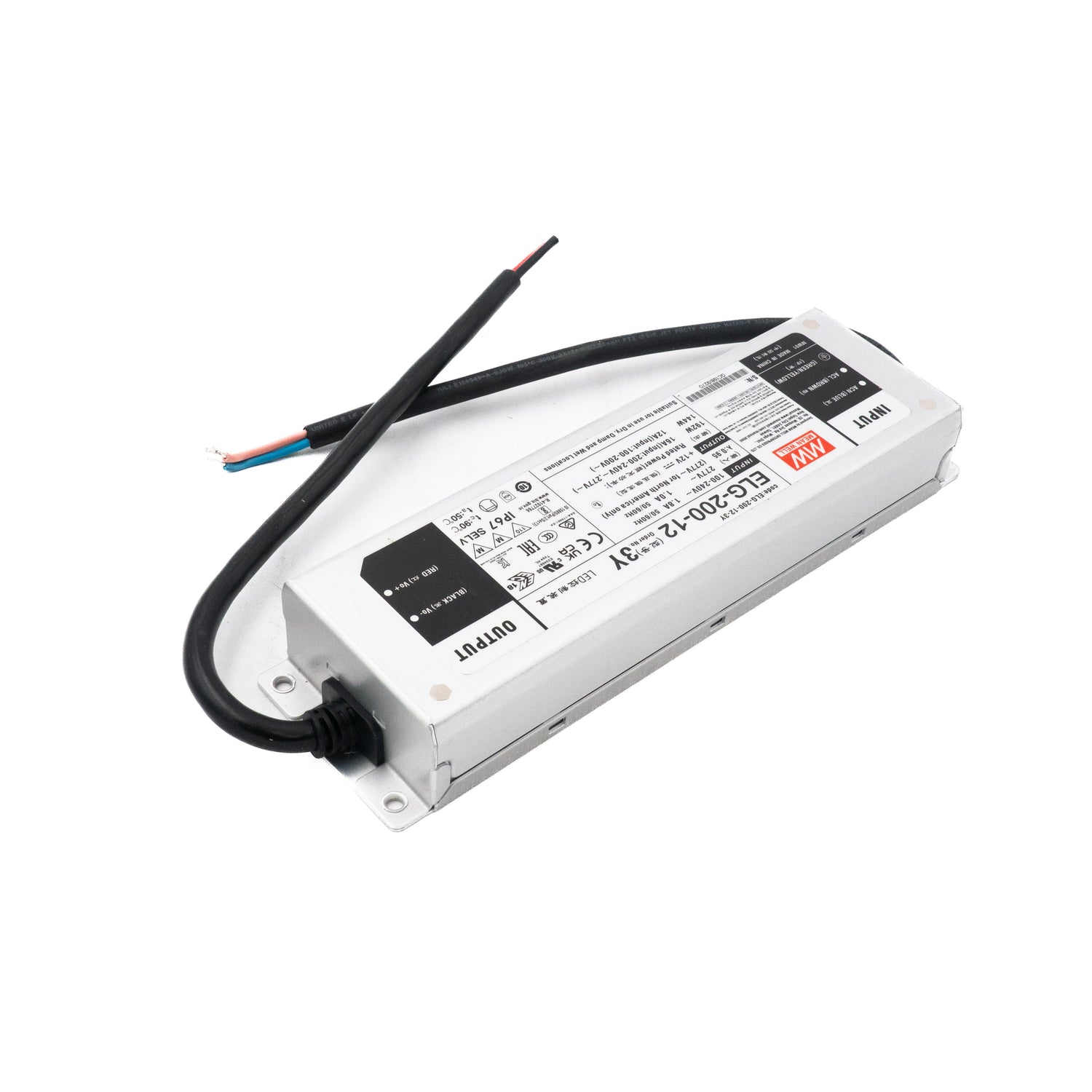

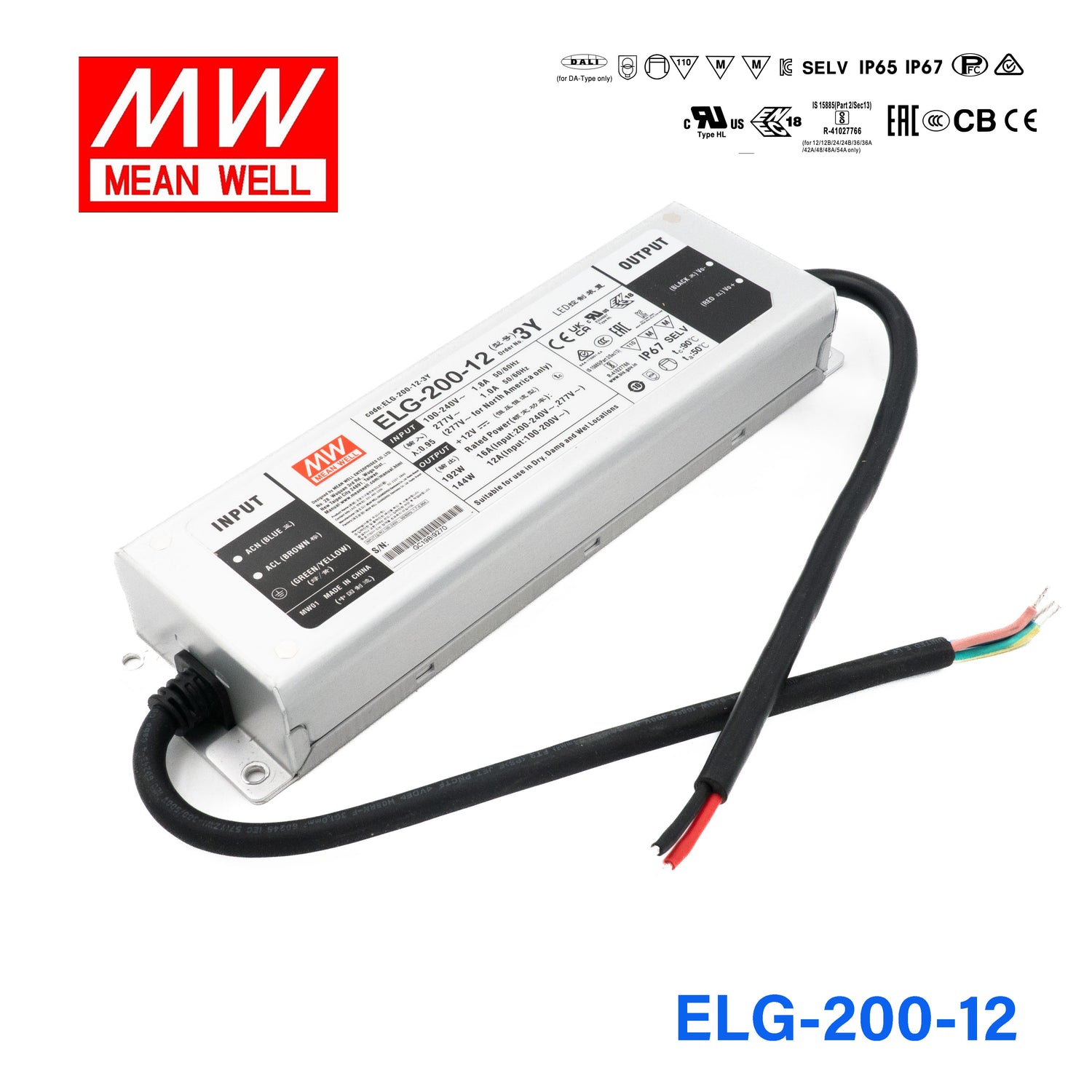

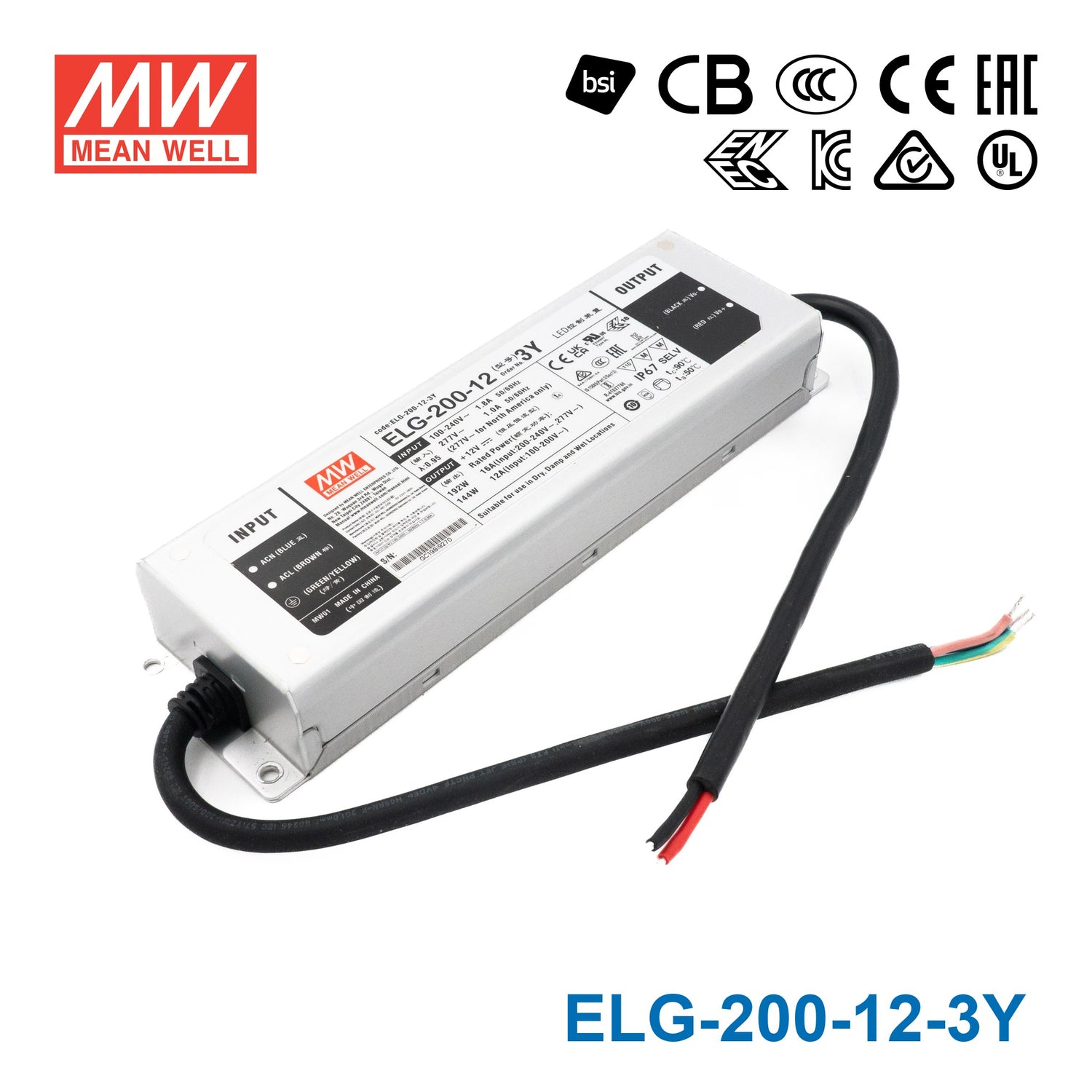

Mean Well ELG-200-12-3Y AC-DC Single output LED Driver

Description

The ELG-200-12 is a 200W Mean Well power converter (input range: 100~305VAC).

Key Features

✓ Input voltage range: 100~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.13-12; EAC TP TC 004;BISIS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B only); GB19510.14,GB19510.1; IP65 or IP67;KC61347-1,KC61347-2-13
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

ELG Series
Power Rating

200 Watt
Output Voltage

12 Volt
Rated Current

16 Ampere
Input Voltage

100V~305V
Standards Met

BSMI,CB,CE,EAC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

24.4 cm
Width

7.1 cm
Height

3.75 cm
Weight

1.22 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the ELG-200-12-3Y be mounted in an outdoor wet location for 12V LED strip lighting?

Yes. The ELG-200-12-3Y is rated IP67, fully protecting it against dust and temporary water immersion. It can be installed inside outdoor sign cabinets, exterior luminaire housings, or underground enclosures exposed to rain without requiring additional weatherproofing.

Is the ELG-200-12-3Y a good choice for powering 12V LED strip in a large-scale interior commercial installation?

Yes. The 200W output at 12V and 16A current capacity supports substantial 12V LED strip runs in commercial interior environments such as retail shelving, hospitality cove lighting, or office accent lighting. The higher 200W rating compared to some siblings allows longer single-driver strip runs.

How many meters of 12V LED strip can the ELG-200-12-3Y drive?

The ELG-200-12-3Y provides 200W at 12V. For a 10 W/m strip, that supports up to 20 meters; for a 14.4 W/m strip, approximately 13.9 meters. Always check your strip's rated power per meter and apply a 20% safety derating for reliable long-term operation.

Can the ELG-200-12-3Y power 12V LED strips for outdoor LED signage or channel letters?

Yes. With IP67 protection and 200W at 12V, this driver handles the power demands of 12V outdoor LED channel letters or backlit sign cabinets in weather-exposed locations. Its 244.0 × 71.0 × 37.5 mm metal housing is compatible with standard sign raceway enclosures.

What certifications does the ELG-200-12-3Y hold, and is it approved for North American and European use?

The ELG-200-12-3Y carries BSMI, CB, CE, EAC, and UL certifications. The UL mark covers North America and the CE mark confirms compliance with EU safety directives, making it approved for use in both markets. The CB certification additionally supports recognition in many other international markets.

Is the ELG-200-12-3Y suitable for 12V LED strip in cold-storage or outdoor winter conditions?

Yes. The operating temperature range of -40°C to +90°C ensures reliable startup and sustained operation in freezer and cold-weather outdoor environments. The IP67 sealed metal enclosure withstands the condensation and moisture exposure typical of cold-storage applications.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-200-24 Power Supply 200W 24V with AU/NZ plug	201.6W	24V	8.4A	IP67	View
Mean Well S-ELG-200-12 Power Supply 192W 12V with AU/NZ plug	192W	12V	16A	IP67	View
Mean Well ELG-200-24A-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC	200W	24V	8.4A	IP65	View
Mean Well ELG-200-24-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC	200W	24V	8.4A	IP67	View
Mean Well ELG-200-48A-3Y AC-DC Single output LED Driver Mix Mode CV+CC 200W	200W	48V	4.16A	IP65	View
Mean Well ELG-200-48-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC	200W	48V	4.16A	IP67	View
Mean Well ELG-200-24B Power Supply 200W 24V - Dimmable	201.6W	24V	8.4A	IP67	View
Mean Well ELG-200-12A Power Supply 192W 12V 3-wire Input - Adjustable	192W	12V	16A	IP65	View
Mean Well S-ELG-200-24A Power Supply 200W 24V - Adjustable with AU/NZ plug	201.6W	24V	8.4A	IP65	View
