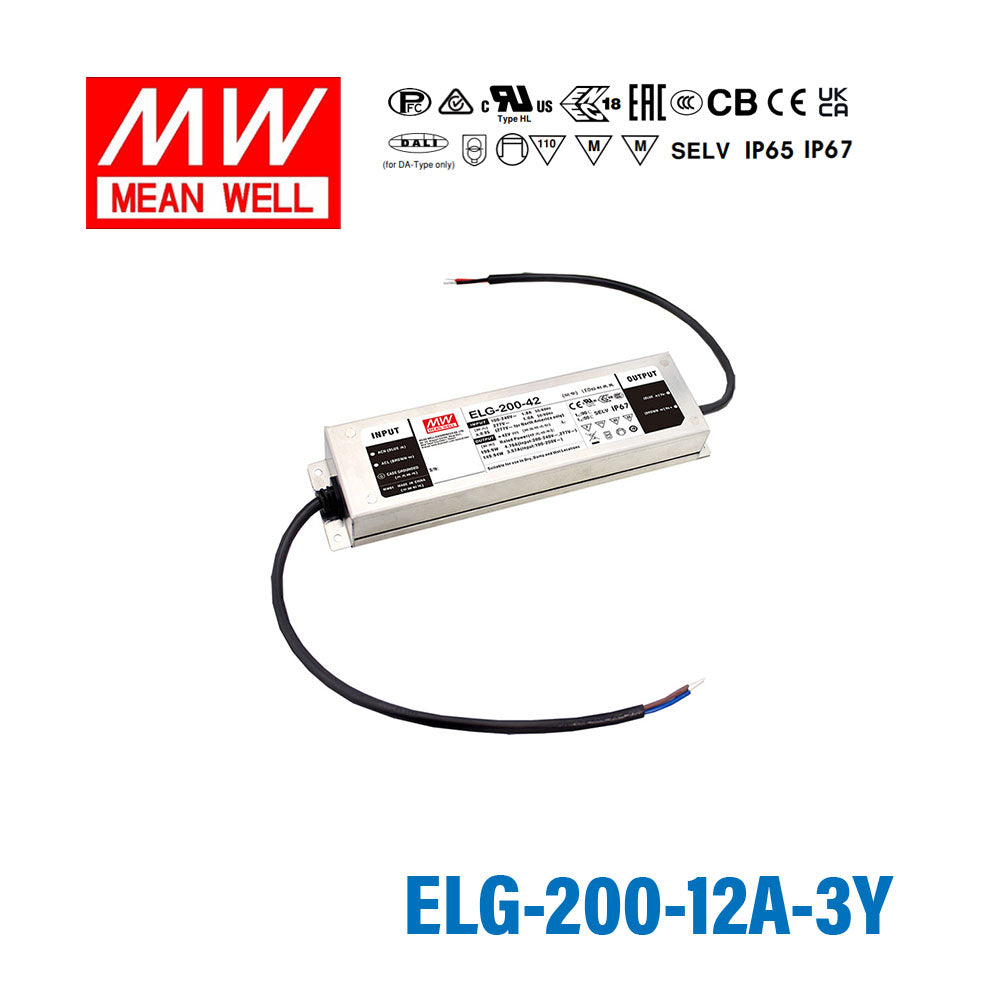

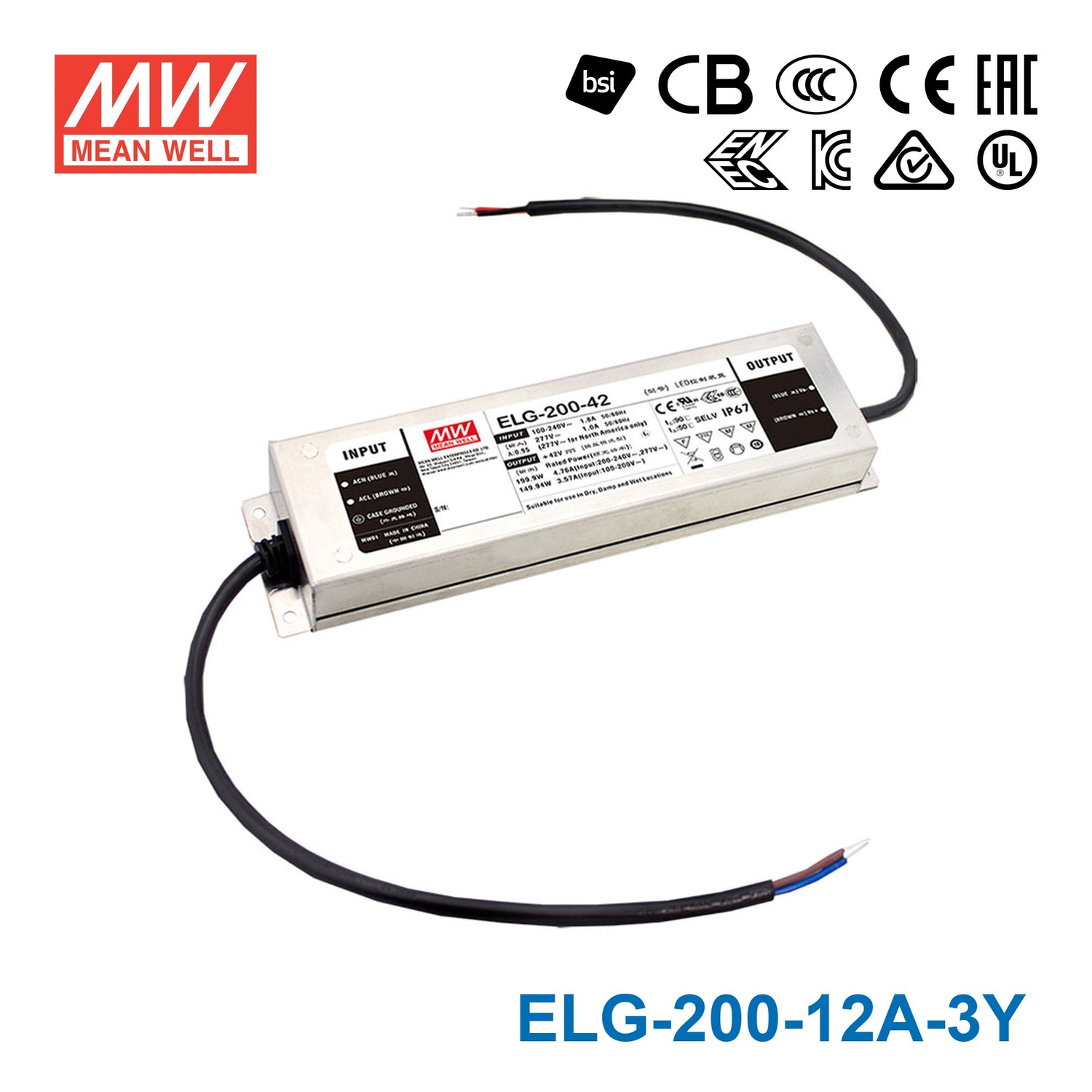

Mean Well ELG-200-12A Power Supply 192W 12V 3-wire Input - Adjustable 16A

metal case, IP65/IP67, 5 years warranty

SKU:

ELG-200-12A-3Y

Please for Pricing

Notify me when it's back in stock

Description

The ELG-200-12A is a 200W Mean Well power converter (input range: 100~305VAC).

Key Features

✓ Input voltage range: 100~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: DALI STANDARDS
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

ELG Series
Power Rating

192 Watt
Output Voltage

12 Volt
Rated Current

16 Ampere
Input Voltage

100V~305V
Standards Met

BSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

24.4 cm
Width

7.1 cm
Height

3.75 cm
Weight

1.22 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What distinguishes the ELG-200-12A-3Y from the standard ELG-200-12A?

The ELG-200-12A-3Y is a 3-wire input variant of the ELG-200-12A. Both share the same 192W / 12V / 16A output, IP65 rating, adjustable output, and -40°C to +90°C operating range. The 3-wire input designation indicates it uses a three-conductor AC input configuration rather than a two-wire one, which may be required by specific installation wiring standards.

Can the ELG-200-12A-3Y power 12V LED strips in an outdoor architectural lighting project?

Yes. The ELG-200-12A-3Y outputs 12V at up to 16A (192W) and carries an IP65 water-resistance rating, making it appropriate for sheltered outdoor architectural lighting. At 192W, a 10W/m LED strip allows approximately 19 meters per driver; check your strip's rated power per meter for an accurate figure.

Is the ELG-200-12A-3Y suitable for use in outdoor enclosures exposed to rain?

The ELG-200-12A-3Y is IP65 rated, protecting it against low-pressure water jets from any direction. It is suitable for weatherproof enclosures, covered outdoor cabinets, and similar installations that may experience rain splash but not submersion.

Can the ELG-200-12A-3Y drive 12V LED strips in a large-format illuminated sign?

Yes. With 192W at 12V and 16A, the ELG-200-12A-3Y can drive substantial LED strip runs inside large-format signs. The adjustable output also allows fine-tuning of brightness to match the specific LED strip load. Always account for derating in high-ambient enclosures.

Does the ELG-200-12A-3Y operate across global mains voltages?

Yes. The ELG-200-12A-3Y accepts 100–305VAC input, covering standard residential and commercial voltages in North America (120V), Europe (230V), and US commercial (277V) without any configuration change.

What is the operating temperature range of the ELG-200-12A-3Y?

The ELG-200-12A-3Y is rated for operation from -40°C to +90°C. This covers installations in cold-storage facilities, unheated outdoor enclosures in winter climates, and high-ambient locations such as rooftops or industrial spaces.
