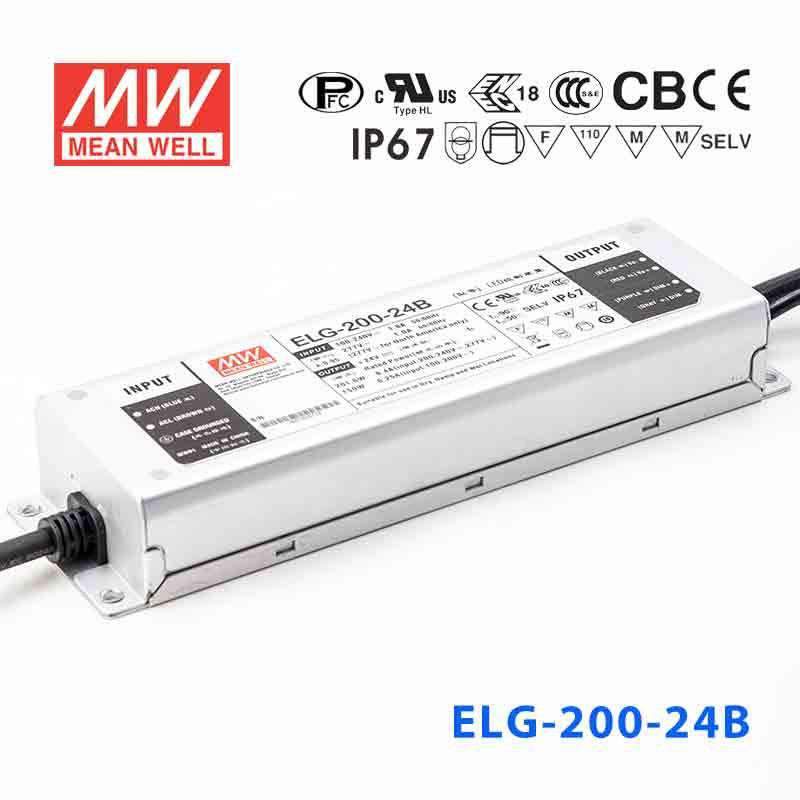

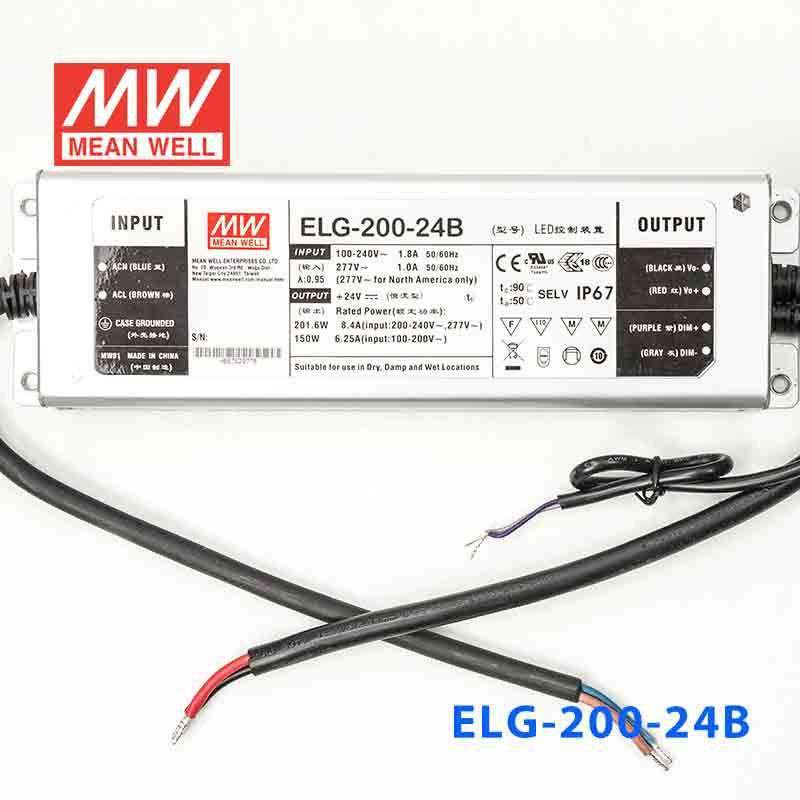

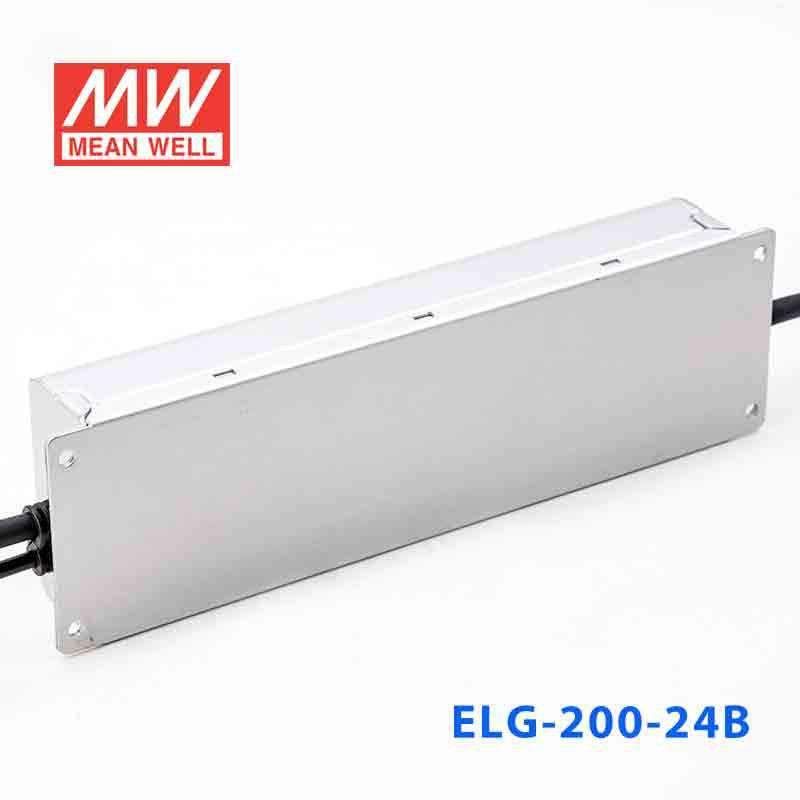

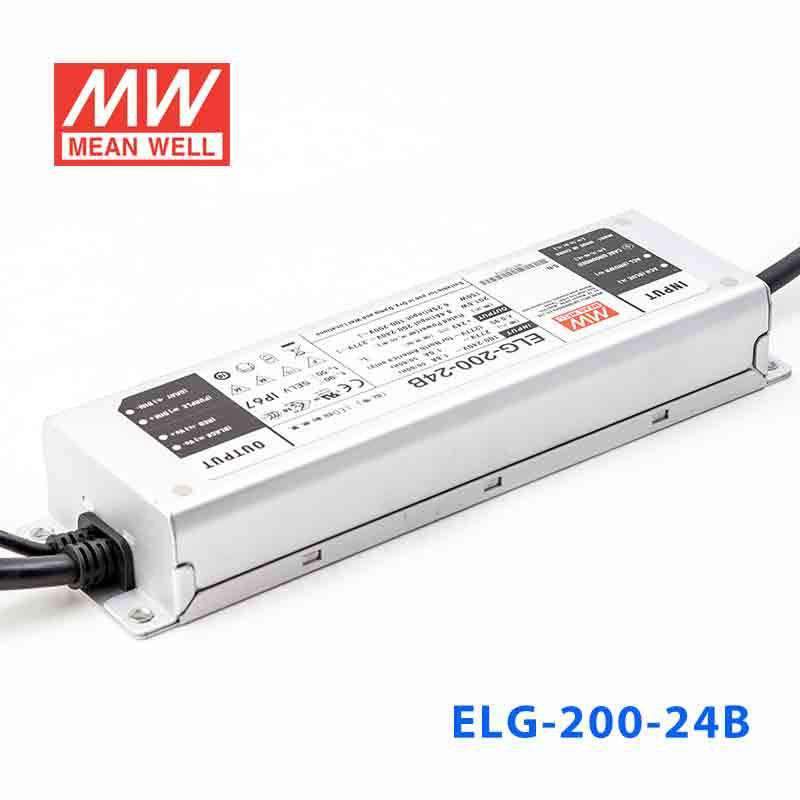

Mean Well ELG-200-24B Power Supply | 200W 24V Dimmable LED Driver

Description

The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).

Key Features

✓ Input voltage range: 100~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

ELG Series
Power Rating

201.6 Watt
Output Voltage

24 Volt
Rated Current

8.4 Ampere
Input Voltage

100V~305V
Standards Met

BSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

24.4 cm
Width

7.1 cm
Height

3.75 cm
Weight

1.22 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the ELG-200-24B be used to drive dimmable 24V LED strips in a retail display?

Yes. The ELG-200-24B supports PWM and resistance dimming, allowing integration with standard retail lighting controllers that output a PWM signal or resistive dimmer signal to adjust brightness of 24V LED strips across a 201.6W load.

How many meters of 24V LED strip can the ELG-200-24B support?

The ELG-200-24B delivers 201.6W at 24V. Divide that by your strip's rated wattage per meter — for example, a 14.4 W/m strip supports up to about 14 meters, and a 9.6 W/m strip supports approximately 21 meters. Verify the rated power per meter for your specific strip.

Is the ELG-200-24B suitable for outdoor or wet-location LED signage?

The ELG-200-24B carries an IP67 rating, meaning it is fully dust-tight and can withstand temporary water immersion up to 1 meter. This makes it appropriate for outdoor exposed signage, exterior facade lighting, and installations in wet locations.

Can the ELG-200-24B be used for 24V LED strip lighting in an outdoor perimeter fence lighting system?

Yes. The IP67 waterproof rating and -40°C to +90°C operating range make the ELG-200-24B well suited for outdoor perimeter or fence-mounted LED strip systems at 24V. PWM dimming also allows scheduling brightness during different times of day.

What dimming signals does the ELG-200-24B accept?

The ELG-200-24B's 'B' suffix indicates it accepts external PWM signal dimming and resistance-based dimming. It does not natively support 0–10V, DALI, or D2 protocols — for those interfaces, the DA or D2 variants are required.

How does the ELG-200-24B differ from the ELG-200-24DA for dimmable outdoor LED installations?

Both are 24V drivers with IP67 waterproof ratings and similar 200W output. The ELG-200-24B accepts PWM and resistance dimming signals, while the ELG-200-24DA uses DALI protocol dimming — a standard in commercial building automation systems. Choose the B variant for simpler PWM controllers and the DA variant when integrating into a DALI-based smart lighting network.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-200-24 Power Supply 200W 24V with AU/NZ plug	201.6W	24V	8.4A	IP67	View
Mean Well S-ELG-200-12 Power Supply 192W 12V with AU/NZ plug	192W	12V	16A	IP67	View
Mean Well ELG-200-24A-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC	200W	24V	8.4A	IP65	View
Mean Well ELG-200-24-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC	200W	24V	8.4A	IP67	View
Mean Well ELG-200-12-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC	200W	12V	16A	IP67	View
Mean Well ELG-200-48A-3Y AC-DC Single output LED Driver Mix Mode CV+CC 200W	200W	48V	4.16A	IP65	View
Mean Well ELG-200-48-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC	200W	48V	4.16A	IP67	View
Mean Well ELG-200-12A Power Supply 192W 12V 3-wire Input - Adjustable	192W	12V	16A	IP65	View
Mean Well S-ELG-200-24A Power Supply 200W 24V - Adjustable with AU/NZ plug	201.6W	24V	8.4A	IP65	View

{ "id":8422092505387, "variants" :[{ "context":"default", "variant_id": 45628720382251, "sku":"ELG-200-24B", "inventory_qty" : 11, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

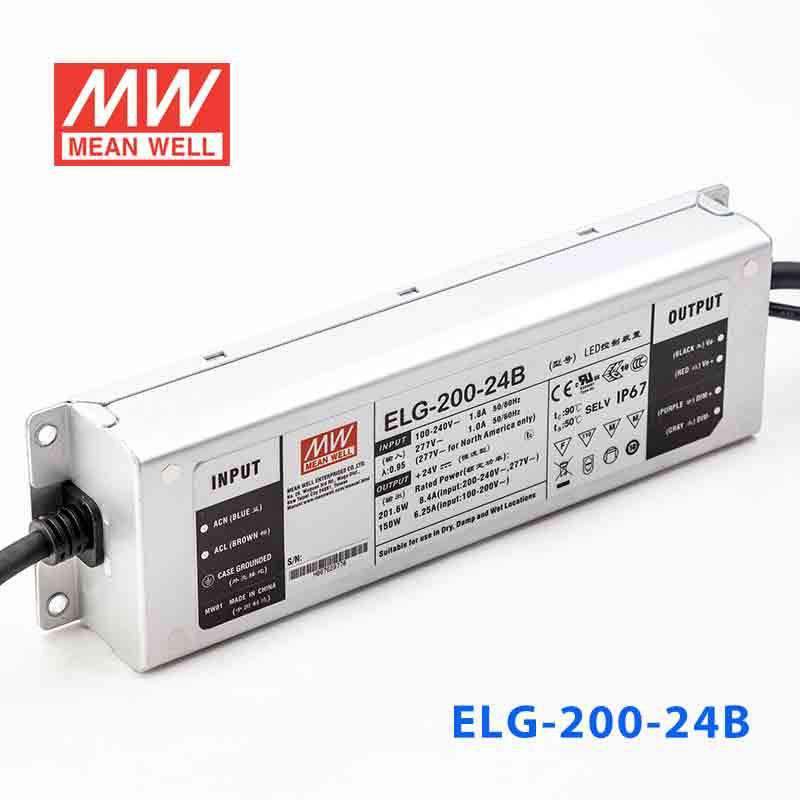

Mean Well ELG-200-24B Power Supply 200W 24V - Dimmable
