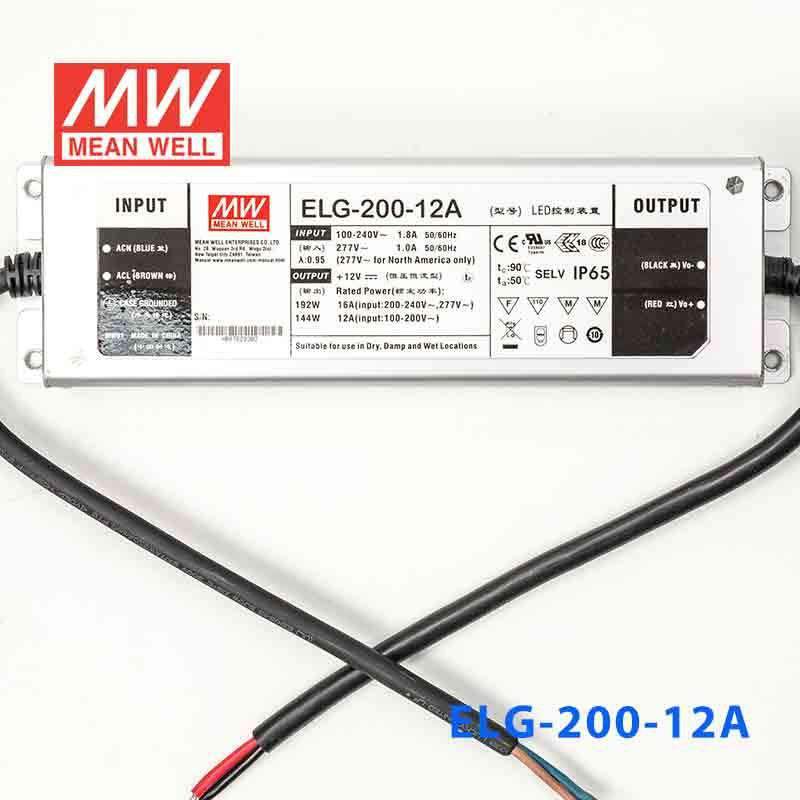

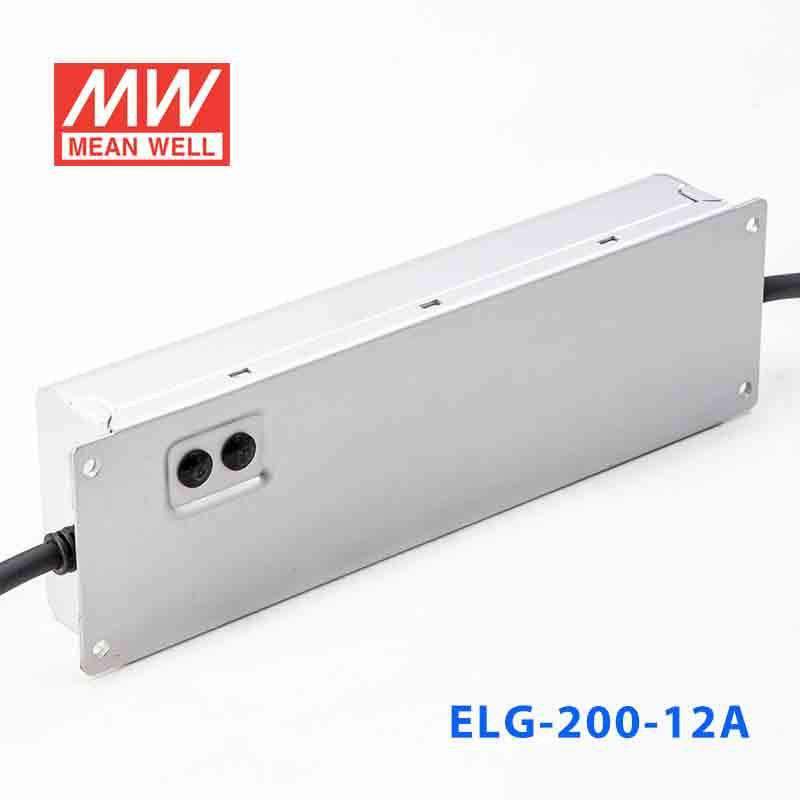

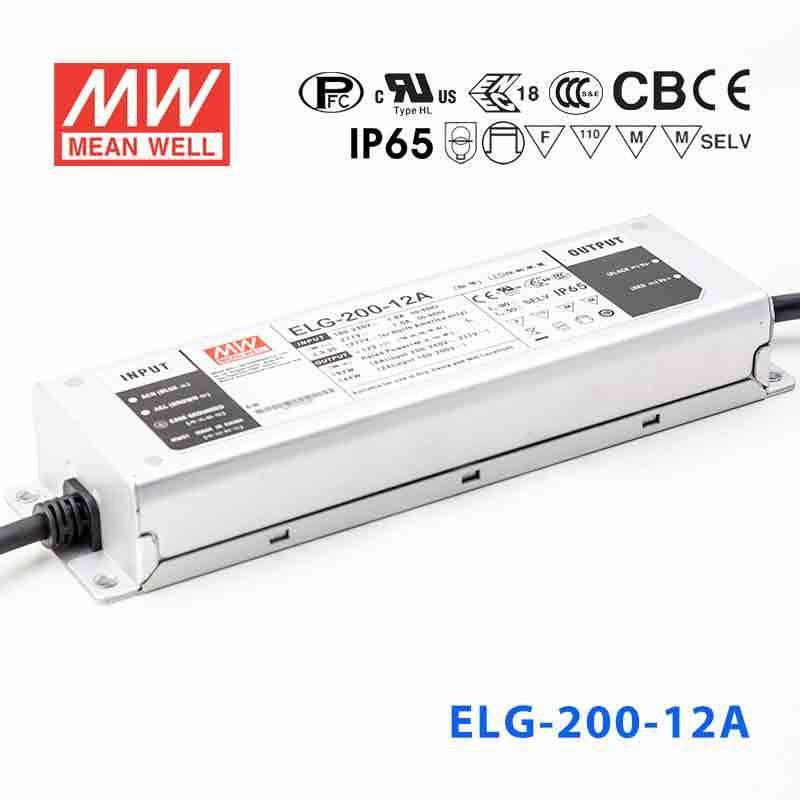

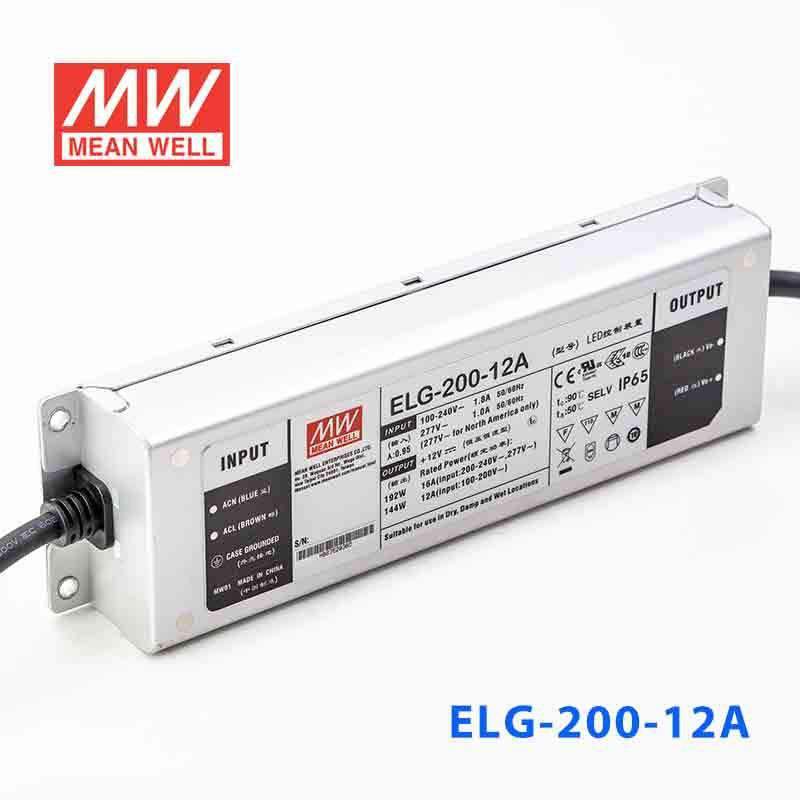

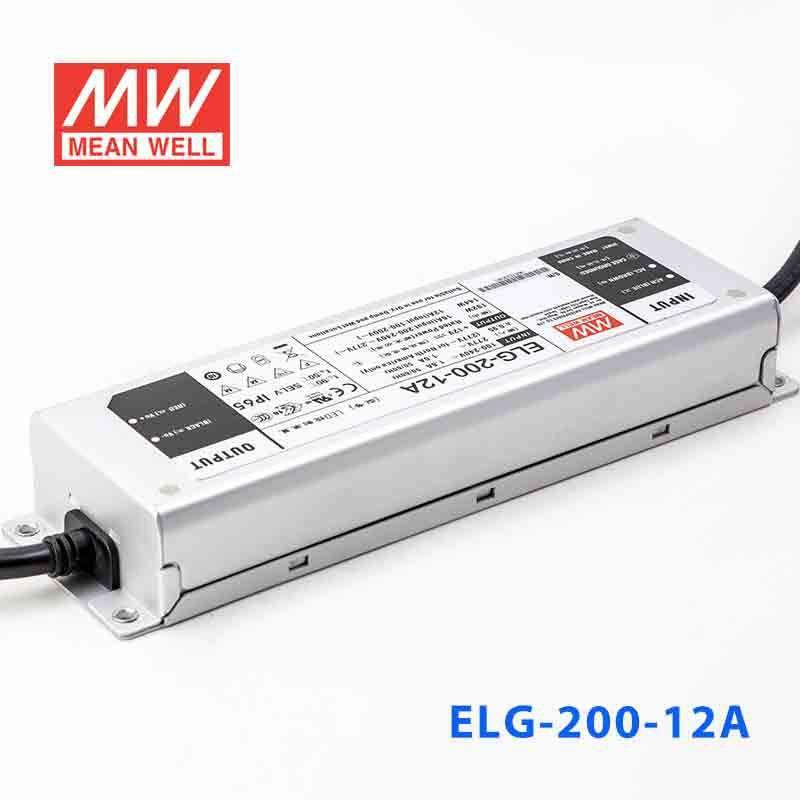

Mean Well ELG-200-12A Power Supply 192W 12V - Adjustable
Please Login for Pricing
Description
Description
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating192 Watt
-
Output Voltage12 Volt
-
Rated Current16 Ampere
-
Input Voltage100V~305V
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length24.4 cm
-
Width7.1 cm
-
Height3.75 cm
-
Weight1.22 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ELG-200-12A to power 12V LED strip lighting for a commercial installation?
Yes. The ELG-200-12A delivers 12V DC at up to 16A in constant-current mode, providing 192W of capacity for 12V LED strips. At 192W total, divide that by your strip's rated watts per meter to find the maximum run length — for example, a 14.4W/m strip allows roughly 13 meters. Always verify your strip's rated power per meter before sizing the run.
Is the ELG-200-12A suitable for powering outdoor 12V LED signage?
Yes. The ELG-200-12A carries an IP65 water-resistance rating, protecting it against low-pressure water jets from any direction. It is well suited for sheltered outdoor LED signage cabinets and covered architectural lighting installations exposed to rain splash.
Can the ELG-200-12A operate on both 120V North American and 230V European mains supplies?
Yes. The ELG-200-12A accepts a universal input range of 100–305VAC, covering 120V (North America), 230V (Europe), and 277V (US commercial) without manual voltage switching or configuration.
Will the ELG-200-12A work in extreme-temperature environments such as cold-storage or rooftop installations?
Yes. The ELG-200-12A is rated for operation from -40°C to +90°C, making it suitable for unheated outdoor enclosures in cold climates as well as high-ambient rooftop or industrial installations. Its IP65 rating also protects against condensation common in temperature-variable environments.
Can I use the ELG-200-12A for 12V LED lighting in retail display fixtures?
Yes. The ELG-200-12A's adjustable output lets you trim voltage and current to match different 12V LED loads across display fixtures. Its 192W capacity supports larger fixture arrays, and the metal enclosure suits both in-cabinet and panel-mount installations.
Is the ELG-200-12A certified for use in North America and Europe?
Yes. The ELG-200-12A holds UL and c_bsi certifications for the US and Canadian markets, and CE and ENEC for European installations. It also carries CB, CCC, EAC, KC, and c_rcm for broader international deployment.
How does the ELG-200-12A differ from the ELG-200-12B and ELG-200-12AB variants?
All three share the same 192W / 12V / 16A output. The ELG-200-12A (IP65) adds output voltage and current adjustability via potentiometer. The ELG-200-12B (IP67) adds a 3-in-1 dimming interface supporting 0–10V, PWM, and resistance signals. The ELG-200-12AB (IP65) combines both the adjustability of the A and the dimming interface of the B.
