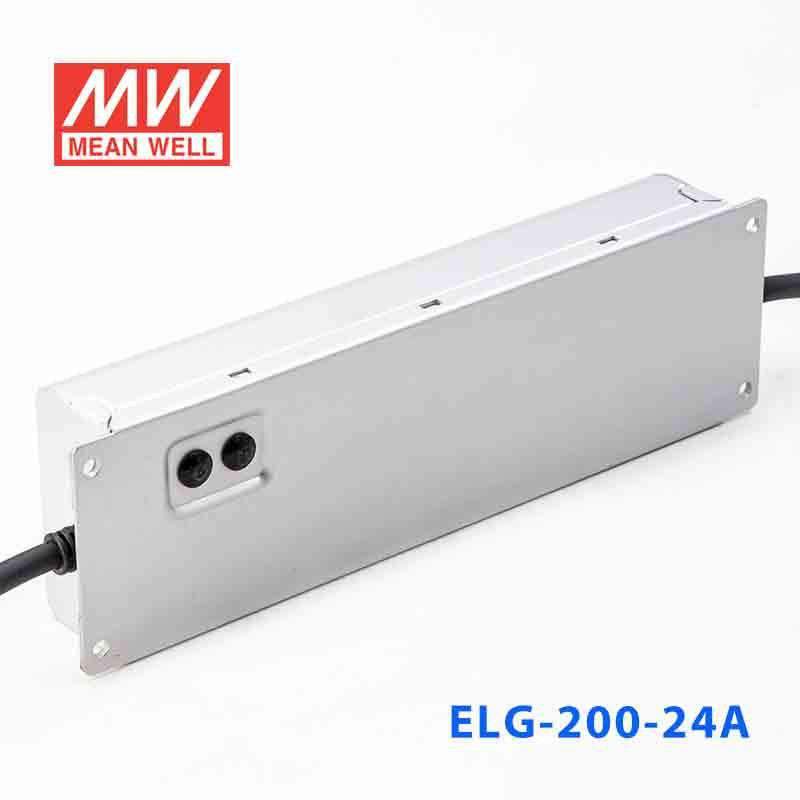

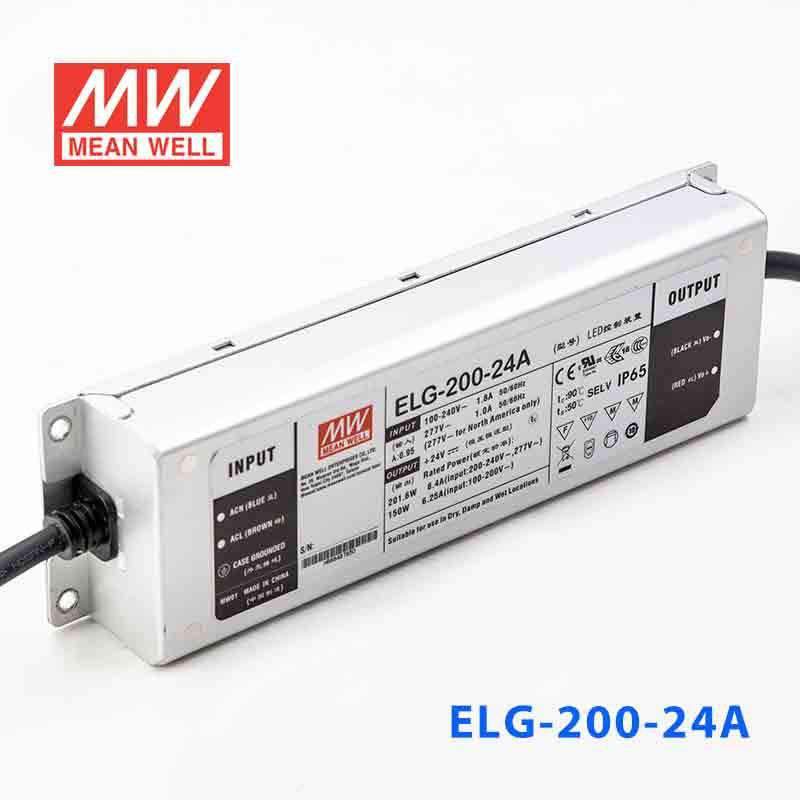

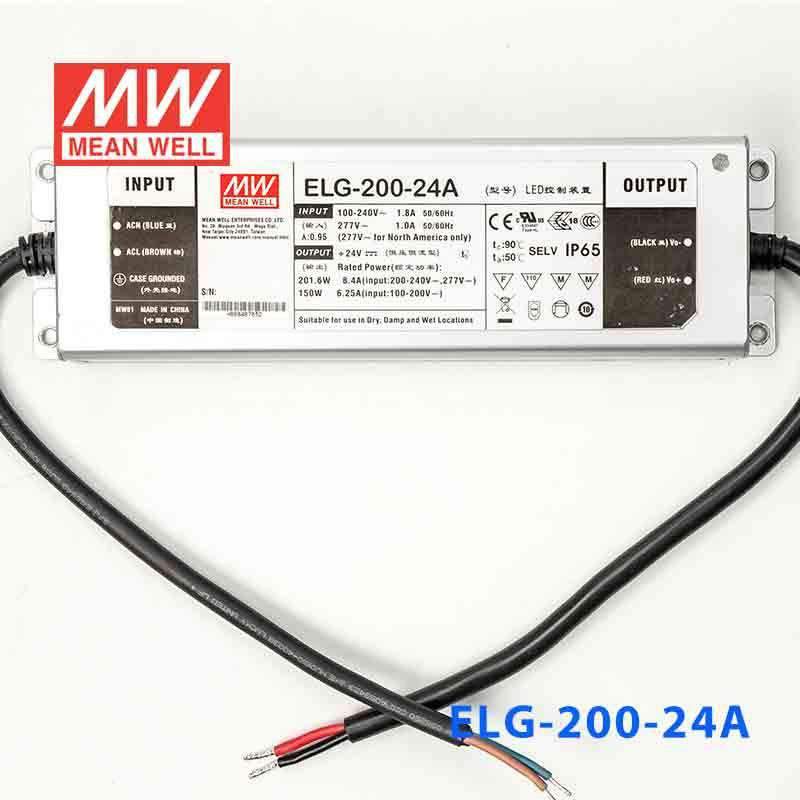

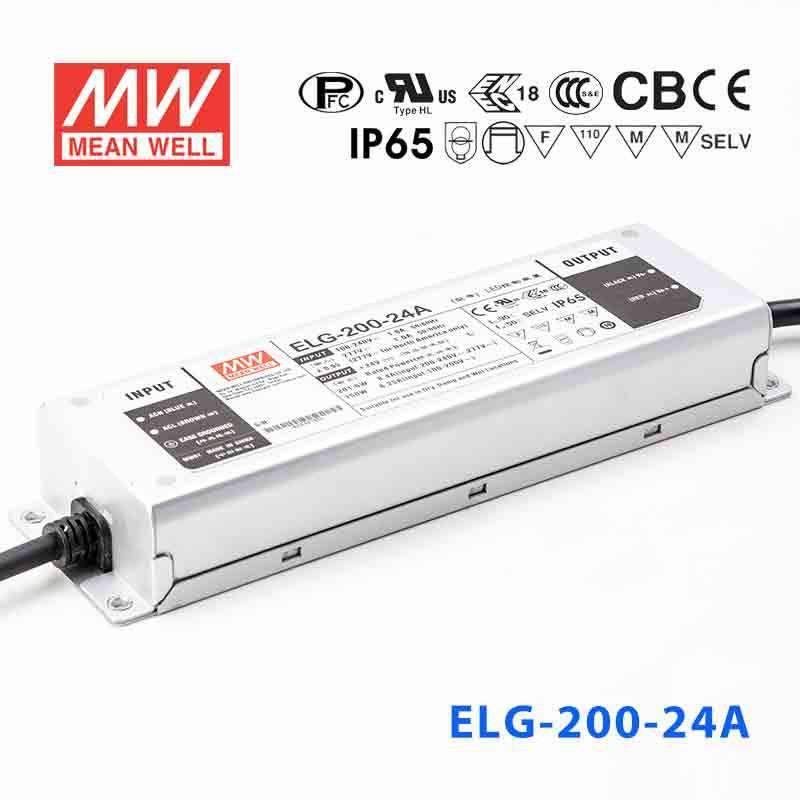

Mean Well ELG-200-24A Power Supply 200W 24V - Adjustable
Please Login for Pricing
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 93% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 65 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 244x71x37.5 |
| Packing | 12pcs / 15.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating201.6 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage100V~305V
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length24.4 cm
-
Width7.1 cm
-
Height3.75 cm
-
Weight1.22 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-200-24A power a large 24V LED strip installation for retail signage?
Yes. The ELG-200-24A delivers 201.6W at 24V, making it well suited for powering long runs of 24V LED strips in illuminated retail signs or channel-letter displays. At 8.4A continuous output, it can sustain high-brightness strips without voltage sag.
How many meters of 24V LED strip can the ELG-200-24A drive?
The driver provides 201.6W at 24V. Divide 201.6W by your strip's rated wattage per meter — for a 14.4 W/m strip that gives approximately 14 meters, and for a 9.6 W/m strip roughly 21 meters. Always verify your strip's rated power per meter before finalising the run length.
Is the ELG-200-24A suitable for outdoor LED lighting installations?
The ELG-200-24A carries an IP65 rating, meaning it is protected against dust ingress and low-pressure water jets. It is appropriate for covered outdoor locations such as building facades, outdoor signage cabinets, and canopy lighting where direct rain contact is avoided.
Can I use the ELG-200-24A for architectural LED cove lighting in a commercial building?
Yes. Its 24V constant-voltage output with 201.6W capacity is a common fit for architectural cove and linear LED installations. The metal enclosure and IP65 rating also allow it to be mounted in ceiling voids or behind panels where some moisture exposure may occur.
What does the 'A' suffix mean on the ELG-200-24A, and how does it differ from the ELG-200-24B?
In Mean Well's ELG naming, the 'A' suffix indicates output voltage and current adjustment via an internal trimmer potentiometer, while 'B' indicates dimming via an external PWM or resistor signal. Both are 201.6W, 24V, 8.4A with IP65/IP67 construction; choose the A variant when you need to fine-tune the output at installation, and the B variant when ongoing dimming control is required.
Can the ELG-200-24A operate in cold storage or freezer environments?
Yes. The ELG-200-24A is rated for operation down to -40°C, making it suitable for cold-chain facilities, freezer-room lighting, and outdoor installations in harsh winter climates.
