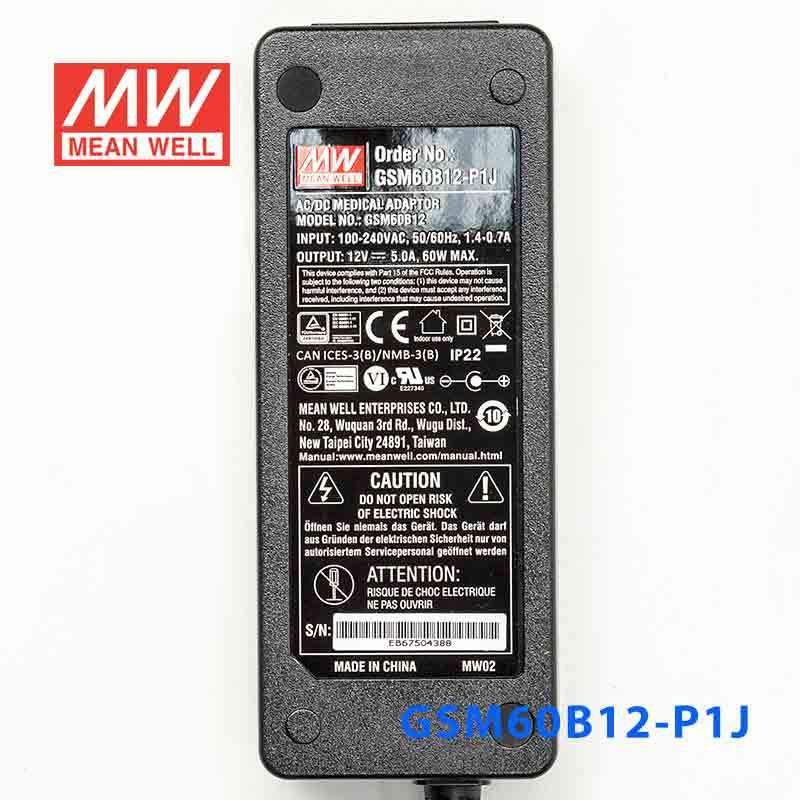

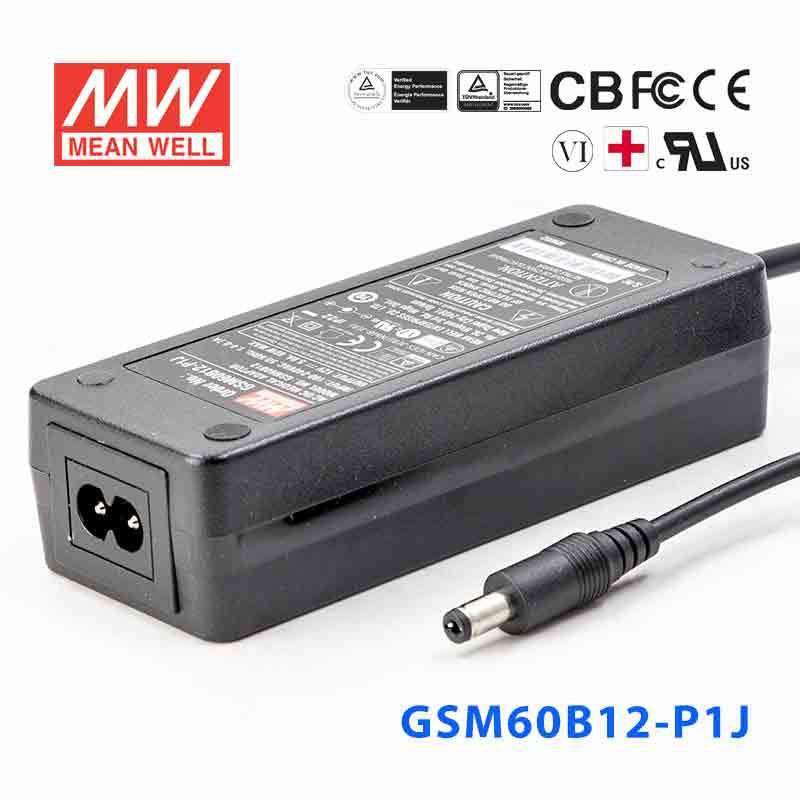

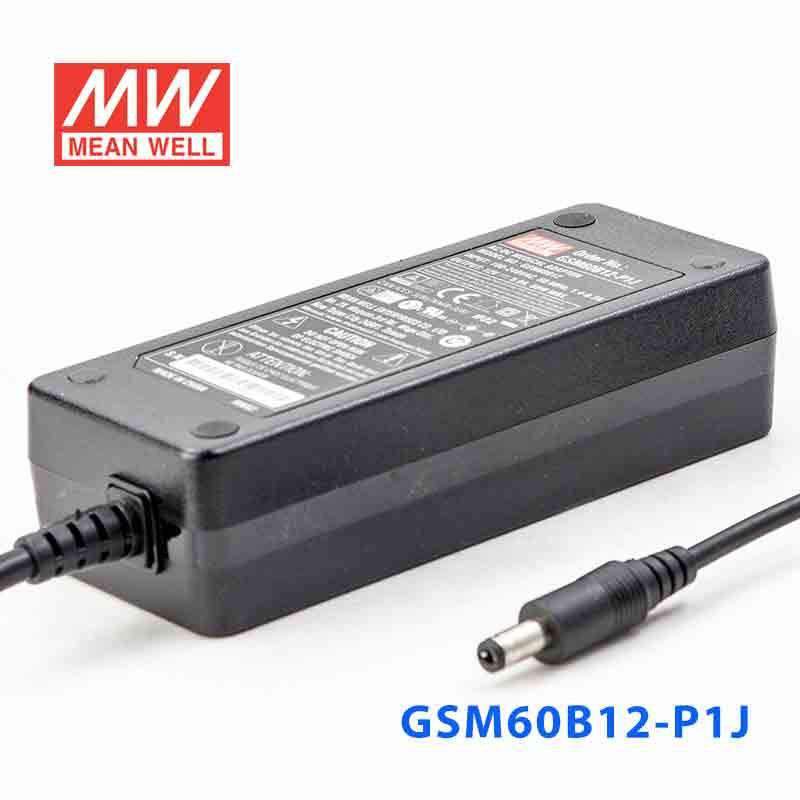

Mean Well GSM60B12-P1J Power Supply 54W 12V


|

Description

Features

Universal AC input / Full range

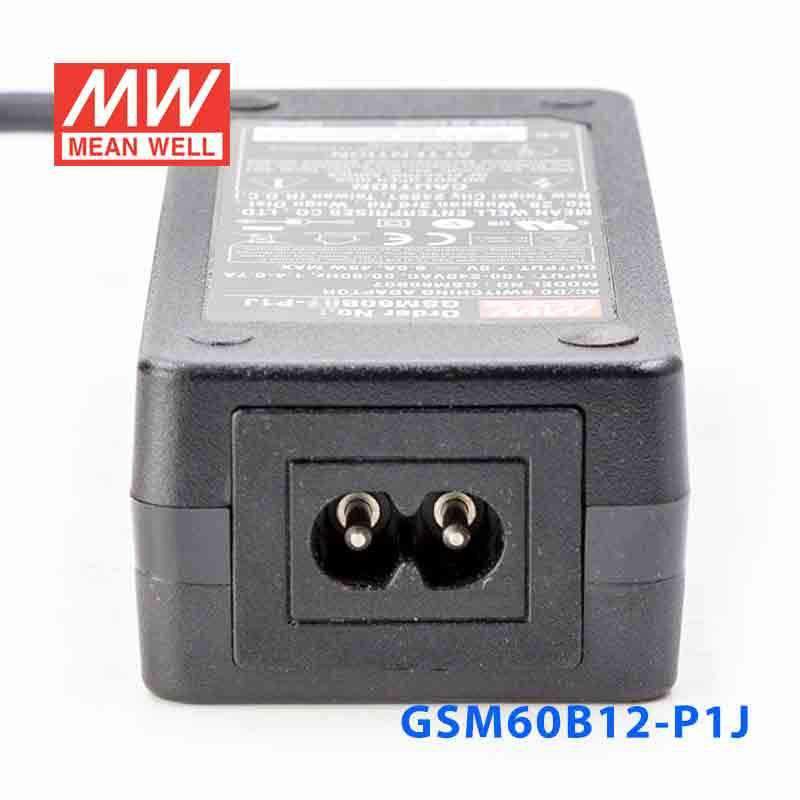

2 pole AC inlet IEC320-C8
Medical safety approved (2 x MOPP between primary to secondary)
Low leakage current <50uA
No load power consumption < 0.1W
High efficiency up to 91.5%
Class II power (with earth pin)
Protections: Short circuit / Overload / Over voltage / Over temperature
Fully enclosed plastic case

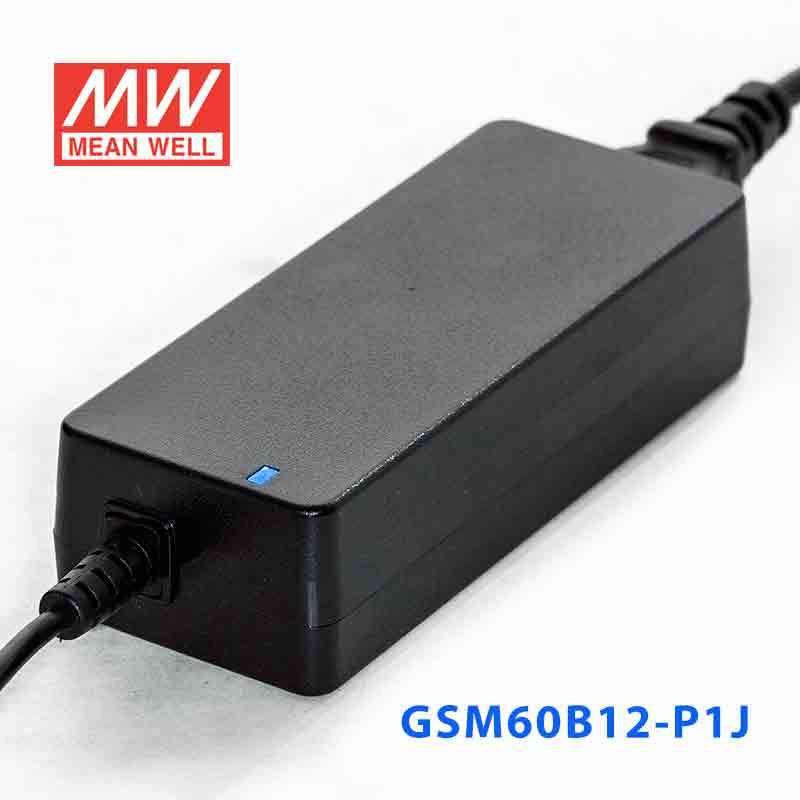

LED indicator for power on
Optional lock type DC plug
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 80~264VAC ; 120~370VDC
AC inrush current (max.) Cold start, 65A at 230VAC
Overload protection 105%~160% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P-O/P: 4kVAC
Working temperature -30~+60°C (refer to output derating curve )
Safety standards ANSI/AAMI ES60601-1/ ES60601-1-11 , TUV EN60601/60601-1-11 approved
EMC standards EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2
Length of output cable 100cm of UL2464, 16AWG for 5~7.5V ; 100cm of UL1185, 16AWG for 9~12V; 150cm of UL1185, 16AWG for 15~48V
Dimension (LxWxH) 125x 50x 31.5 mm
Standard DC plug P1J: 2.1øx5.5øx11mm / C+, tuning fork type

Specifications

  • Brand
    Mean Well
  • Series
    GSM Series
  • Power Rating
    60 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    5 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,FCC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    12.5 cm
  • Width
    5 cm
  • Height
    3.15 cm
  • Weight
    0.32 kg
