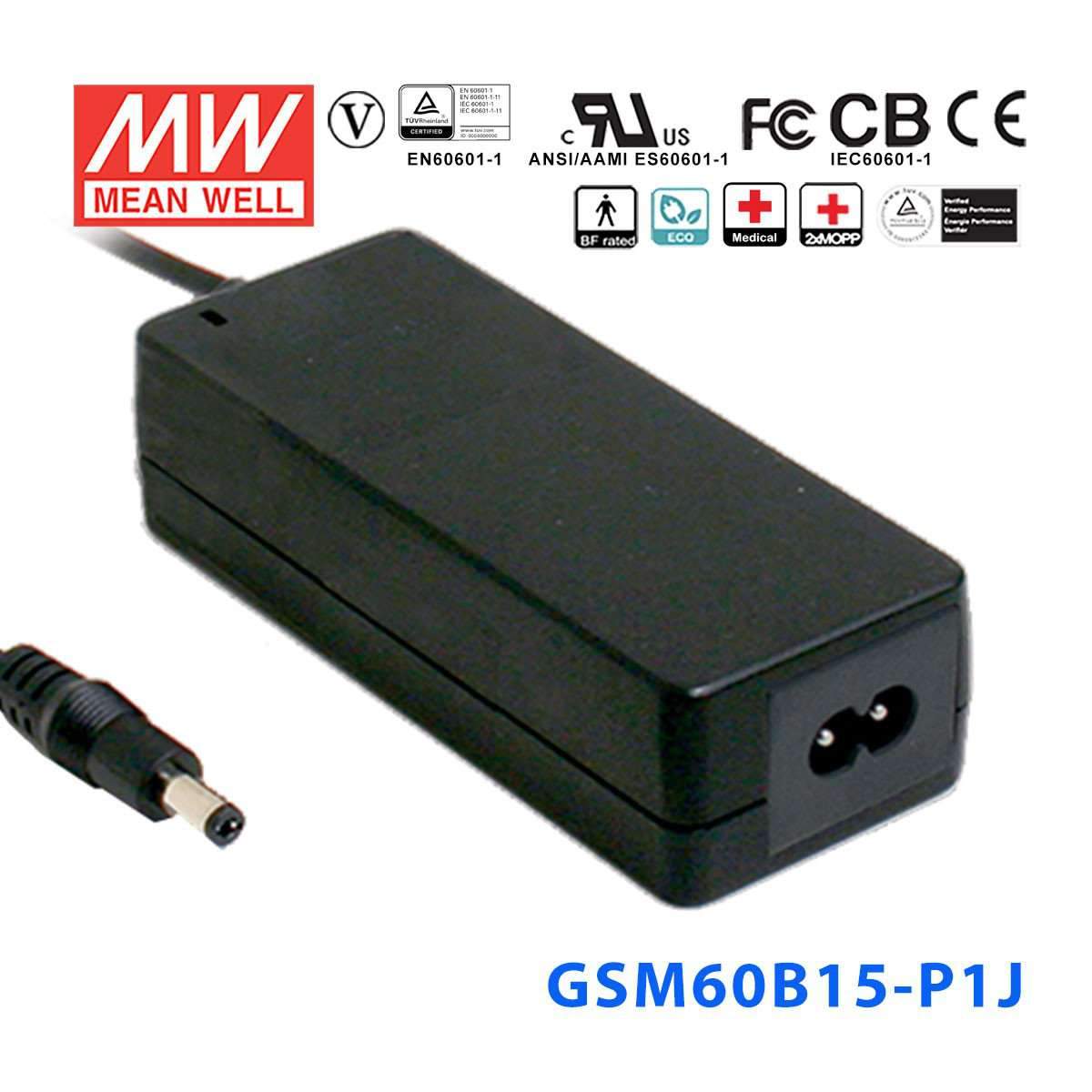

Mean Well GSM60B15-P1J Power Supply 60W 15
Please Login for Pricing
Description
Description
The GSM60B15 is a 60W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.5 cm
-
Width5 cm
-
Height3.15 cm
-
Weight0.32 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM60B15-P1J for 15V automation or control equipment?
Yes, it is a constant-voltage 15V power supply rated for up to 4A and 60W. It fits 15V automation loads as long as their demand stays within those output limits.
Is this 15V model appropriate for industrial embedded systems or OEM assemblies?
It can be used for 15V embedded or OEM equipment that requires constant-voltage power and does not exceed 4A. The 60W rating gives it capacity for moderate-power 15V electronics.
Can the GSM60B15-P1J be used in multi-region equipment that may see different AC inputs?
Yes, the input range is 80-264VAC, which supports a wide span of AC source conditions. On the output side, the connected equipment still needs to match 15V constant-voltage operation and remain within 4A and 60W.
How do I confirm this supply is compatible with my 15V load?
Make sure the load is specified for 15V constant-voltage input and requires no more than 4A or 60W. If the voltage requirement is different, or the load exceeds those ratings, a different model is needed.
Is the GSM60B15-P1J intended for outdoor use or extreme temperatures?
Its operating temperature range is -30°C to +70°C, so the temperature specification is wide. The provided specs do not include an IP rating, so outdoor exposure and water resistance are not established here.
