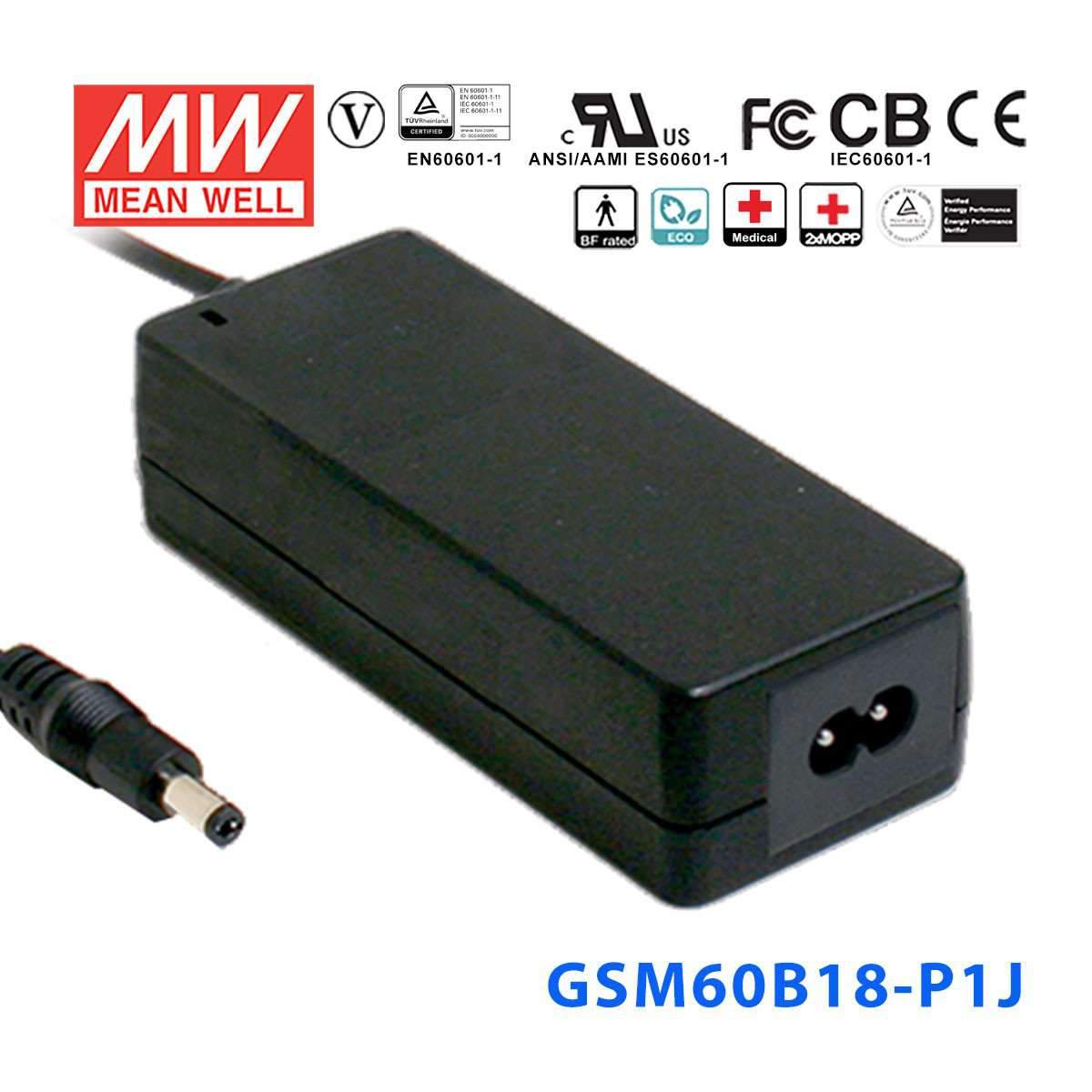

Mean Well GSM60B18-P1J Power Supply 60W 18V
Please Login for Pricing
Description
Description
The GSM60B18 is a 60W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating60 Watt
-
Output Voltage18 Volt
-
Rated Current3.33 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.5 cm
-
Width5 cm
-
Height3.15 cm
-
Weight0.32 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM60B18-P1J to power an 18V industrial controller or embedded device?
Yes, this model provides a constant 18V DC output for equipment designed for 18V input. Its available output is up to 3.33A and 60W, so the connected load needs to stay within those limits.
Is the GSM60B18-P1J suitable for 18V automation sensors or low-power machine accessories?
It can be a fit for 18V automation or machine-support devices that require constant voltage rather than constant current. The key sizing limits are 18V output, 3.33A maximum current, and 60W maximum power.
Can this 18V power supply be used for embedded test benches or lab fixtures?
It is appropriate for embedded or bench equipment that needs a regulated 18V constant-voltage source. The wide 80-264VAC input also helps when AC mains conditions vary across different facilities.
Will the GSM60B18-P1J work for 18V monitoring, control, or communications hardware in an industrial cabinet?
It can support 18V control or communications hardware as long as the total load does not exceed 3.33A or 60W. Because it is a constant-voltage supply, it is intended for equipment that specifies 18V DC input.
Is the GSM60B18-P1J suitable for outdoor or harsh-temperature environments?
The operating temperature range is -30°C to +70°C, so the temperature specification is broad for demanding environments. However, no IP rating is listed in the provided specs, so outdoor or wet-location suitability is not established from this data alone.
