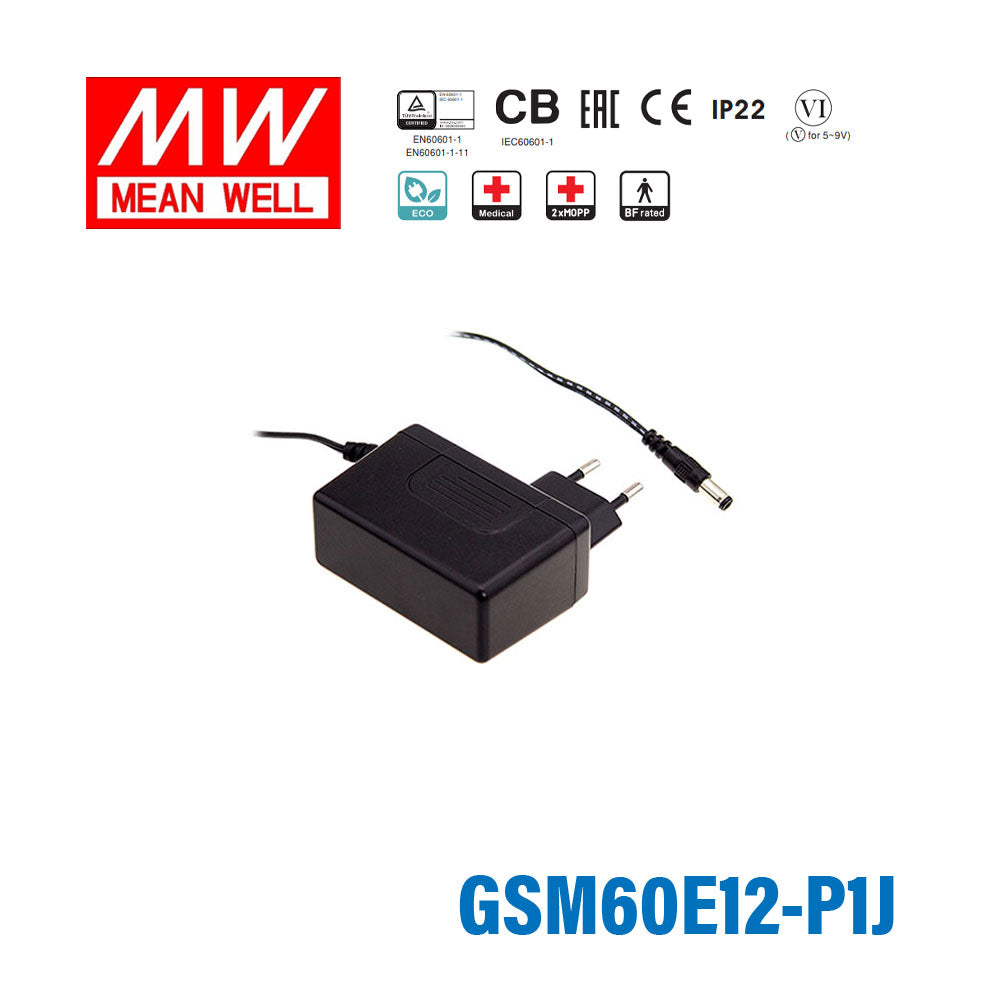

Mean Well GSM60E12-P1J Power Supply 54W 12V

SKU:
GSM60E12-P1J

Model
|

Description

Features

Ultra slim, compact size
Medical safety approved (2 x MOPP) according to BS EN/EN60601-1/BS EN/EN60601-1-11
Extremely low leakage current
2 pole EURO plug, Class II power unit
No load power consumption < 0.15W
Energy efficiency Level VI (Except 5~9V for Level V)
-30~+70°C wide range working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
Fully enclosed plastic case
Various DC plug quick adapter accessories available
3 years warranty

General Specification

AC input voltage range 80~264VAC; 113~370VDC
AC inrush current (max.) Cold start 50A / 115VAC 100A / 230VAC
Overload protection 105%~160% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P-O/P:5656VDC
Working temperature -30~+70°C (refer to output derating curve )
Safety standards TUV BS EN/EN60601-1, BS EN/EN60601-1-11, EAC TP TC 004 approved
EMC standards EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2
Dimension (LxWxH) 75.5 x 32 x 47.5 mm
Standard DC plug UL2468 16AWG 1000+150/-0mm for 5~18V | UL2468 18AWG 1500+150/-0mm for 24~48V

Specifications

  • Brand
    Mean Well
  • Series
    GSM Series
  • Power Rating
    54 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    4.5 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,FCC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    7.55 cm
  • Width
    4.75 cm
  • Height
    3.2 cm
  • Weight
    0.2 kg
