Description
Description
Features
Ultra slim, compact size |
Medical safety approved (2 x MOPP) according to BS EN/EN60601-1/BS EN/EN60601-1-11 |
Extremely low leakage current |

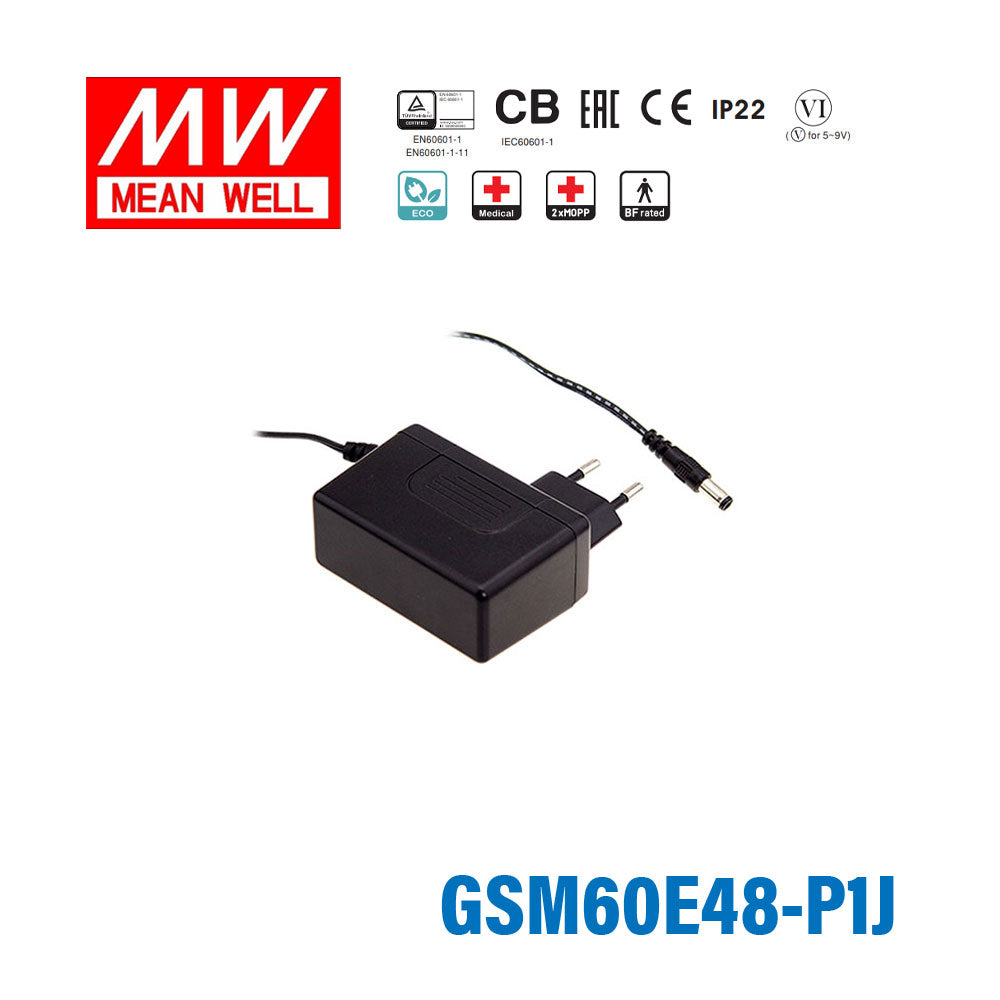

2 pole EURO plug, Class II power unit |
No load power consumption < 0.15W |
Energy efficiency Level VI (Except 5~9V for Level V) |
-30~+70°C wide range working temperature |
Protections: Short circuit / Overload / Over voltage / Over temperature |
Fully enclosed plastic case |
Various DC plug quick adapter accessories available |
3 years warranty |
General Specification
AC input voltage range | 80~264VAC; 113~370VDC |
AC inrush current (max.) | Cold start 50A / 115VAC 100A / 230VAC |
Overload protection | 105%~160% rated output voltage, hiccup mode, auto-recovery |
Withstand voltage | I/P-O/P:5656VDC |
Working temperature | -30~+70°C (refer to output derating curve ) |
Safety standards | TUV BS EN/EN60601-1, BS EN/EN60601-1-11, EAC TP TC 004 approved |
EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
Dimension (LxWxH) | 75.5 x 32 x 47.5 mm |
Standard DC plug | UL2468 16AWG 1000+150/-0mm for 5~18V | UL2468 18AWG 1500+150/-0mm for 24~48V |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.55 cm
-
Width4.75 cm
-
Height3.2 cm
-
Weight0.2 kg
