Can I use the GSM60B24-P1J to power a 24V PLC accessory or industrial control device?

Yes, if the equipment requires 24V DC constant-voltage input. This supply can provide up to 2.5A with a total output of 60W, so the connected 24V load must stay within those limits.

Is this 24V model suitable for automation sensors, relays, or interface modules?

It can be used with 24V automation hardware that is designed for constant-voltage power. The sizing limits are 24V output, 2.5A maximum current, and 60W maximum power.

Can the GSM60B24-P1J be used for 24V embedded systems or industrial test equipment?

It is a practical option for embedded or test setups that need regulated 24V DC. Its 80-264VAC input range also supports operation across a wide range of AC input conditions.

Will this power supply work for 24V HMI or communications equipment in a control enclosure?

It can power 24V HMI, gateway, or communications devices if their total requirement stays at or below 2.5A and 60W. The output mode is constant voltage, so it should be matched only with equipment specified for 24V DC input.

Is the GSM60B24-P1J appropriate for indoor or outdoor use?

The unit is rated for operation from -30°C to +70°C, which covers a wide ambient temperature range. However, no IP rating is provided in the listed specs, so exposure to rain, washdown, or other outdoor moisture conditions cannot be confirmed from this information.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

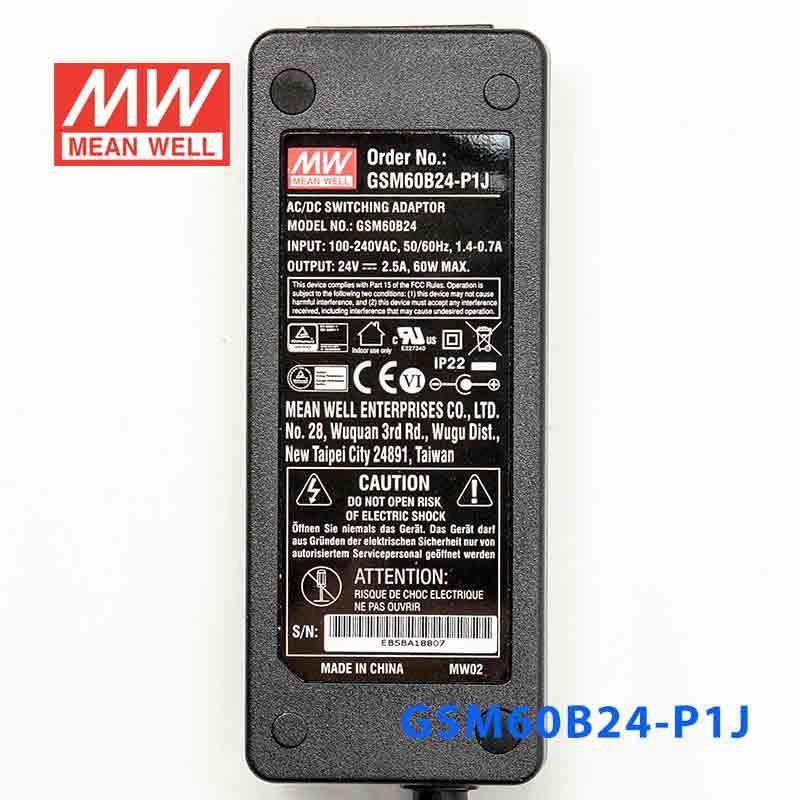

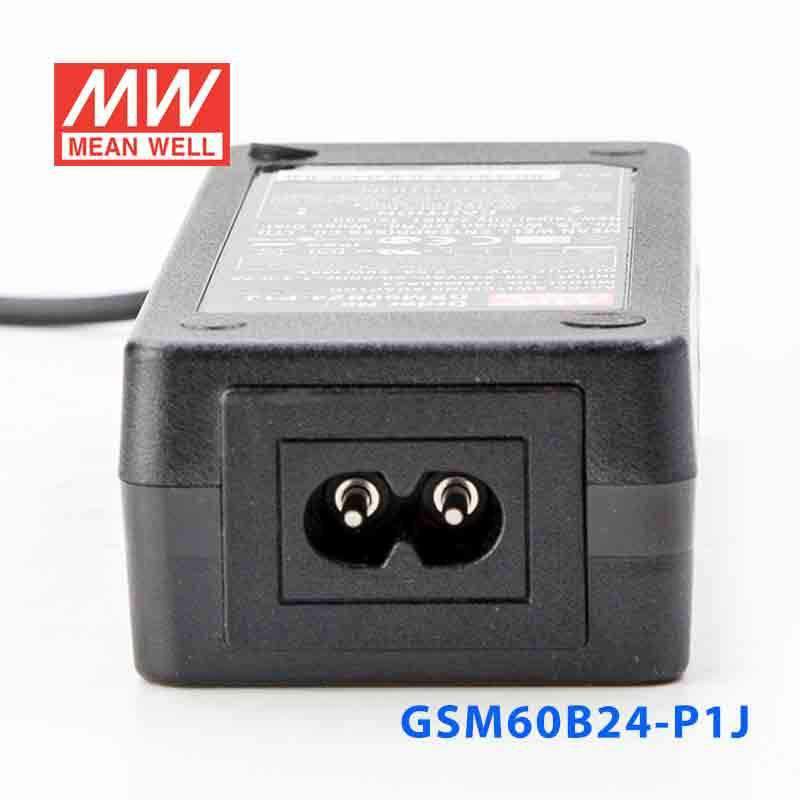

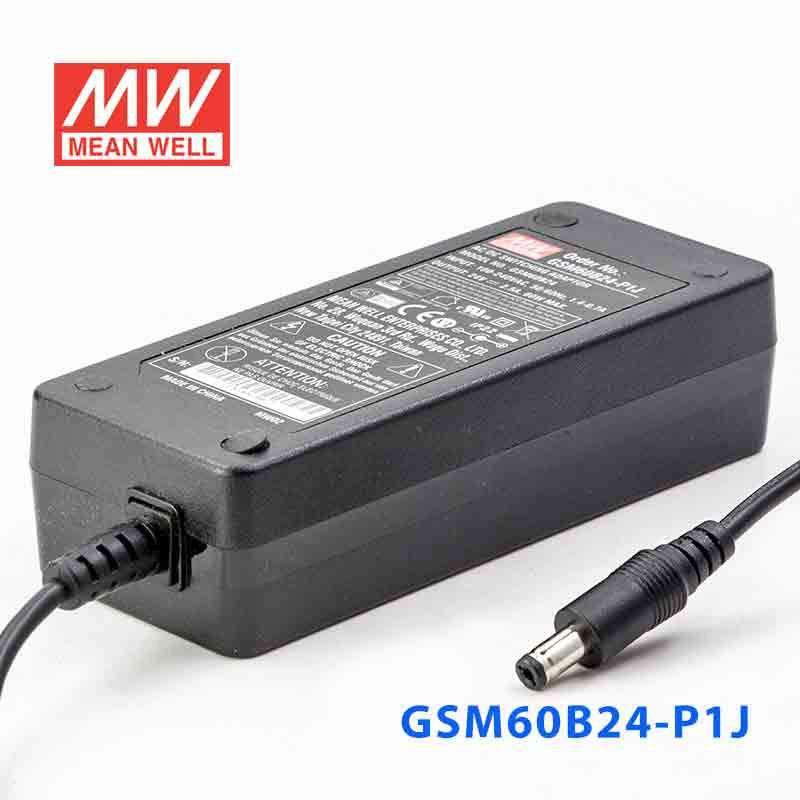

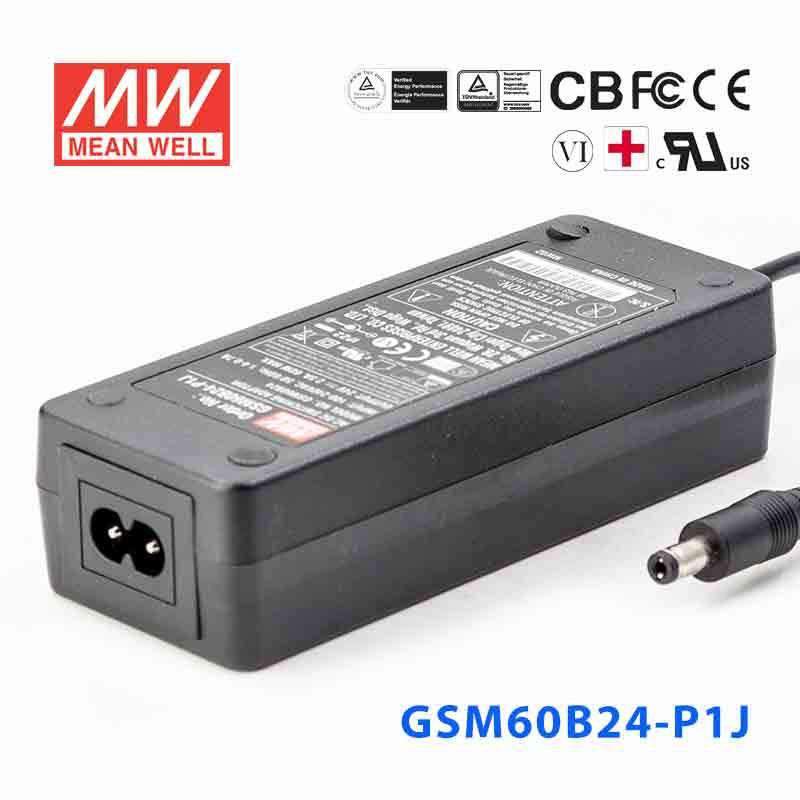

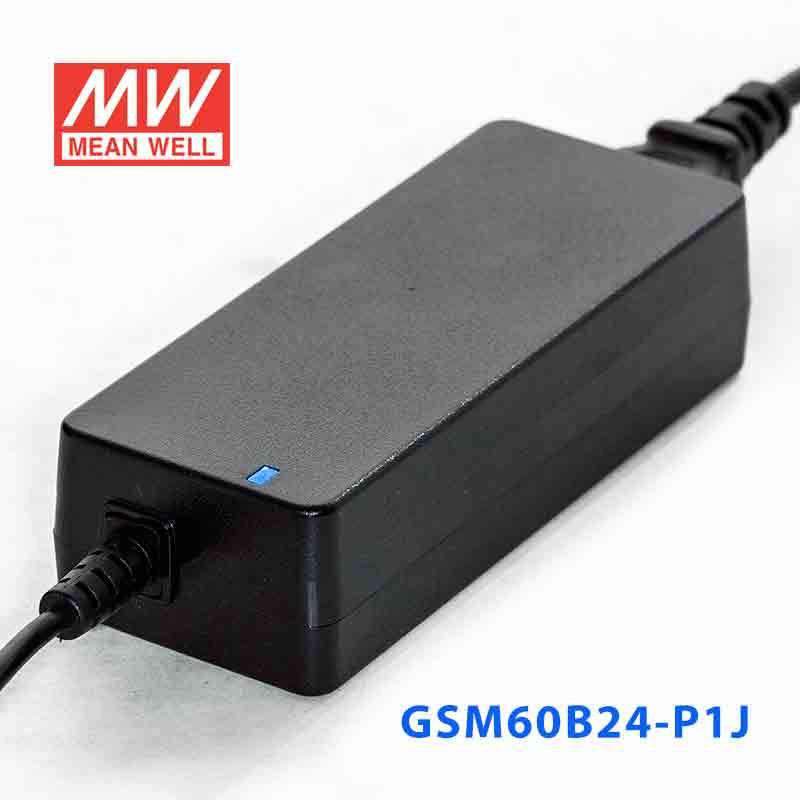

Mean Well GSM60B24-P1J Power Supply 60W 24V 2.5A

SKU:

GSM60B24-P1J

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The GSM60B24 is a 60W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 80~264VAC
✓ 4KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well GSM60A12-P1J Power Supply 60W 12V 5A	60W	12V	5A	View
Mean Well GSM60A24-P1J Power Supply 60W 24V 2.5A	60W	24V	2.5A	View
Mean Well GSM60E48-P1J Power Supply 60W 48V 1.25A	60W	48V	1.25A	View
Mean Well GSM60E24-P1J Power Supply 60W 24V 2.5A	60W	24V	2.5A	View
Mean Well GSM60E18-P1J Power Supply 60W 18V 3.33A	60W	18V	3.33A	View
Mean Well GSM60E15-P1J Power Supply 60W 15V 4A	60W	15V	4A	View
Mean Well GSM60E12-P1J Power Supply 54W 12V 4.5A	54W	12V	4.5A	View
Mean Well GSM60E09-P1J Power 49.5W 9V 5.5A	49.5W	9V	5.5A	View
Mean Well GSM60E07-P1J Power Supply 40W 7.5V 6A	45W	7.5V	6A	View
Mean Well GSM60E05-P1J Power Supply 30W 5V 6A	30W	5V	6A	View
Mean Well GSM60B48-P1J Power Supply 60W 48V 1.25A	60W	48V	1.25A	View
Mean Well GSM60B18-P1J Power Supply 60W 18V 3.33A	60W	18V	3.33A	View
Mean Well GSM60B15-P1J Power Supply 60W 15 4A	60W	15V	4A	View
Mean Well GSM60B12-P1J Power Supply 54W 12V 5A	60W	12V	5A	View
Mean Well GSM60B09-P1J Power 49.5W 9V 6A	54W	9V	6A	View
Mean Well GSM60B05-P1J Power Supply 30W 5V 6A	30W	5V	6A	View
Mean Well GSM60A48-P1J Power Supply 60W 48V 1.25A	60W	48V	1.25A	View
Mean Well GSM60A18-P1J Power Supply 60W 18V 3.33A	60W	18V	3.33A	View
Mean Well GSM60A15-P1J Power Supply 60W 15V 4A	60W	15V	4A	View
Mean Well GSM60A09-P1J Power Supply 54W 9V 6A	54W	9V	6A	View
Mean Well GSM60A07-P1J Power Supply 45W 7.5V 6A	45W	7.5V	6A	View
Mean Well GSM60A05-P1J Power Supply 30W 5V 6A	30W	5V	6A	View
