Can I use the GSM60E09-P1J for a 9V embedded controller or industrial interface?

Yes, this model is a constant voltage 9V power supply rated for up to 49.5W and 5.5A. It fits 9V embedded controllers, operator interfaces, or industrial electronics that need regulated 9V DC and stay within those output limits.

Is the GSM60E09-P1J suitable for 9V test and measurement equipment?

It can be a fit for bench or portable test devices that require a constant 9V DC source. The available output is 49.5W at 5.5A, so the equipment load needs to remain at or below that rating.

Can this 9V power supply run industrial sensors or small automation peripherals?

It is appropriate for 9V sensor groups, control accessories, or embedded automation peripherals that are designed for constant voltage input. The key check is that the total load does not exceed 49.5W or 5.5A at 9V.

Would the GSM60E09-P1J work for legacy 9V IT or communications hardware?

It may be suitable where older IT or communications devices specifically call for regulated 9V DC. Its wide 80-264VAC input also helps in installations that need to accept different AC input conditions while delivering a fixed 9V output.

Is the GSM60E09-P1J suitable for indoor or outdoor use?

The listed operating temperature is -30°C to +70°C, so the temperature range is broad for indoor equipment environments. No IP rating is provided in the product specs, so the listing does not establish suitability for outdoor exposure or washdown conditions.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

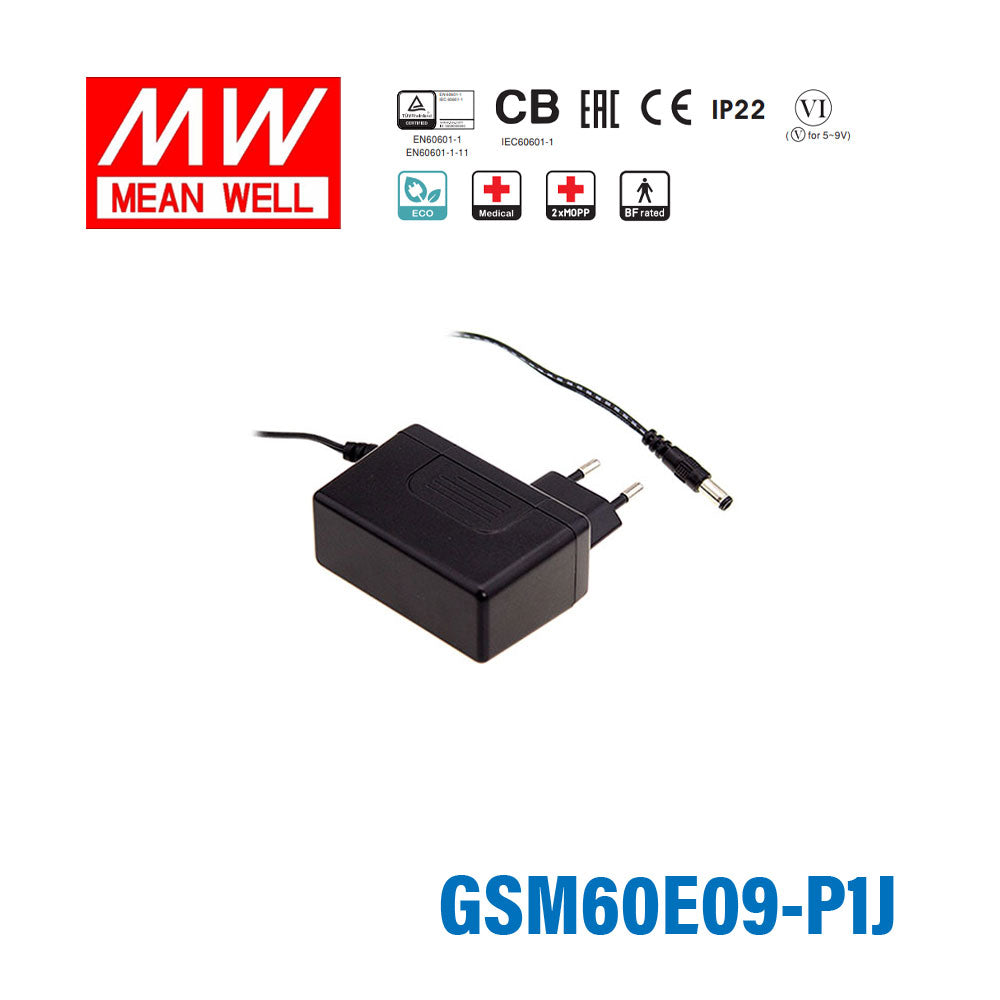

Mean Well GSM60E09-P1J Power 49.5W 9V 5.5A

SKU:

GSM60E09-P1J

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by NGE65E09-P1J

Notify me when it's back in stock

The GSM60E09 is a 60W Mean Well power converter.

Key Features

✓ Protections: Overload / Over voltage
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well GSM60A12-P1J Power Supply 60W 12V 5A	60W	12V	5A	View
Mean Well GSM60A24-P1J Power Supply 60W 24V 2.5A	60W	24V	2.5A	View
Mean Well GSM60E48-P1J Power Supply 60W 48V 1.25A	60W	48V	1.25A	View
Mean Well GSM60E24-P1J Power Supply 60W 24V 2.5A	60W	24V	2.5A	View
Mean Well GSM60E18-P1J Power Supply 60W 18V 3.33A	60W	18V	3.33A	View
Mean Well GSM60E15-P1J Power Supply 60W 15V 4A	60W	15V	4A	View
Mean Well GSM60E12-P1J Power Supply 54W 12V 4.5A	54W	12V	4.5A	View
Mean Well GSM60E07-P1J Power Supply 40W 7.5V 6A	45W	7.5V	6A	View
Mean Well GSM60E05-P1J Power Supply 30W 5V 6A	30W	5V	6A	View
Mean Well GSM60B48-P1J Power Supply 60W 48V 1.25A	60W	48V	1.25A	View
Mean Well GSM60B24-P1J Power Supply 60W 24V 2.5A	60W	24V	2.5A	View
Mean Well GSM60B18-P1J Power Supply 60W 18V 3.33A	60W	18V	3.33A	View
Mean Well GSM60B15-P1J Power Supply 60W 15 4A	60W	15V	4A	View
Mean Well GSM60B12-P1J Power Supply 54W 12V 5A	60W	12V	5A	View
Mean Well GSM60B09-P1J Power 49.5W 9V 6A	54W	9V	6A	View
Mean Well GSM60B05-P1J Power Supply 30W 5V 6A	30W	5V	6A	View
Mean Well GSM60A48-P1J Power Supply 60W 48V 1.25A	60W	48V	1.25A	View
Mean Well GSM60A18-P1J Power Supply 60W 18V 3.33A	60W	18V	3.33A	View
Mean Well GSM60A15-P1J Power Supply 60W 15V 4A	60W	15V	4A	View
Mean Well GSM60A09-P1J Power Supply 54W 9V 6A	54W	9V	6A	View
Mean Well GSM60A07-P1J Power Supply 45W 7.5V 6A	45W	7.5V	6A	View
Mean Well GSM60A05-P1J Power Supply 30W 5V 6A	30W	5V	6A	View
