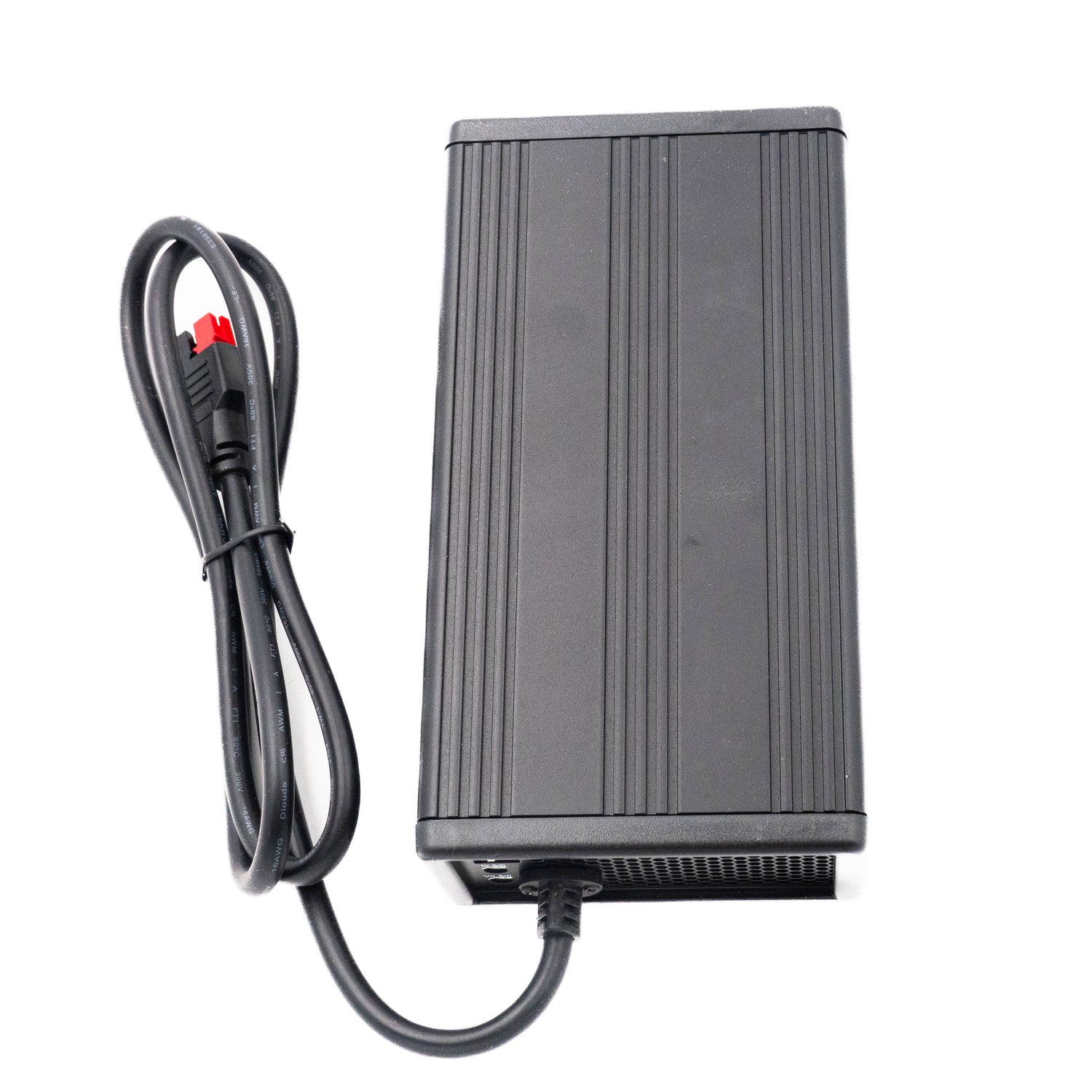

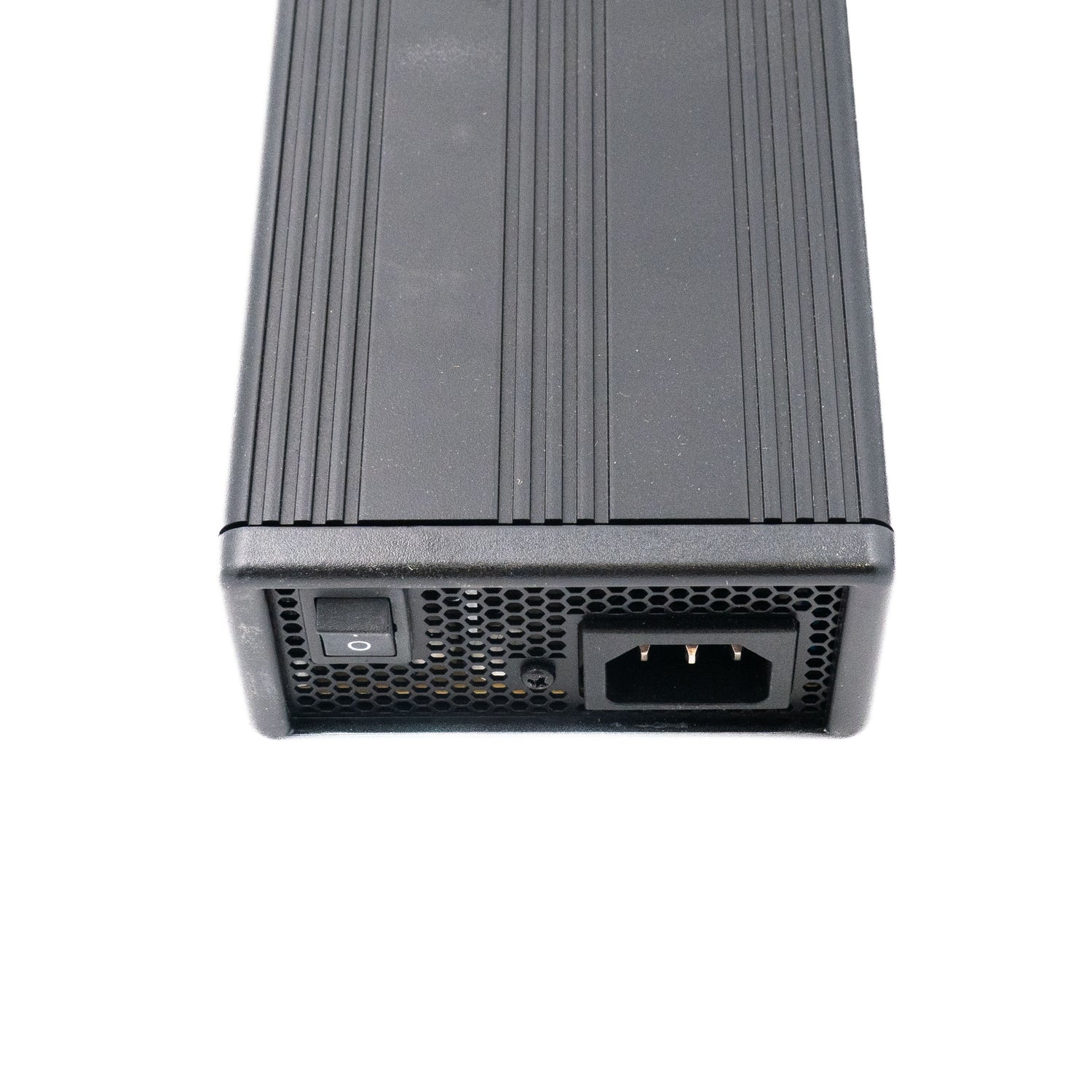

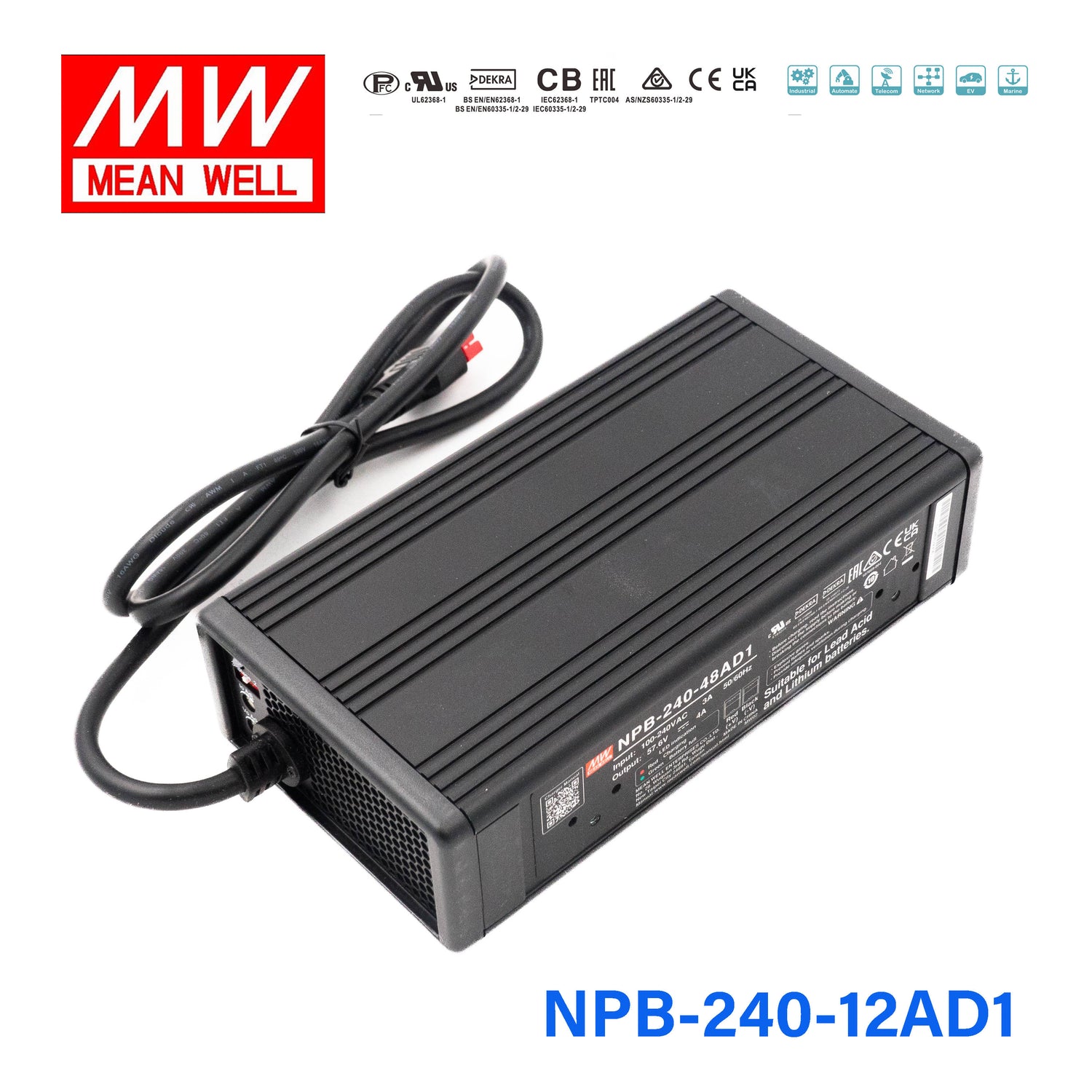

Mean Well NPB-240-12AD1 Battery Charger 240W 12V Anderson Connector 13.5A

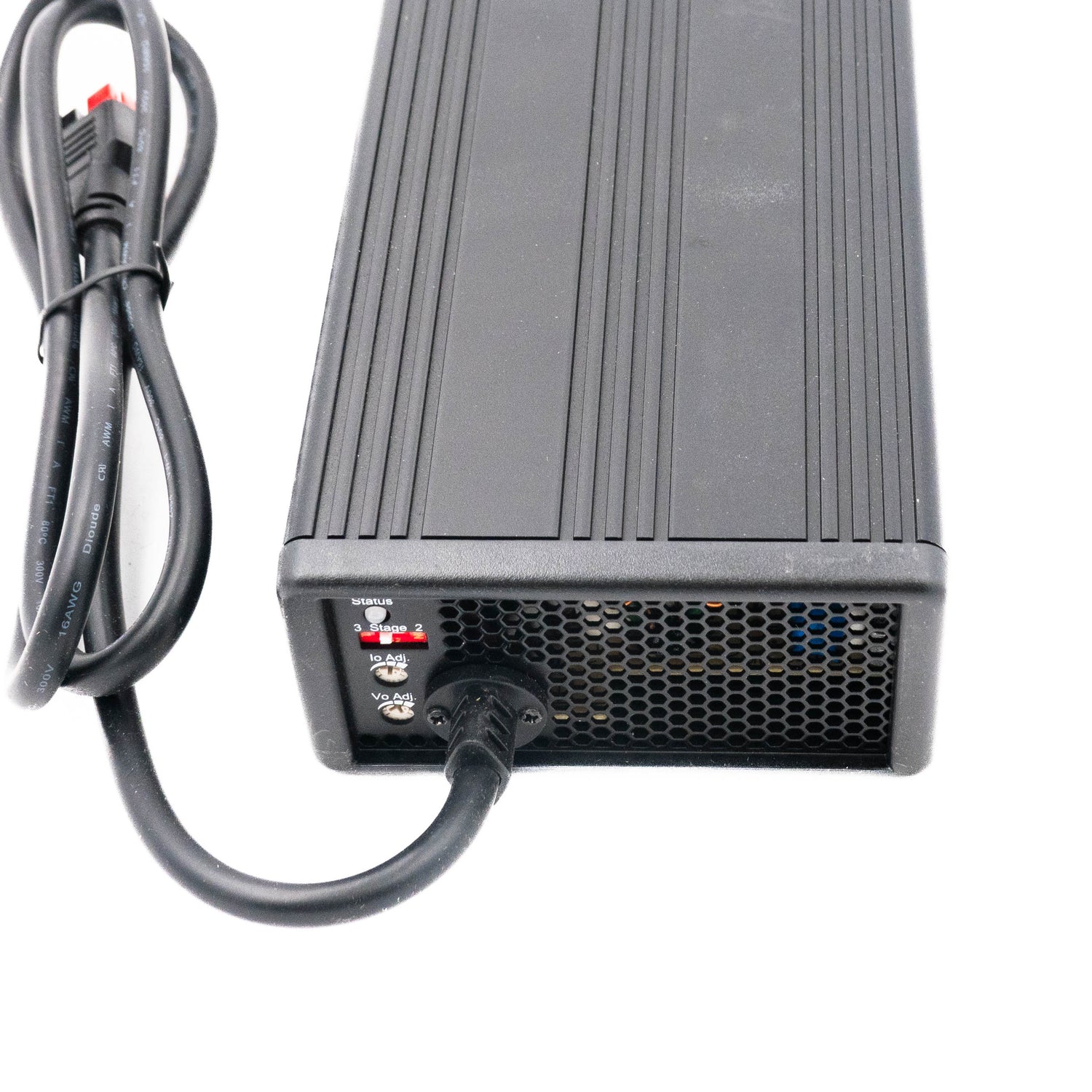

wide voltage rangemetal enclosure for better heat dissipationeasy and flexible adjustment for voltage and current2 or 3 stage selectable by dip switch

SKU:

NPB-240-12AD1

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NPB-240 is a 240W Mean Well DIN rail power converter with a 182.7mm profile (input range: 90~264VAC).

Key Features

✓ 182.7mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the Mean Well NPB-240-12AD1 used for?

The NPB-240-12AD1 is an AC-DC battery charger designed for 12V battery charging applications where a 240W charger is needed. It is suited to buyers looking for a portable charger with an Anderson connector and controlled 2-stage or 3-stage charging behavior.

What are the output rating and charging capacity of this model?

This model is rated at 240W and provides a 14.4V DC output at 13.5A. Those ratings make it a higher-capacity option for 12V battery charging compared with lower-wattage chargers in the same category.

Does the NPB-240-12AD1 support multi-stage charging?

Yes, the product description specifies 2-stage or 3-stage charging. That makes it relevant for buyers who need a charger designed specifically for battery charging rather than a basic fixed-output power supply.

What input power range does this battery charger support?

The NPB-240-12AD1 is described as having universal AC input. This is useful for commercial and industrial buyers who need the same charger model across different AC supply environments.

Is this charger suitable for demanding environments?

It is rated for operation from -30°C to 70°C, which is a wide working temperature range for industrial use. Buyers evaluating environmental durability should also note that the unit weighs 1.3 kg, supporting portable use cases without being overly bulky.

What connector type does the NPB-240-12AD1 include?

This specific model includes an Anderson connector as stated in the product name and description. That is an important compatibility detail for buyers who need this exact connector style on the charger side.

What warranty comes with the Mean Well NPB-240-12AD1?

The listed warranty period for this model is 3 years. For B2B buyers, that provides a clear baseline for lifecycle and support planning when comparing charger options.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well NPB-240-48XLR Battery Charger 240W 48V 3 Pin Power Pin 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-48TB Battery Charger 240W 48V Terminal Block 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-48AD1 Battery Charger 240W 48V Anderson Connector 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-24XLR Battery Charger 240W 24V 3 Pin Power Pin 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-24TB Battery Charger 240W 24V Terminal Block 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-24AD1 Battery Charger 240W 24V Anderson Connector 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-12XLR Battery Charger 240W 12V 3 Pin Power Pin 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-240-12TB Battery Charger 240W 12V Terminal Block 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
