Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

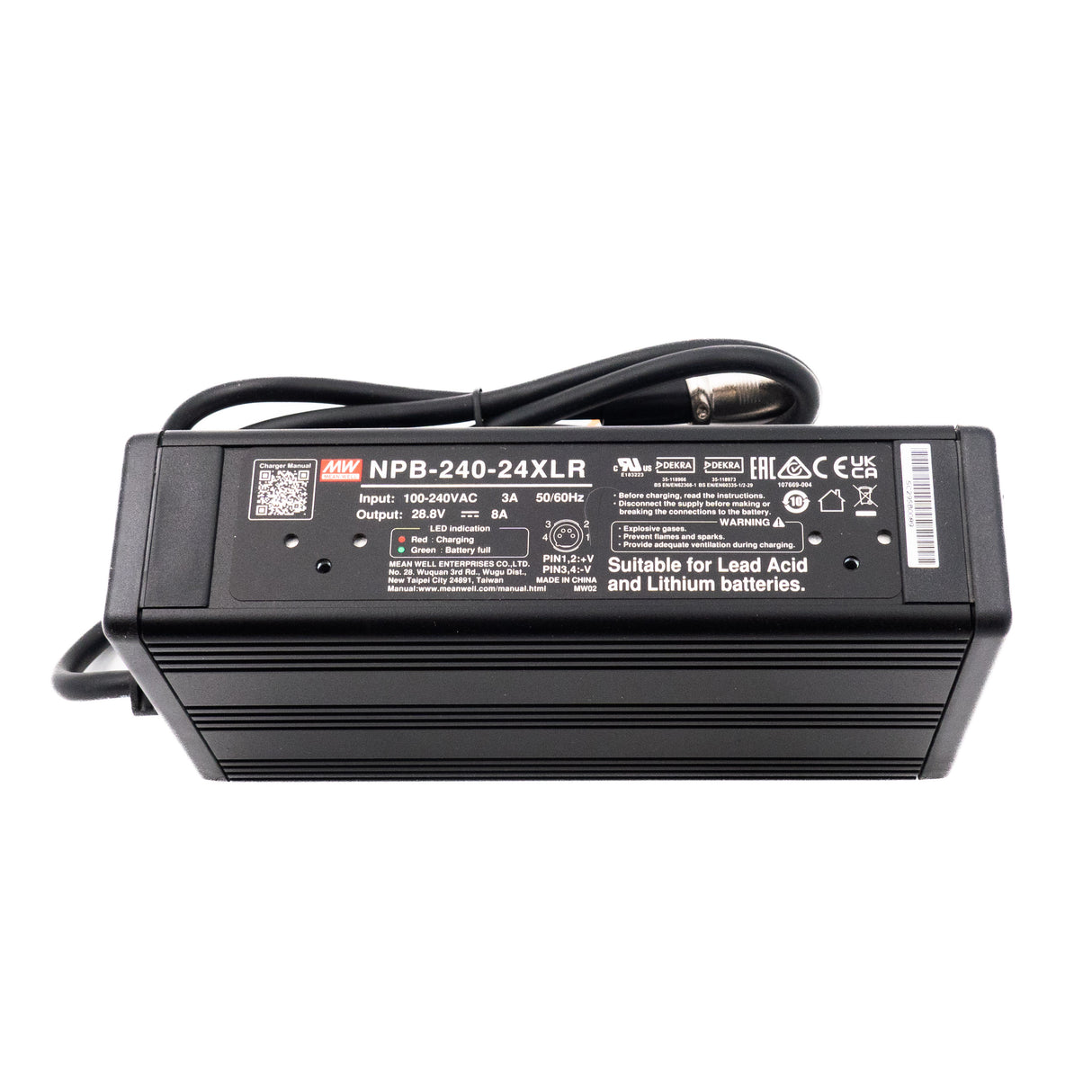

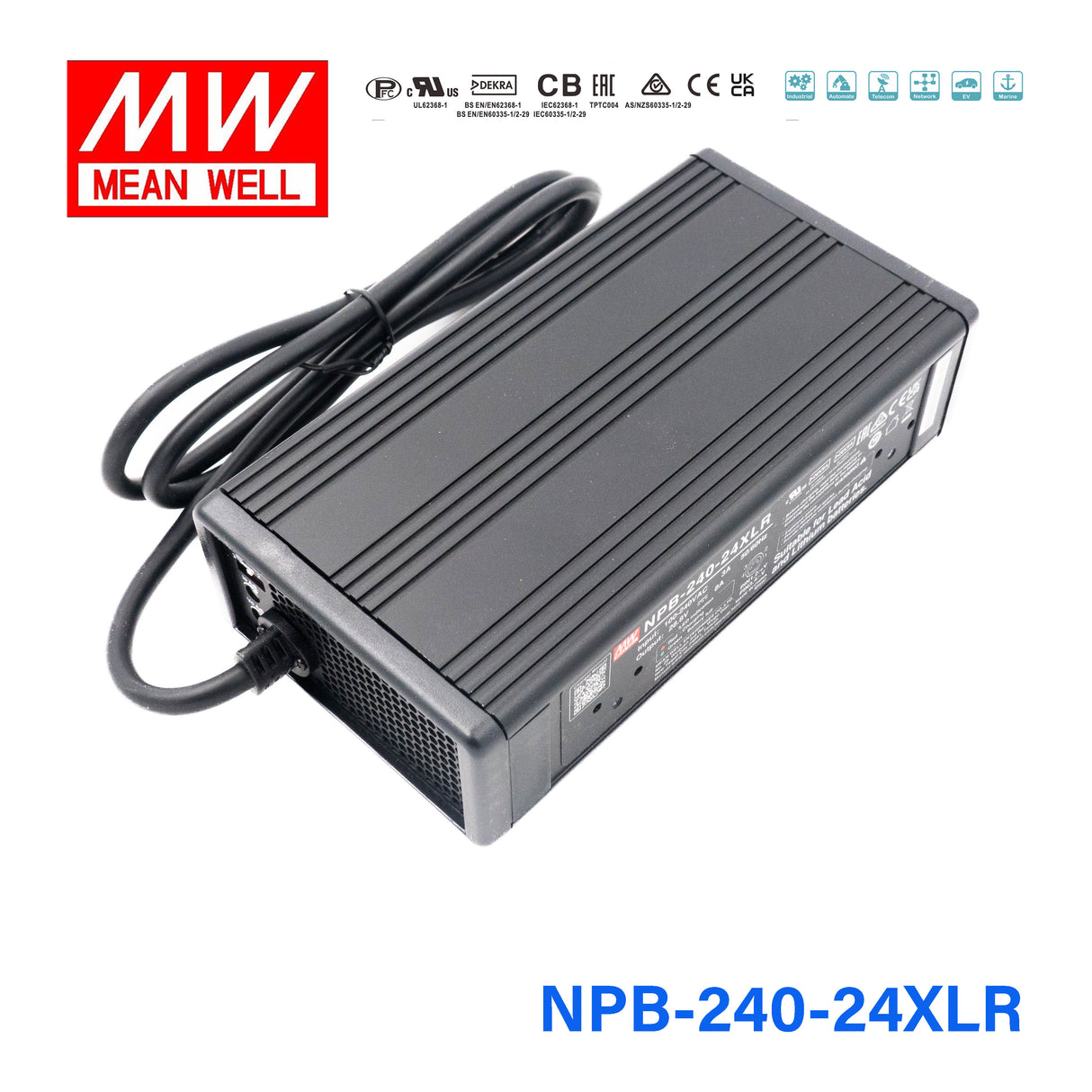

Mean Well NPB-240-24XLR Battery Charger 240W 24V 3 Pin Power Pin 8A

wide voltage rangemetal enclosure for better heat dissipationeasy and flexible adjustment for voltage and current2 or 3 stage selectable by dip switch

SKU:

NPB-240-24XLR

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NPB-240 is a 240W Mean Well DIN rail power converter with a 182.7mm profile (input range: 90~264VAC).

Key Features

✓ 182.7mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the Mean Well NPB-240-24XLR used for?

The NPB-240-24XLR is an AC-DC battery charger designed for professional and industrial battery charging applications. It is also suitable for use where a regulated 28.8V DC output and 240W power level are required.

What are the main electrical specifications of the NPB-240-24XLR?

This model is rated at 240W and provides a 28.8V DC output at up to 8A. It accepts universal AC input and includes power factor correction (PFC), which is useful in commercial and industrial power environments.

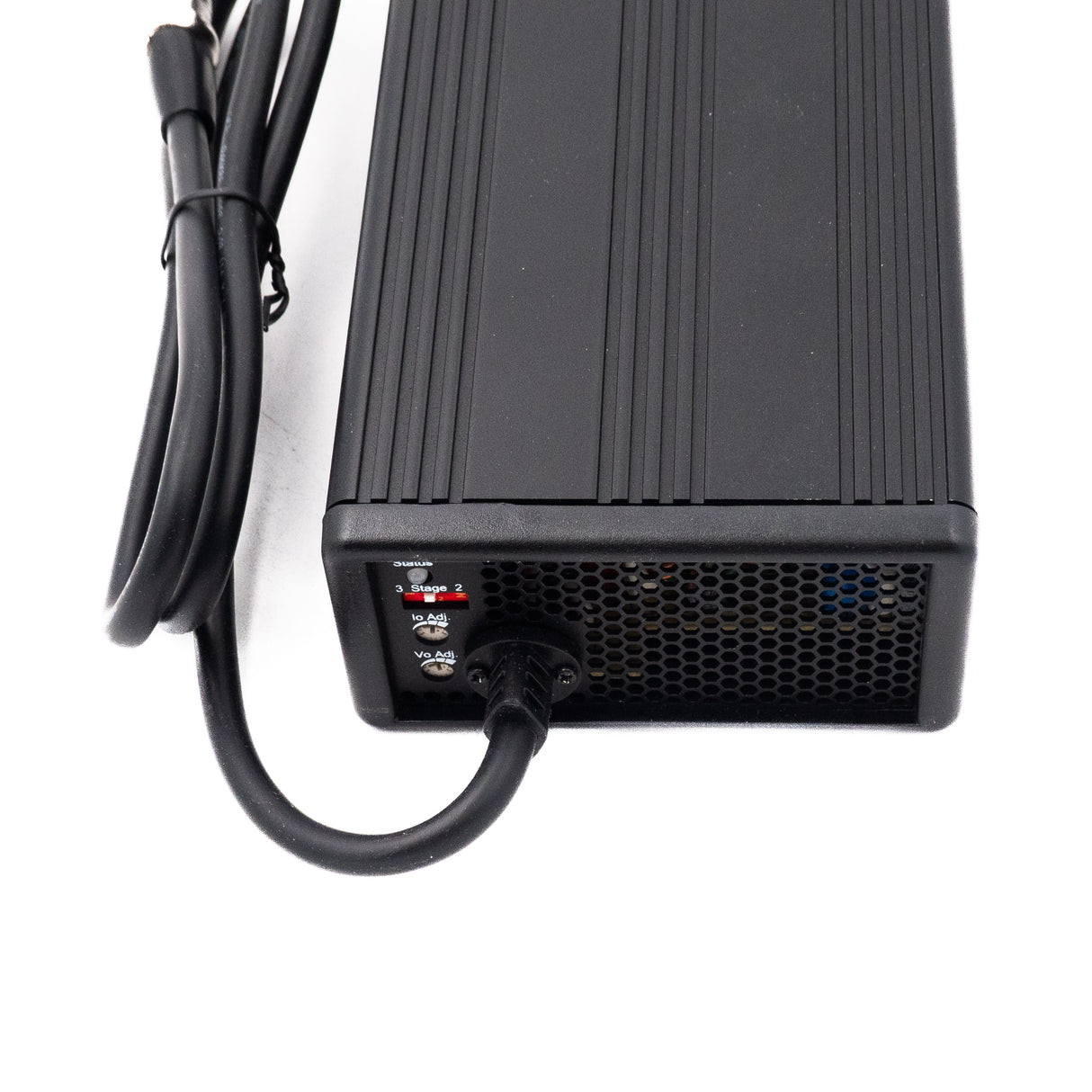

Does the NPB-240-24XLR support staged battery charging?

Yes. The NPB-240-24XLR supports 2-stage or 3-stage charging, which makes it suitable for battery charging applications that require controlled charging profiles. This staged charging capability is one of the key differences between a battery charger and a basic fixed-output power supply.

What operating temperatures can this charger handle?

The NPB-240-24XLR is specified for operation from -30°C to 70°C. That wide temperature range makes it a good fit for demanding indoor or enclosed equipment environments where temperature conditions may vary significantly.

Is this charger a good fit for portable or field equipment?

It can be a strong option for portable or mobile professional equipment that needs a compact 240W charger with a 28.8V output. Its listed weight is 1.3 kg, which is manageable for many transportable commercial setups while still offering substantial charging capacity.

What connector style does the NPB-240-24XLR use?

This version is identified as the NPB-240-24XLR and is described with a 3 pin power pin configuration. If your equipment or purchasing standard depends on a specific connector format, that model suffix is an important compatibility detail to confirm before ordering.

What warranty is provided for the Mean Well NPB-240-24XLR?

The listed warranty period for this model is 3 years. That can be important for commercial buyers who need predictable support coverage for maintenance planning and long-term equipment deployment.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well NPB-240-48XLR Battery Charger 240W 48V 3 Pin Power Pin 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-48TB Battery Charger 240W 48V Terminal Block 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-48AD1 Battery Charger 240W 48V Anderson Connector 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-24TB Battery Charger 240W 24V Terminal Block 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-24AD1 Battery Charger 240W 24V Anderson Connector 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-12XLR Battery Charger 240W 12V 3 Pin Power Pin 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-240-12TB Battery Charger 240W 12V Terminal Block 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-240-12AD1 Battery Charger 240W 12V Anderson Connector 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
