Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

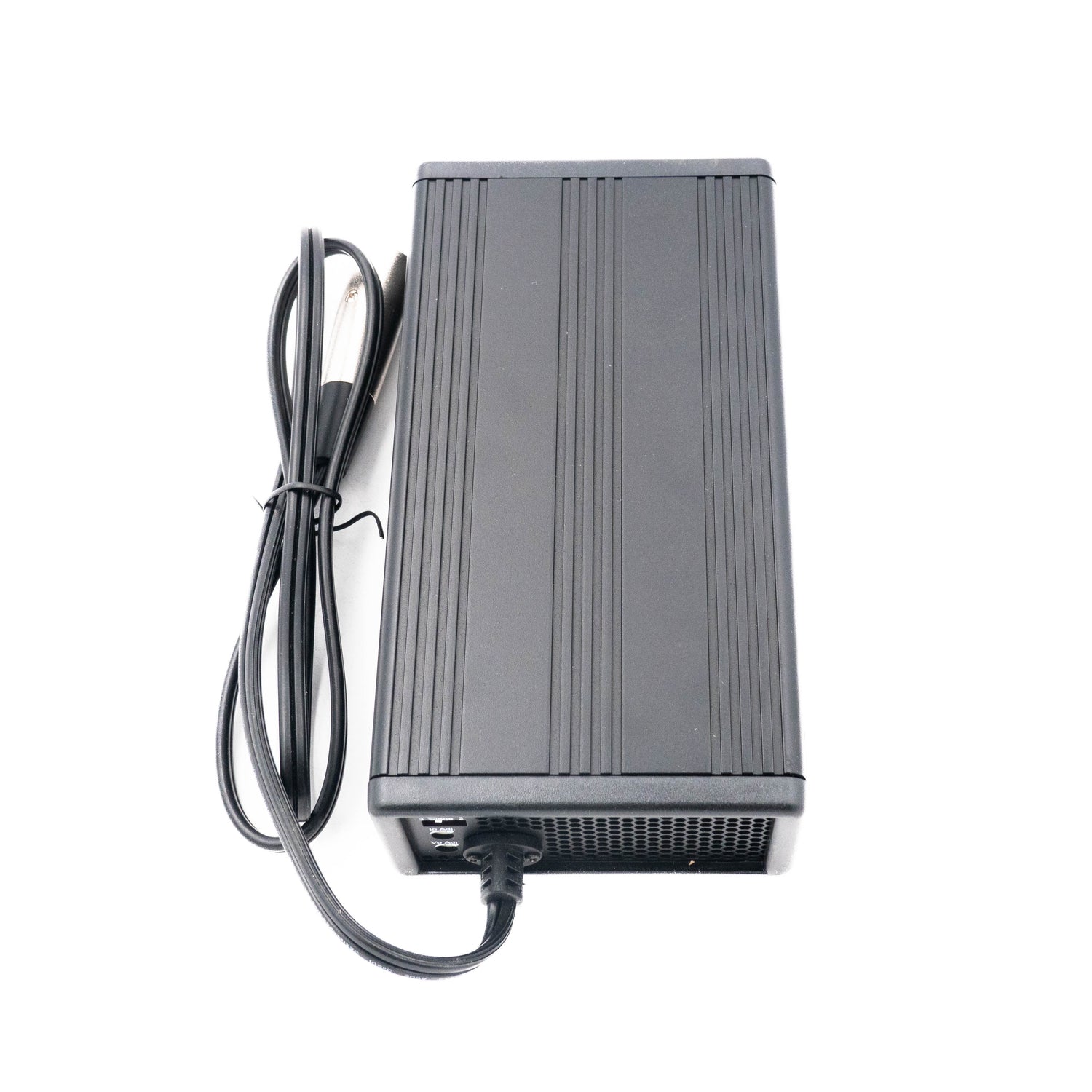

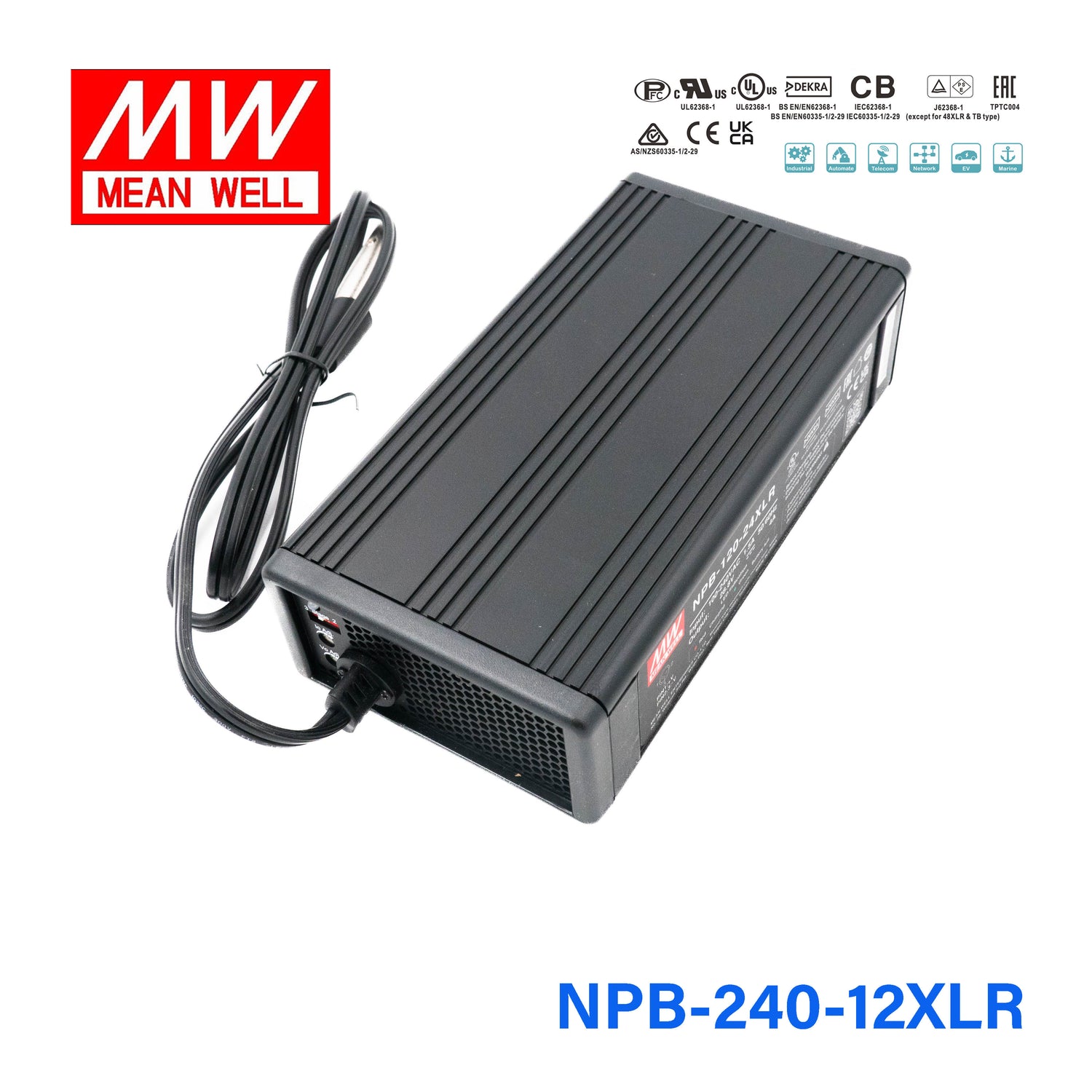

Mean Well NPB-240-12XLR Battery Charger 240W 12V 3 Pin Power Pin 13.5A

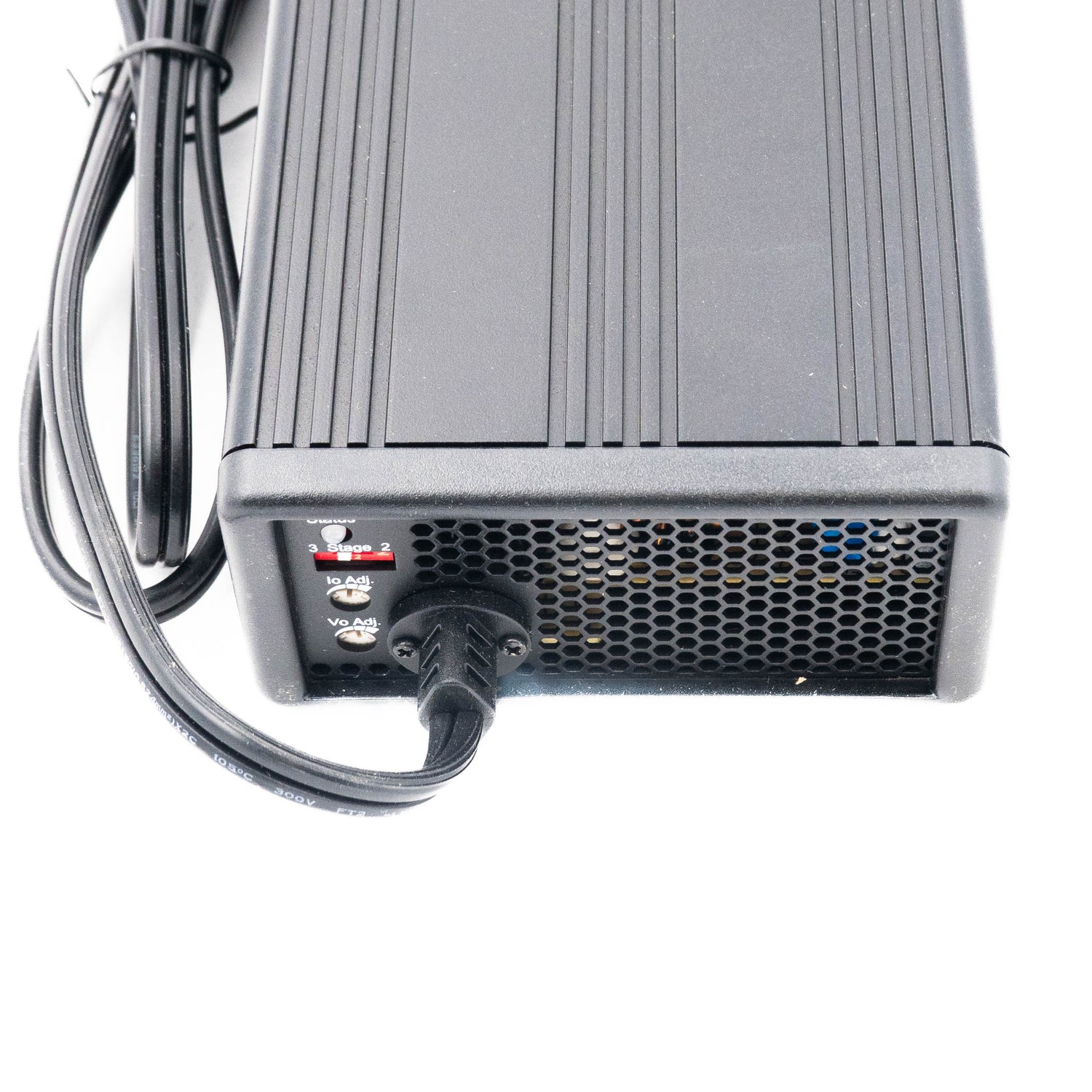

wide voltage rangemetal enclosure for better heat dissipationeasy and flexible adjustment for voltage and current2 or 3 stage selectable by dip switch

SKU:

NPB-240-12XLR

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NPB-240 is a 240W Mean Well DIN rail power converter with a 182.7mm profile (input range: 90~264VAC).

Key Features

✓ 182.7mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the output rating of the Mean Well NPB-240-12XLR?

The NPB-240-12XLR is a 240W battery charger with a 14.4V DC output rated at 13.5A. This makes it a higher-power option for 12V charging applications that need substantial output capacity.

Is the NPB-240-12XLR a battery charger or a power supply?

This model is described as an AC-DC single output battery charger with PFC and 2-stage or 3-stage charging capability. It is intended for charging-related use cases rather than being presented here as a general-purpose adjustable bench supply.

What type of charging profile does this model support?

The NPB-240-12XLR supports 2-stage or 3-stage charging. That gives buyers a charger designed for battery charging behavior rather than a simple fixed-output adapter.

Can this charger be used in demanding temperature conditions?

Yes. The specified operating temperature range is -30°C to 70°C, which suits applications exposed to both cold and hot environments. Buyers should still confirm that the surrounding system is designed for the same temperature range.

What kind of input power flexibility does the NPB-240-12XLR offer?

This model features universal AC input and built-in power factor correction (PFC). That makes it a practical choice for businesses that need a charger platform suitable for different AC supply environments.

How large and heavy is the Mean Well NPB-240-12XLR?

The unit weighs 1.3 kg. That gives it a relatively portable form factor for a 240W charger while still being substantial enough for industrial and commercial use.

What warranty is provided for the NPB-240-12XLR?

The listed warranty period for this model is 3 years. That can be useful for buyers comparing long-term support expectations across commercial charging products.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well NPB-240-48XLR Battery Charger 240W 48V 3 Pin Power Pin 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-48TB Battery Charger 240W 48V Terminal Block 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-48AD1 Battery Charger 240W 48V Anderson Connector 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-24XLR Battery Charger 240W 24V 3 Pin Power Pin 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-24TB Battery Charger 240W 24V Terminal Block 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-24AD1 Battery Charger 240W 24V Anderson Connector 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-12TB Battery Charger 240W 12V Terminal Block 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-240-12AD1 Battery Charger 240W 12V Anderson Connector 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
