Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

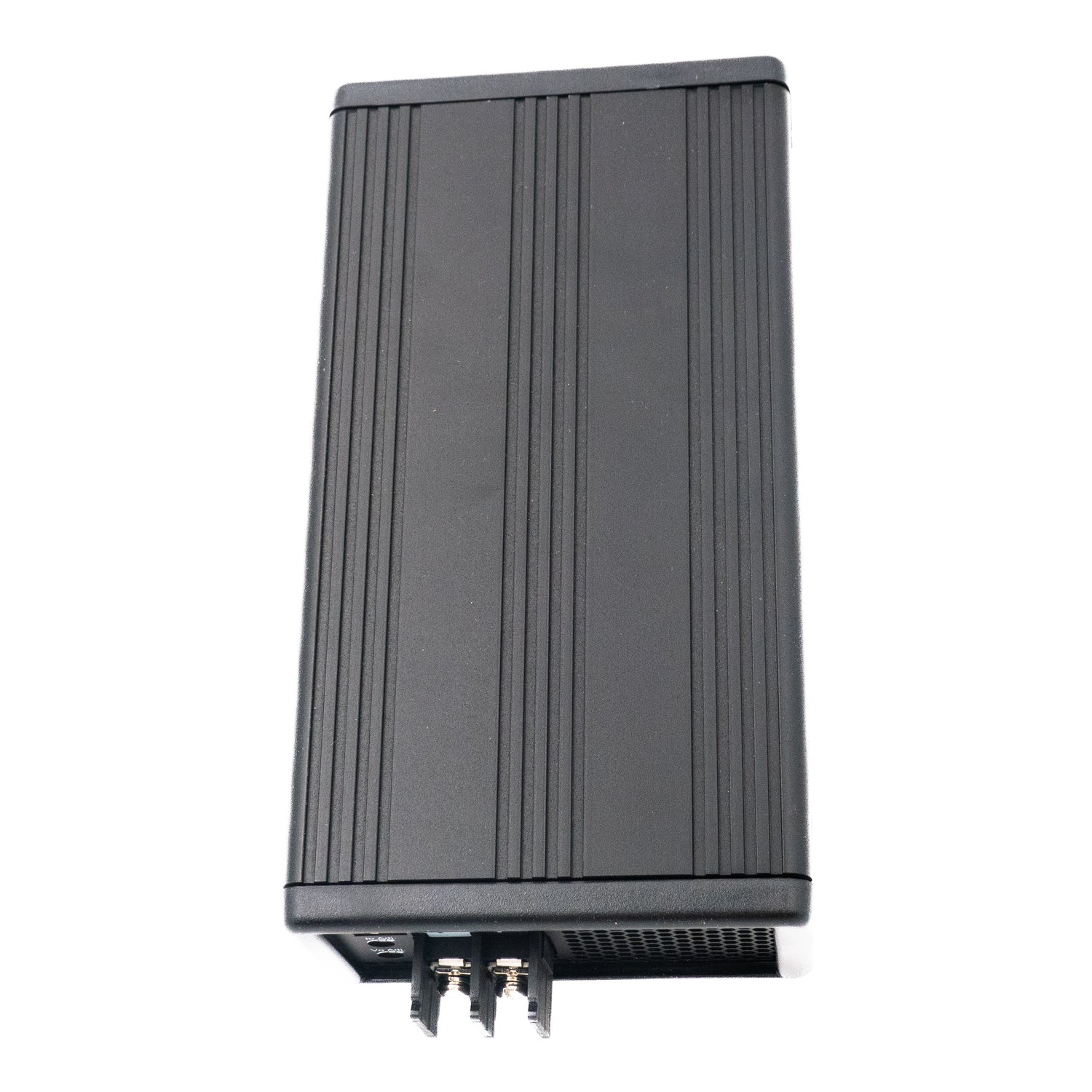

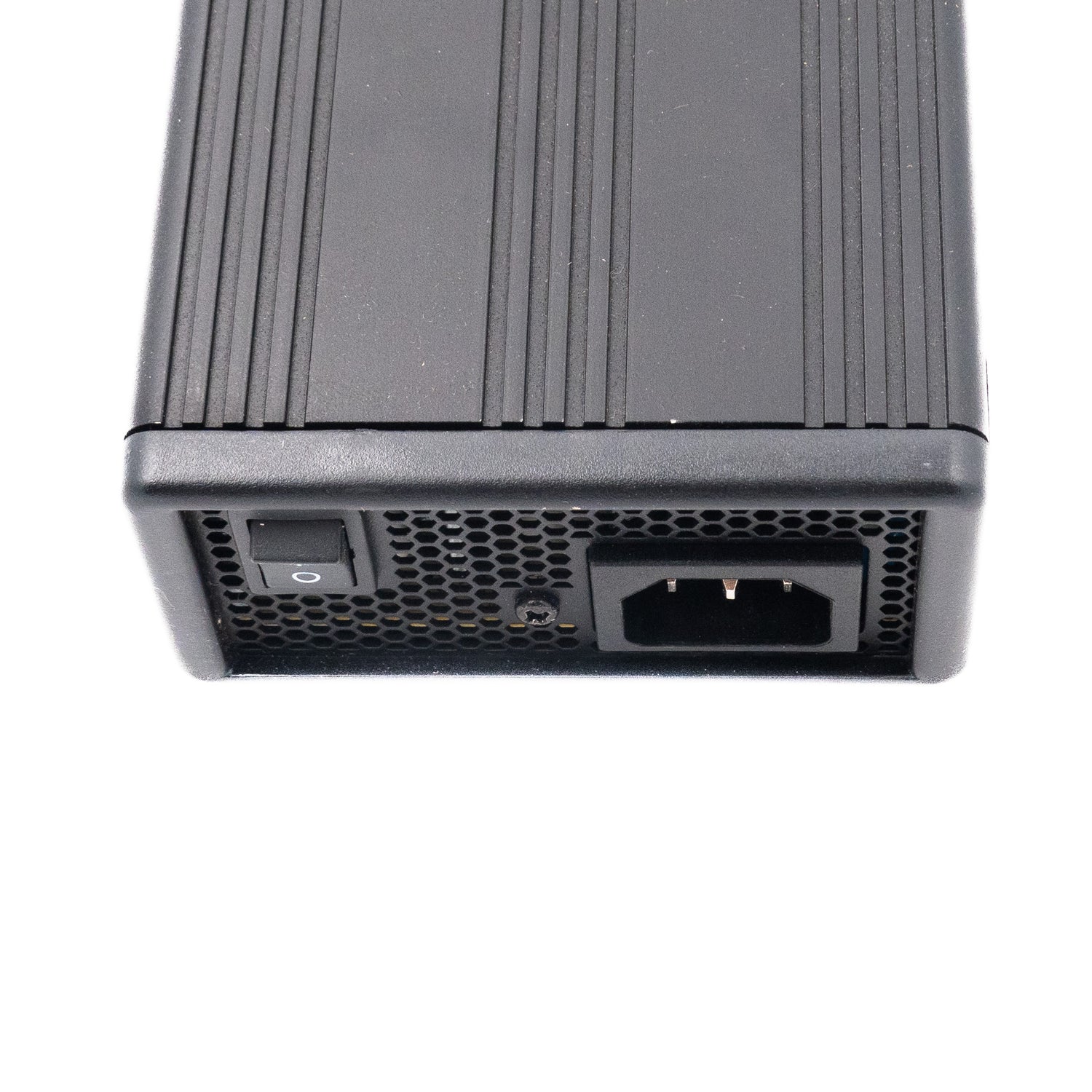

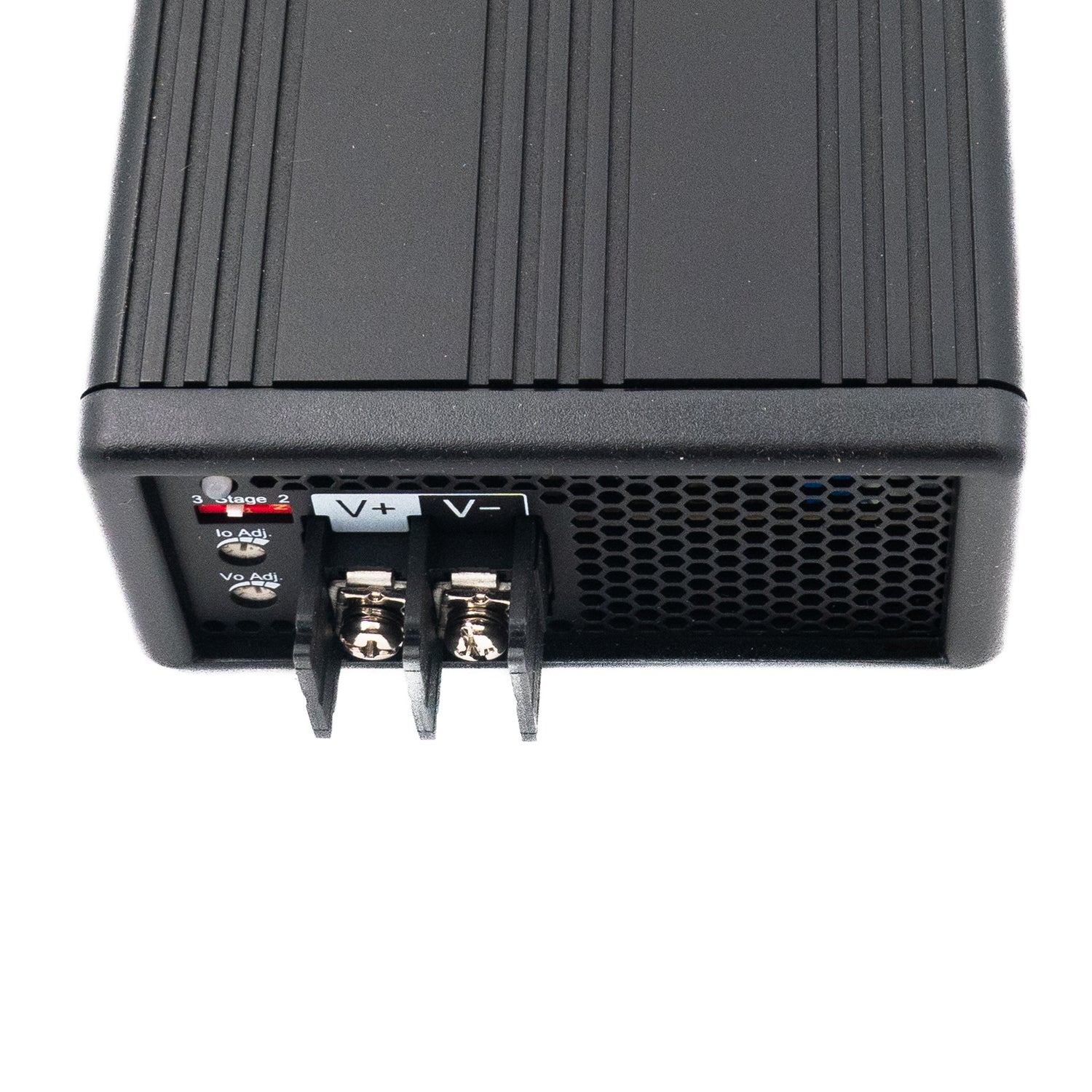

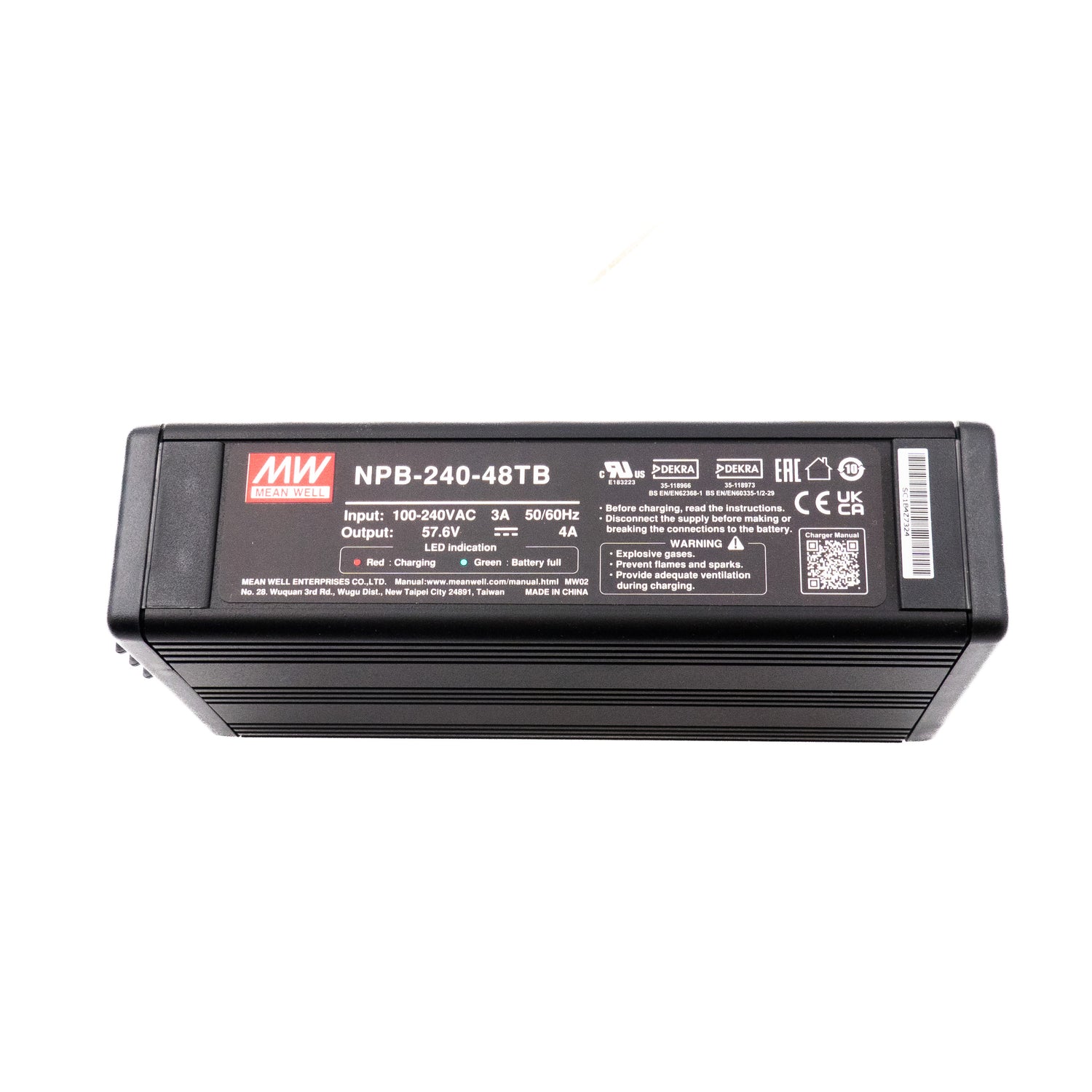

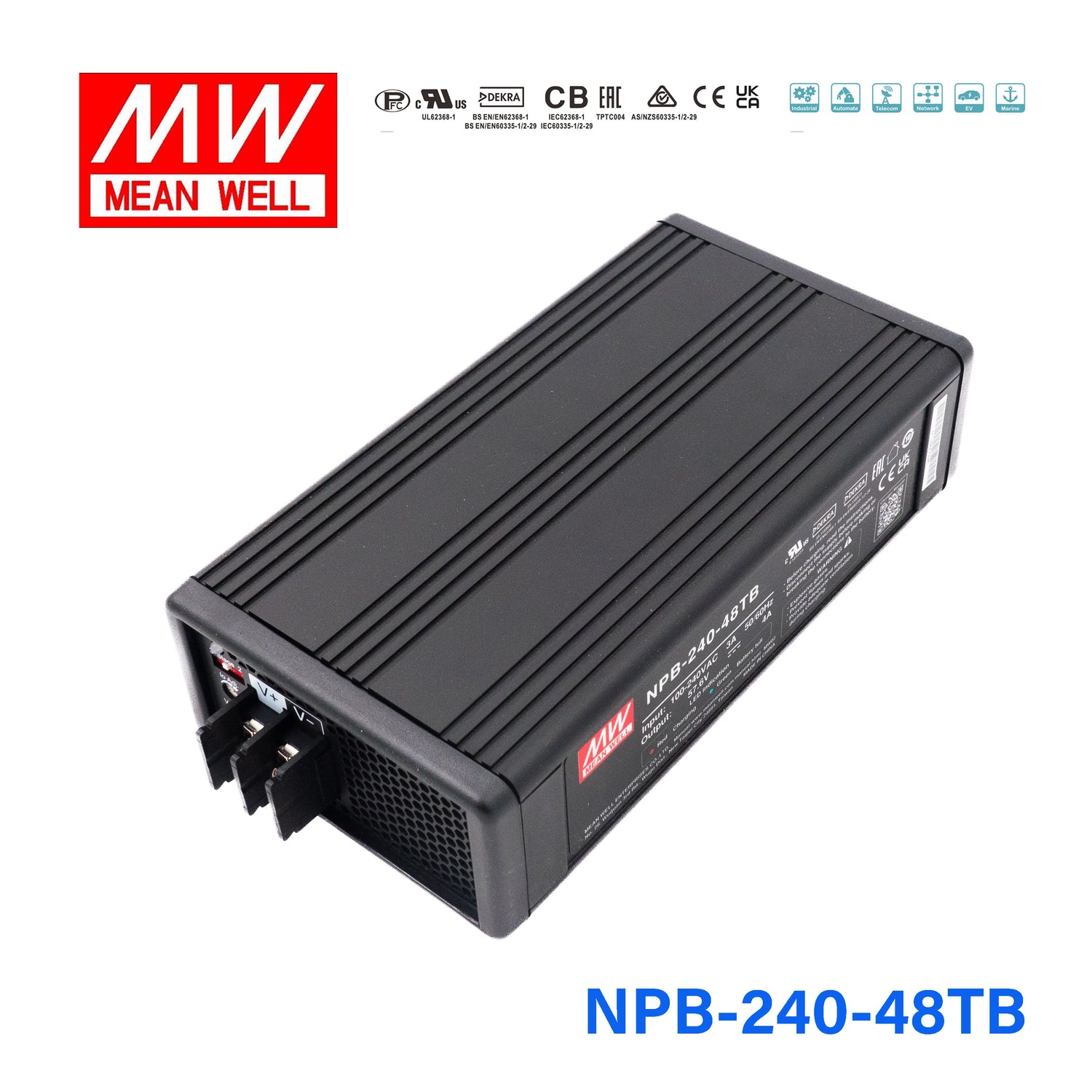

Mean Well NPB-240-48TB Battery Charger 240W 48V Terminal Block 4A

wide voltage rangemetal enclosure for better heat dissipationeasy and flexible adjustment for voltage and current2 or 3 stage selectable by dip switch

SKU:

NPB-240-48TB

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NPB-240 is a 240W Mean Well DIN rail power converter with a 182.7mm profile (input range: 90~264VAC).

Key Features

✓ 182.7mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the output rating of the Mean Well NPB-240-48TB?

The NPB-240-48TB is rated for 240W output. This model provides 57.6V DC at 4A. Those published ratings make it a fit for buyers who need a 48V-class battery charger with a defined constant output specification.

Is the NPB-240-48TB a battery charger or a general power supply?

This model is described by Mean Well as an AC-DC single-output battery charger with power factor correction. It also appears in power supply categories, but its listed charging features are 2-stage or 3-stage charging rather than a generic fixed-output-only power conversion role. For product-page FAQ, it should be treated primarily as a battery charger.

What charging method does the NPB-240-48TB use?

The NPB-240-48TB supports 2-stage or 3-stage charging. That is a meaningful differentiator for buyers comparing industrial or commercial charging options, because the charging profile is built into the model rather than being an unspecified feature. The product description specifically lists both charging-stage modes for this unit.

Can the NPB-240-48TB be used in demanding temperature conditions?

This charger is specified for operation from -30 degrees C to 70 degrees C. That wide operating range makes it more suitable for industrial and commercial environments than products limited to narrow indoor temperature bands. Buyers still need to confirm the surrounding equipment and enclosure requirements separately.

What input flexibility does the NPB-240-48TB offer?

The NPB-240-48TB is specified with universal AC input. That gives purchasing teams more flexibility when sourcing the same charger for different regions or facility standards without needing a separate input-specific model. The product description also lists built-in PFC as part of the AC-DC design.

What warranty and physical considerations are listed for the NPB-240-48TB?

This model carries a 3-year warranty based on the provided product data. Its listed weight is 1.3 kg, which can matter for panel, cabinet, or portable equipment planning where component mass affects the overall assembly. Those details help buyers compare lifecycle support and mechanical suitability across charger options.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well NPB-240-48XLR Battery Charger 240W 48V 3 Pin Power Pin 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-48AD1 Battery Charger 240W 48V Anderson Connector 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-24XLR Battery Charger 240W 24V 3 Pin Power Pin 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-24TB Battery Charger 240W 24V Terminal Block 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-24AD1 Battery Charger 240W 24V Anderson Connector 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-12XLR Battery Charger 240W 12V 3 Pin Power Pin 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-240-12TB Battery Charger 240W 12V Terminal Block 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-240-12AD1 Battery Charger 240W 12V Anderson Connector 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
