Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

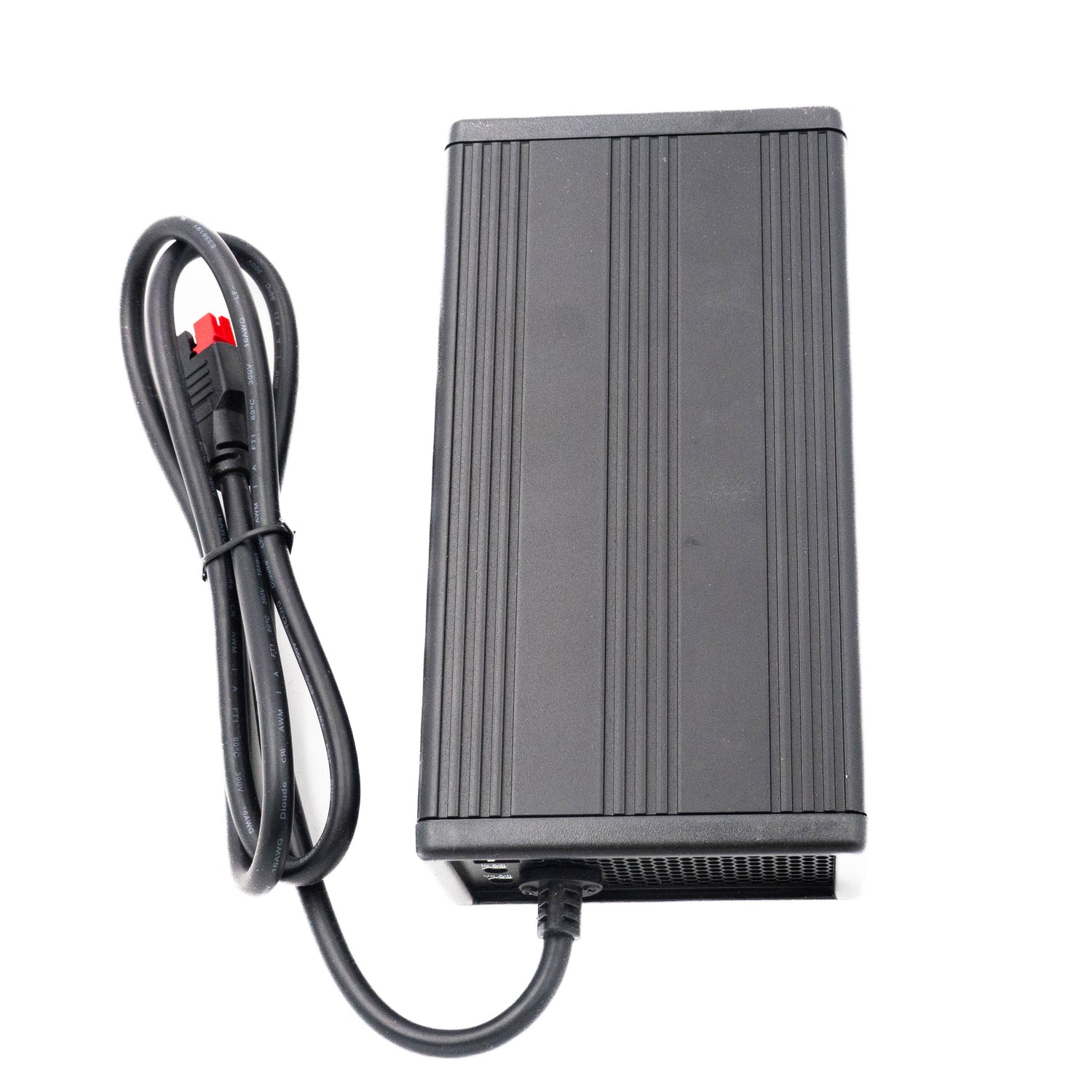

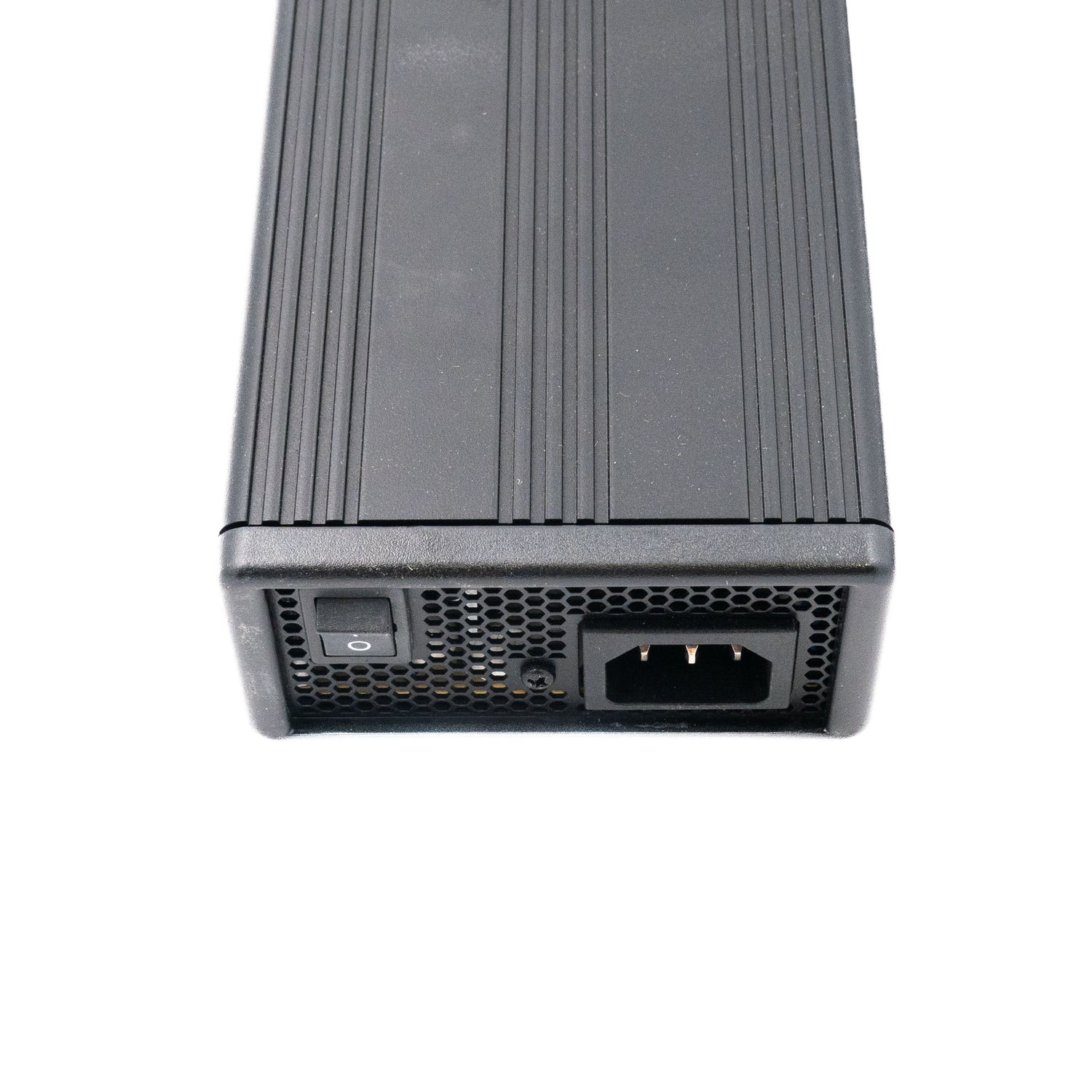

Mean Well NPB-240-24AD1 Battery Charger 240W 24V Anderson Connector 8A

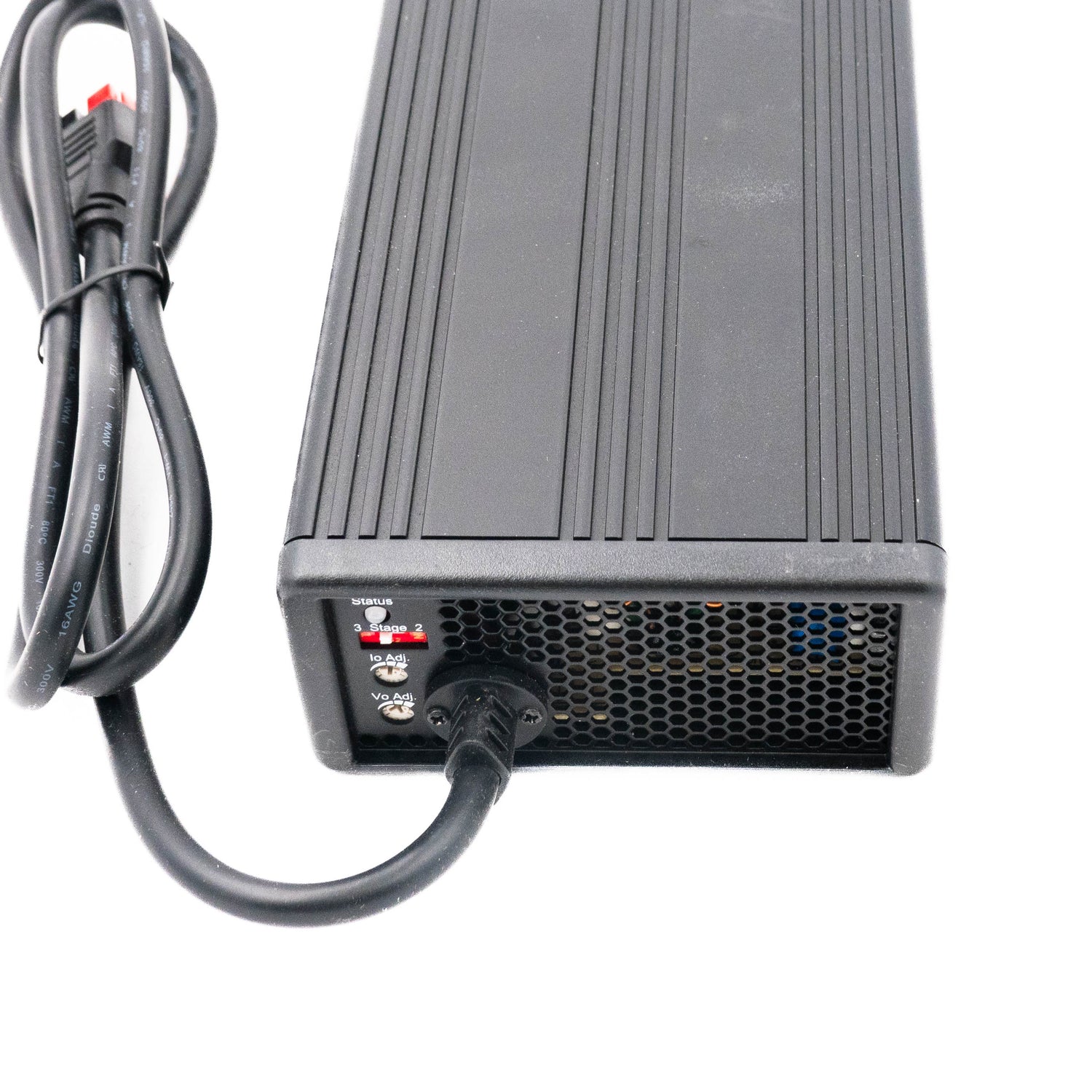

wide voltage rangemetal enclosure for better heat dissipationeasy and flexible adjustment for voltage and current2 or 3 stage selectable by dip switch

SKU:

NPB-240-24AD1

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NPB-240 is a 240W Mean Well DIN rail power converter with a 182.7mm profile (input range: 90~264VAC).

Key Features

✓ 182.7mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

Is the Mean Well NPB-240-24AD1 suitable for charging 24V battery systems?

This model is built as a 240W battery charger with a 28.8V DC output and 8A rated current, which aligns with many 24V battery charging applications. It is best suited where the required charging voltage and current fit those published output specifications.

Can the NPB-240-24AD1 be used in portable or service battery charging setups?

Yes, this model is a portable-style battery charger variant with an Anderson connector, which makes it relevant for mobile charging or service use where that connector format is preferred. Buyers should still confirm that the target battery system matches the charger's 28.8V DC output and 8A rating.

What charging features does the NPB-240-24AD1 offer?

The published description lists PFC, universal AC input, and 2-stage or 3-stage charging. Those features make this model more application-specific than a basic fixed-output power unit, especially where controlled battery charging behavior is required.

How do I know if 240W and 8A are enough for my application?

This charger is rated for 28.8V DC output at up to 8A, with a total power rating of 240W. It is a fit only when the target system is designed for that output voltage and remains within both the 8A current limit and the 240W power limit.

What operating temperature range is this charger rated for?

The published operating temperature range for the NPB-240-24AD1 is -30°C to 70°C. That gives it a broad thermal range for industrial and commercial use, but the provided data does not include an IP rating, so environmental claims should stay within the listed specifications.

Can this model also serve as an AC-DC power supply as well as a battery charger?

The product is described as an AC-DC single output battery charger and is also categorized under power supply ranges. Its published output is 28.8V DC at 8A, so it may be considered where an application specifically requires that output, but this model is clearly positioned around battery charging use.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well NPB-240-48XLR Battery Charger 240W 48V 3 Pin Power Pin 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-48TB Battery Charger 240W 48V Terminal Block 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-48AD1 Battery Charger 240W 48V Anderson Connector 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-24XLR Battery Charger 240W 24V 3 Pin Power Pin 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-24TB Battery Charger 240W 24V Terminal Block 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-12XLR Battery Charger 240W 12V 3 Pin Power Pin 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-240-12TB Battery Charger 240W 12V Terminal Block 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-240-12AD1 Battery Charger 240W 12V Anderson Connector 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
