What is the Mean Well NPB-240-48XLR designed for?

The NPB-240-48XLR is an AC-DC single output battery charger in Mean Well's NPB series. This model is built for 48V battery charging applications and provides 57.6Vdc output at 4A with up to 240W power.

What charging output does the NPB-240-48XLR provide?

This charger delivers a 57.6Vdc output with a rated current of 4A. Its power rating is 240W, which makes it suitable for applications that need a 48V-class battery charger with moderate output capacity.

Does the NPB-240-48XLR support different charging stages?

Yes, the NPB-240-48XLR supports 2-stage or 3-stage charging. That gives buyers flexibility when selecting a charger for battery charging profiles that require staged charging behavior.

Can the NPB-240-48XLR operate in demanding temperature conditions?

This model is rated for operation from -30°C to 70°C. That wide temperature range makes it a practical option for environments where chargers may be exposed to cold starts or elevated ambient heat.

What are the physical and support considerations for the NPB-240-48XLR?

The NPB-240-48XLR weighs 1.3 kg, which is useful to know for equipment planning and product comparison. It also carries a 3-year warranty period from Mean Well.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

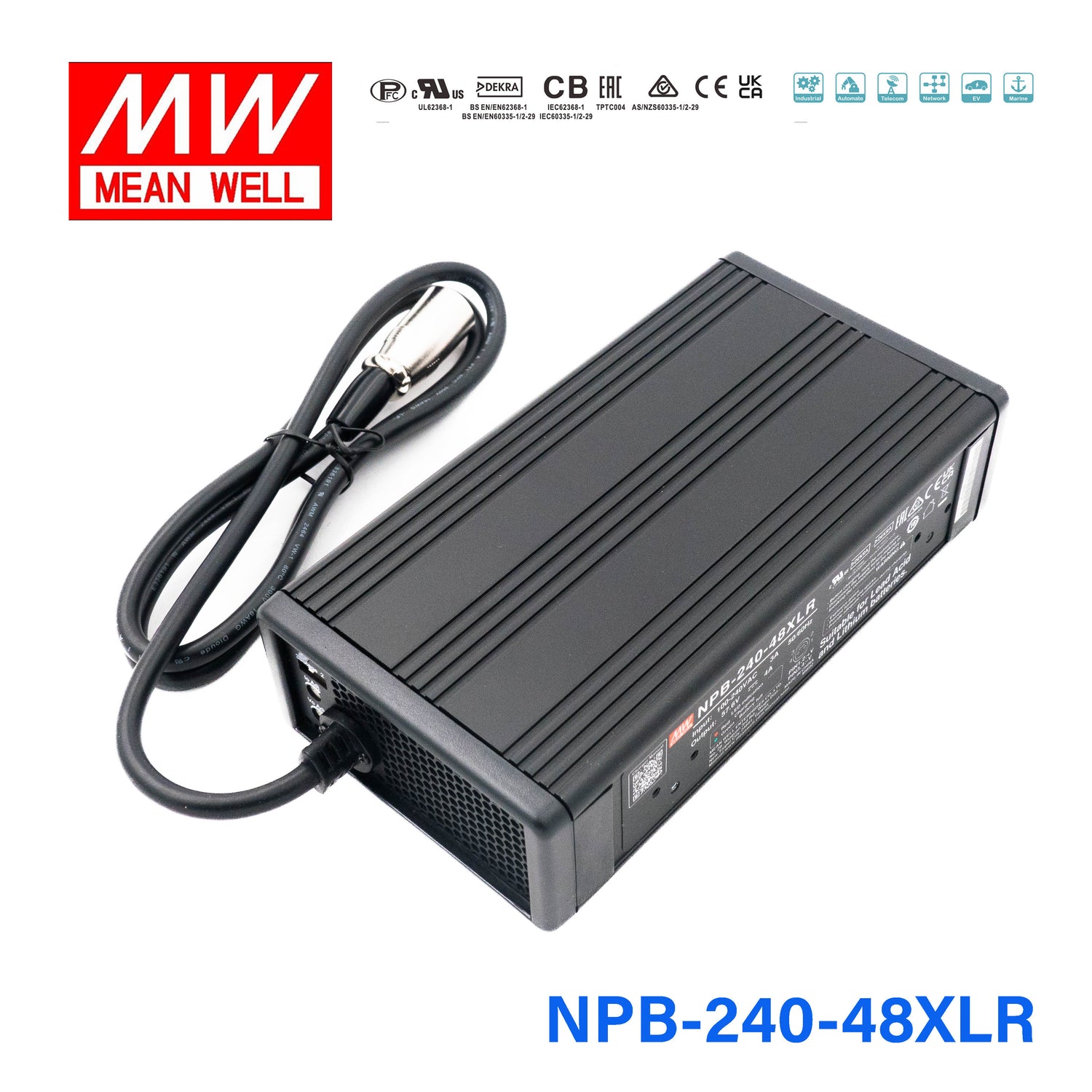

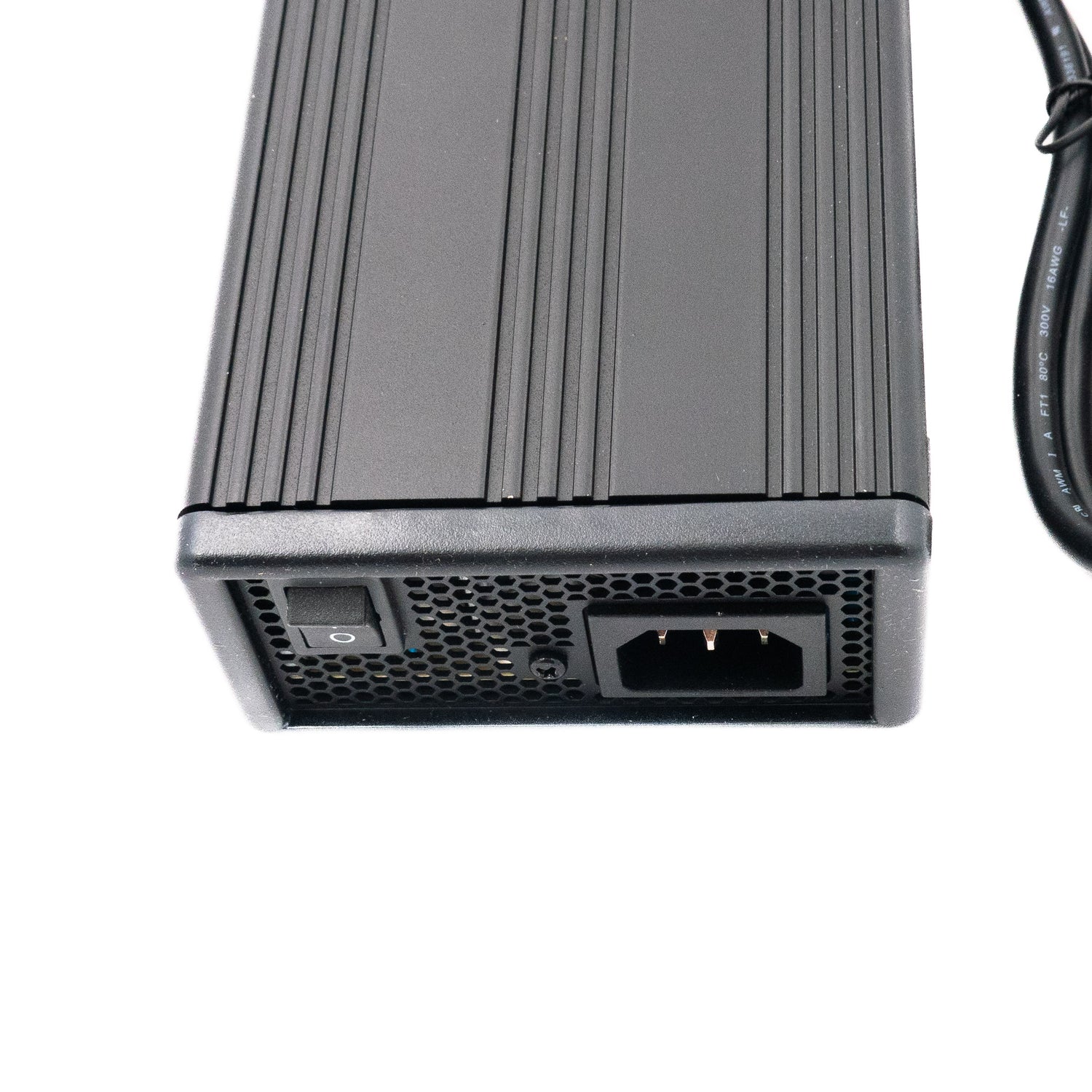

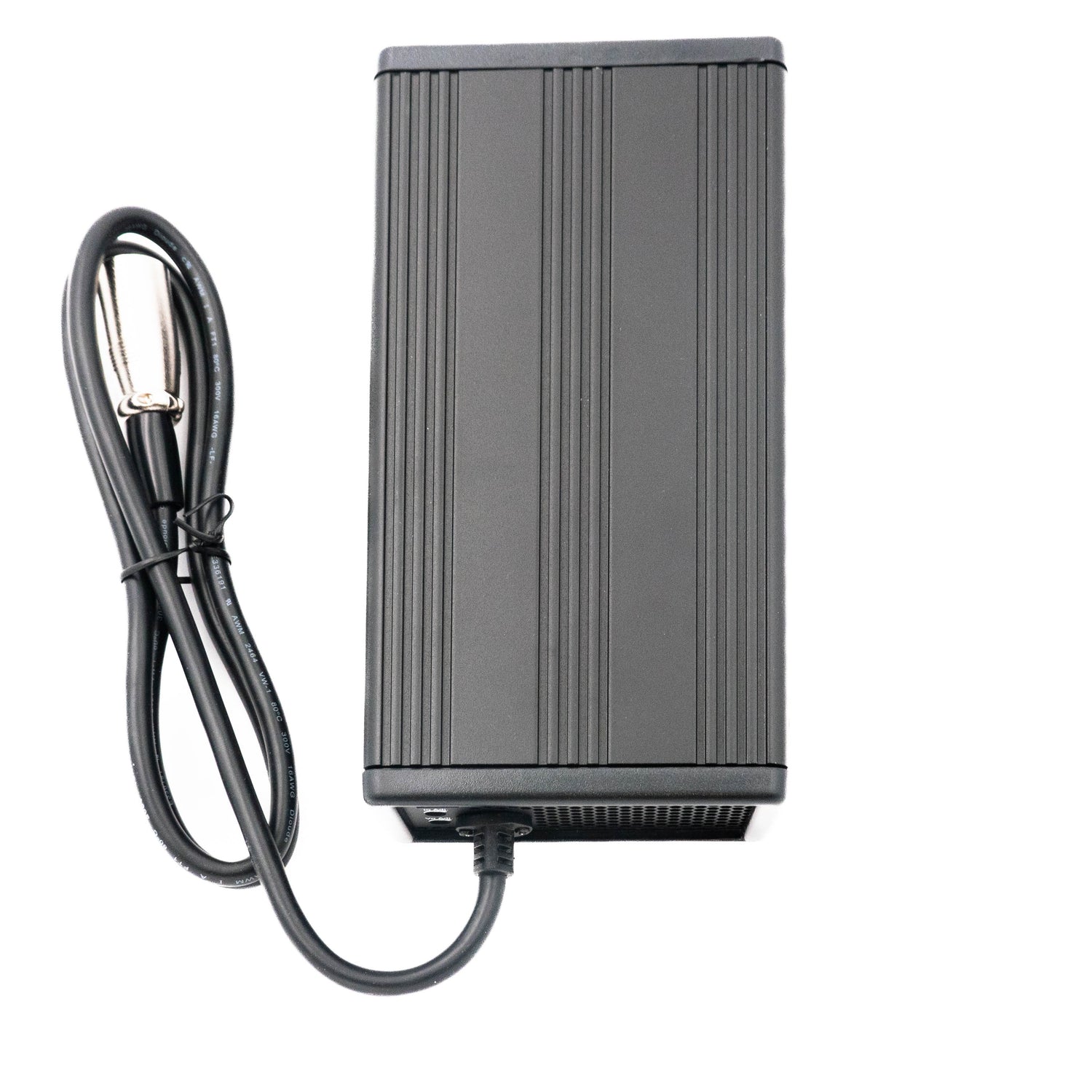

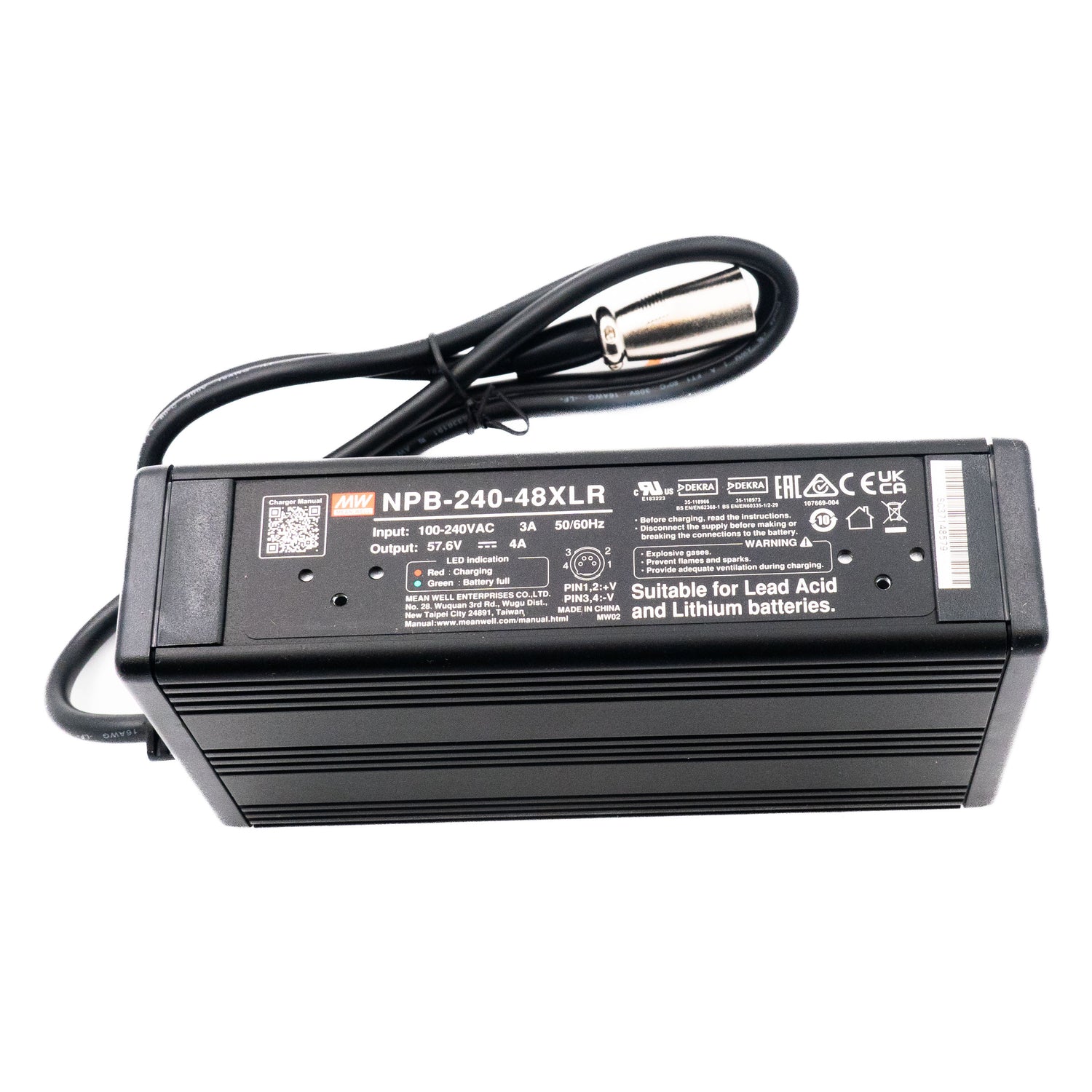

Mean Well NPB-240-48XLR Battery Charger 240W 48V 3 Pin Power Pin 4A

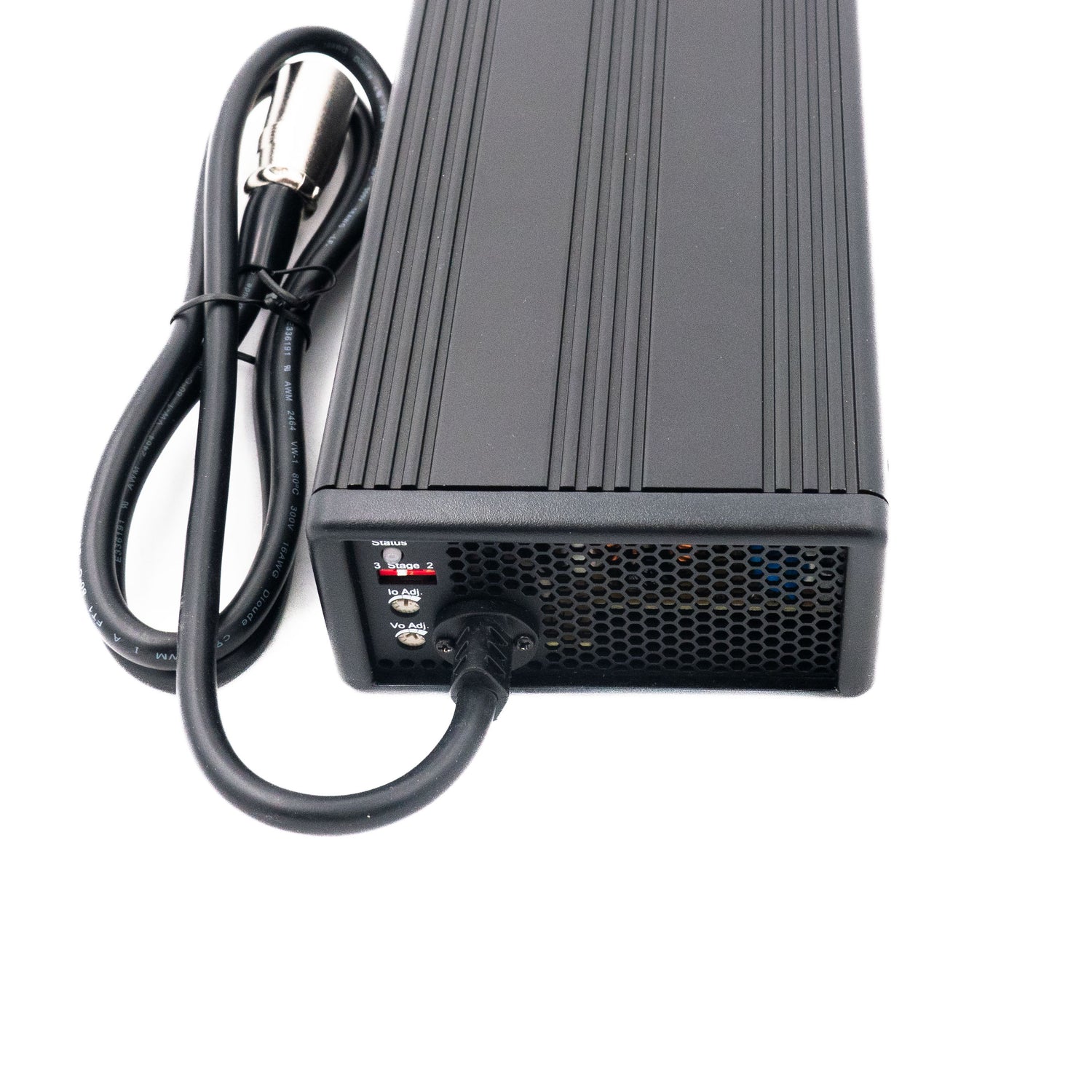

wide voltage rangemetal enclosure for better heat dissipationeasy and flexible adjustment for voltage and current2 or 3 stage selectable by dip switch

SKU:

NPB-240-48XLR

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NPB-240 is a 240W Mean Well DIN rail power converter with a 182.7mm profile (input range: 90~264VAC).

Key Features

✓ 182.7mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well NPB-240-48TB Battery Charger 240W 48V Terminal Block 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-48AD1 Battery Charger 240W 48V Anderson Connector 4A	240W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-240-24XLR Battery Charger 240W 24V 3 Pin Power Pin 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-24TB Battery Charger 240W 24V Terminal Block 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-24AD1 Battery Charger 240W 24V Anderson Connector 8A	240W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-240-12XLR Battery Charger 240W 12V 3 Pin Power Pin 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-240-12TB Battery Charger 240W 12V Terminal Block 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-240-12AD1 Battery Charger 240W 12V Anderson Connector 13.5A	240W	Lithium and Lead Acid Battery	14.4V	—	View
