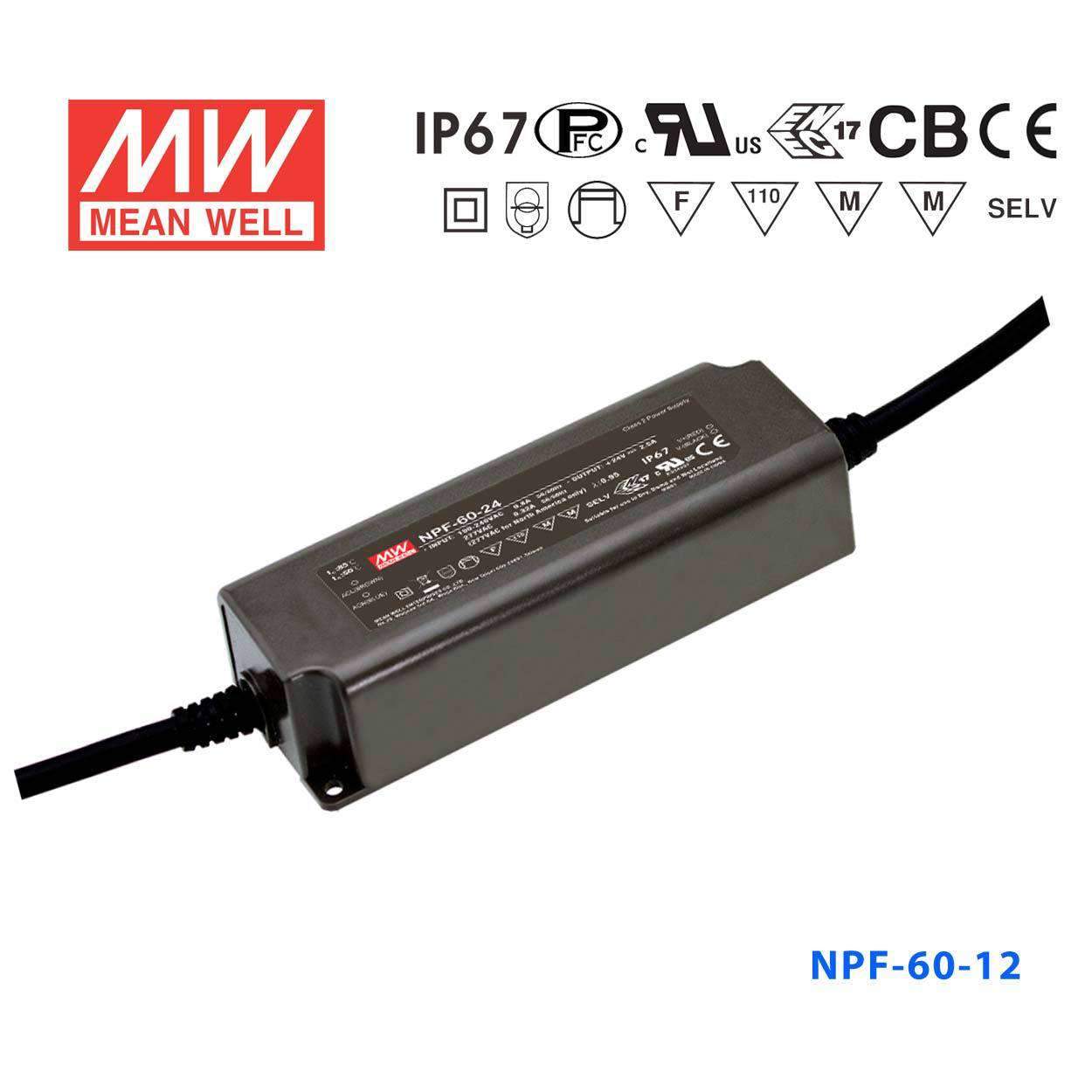

Mean Well NPF-60-12 Power Supply 60W 12V

Q: Can the NPF-60-12 power outdoor LED signage exposed to rain?

Yes. The NPF-60-12 carries an IP67 rating, meaning it is fully protected against dust and can withstand temporary immersion in water. Its operating temperature range of -40°C to +85°C also makes it suitable for outdoor environments with wide seasonal temperature swings.

Q: Is 60W and 12V enough to drive a small commercial LED display or cabinet lighting?

The NPF-60-12 delivers 60W at 12V with a maximum output current of 5A, which is adequate for compact 12V LED display panels, retail cabinet lighting, or decorative accent arrays where total load stays within 60W. Its constant-current operation mode helps maintain consistent light output even as LED forward voltages vary slightly.

Q: How does the NPF-60-12 differ from the NPF-90-12 and NPF-120-12 at the same 12V output?

All three run at 12V but differ in power capacity: the NPF-60-12 provides 60W at 5A, the NPF-90-12 provides 90W at 7.5A, and the NPF-120-12 provides 120W at 10A. Choose the NPF-60-12 for smaller loads up to 60W, and step up to the 90W or 120W models when the LED system draws more current.

Q: Does the NPF-60-12 require an earth ground connection?

No. The NPF-60-12 uses a Class II design without a functional ground (FG), so no protective earth connection is required. Its fully isolated plastic case provides the required double insulation.

Q: What input voltage range does the NPF-60-12 accept?

The NPF-60-12 accepts 90–305VAC, covering both standard North American 120VAC and European or industrial 230–277VAC supplies without any manual voltage switching.

Description

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

High efficiency up to 91%

No load power consumption <0.15W

Fully isolated plastic case with IP67 level

Class 2 power unit

Isolation class II, no F.G.

Protections: Short circuit / Over current / Over voltage / Over temperature

Suitable for dry, damp, and wet location

Cooling by free air convection

5 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 50A
Over current protection	95% ~108% constant current, auto-recovery
Over voltage protection	110%~140% rated output voltage
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending]
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	UL rated, SVT 18AWGx2C (30cm)
Dimension (LxWxH)(mm)	150x 53x 35

Specifications

Brand

Mean Well
Series

NPF Series
Power Rating

60 Watt
Output Voltage

12 Volt
Rated Current

5 Ampere
Input Voltage

90V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

15 cm
Width

5.3 cm
Height

3.5 cm
Weight

0.49 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the NPF-60-12 power outdoor LED signage exposed to rain?

Yes. The NPF-60-12 carries an IP67 rating, meaning it is fully protected against dust and can withstand temporary immersion in water. Its operating temperature range of -40°C to +85°C also makes it suitable for outdoor environments with wide seasonal temperature swings.

Is 60W and 12V enough to drive a small commercial LED display or cabinet lighting?

The NPF-60-12 delivers 60W at 12V with a maximum output current of 5A, which is adequate for compact 12V LED display panels, retail cabinet lighting, or decorative accent arrays where total load stays within 60W. Its constant-current operation mode helps maintain consistent light output even as LED forward voltages vary slightly.

How does the NPF-60-12 differ from the NPF-90-12 and NPF-120-12 at the same 12V output?

All three run at 12V but differ in power capacity: the NPF-60-12 provides 60W at 5A, the NPF-90-12 provides 90W at 7.5A, and the NPF-120-12 provides 120W at 10A. Choose the NPF-60-12 for smaller loads up to 60W, and step up to the 90W or 120W models when the LED system draws more current.

Does the NPF-60-12 require an earth ground connection?

No. The NPF-60-12 uses a Class II design without a functional ground (FG), so no protective earth connection is required. Its fully isolated plastic case provides the required double insulation.

What input voltage range does the NPF-60-12 accept?

The NPF-60-12 accepts 90–305VAC, covering both standard North American 120VAC and European or industrial 230–277VAC supplies without any manual voltage switching.

Model	Power	Voltage	Current	IP Rating
Mean Well NPF-60-54 Power Supply 60W 54V	60.48W	54V	1.12A	IP67	View
Mean Well NPF-60-48 Power Supply 60W 48V	60W	48V	1.25A	IP67	View
Mean Well NPF-60-42 Power Supply 60W 42V	60.06W	42V	1.43A	IP67	View
Mean Well NPF-60-36 Power Supply 60W 36V	60.12W	36V	1.67A	IP67	View
Mean Well NPF-60-30 Power Supply 60W 30V	60W	30V	2A	IP67	View
Mean Well NPF-60-24 Power Supply 60W 24V	60W	24V	2.5A	IP67	View
Mean Well NPF-60-20 Power Supply 60W 20V	60W	20V	3A	IP67	View
Mean Well NPF-60-15 Power Supply 60W 15V	60W	15V	4A	IP67	View

{ "id":8423867580715, "variants" :[{ "context":"default", "variant_id": 45636265443627, "sku":"NPF-60-12", "inventory_qty" : -2, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

High efficiency up to 91%

No load power consumption <0.15W

Fully isolated plastic case with IP67 level

Class 2 power unit

Isolation class II, no F.G.

Protections: Short circuit / Over current / Over voltage / Over temperature

Suitable for dry, damp, and wet location

Cooling by free air convection

5 years warranty

General Specification

AC input voltage range

90~305VAC ; 127~431VDC

AC inrush current (max.)

Cold start, 50A

Over current protection

95% ~108% constant current, auto-recovery

Over voltage protection

110%~140% rated output voltage

Withstand voltage

I/P - O/P: 3.75kVAC

Working temperature

-40~+70ºC (refer to output derating curve)

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending]

Connection Input

UL rated, SJTW 18AWGx2C (30cm)

Connection Output

UL rated, SVT 18AWGx2C (30cm)

Dimension (LxWxH)(mm)

150x 53x 35
