Mean Well

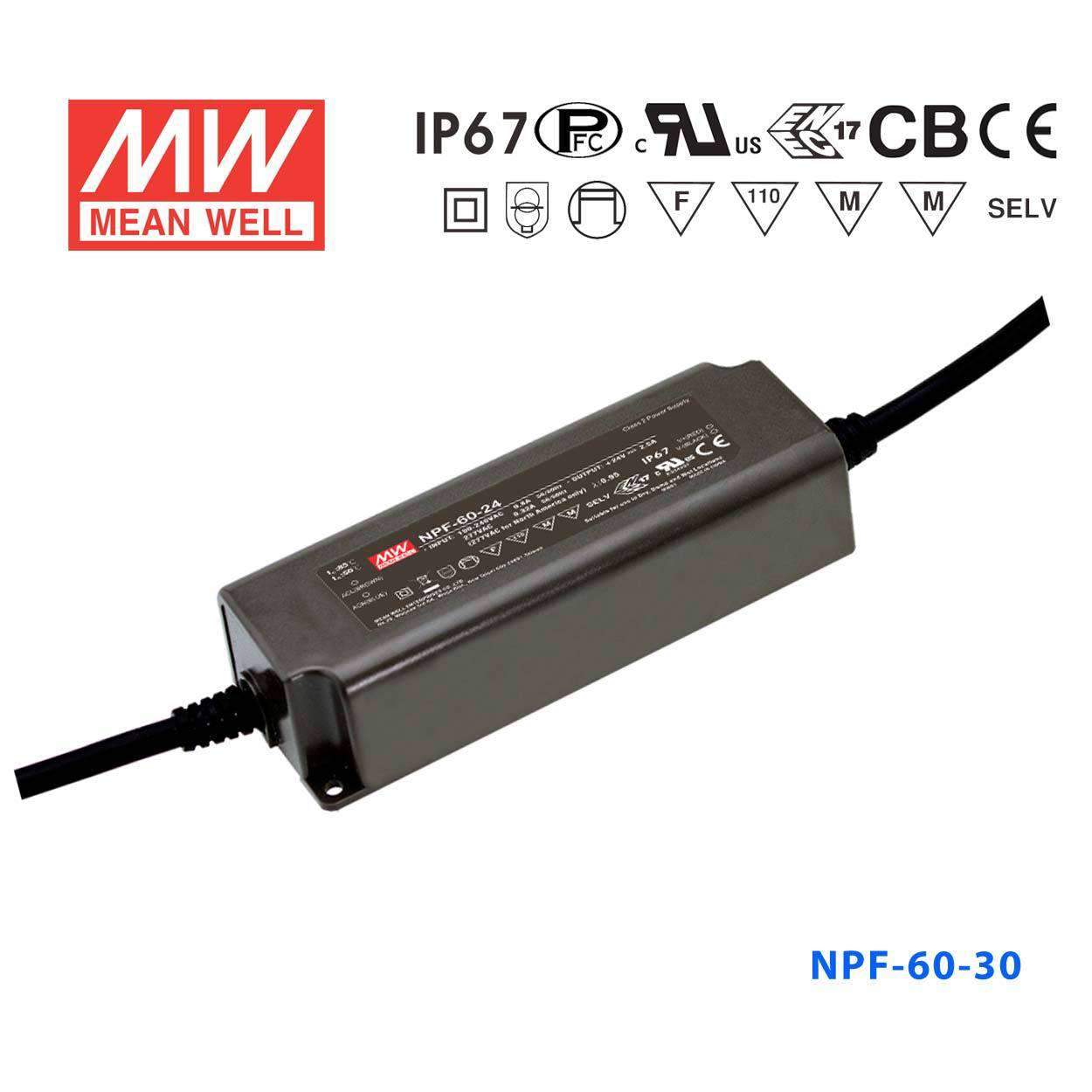

Mean Well NPF-60-30 Power Supply 60W 30V

fully isolated plastic case, IP67, Class II design without FG
SKU:
NPF-60-30
Model
Please for Pricing
|

Description

Features

Universal AC input (up to 305VAC) / Full range
Built-in active PFC function
High efficiency up to 91%
No load power consumption <0.15W
Fully isolated plastic case with IP67 level
Class 2 power unit
Isolation class II, no F.G.
Protections: Short circuit / Over current / Over voltage / Over temperature
Suitable for dry, damp, and wet location
Cooling by free air convection
5 years warranty

General Specification

AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 50A
Over current protection 95% ~108% constant current, auto-recovery
Over voltage protection 110%~140% rated output voltage
Withstand voltage I/P - O/P: 3.75kVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending]
Connection Input UL rated, SJTW 18AWGx2C (30cm)
Connection Output UL rated, SVT 18AWGx2C (30cm)
Dimension (LxWxH)(mm) 150x 53x 35

Specifications
  • Brand
    Mean Well
  • Series
    NPF Series
  • Power Rating
    60 Watt
  • Output Voltage
    30 Volt
  • Rated Current
    2 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    15 cm
  • Width
    5.3 cm
  • Height
    3.5 cm
  • Weight
    0.49 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Is the NPF-60-30 safe for use in outdoor horticultural tunnels where moisture is common?

Yes. The NPF-60-30 carries an IP67 waterproof rating, providing full dust protection and resistance to temporary submersion. Combined with its -40°C to +85°C operating temperature range, it is well suited for humid outdoor growing environments.

Can the NPF-60-30 power a 30V constant-current LED street light module?

The NPF-60-30 delivers 60W at 30V with a constant output current of 2A and a CC voltage range of 18–30V, which covers typical 30V LED street light modules. Its 90–305VAC input accommodates both single-phase residential and three-phase industrial power systems.

How does the NPF-60-30 compare to other 30V models in the NPF series?

The 30V NPF models differ by wattage: NPF-40-30 is 40.2W at 1.34A, NPF-60-30 is 60W at 2A, and NPF-90-30 is 90W at 3A. The NPF-120-30 steps up further to 120W at 4A. Select based on the total wattage the LED load demands.

Does the NPF-60-30 include dimming functionality?

No. The NPF-60-30 does not include dimming. If dimming is required at 30V and 60W, the NPF-60D-30 provides the same output specs with built-in 3-in-1 dimming support.

What is the physical footprint of the NPF-60-30?

The NPF-60-30 measures 150.0 × 53.0 × 35.0 mm and weighs 0.49 kg, sharing the same compact form factor as all other NPF-60 variants regardless of output voltage.
