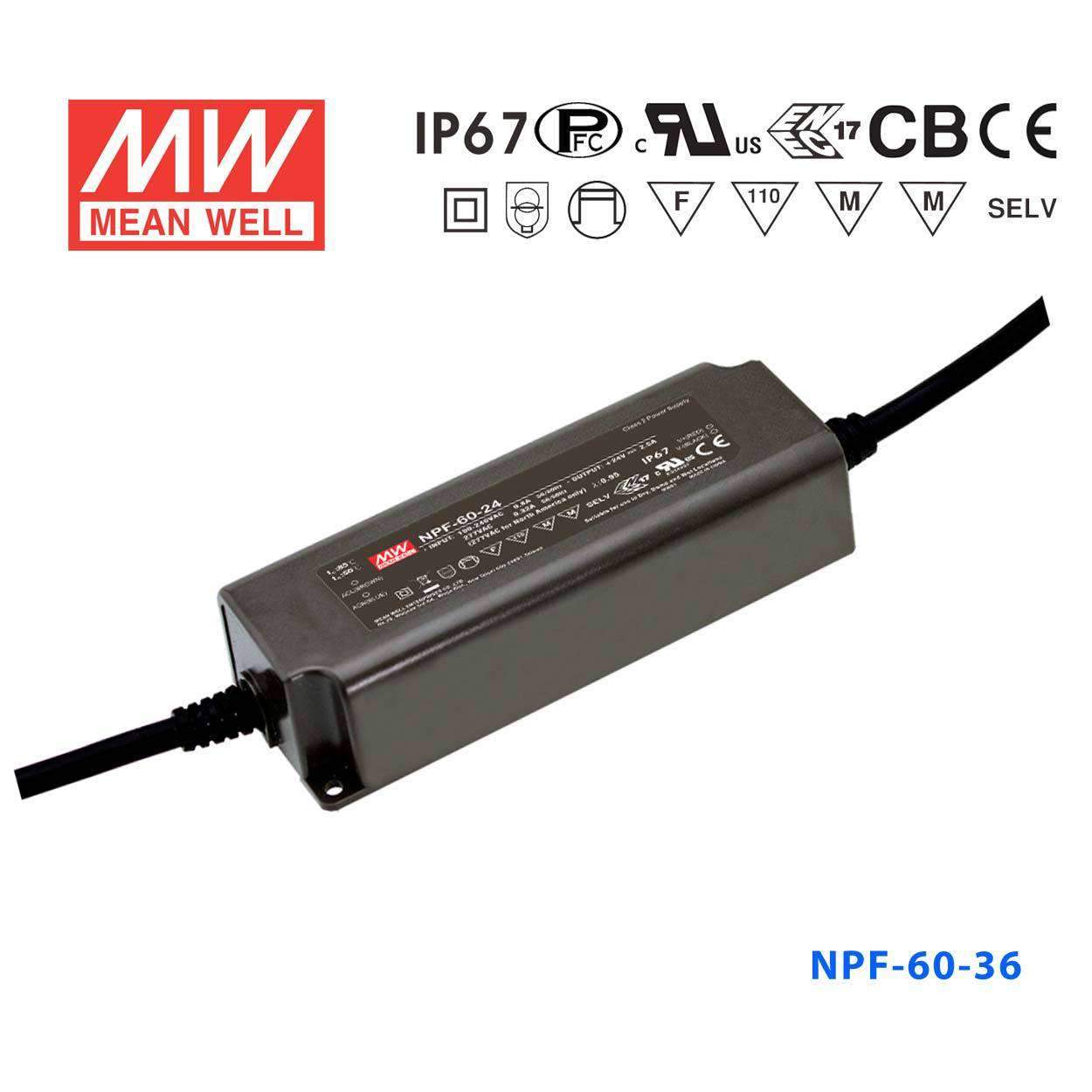

Mean Well NPF-60-36 Power Supply | 60W 36V LED Driver | New Zealand Distributor

Q: Can the NPF-60-36 operate reliably in cold storage facilities with temperatures near -40°C?

Yes. The NPF-60-36 is rated for operation from -40°C to +85°C, making it appropriate for cold storage or freezer facility lighting. Its IP67 rating also protects against condensation and washdown moisture common in food-industry environments.

Q: Is the NPF-60-36 a good match for 36V LED modules used in industrial task lighting?

The NPF-60-36 delivers 60.12W at 36V with a constant output of 1.67A, which suits 36V LED modules designed for high-bay or industrial task lighting where higher voltage strings reduce current and resistive losses over longer runs. Its CC voltage range is 21–36V.

Q: How does the NPF-60-36 differ from the NPF-90-36 and NPF-120-36?

All three output 36V but at different power levels: NPF-60-36 is 60.12W at 1.67A, NPF-90-36 is 90W at 2.5A, and NPF-120-36 is 122.4W at 3.4A. Choose the NPF-60-36 for LED loads up to approximately 60W and step up to the 90W or 120W model for higher-wattage arrays.

Q: What certifications apply to the NPF-60-36?

The NPF-60-36 is certified to CB, CCC, CE, EAC, ENEC, and UL standards, covering major markets in North America, Europe, and Asia. It includes a 5-year manufacturer warranty.

Q: Does the NPF-60-36 support dimming?

No. The NPF-60-36 has no built-in dimming. The NPF-60D-36 offers the same 60.12W, 36V, 1.67A output with built-in 3-in-1 dimming if adjustable output is needed.

Description

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

High efficiency up to 91%

No load power consumption <0.15W

Fully isolated plastic case with IP67 level

Class 2 power unit

Isolation class II, no F.G.

Protections: Short circuit / Over current / Over voltage / Over temperature

Suitable for dry, damp, and wet location

Cooling by free air convection

5 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 50A
Over current protection	95% ~108% constant current, auto-recovery
Over voltage protection	110%~140% rated output voltage
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending]
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	UL rated, SVT 18AWGx2C (30cm)
Dimension (LxWxH)(mm)	150x 53x 35

Specifications

Brand

Mean Well
Series

NPF Series
Power Rating

60.12 Watt
Output Voltage

36 Volt
Rated Current

1.67 Ampere
Input Voltage

90V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

15 cm
Width

5.3 cm
Height

3.5 cm
Weight

0.49 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the NPF-60-36 operate reliably in cold storage facilities with temperatures near -40°C?

Yes. The NPF-60-36 is rated for operation from -40°C to +85°C, making it appropriate for cold storage or freezer facility lighting. Its IP67 rating also protects against condensation and washdown moisture common in food-industry environments.

Is the NPF-60-36 a good match for 36V LED modules used in industrial task lighting?

The NPF-60-36 delivers 60.12W at 36V with a constant output of 1.67A, which suits 36V LED modules designed for high-bay or industrial task lighting where higher voltage strings reduce current and resistive losses over longer runs. Its CC voltage range is 21–36V.

How does the NPF-60-36 differ from the NPF-90-36 and NPF-120-36?

All three output 36V but at different power levels: NPF-60-36 is 60.12W at 1.67A, NPF-90-36 is 90W at 2.5A, and NPF-120-36 is 122.4W at 3.4A. Choose the NPF-60-36 for LED loads up to approximately 60W and step up to the 90W or 120W model for higher-wattage arrays.

What certifications apply to the NPF-60-36?

The NPF-60-36 is certified to CB, CCC, CE, EAC, ENEC, and UL standards, covering major markets in North America, Europe, and Asia. It includes a 5-year manufacturer warranty.

Does the NPF-60-36 support dimming?

No. The NPF-60-36 has no built-in dimming. The NPF-60D-36 offers the same 60.12W, 36V, 1.67A output with built-in 3-in-1 dimming if adjustable output is needed.

Model	Power	Voltage	Current	IP Rating
Mean Well NPF-60-54 Power Supply 60W 54V	60.48W	54V	1.12A	IP67	View
Mean Well NPF-60-48 Power Supply 60W 48V	60W	48V	1.25A	IP67	View
Mean Well NPF-60-42 Power Supply 60W 42V	60.06W	42V	1.43A	IP67	View
Mean Well NPF-60-30 Power Supply 60W 30V	60W	30V	2A	IP67	View
Mean Well NPF-60-24 Power Supply 60W 24V	60W	24V	2.5A	IP67	View
Mean Well NPF-60-20 Power Supply 60W 20V	60W	20V	3A	IP67	View
Mean Well NPF-60-15 Power Supply 60W 15V	60W	15V	4A	IP67	View
Mean Well NPF-60-12 Power Supply 60W 12V	60W	12V	5A	IP67	View
