Mean Well

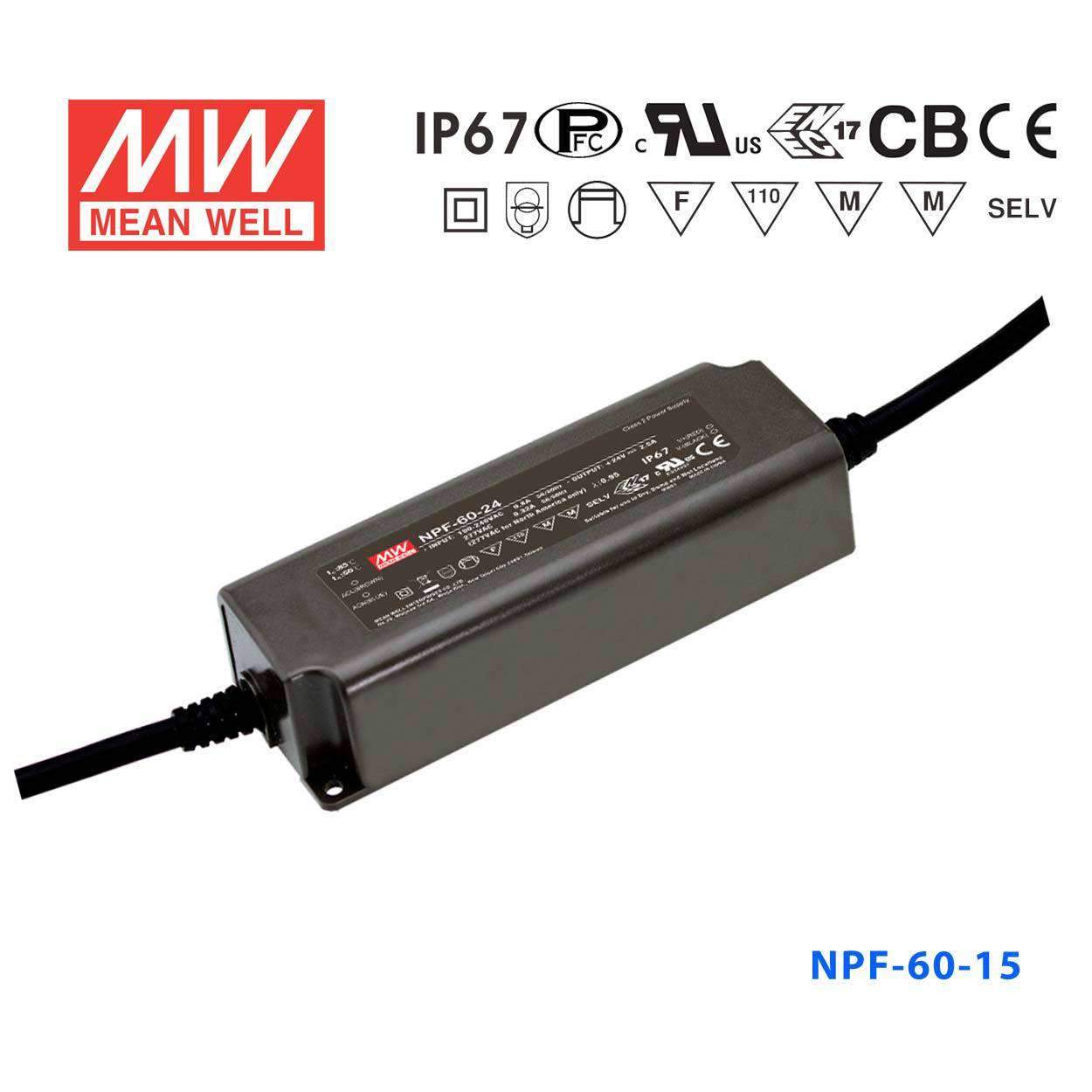

Mean Well NPF-60-15 Power Supply 60W 15V

fully isolated plastic case, IP67, Class II design without FG
SKU:
NPF-60-15
Model
Please for Pricing
|

Description

Features

Universal AC input (up to 305VAC) / Full range
Built-in active PFC function
High efficiency up to 91%
No load power consumption <0.15W
Fully isolated plastic case with IP67 level
Class 2 power unit
Isolation class II, no F.G.
Protections: Short circuit / Over current / Over voltage / Over temperature
Suitable for dry, damp, and wet location
Cooling by free air convection
5 years warranty

General Specification

AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 50A
Over current protection 95% ~108% constant current, auto-recovery
Over voltage protection 110%~140% rated output voltage
Withstand voltage I/P - O/P: 3.75kVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending]
Connection Input UL rated, SJTW 18AWGx2C (30cm)
Connection Output UL rated, SVT 18AWGx2C (30cm)
Dimension (LxWxH)(mm) 150x 53x 35

Specifications
  • Brand
    Mean Well
  • Series
    NPF Series
  • Power Rating
    60 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    4 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    15 cm
  • Width
    5.3 cm
  • Height
    3.5 cm
  • Weight
    0.49 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the NPF-60-15 be used outdoors in a waterproof enclosure for pathway lighting?

The NPF-60-15 is rated IP67 so it is dust-tight and can withstand temporary submersion, making it suitable for outdoor pathway or landscape lighting installations without an additional enclosure. It operates from -40°C to +85°C, covering cold-winter and hot-summer environments.

Is the NPF-60-15 appropriate for powering 15V LED drivers used in horticultural lighting?

Yes. The NPF-60-15 delivers 60W at 15V with a 4A output current, which suits compact horticultural or plant-growth LED modules that require a stable 15V constant-current supply. Its wide input range of 90–305VAC also supports various facility power configurations.

How does the NPF-60-15 compare to the NPF-60-12 and NPF-60-20 within the 60W family?

The three 60W variants differ only in output voltage and current: NPF-60-12 outputs 12V at 5A, NPF-60-15 outputs 15V at 4A, and NPF-60-20 outputs 20V at 3A. Select the model whose output voltage matches the rated forward voltage of your LED string or module.

What certifications does the NPF-60-15 carry?

The NPF-60-15 holds CB, CCC, CE, EAC, ENEC, and UL certifications, satisfying requirements for markets in North America, Europe, Russia, and China. It also carries a 5-year manufacturer warranty.

What is the CC voltage range of the NPF-60-15, and why does it matter?

The constant-current (CC) operating voltage range is 9–15V. The driver regulates current at 4A as long as the load voltage stays within this window, allowing it to accommodate LED strings with slight variation in forward voltage without losing current regulation.
