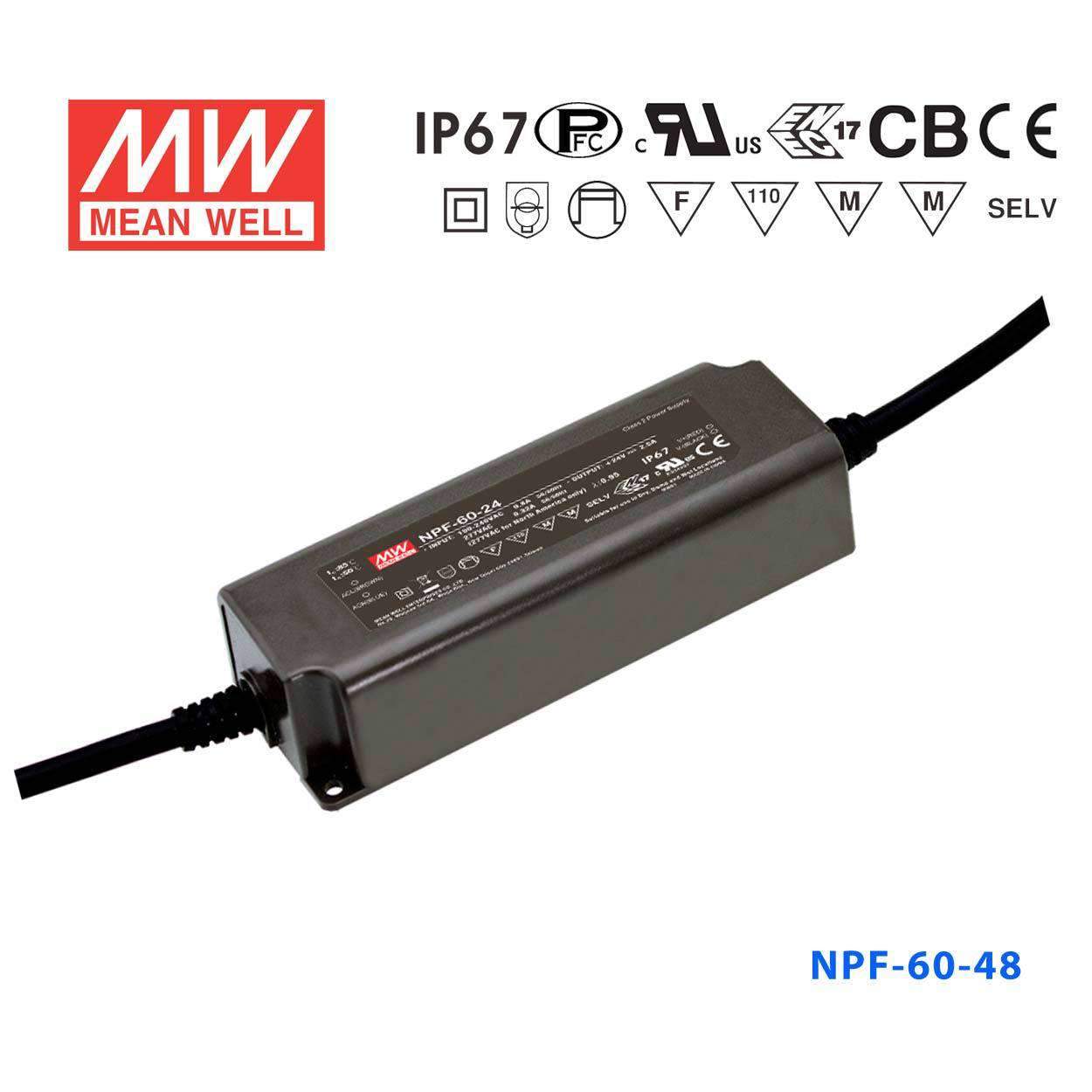

Mean Well NPF-60-48 Power Supply 60W 48V

Q: Can the NPF-60-48 be installed without a weatherproof enclosure in outdoor signage?

Yes. The NPF-60-48 is rated IP67, providing complete dust ingress protection and resistance to temporary water immersion, so it can be installed in outdoor sign cabinets or exposed lighting channels without an additional waterproof housing. The operating range is -40°C to +85°C.

Q: Is the NPF-60-48 appropriate for powering 48V LED panels in industrial inspection systems?

The NPF-60-48 provides 60W at 48V with a constant output current of 1.25A and a CC voltage range of 28–48V, which matches many 48V industrial LED inspection or machine vision panels. Its UL certification supports use in North American industrial facilities.

Q: How does the NPF-60-48 compare to other 48V models in the NPF series?

At 48V, the NPF series offers NPF-40-48 (40.32W, 0.84A), NPF-60-48 (60W, 1.25A), NPF-90-48 (90.24W, 1.88A), and NPF-120-48 (120W, 2.5A). The NPF-60-48 sits in the mid-range tier, suitable for loads up to 60W.

Q: Does the NPF-60-48 have a dimmable counterpart?

Yes. The NPF-60D-48 has identical output specs (60W, 48V, 1.25A, IP67) and adds built-in 3-in-1 dimming support for PWM, 0–10V, and resistance dimming methods.

Q: What are the physical dimensions of the NPF-60-48?

The NPF-60-48 measures 150.0 × 53.0 × 35.0 mm and weighs 0.49 kg, consistent with all other NPF-60 voltage variants.

Description

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

High efficiency up to 91%

No load power consumption <0.15W

Fully isolated plastic case with IP67 level

Class 2 power unit

Isolation class II, no F.G.

Protections: Short circuit / Over current / Over voltage / Over temperature

Suitable for dry, damp, and wet location

Cooling by free air convection

5 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 50A
Over current protection	95% ~108% constant current, auto-recovery
Over voltage protection	110%~140% rated output voltage
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending]
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	UL rated, SVT 18AWGx2C (30cm)
Dimension (LxWxH)(mm)	150x 53x 35

Specifications

Brand

Mean Well
Series

NPF Series
Power Rating

60 Watt
Output Voltage

48 Volt
Rated Current

1.25 Ampere
Input Voltage

90V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

15 cm
Width

5.3 cm
Height

3.5 cm
Weight

0.49 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the NPF-60-48 be installed without a weatherproof enclosure in outdoor signage?

Yes. The NPF-60-48 is rated IP67, providing complete dust ingress protection and resistance to temporary water immersion, so it can be installed in outdoor sign cabinets or exposed lighting channels without an additional waterproof housing. The operating range is -40°C to +85°C.

Is the NPF-60-48 appropriate for powering 48V LED panels in industrial inspection systems?

The NPF-60-48 provides 60W at 48V with a constant output current of 1.25A and a CC voltage range of 28–48V, which matches many 48V industrial LED inspection or machine vision panels. Its UL certification supports use in North American industrial facilities.

How does the NPF-60-48 compare to other 48V models in the NPF series?

At 48V, the NPF series offers NPF-40-48 (40.32W, 0.84A), NPF-60-48 (60W, 1.25A), NPF-90-48 (90.24W, 1.88A), and NPF-120-48 (120W, 2.5A). The NPF-60-48 sits in the mid-range tier, suitable for loads up to 60W.

Does the NPF-60-48 have a dimmable counterpart?

Yes. The NPF-60D-48 has identical output specs (60W, 48V, 1.25A, IP67) and adds built-in 3-in-1 dimming support for PWM, 0–10V, and resistance dimming methods.

What are the physical dimensions of the NPF-60-48?

The NPF-60-48 measures 150.0 × 53.0 × 35.0 mm and weighs 0.49 kg, consistent with all other NPF-60 voltage variants.

Model	Power	Voltage	Current	IP Rating
Mean Well NPF-60-54 Power Supply 60W 54V	60.48W	54V	1.12A	IP67	View
Mean Well NPF-60-42 Power Supply 60W 42V	60.06W	42V	1.43A	IP67	View
Mean Well NPF-60-36 Power Supply 60W 36V	60.12W	36V	1.67A	IP67	View
Mean Well NPF-60-30 Power Supply 60W 30V	60W	30V	2A	IP67	View
Mean Well NPF-60-24 Power Supply 60W 24V	60W	24V	2.5A	IP67	View
Mean Well NPF-60-20 Power Supply 60W 20V	60W	20V	3A	IP67	View
Mean Well NPF-60-15 Power Supply 60W 15V	60W	15V	4A	IP67	View
Mean Well NPF-60-12 Power Supply 60W 12V	60W	12V	5A	IP67	View
