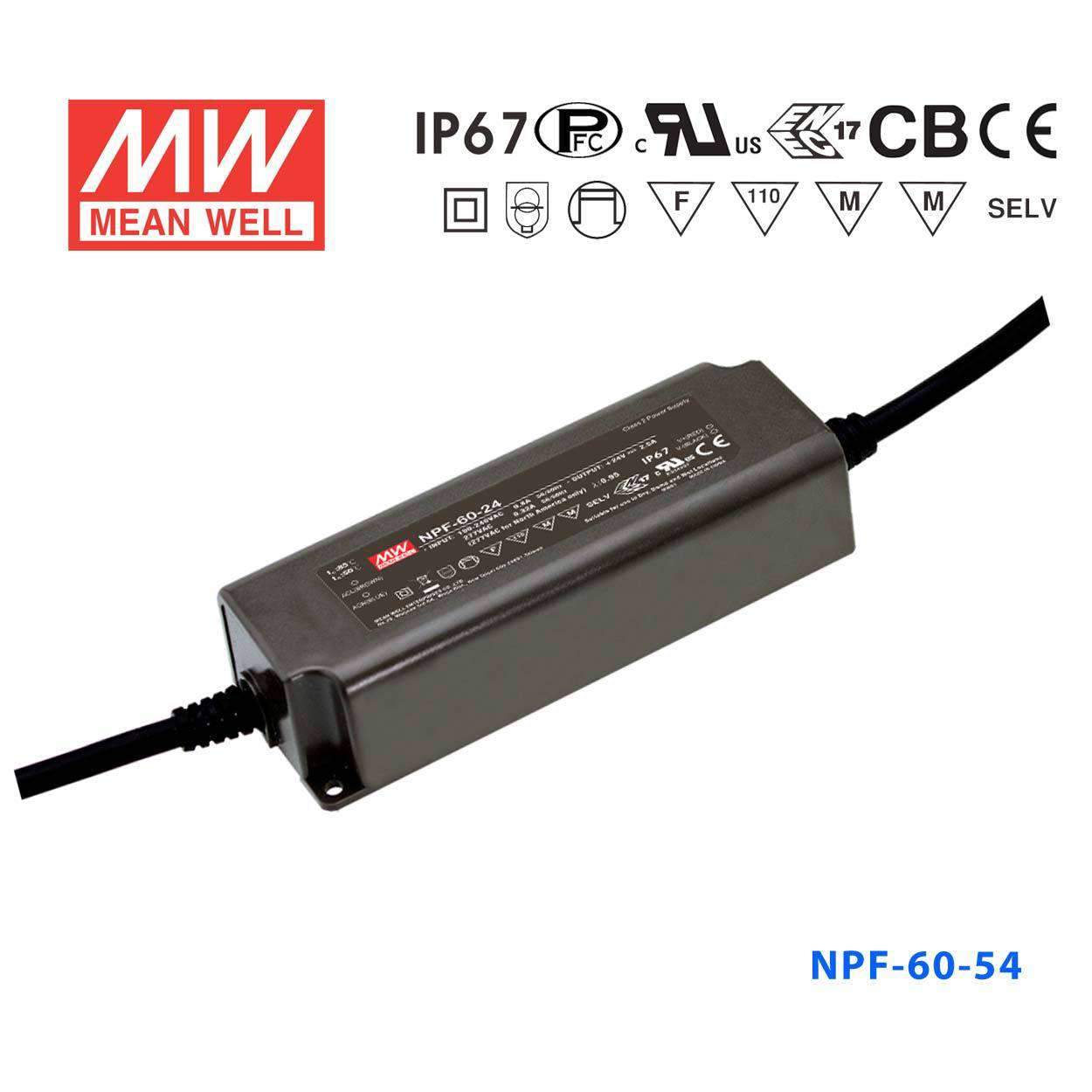

Mean Well NPF-60-54 Power Supply | 60W 54V LED Driver | New Zealand Distributor

Q: Is the NPF-60-54 rated for outdoor use in wet locations?

Yes. The NPF-60-54 carries an IP67 rating, protecting it against dust and temporary water immersion. Its -40°C to +85°C operating temperature supports outdoor installations in both hot and cold climates without an additional protective enclosure.

Q: What types of 54V LED fixtures can the NPF-60-54 drive?

The NPF-60-54 delivers 60.48W at 54V with a constant output current of 1.12A and a CC voltage range of 32–54V. It is suited for high-voltage LED strings used in outdoor bollard lighting, architectural wash lighting, or industrial bay fixtures that operate in the 32–54V forward voltage window.

Q: How does the NPF-60-54 compare to the NPF-60-48 and NPF-60-42 within the 60W family?

The three high-voltage 60W variants are: NPF-60-42 at 60.06W and 1.43A (CC range 25–42V), NPF-60-48 at 60W and 1.25A (CC range 28–48V), and NPF-60-54 at 60.48W and 1.12A (CC range 32–54V). Each targets a different LED string voltage; choose based on the forward voltage of your LED load.

Q: Is there a dimmable version of the NPF-60-54?

Yes. The NPF-60D-54 shares identical electrical specs (60.48W, 54V, 1.12A, IP67) and adds built-in 3-in-1 dimming for PWM, 0–10V, and resistance control signals.

Q: What certifications does the NPF-60-54 hold?

The NPF-60-54 is certified to CB, CCC, CE, EAC, ENEC, and UL standards, covering North American, European, and Asian compliance requirements. It includes a 5-year manufacturer warranty.

Description

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

High efficiency up to 91%

No load power consumption <0.15W

Fully isolated plastic case with IP67 level

Class 2 power unit

Isolation class II, no F.G.

Protections: Short circuit / Over current / Over voltage / Over temperature

Suitable for dry, damp, and wet location

Cooling by free air convection

5 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 50A
Over current protection	95% ~108% constant current, auto-recovery
Over voltage protection	110%~140% rated output voltage
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending]
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	UL rated, SVT 18AWGx2C (30cm)
Dimension (LxWxH)(mm)	150x 53x 35

Specifications

Brand

Mean Well
Series

NPF Series
Power Rating

60.48 Watt
Output Voltage

54 Volt
Rated Current

1.12 Ampere
Input Voltage

90V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

15 cm
Width

5.3 cm
Height

3.5 cm
Weight

0.49 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Is the NPF-60-54 rated for outdoor use in wet locations?

Yes. The NPF-60-54 carries an IP67 rating, protecting it against dust and temporary water immersion. Its -40°C to +85°C operating temperature supports outdoor installations in both hot and cold climates without an additional protective enclosure.

What types of 54V LED fixtures can the NPF-60-54 drive?

The NPF-60-54 delivers 60.48W at 54V with a constant output current of 1.12A and a CC voltage range of 32–54V. It is suited for high-voltage LED strings used in outdoor bollard lighting, architectural wash lighting, or industrial bay fixtures that operate in the 32–54V forward voltage window.

How does the NPF-60-54 compare to the NPF-60-48 and NPF-60-42 within the 60W family?

The three high-voltage 60W variants are: NPF-60-42 at 60.06W and 1.43A (CC range 25–42V), NPF-60-48 at 60W and 1.25A (CC range 28–48V), and NPF-60-54 at 60.48W and 1.12A (CC range 32–54V). Each targets a different LED string voltage; choose based on the forward voltage of your LED load.

Is there a dimmable version of the NPF-60-54?

Yes. The NPF-60D-54 shares identical electrical specs (60.48W, 54V, 1.12A, IP67) and adds built-in 3-in-1 dimming for PWM, 0–10V, and resistance control signals.

What certifications does the NPF-60-54 hold?

The NPF-60-54 is certified to CB, CCC, CE, EAC, ENEC, and UL standards, covering North American, European, and Asian compliance requirements. It includes a 5-year manufacturer warranty.

Model	Power	Voltage	Current	IP Rating
Mean Well NPF-60-48 Power Supply 60W 48V	60W	48V	1.25A	IP67	View
Mean Well NPF-60-42 Power Supply 60W 42V	60.06W	42V	1.43A	IP67	View
Mean Well NPF-60-36 Power Supply 60W 36V	60.12W	36V	1.67A	IP67	View
Mean Well NPF-60-30 Power Supply 60W 30V	60W	30V	2A	IP67	View
Mean Well NPF-60-24 Power Supply 60W 24V	60W	24V	2.5A	IP67	View
Mean Well NPF-60-20 Power Supply 60W 20V	60W	20V	3A	IP67	View
Mean Well NPF-60-15 Power Supply 60W 15V	60W	15V	4A	IP67	View
Mean Well NPF-60-12 Power Supply 60W 12V	60W	12V	5A	IP67	View

{ "id":8423868268843, "variants" :[{ "context":"default", "variant_id": 45636271472939, "sku":"NPF-60-54", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

High efficiency up to 91%

No load power consumption <0.15W

Fully isolated plastic case with IP67 level

Class 2 power unit

Isolation class II, no F.G.

Protections: Short circuit / Over current / Over voltage / Over temperature

Suitable for dry, damp, and wet location

Cooling by free air convection

5 years warranty

General Specification

AC input voltage range

90~305VAC ; 127~431VDC

AC inrush current (max.)

Cold start, 50A

Over current protection

95% ~108% constant current, auto-recovery

Over voltage protection

110%~140% rated output voltage

Withstand voltage

I/P - O/P: 3.75kVAC

Working temperature

-40~+70ºC (refer to output derating curve)

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending]

Connection Input

UL rated, SJTW 18AWGx2C (30cm)

Connection Output

UL rated, SVT 18AWGx2C (30cm)

Dimension (LxWxH)(mm)

150x 53x 35
