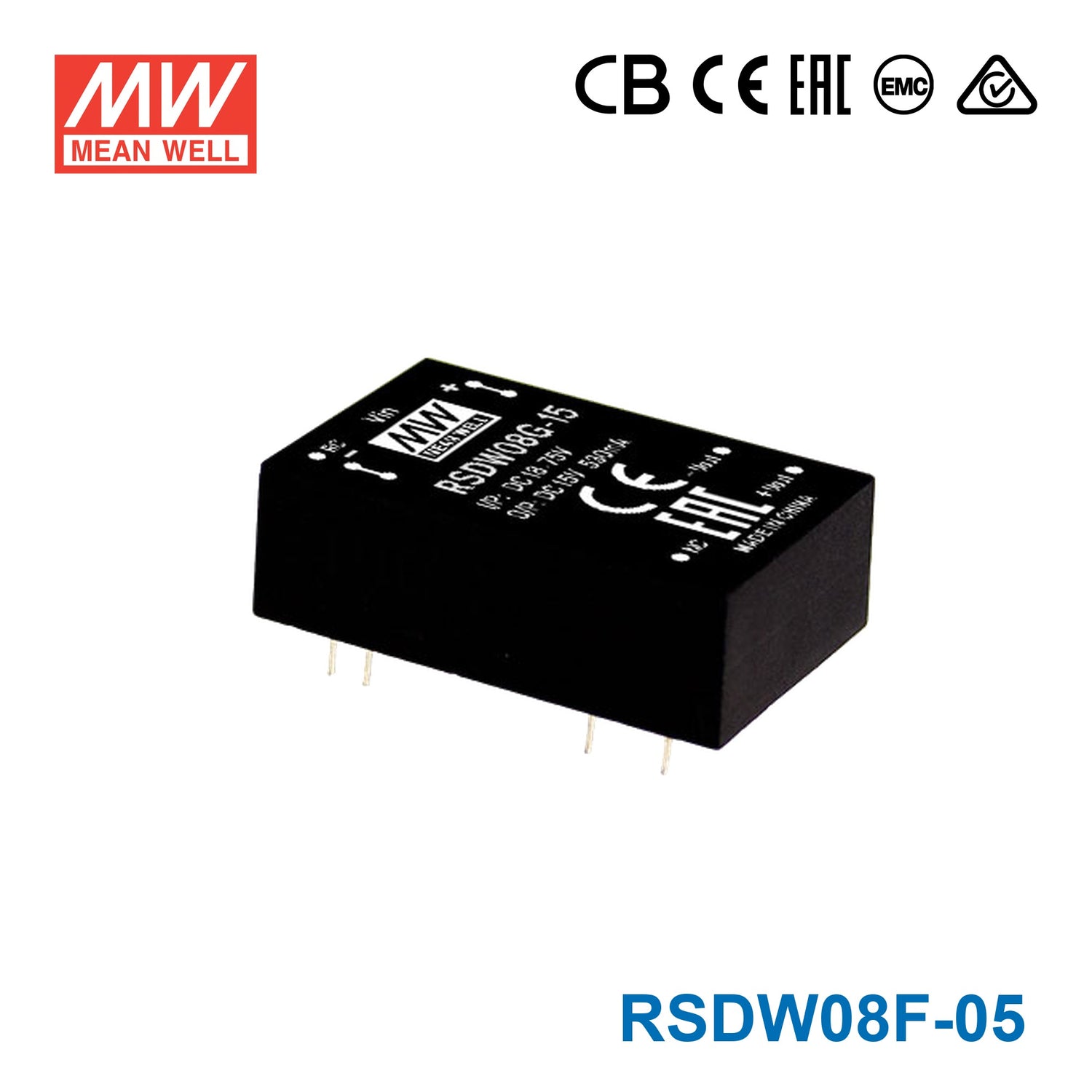

Mean Well RSDW08F-05 DC-DC Converter - 8W - 3~36V in 5V out
Please Login for Pricing
Description
Description
Features
| Compliance with EN50155 railway standard |
| DIP 24 package with standard pinout |
| 4:1 wide input range |
| Wide operating temperature range -40~+85°C |
| No minimum load required |
| Fully encapsulated |
| Protections: Short circuit(Continuous)/Overload/Over voltage/Input under voltage |
| 1.5KVDC I/O isolation |
| Remote ON/OFF control |
| 3 years warranty |
General Specification
| Voltage Accuracy | ±1.5% |
| Overload Protection | 120~180% rated output power |
| Efficiency | 86% |
| Short circuit protection | Continuous, automatic recovery |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55032 class A, EN61000-4-2,3,4,5,6 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 71℃) |
| Dimension (LxWxH) (mm) | 31.8*20.3*10.2mm |
| Potting material | Non-conductive black plastic |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating8 Watt
-
Output Voltage5 Volt
-
Rated Current1.6 Ampere
-
Input Voltage3V~36V
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.02 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RSDW08F-05 for 5V industrial controllers or sensor interface boards?
This converter is built for constant-voltage 5V output applications up to 1.6A and 8W. That makes it relevant for industrial control electronics that need a regulated 5V rail within the listed 3-36V input range.
Is the RSDW08F-05 a fit for powering 5V embedded computing or communications modules?
It is suitable where the module requires 5V constant-voltage power and stays within 1.6A and 8W. The compact 31.8 × 20.3 × 10.2 mm body also helps in embedded systems with limited available space.
Can this model be used in railway electronics that need a 5V rail?
The product lists compliance with EN50155 and EN45545 railway standards, which makes it relevant to railway electronic equipment. For output, it provides 5V at up to 1.6A with an 8W power rating.
Would the RSDW08F-05 work for isolated low-power automation devices?
It can fit low-power automation devices that need a regulated 5V output and stay within the stated 1.6A and 8W limits. The listed 4000VDC isolation is also a key spec for applications that require isolated conversion.
Is this converter suitable for outdoor equipment or wide-temperature cabinets?
Its operating temperature range is -40°C to +85°C, so it is specified for broad temperature conditions. However, no IP rating appears in the provided specs, so enclosure-level outdoor suitability is not established here.
What are the main differences between the RSDW08F-05 and the other RSDW08F versions?
The sibling models share the same 8W family but have different outputs: RSDW08F-03 is 3.3V at 2A, RSDW08F-05 is 5V at 1.6A, RSDW08F-12 is 12V at 666A, and RSDW08F-15 is 15V at 530A. The family is otherwise positioned around the same 3-36V input range and compact low-profile format.
