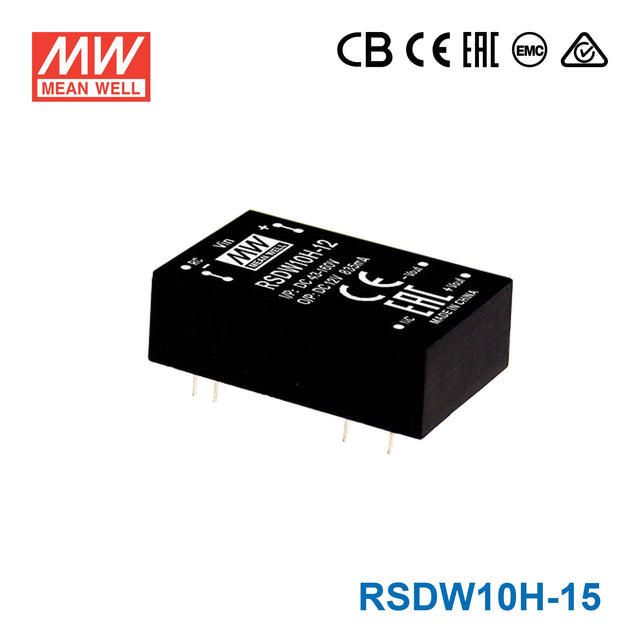

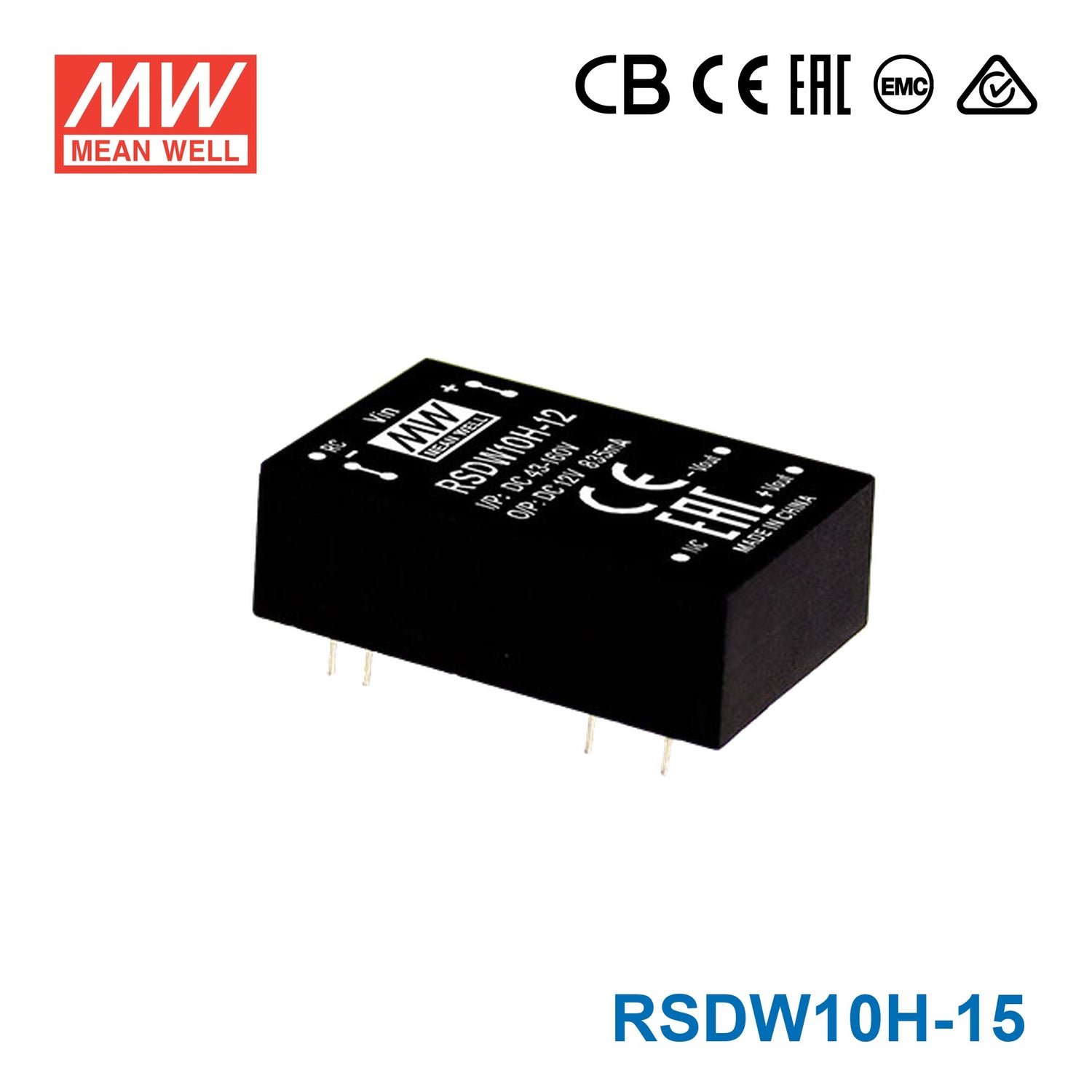

Mean Well RSDW10H-15 DC-DC Converter - 10W - 43~160V in 15V out 666mA
Notify me when it's back in stock
Mean Well RSDW10H-15 DC-DC Converter - 10W - 43~160V in 15V out 666mA
Log in to see priceThe RSDW10H is a 10W Mean Well power converter (input range: 43~160Vdc).
Key Features
- ✓ Input voltage range: 43~160Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration)
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating10 Watt
-
Output Voltage15 Volt
-
Rated Current0.66 Ampere
-
Input Voltage43V~160V
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.02 cm
-
Weight0.02 kg
::specification::
Frequently Asked Questions
Can I use the RSDW10H-15 for 15V industrial control electronics?
This unit provides a constant 15V output with a 10W power rating, so it fits low-power industrial control electronics that require 15V and stay within that 10W limit. Its 43-160VAC input range supports use where the available source falls inside that span.
Is the RSDW10H-15 appropriate for railway electronics or transit equipment?
The features list includes compliance with EN50155 and EN45545 railway standards, which is directly relevant for railway and transit applications. It also combines 4000VDC isolation with an operating range of -40°C to +85°C for demanding onboard environments.
Can this converter be used in embedded equipment that needs a regulated 15V rail?
Yes, the RSDW10H-15 is a constant-voltage 15V converter intended for low-power loads up to 10W. The 31.8 × 20.3 × 10.2 mm package and 1U low profile also make it practical in compact embedded assemblies.
Is the RSDW10H-15 a good choice for low-power industrial instrumentation?
It can be a fit where the instrumentation requires a stable 15V output and the total draw stays within 10W. The half-encapsulated construction and 0.016 kg weight support use in small, tightly packed electronic assemblies.
How does the RSDW10H-15 compare with the other RSDW10H output options?
The listed sibling models are RSDW10H-03 at 10W, 3.3V, 2.5A; RSDW10H-05 at 10W, 5V, 2A; and RSDW10H-12 at 10W, 12V, 835A. The RSDW10H-15 version is the 15V member of that group at 10W with 666A output current.
Is the RSDW10H-15 suitable for outdoor use?
Its operating temperature range is -40°C to +85°C, so the temperature spec supports very cold and very hot environments. However, no IP rating is listed in the provided specifications, so the product is not described here as outdoor-rated or waterproof.
