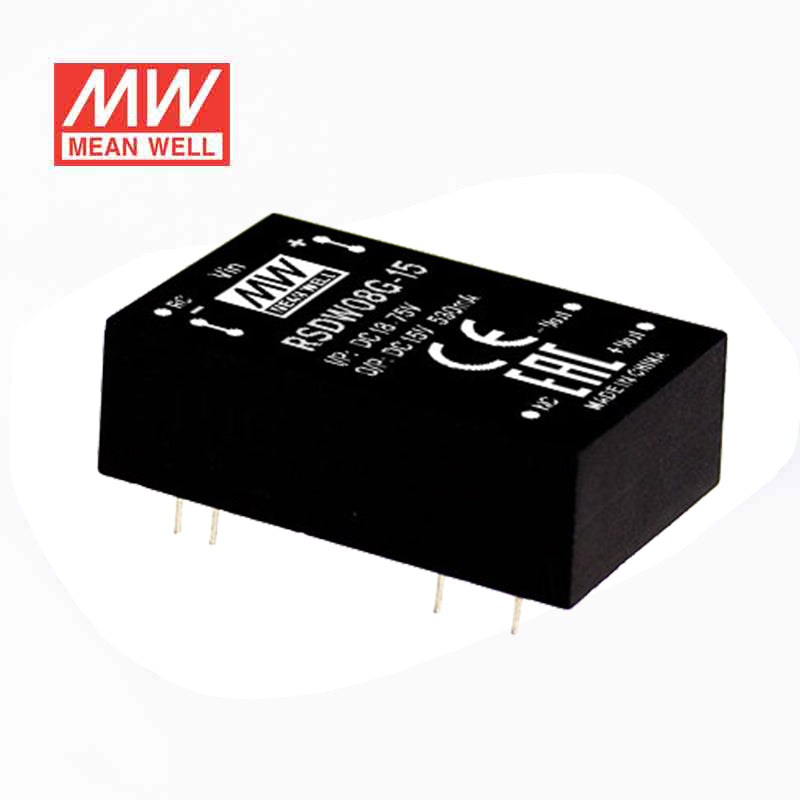

Mean Well RSDW08G-15 DC-DC Converter - 8W - 18~75V in 15V out
Please Login for Pricing
Description
Description
The RSDW08G is a 8W Mean Well power converter (input range: 9~36Vdc).
Key Features
- ✓ Input voltage range: 9~36Vdc
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration)
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating8 Watt
-
Output Voltage15 Volt
-
Rated Current0.53 Ampere
-
Input Voltage18V~75V
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.02 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the RSDW08G-15 be used where a 15V regulated rail is needed in industrial electronics?
Yes, it is a constant-voltage converter with a 15V output and 8W rating. It is appropriate for equipment that requires regulated 15V and remains within the listed output capability.
Is this 15V converter suitable for railway or transit electronics?
The listed features specifically include compliance with EN50155 and EN45545 railway standards. It also has 4000VDC isolation and an operating temperature range of -40°C to +85°C, which supports demanding transportation use cases.
Can I use the RSDW08G-15 in a compact control module with limited height?
Yes, its dimensions are 31.8 x 20.3 x 10.2 mm and the product is described as 1U low profile. That form factor suits embedded or automation assemblies where a small isolated 15V converter is needed.
Is the RSDW08G-15 intended for exposed outdoor service?
The temperature rating of -40°C to +85°C supports wide-environment operation. However, no IP rating is provided in the specs, so the listed data does not confirm protection for exposed outdoor or washdown conditions.
How does the RSDW08G-15 differ from the other models in the same series?
The family keeps the same 8W platform while changing the output. RSDW08G-03 is 3.3V at 2A, RSDW08G-05 is 5V at 1.6A, RSDW08G-12 is 12V at 666A, and RSDW08G-15 is 15V at 530A.
