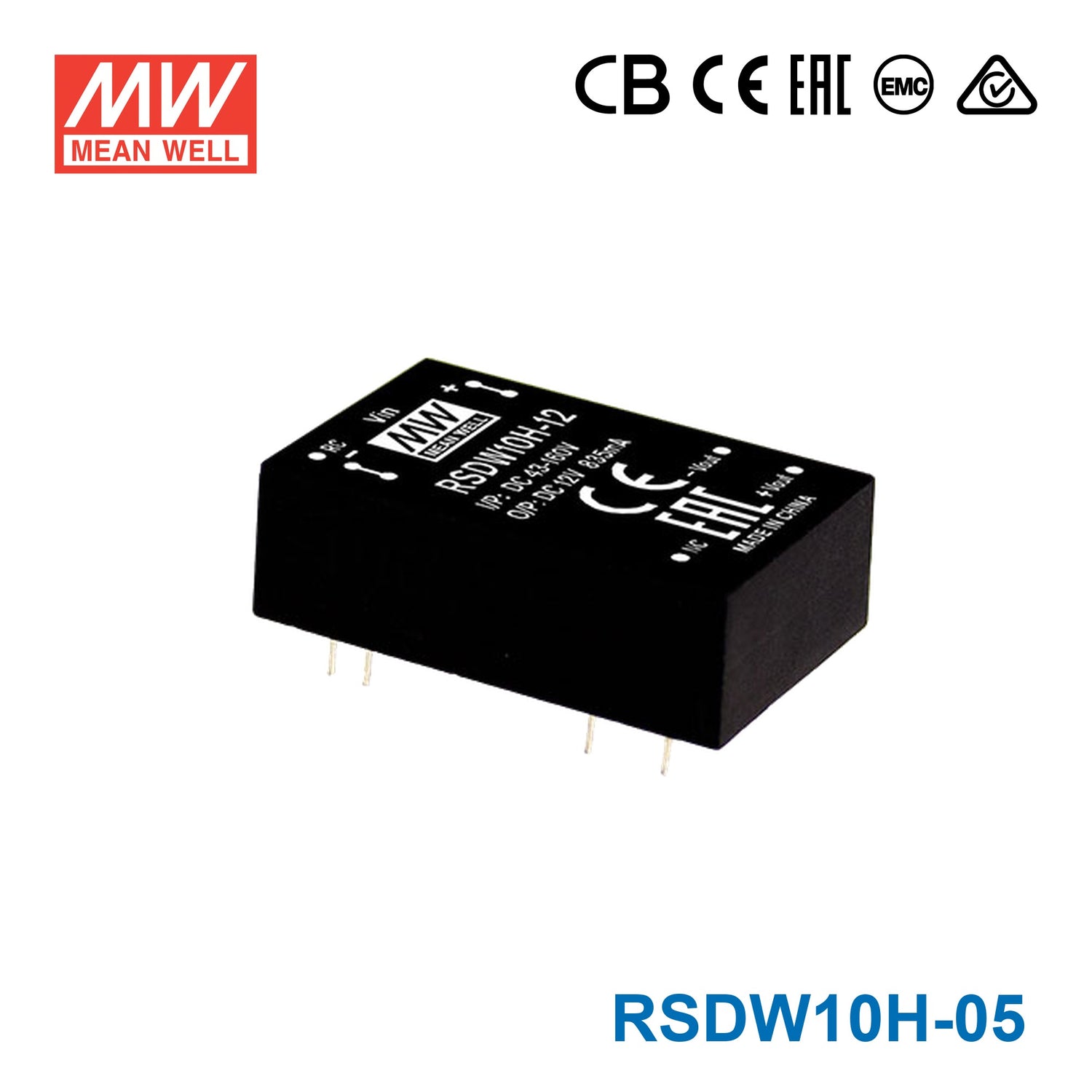

Mean Well RSDW10H-05 DC-DC Converter - 10W - 43~160V in 5V out
Please Login for Pricing
Description
Description
The RSDW10H is a 10W Mean Well power converter (input range: 43~160Vdc).
Key Features
- ✓ Input voltage range: 43~160Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration)
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating10 Watt
-
Output Voltage5 Volt
-
Rated Current2 Ampere
-
Input Voltage43V~160V
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.02 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the RSDW10H-05 power a 5V industrial controller, HMI accessory, or embedded compute board?
Yes, it delivers constant-voltage 5V output at up to 2A with a 10W power rating. It fits applications that need a regulated 5V rail and stay within those electrical limits.
Is the RSDW10H-05 suitable for rail or transportation electronics with a high input range?
It accepts 43-160VAC input and includes listed compliance with EN50155 and EN45545 railway standards. The product also provides 4000VDC isolation, which is relevant where isolation is required between input and output sections.
Can I use this converter in a slim industrial enclosure or control cabinet subassembly?
Yes, the converter measures 31.8 x 20.3 x 10.2 mm and is described as 1U low profile. That makes it useful where a compact isolated 5V supply is needed in embedded or automation hardware.
Is the RSDW10H-05 appropriate for outdoor conditions or only temperature-extreme indoor equipment?
The specified operating temperature range is -40°C to +85°C, so it is rated for very cold and hot ambient conditions. The specs do not list an IP rating, so outdoor exposure or water-resistant use is not confirmed here.
How does the RSDW10H-05 compare with the other RSDW10H models?
All models in the RSDW10H series are 10W units, with the main difference being output voltage and current. RSDW10H-03 is 3.3V at 2.5A, RSDW10H-05 is 5V at 2A, RSDW10H-12 is 12V at 835A, and RSDW10H-15 is 15V at 666A.
