What small-scale industrial or embedded applications can the RSP-75-12 power?

The RSP-75-12 delivers 75.6W at 12V and 6.3A, appropriate for powering single-board computers, small industrial controllers, and monitoring modules in space-constrained enclosures. Its 159.0 × 97.0 × 30.0 mm form factor and 0.44 kg weight make it one of the most compact options in the RSP series.

What is the operating temperature range of the RSP-75-12?

The RSP-75-12 operates from -25°C to +70°C. It carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and is rated for indoor enclosed use.

How does the RSP-75-12 compare to the RSP-75-13.5 and RSP-75-15?

All three are 159.0 × 97.0 × 30.0 mm units accepting 85-264VAC. The RSP-75-12 provides 75.6W at 6.3A, the RSP-75-13.5 provides 75.6W at 5.6A, and the RSP-75-15 provides 75W at 5A. Power output is similar across all three; current decreases as voltage increases.

Does the RSP-75-12 include power factor correction?

Yes. The RSP-75-12 includes built-in active PFC across its 85-264VAC input. It weighs 0.44 kg and carries a 3-year warranty.

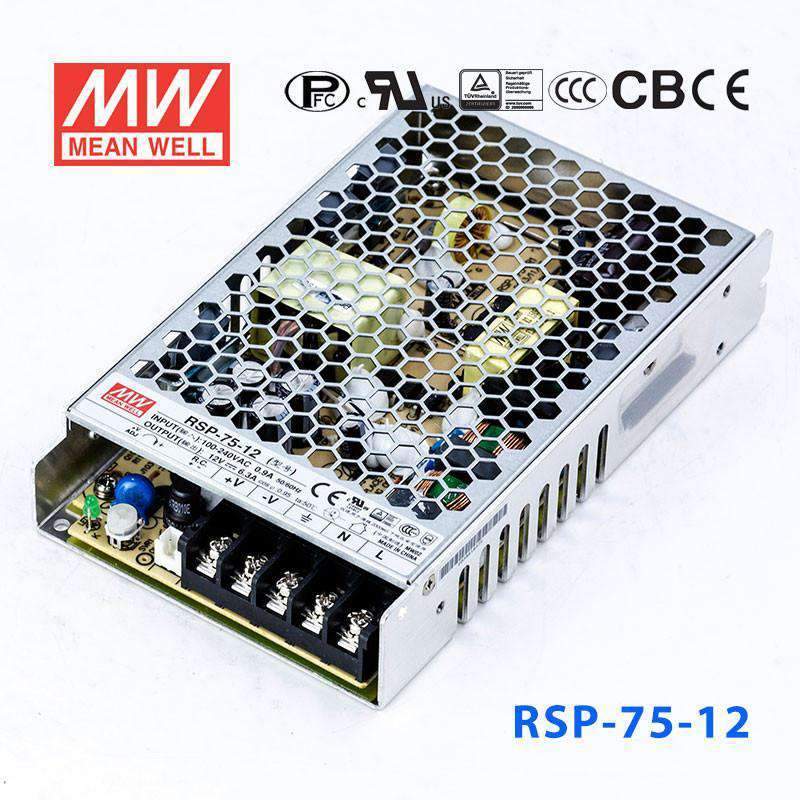

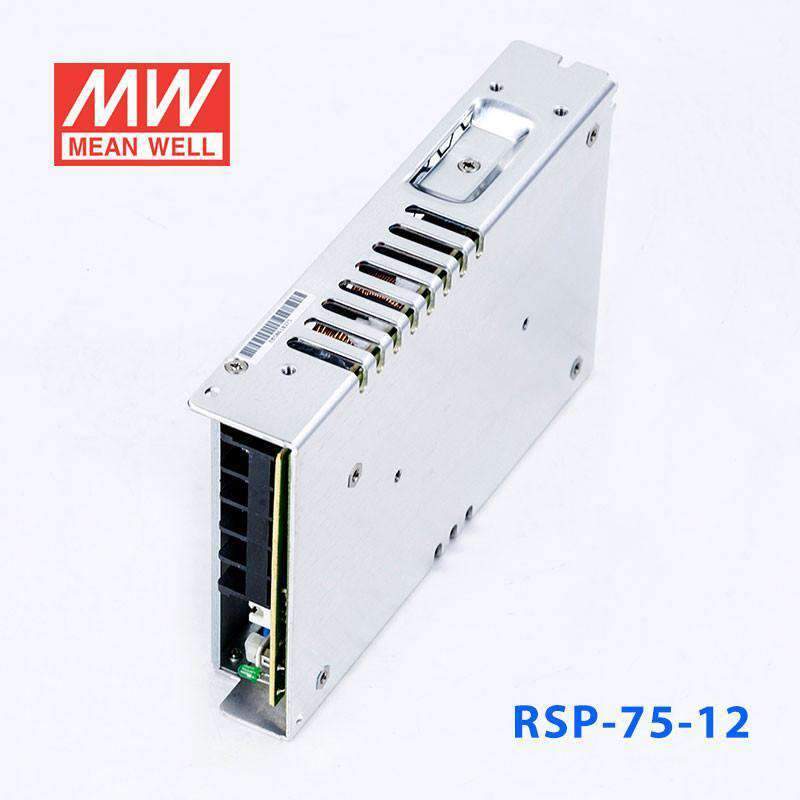

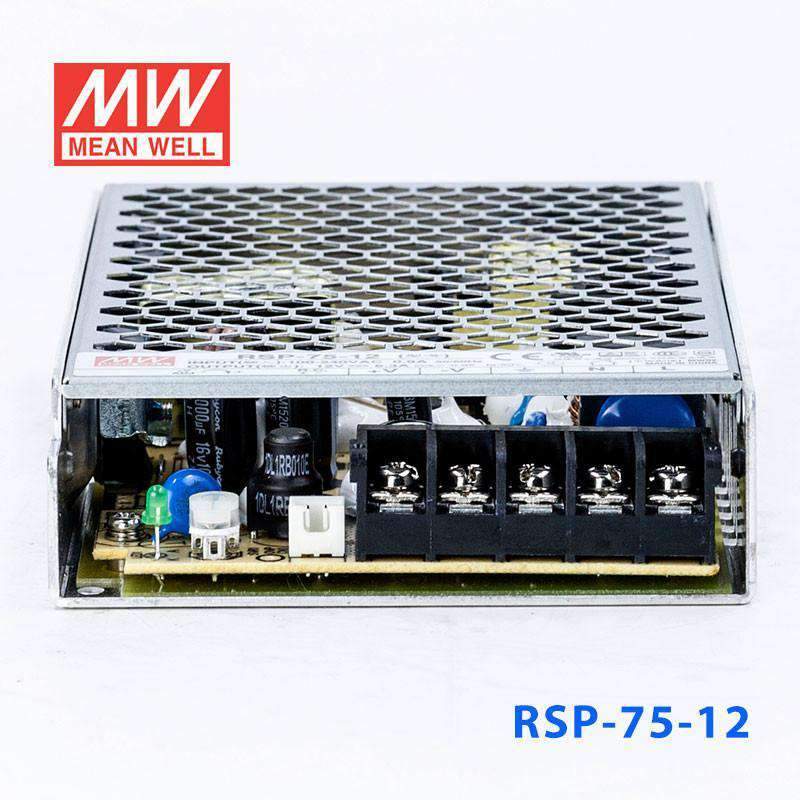

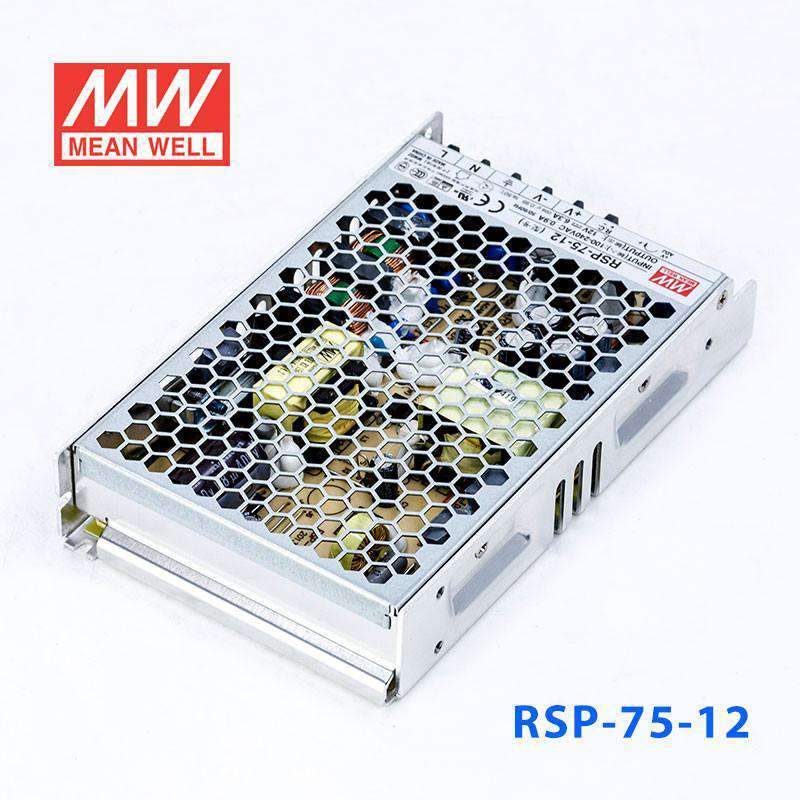

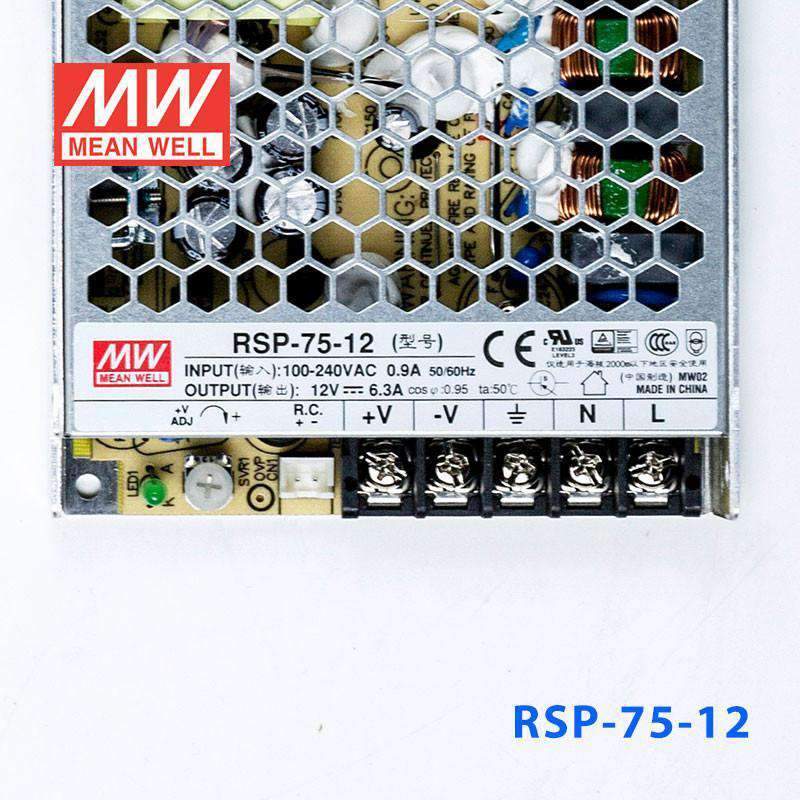

Mean Well RSP-75-12 Power Supply 75W 12V - Best Prices NZ

EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024

Key Features

✓Universal AC input / Full range
✓Built-in active PFC function
✓Built-in constant current limiting circuit
✓Protections:Short circuit/ Overload / Over voltage
✓Cooling by free air convection
✓1U low profile 30mm
✓Remote ON-OFF control
✓LED indicator for power on
✓100% full load burn-in test
✓3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RSP-75-7.5 Power Supply 75W 7.5V 10A	75W	7.5V	10A	View
Mean Well RSP-75-5 Power Supply 75W 5V 15A	75W	5V	15A	View
Mean Well RSP-75-48 Power Supply 75W 48V 1.6A	76.8W	48V	1.6A	View
Mean Well RSP-75-3.3 Power Supply 49.5W 3.3V 15A	49.5W	3.3V	15A	View
Mean Well RSP-75-27 Power Supply 75W 27V 2.8A	75.6W	27V	2.8A	View
Mean Well RSP-75-24 Power Supply 75W 24V 3.2A	76.8W	24V	3.2A	View
Mean Well RSP-75-15 Power Supply 75W 15V 5A	75W	15V	5A	View
Mean Well RSP-75-13.5 Power Supply 75W 13.5V 5.6A	75.6W	13.5V	5.6A	View

Please log in to write a review.

{ "id":8343946068267, "variants" :[{ "context":"default", "variant_id": 45321559572779, "sku":"RSP-75-12", "inventory_qty" : 8, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓Universal AC input / Full range

✓Built-in active PFC function

✓Built-in constant current limiting circuit

✓Protections:Short circuit/ Overload / Over voltage

✓Cooling by free air convection

✓1U low profile 30mm

✓Remote ON-OFF control

✓LED indicator for power on

✓100% full load burn-in test

✓3 years warranty

Mean Well RSP-75-12 Power Supply 75W 12V 6.3A
