What industrial applications suit the RSP-75-7.5's 7.5V, 10A output?

The RSP-75-7.5 delivers 7.5V at 10A (75W), appropriate for powering intermediate bus converter inputs, specialized field instruments, and analog circuitry in embedded systems that specify a 7.5V regulated rail. Its 159.0 × 97.0 × 30.0 mm form factor is suited for compact panel enclosures.

What is the ambient temperature range of the RSP-75-7.5?

The RSP-75-7.5 operates from -25°C to +70°C. It is designed for indoor enclosed use and holds BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications.

How does the RSP-75-7.5 compare to the RSP-75-5 and RSP-75-12?

All three share the 159.0 × 97.0 × 30.0 mm chassis and 85-264VAC input. The RSP-75-5 provides 75W at 15A, the RSP-75-7.5 provides 75W at 10A, and the RSP-75-12 provides 75.6W at 6.3A. All three are rated at approximately 75W; current decreases as voltage increases.

What is the weight and warranty of the RSP-75-7.5?

The RSP-75-7.5 weighs 0.44 kg and includes a 3-year warranty. It includes built-in active PFC.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

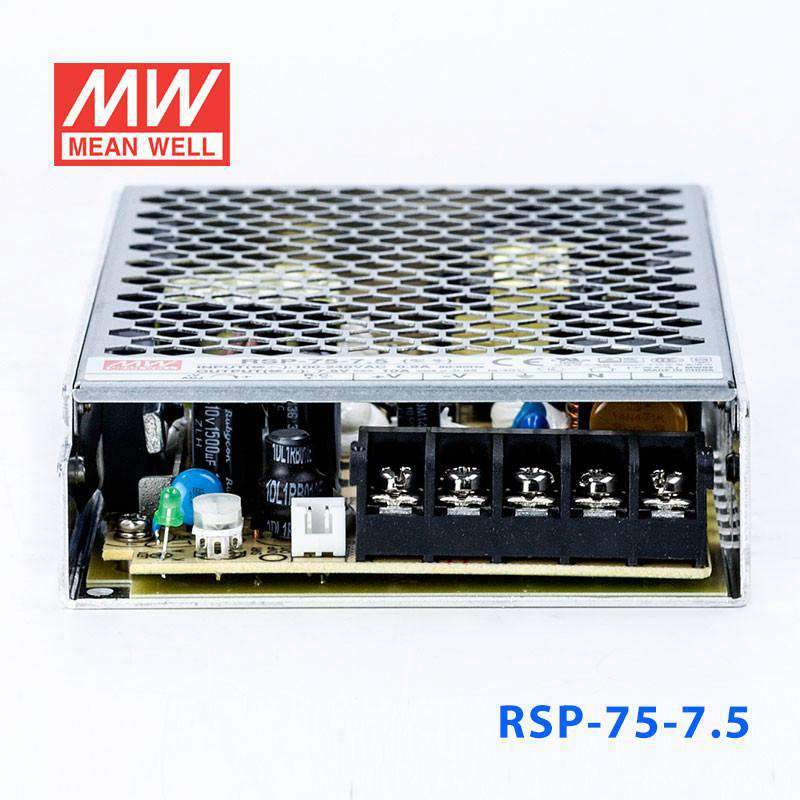

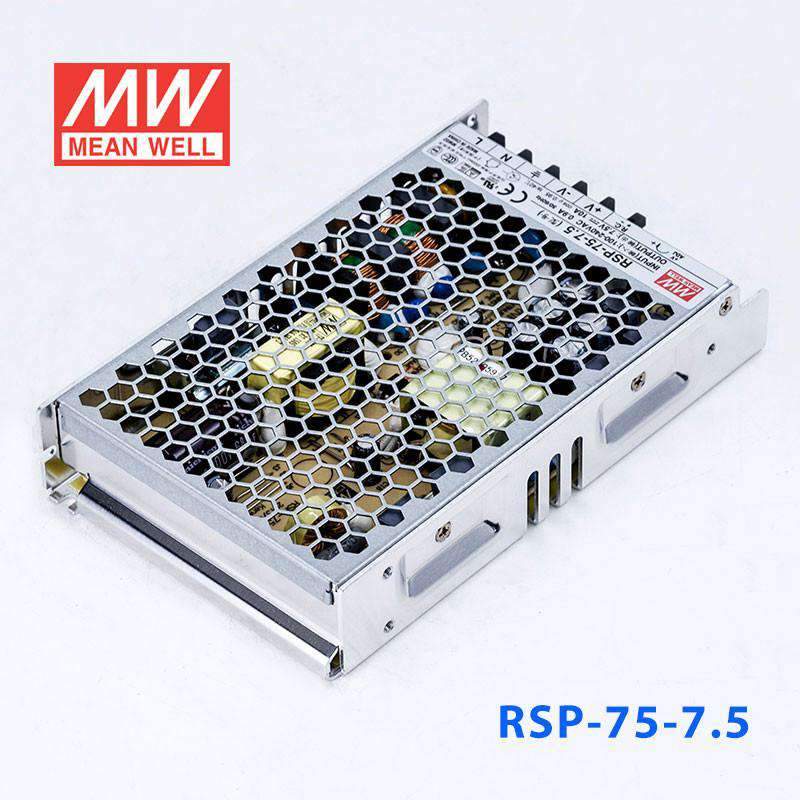

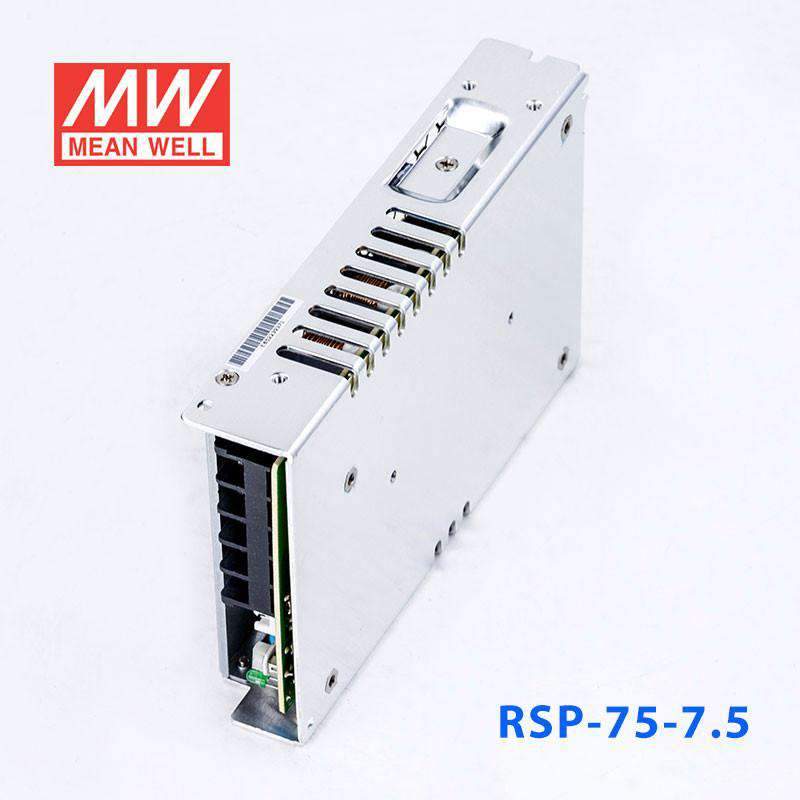

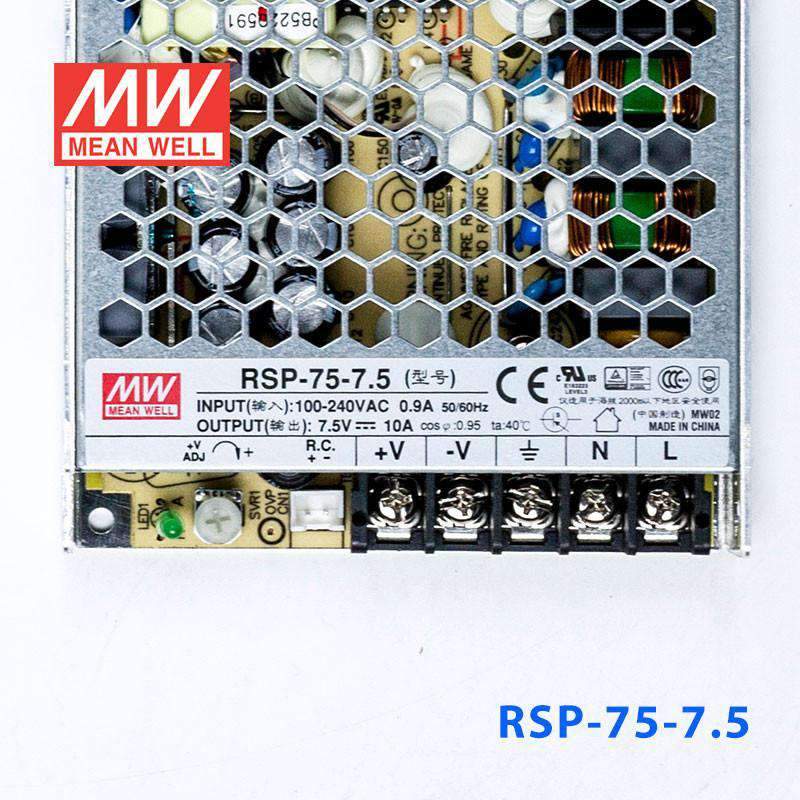

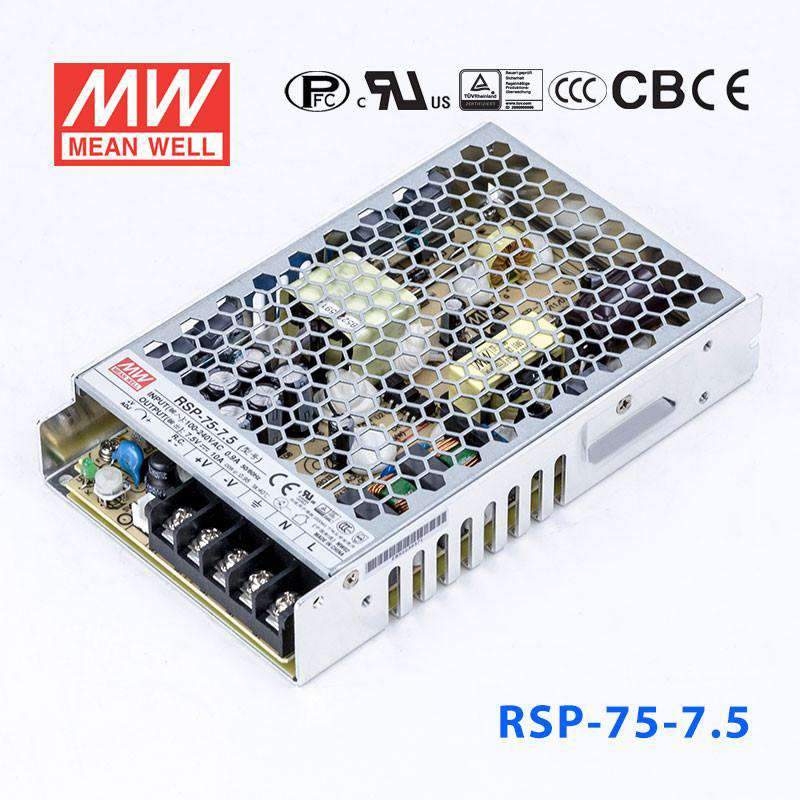

Mean Well RSP-75-7.5 Power Supply 75W 7.5V 10A

1U low profile with active PFChigh efficiency

SKU:

RSP-75-7.5

Log in to see price Trade pricing & online ordering for account holders

Select model — 5 in this family

RSP-75-7.5

RSP-75-7.5 75W 7.5V Backorder

RSP-100-7.5 100W 7.5V Backorder

RSP-150-7.5 150W 7.5V Backorder

RSP-200-7.5 200W 7.5V Backorder

RSP-320-7.5 300W 7.5V Backorder

Product variants

Notify me when it's back in stock

EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024

Key Features

✓Universal AC input / Full range
✓Built-in active PFC function
✓Built-in constant current limiting circuit
✓Protections:Short circuit/ Overload / Over voltage
✓Cooling by free air convection
✓1U low profile 30mm
✓Remote ON-OFF control
✓LED indicator for power on
✓100% full load burn-in test
✓3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RSP-75-12 Power Supply 75W 12V 6.3A	75.6W	12V	6.3A	View
Mean Well RSP-75-5 Power Supply 75W 5V 15A	75W	5V	15A	View
Mean Well RSP-75-48 Power Supply 75W 48V 1.6A	76.8W	48V	1.6A	View
Mean Well RSP-75-3.3 Power Supply 49.5W 3.3V 15A	49.5W	3.3V	15A	View
Mean Well RSP-75-27 Power Supply 75W 27V 2.8A	75.6W	27V	2.8A	View
Mean Well RSP-75-24 Power Supply 75W 24V 3.2A	76.8W	24V	3.2A	View
Mean Well RSP-75-15 Power Supply 75W 15V 5A	75W	15V	5A	View
Mean Well RSP-75-13.5 Power Supply 75W 13.5V 5.6A	75.6W	13.5V	5.6A	View
