What is the RSP-75-27 suited for in embedded or industrial systems?

The RSP-75-27 delivers 27V at 2.8A (75.6W), appropriate for powering small motion control modules, specialty field instruments, and embedded subsystems operating on a 24-28V nominal bus. Its compact 159.0 × 97.0 × 30.0 mm form factor suits panel and DIN-rail enclosures.

Can the RSP-75-27 operate in cold indoor environments?

The RSP-75-27 operates from -25°C to +70°C. It is rated for indoor enclosed use and holds BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications.

How does the RSP-75-27 compare to the RSP-75-24 and RSP-75-48?

All three share the 159.0 × 97.0 × 30.0 mm chassis and 85-264VAC input. The RSP-75-24 provides 76.8W at 3.2A, the RSP-75-27 provides 75.6W at 2.8A, and the RSP-75-48 provides 76.8W at 1.6A. Power output is similar; current decreases as voltage increases.

What is the rated output power of the RSP-75-27?

The RSP-75-27 is rated at 75.6W (27V × 2.8A). It weighs 0.44 kg and includes a 3-year warranty. Built-in active PFC is included.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

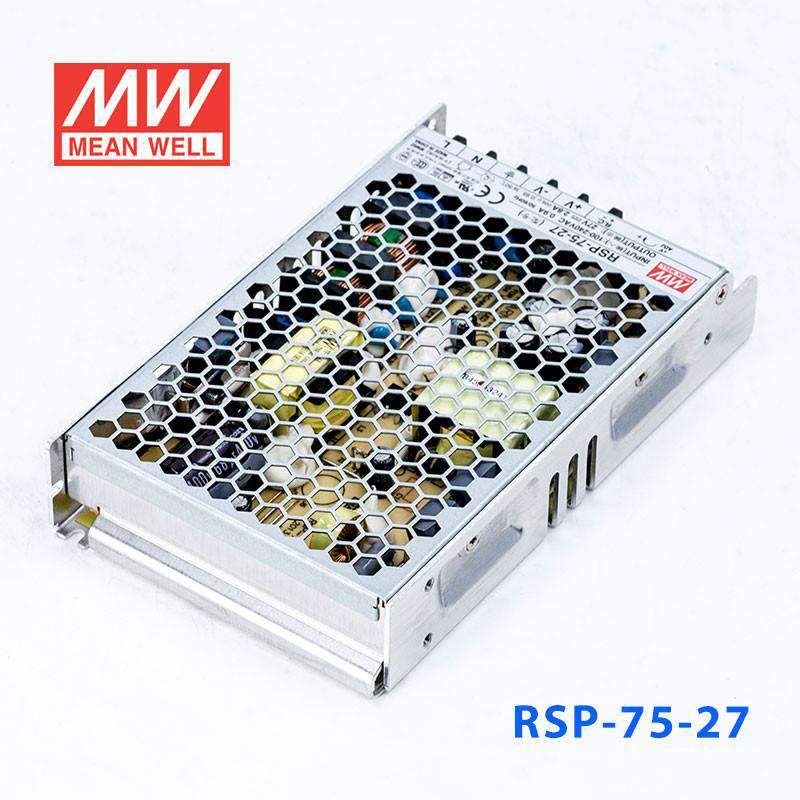

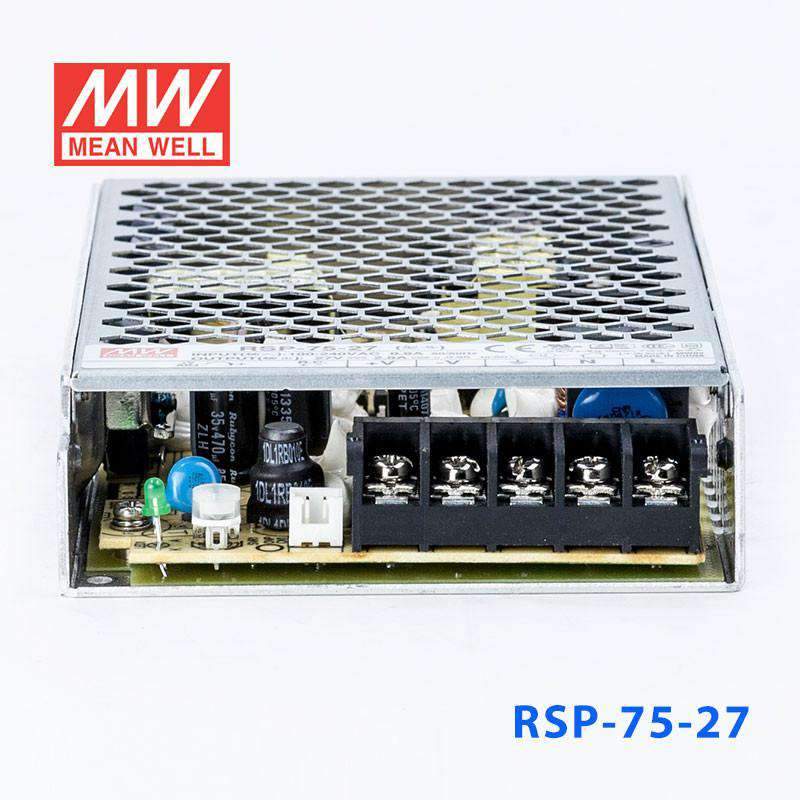

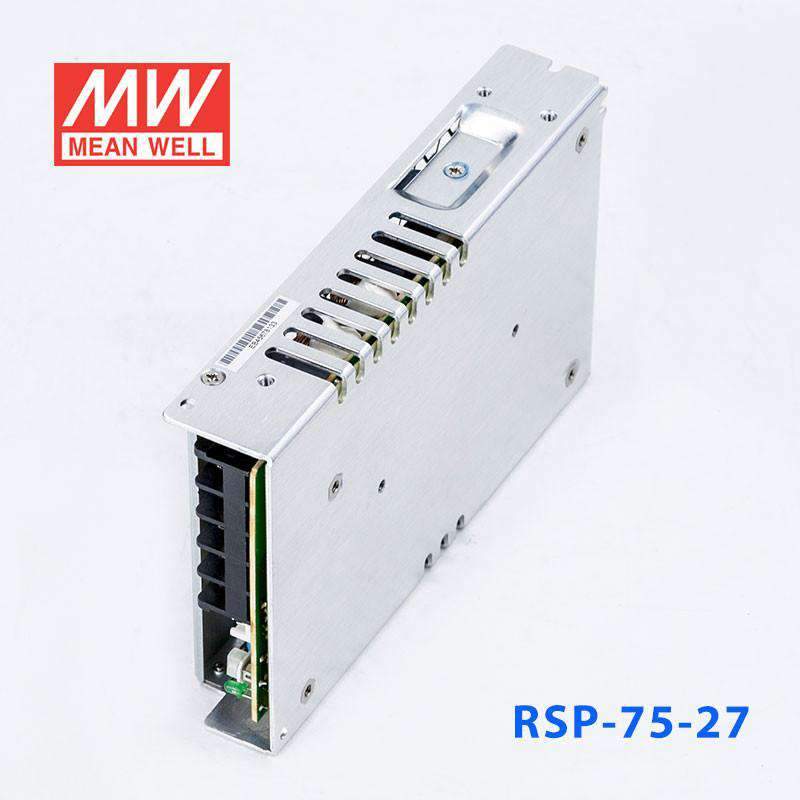

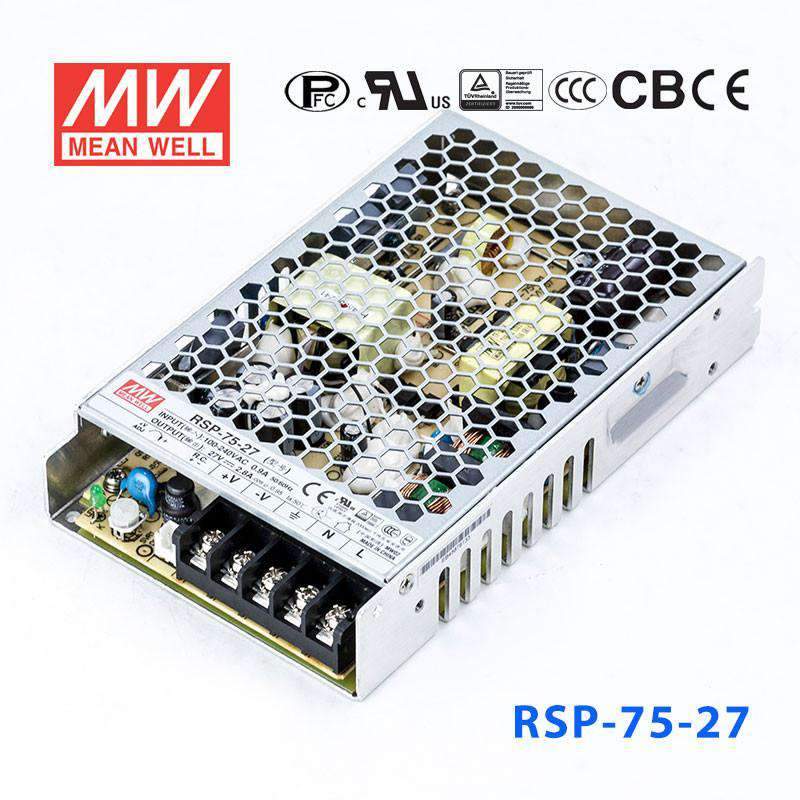

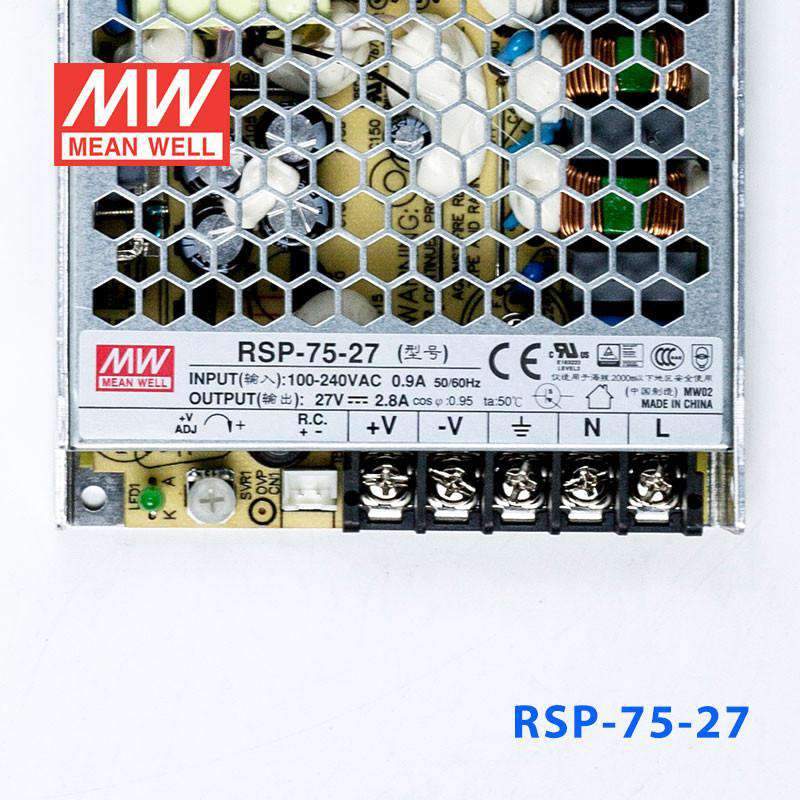

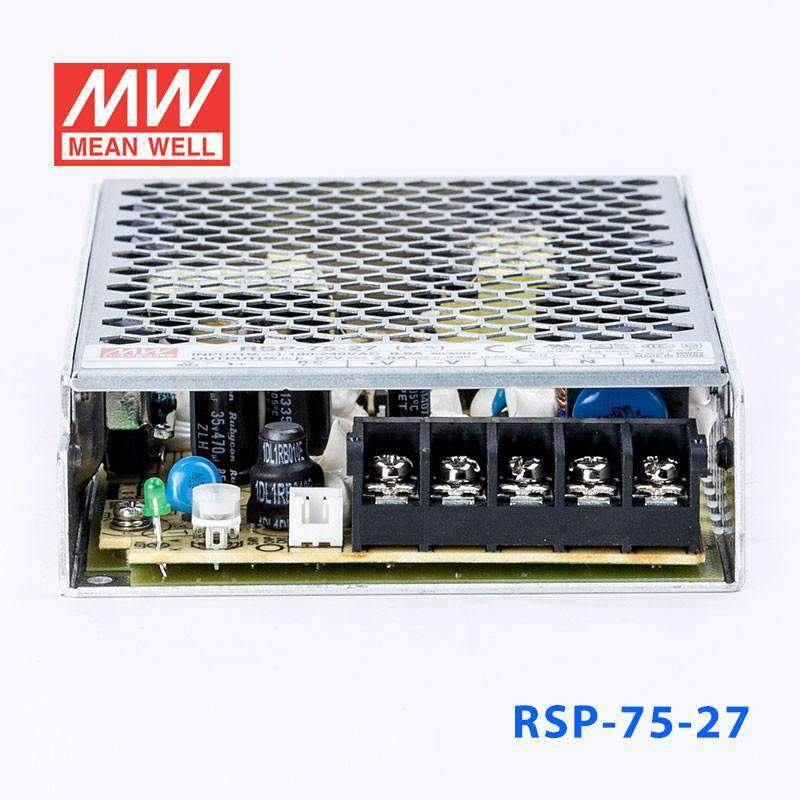

Mean Well RSP-75-27 Power Supply 75W 27V 2.8A

1U low profile with active PFChigh efficiency

SKU:

RSP-75-27

Log in to see price Trade pricing & online ordering for account holders

Select model — 9 in this family

RSP-75-27

RSP-75-27 75W 27V Backorder

RSP-100-27 100W 27V Backorder

RSP-1000-27 1000W 27V Backorder

RSP-150-27 150W 27V Backorder

RSP-1500-27 1500W 27V Backorder

RSP-1600-27 1600W 27V Backorder

RSP-320-27 320W 27V Backorder

RSP-500-27 500W 27V Backorder

RSP-750-27 750W 27V Low stock

Product variants

Notify me when it's back in stock

EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024

Key Features

✓Universal AC input / Full range
✓Built-in active PFC function
✓Built-in constant current limiting circuit
✓Protections:Short circuit/ Overload / Over voltage
✓Cooling by free air convection
✓1U low profile 30mm
✓Remote ON-OFF control
✓LED indicator for power on
✓100% full load burn-in test
✓3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RSP-75-12 Power Supply 75W 12V 6.3A	75.6W	12V	6.3A	View
Mean Well RSP-75-7.5 Power Supply 75W 7.5V 10A	75W	7.5V	10A	View
Mean Well RSP-75-5 Power Supply 75W 5V 15A	75W	5V	15A	View
Mean Well RSP-75-48 Power Supply 75W 48V 1.6A	76.8W	48V	1.6A	View
Mean Well RSP-75-3.3 Power Supply 49.5W 3.3V 15A	49.5W	3.3V	15A	View
Mean Well RSP-75-24 Power Supply 75W 24V 3.2A	76.8W	24V	3.2A	View
Mean Well RSP-75-15 Power Supply 75W 15V 5A	75W	15V	5A	View
Mean Well RSP-75-13.5 Power Supply 75W 13.5V 5.6A	75.6W	13.5V	5.6A	View
