What applications benefit from a compact 75W, 15V supply like the RSP-75-15?

The RSP-75-15 delivers 75W at 15V and 5A, suitable for small industrial sensor networks, point-of-load converters, and single-module control boards requiring a 15V regulated supply. Its 159.0 × 97.0 × 30.0 mm footprint fits space-constrained panel enclosures.

What is the operating temperature range of the RSP-75-15?

The RSP-75-15 operates from -25°C to +70°C. It is certified to BSMI, CB, CCC, CE, EAC, TÜV, and UL and is designed for indoor enclosed use.

How does the RSP-75-15 compare to the RSP-75-24 and RSP-75-27?

All three share the 159.0 × 97.0 × 30.0 mm chassis and 85-264VAC input. The RSP-75-15 delivers 75W at 5A, the RSP-75-24 delivers 76.8W at 3.2A, and the RSP-75-27 delivers 75.6W at 2.8A. Power is similar across all three; higher voltage models deliver lower current.

Does the RSP-75-15 include active PFC?

Yes. The RSP-75-15 includes built-in active PFC and accepts 85-264VAC. It weighs 0.44 kg and includes a 3-year warranty.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

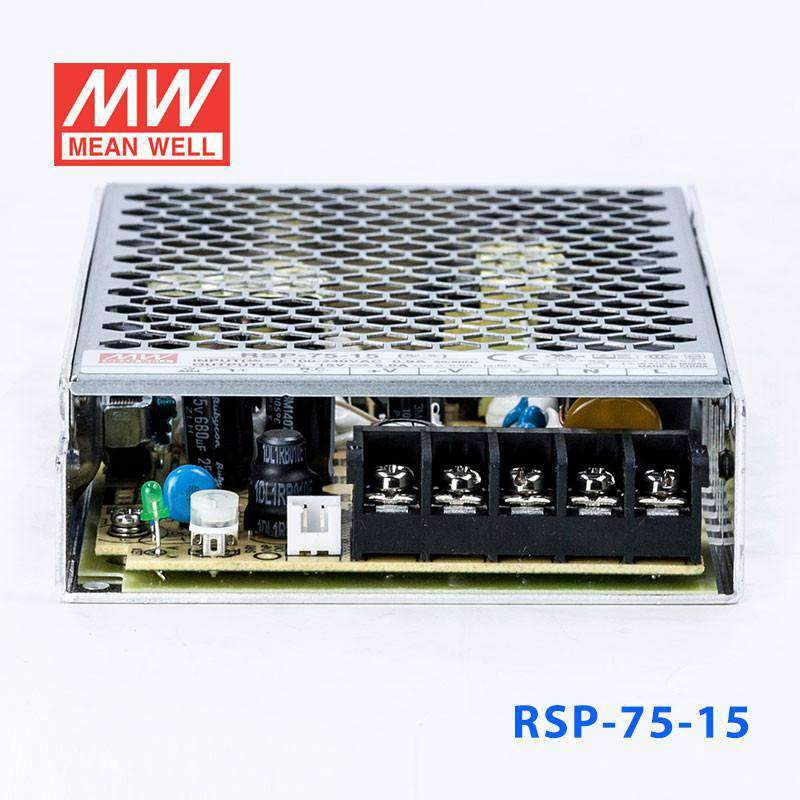

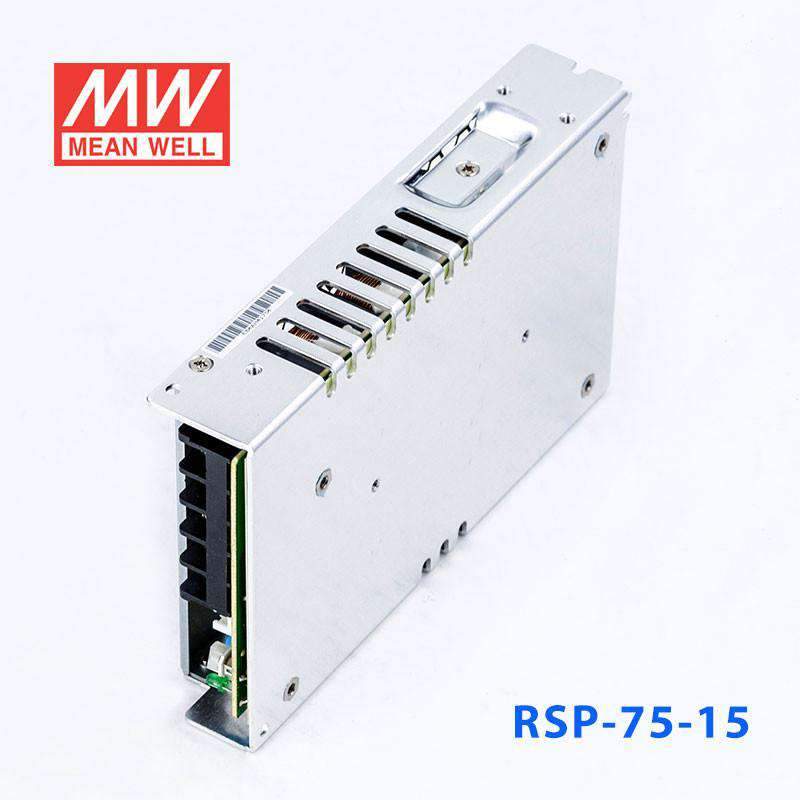

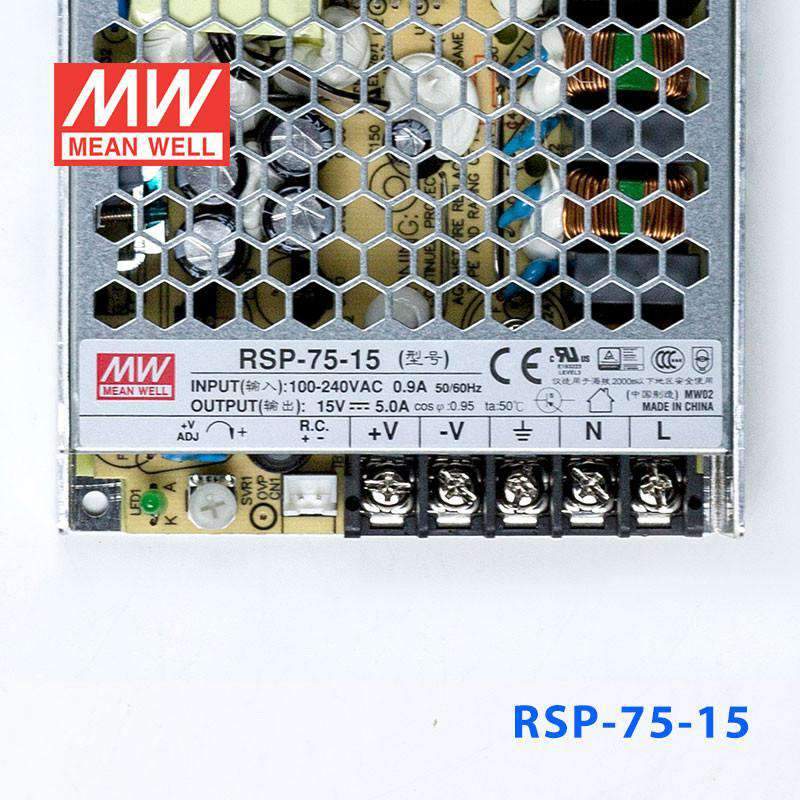

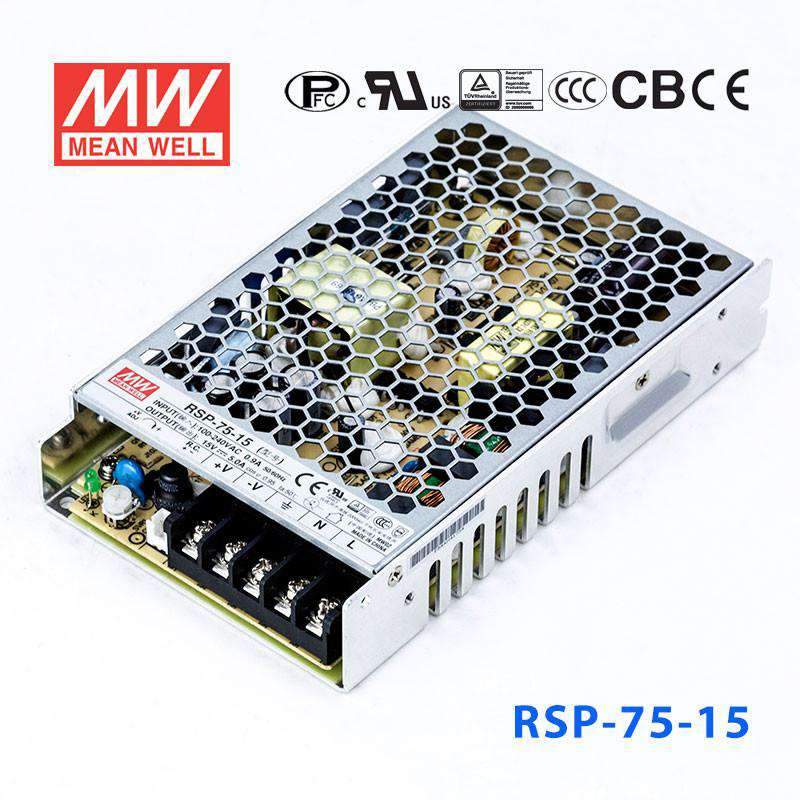

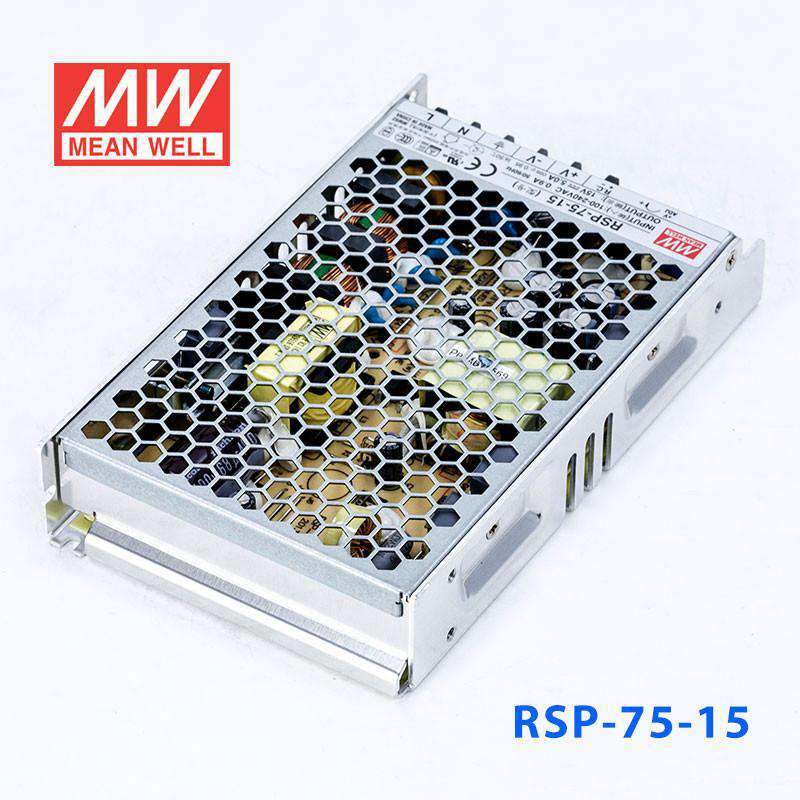

Mean Well RSP-75-15 Power Supply 75W 15V 5A

1U low profile with active PFChigh efficiency

SKU:

RSP-75-15

Log in to see price Trade pricing & online ordering for account holders

Select model — 9 in this family

RSP-75-15

RSP-75-15 75W 15V Backorder

RSP-100-15 100W 15V Backorder

RSP-1000-15 1000W 15V Backorder

RSP-150-15 150W 15V Backorder

RSP-1500-15 1500W 15V Backorder

RSP-200-15 200W 15V Low stock

RSP-320-15 320W 15V Low stock

RSP-500-15 500W 15V Backorder

RSP-750-15 750W 15V Backorder

Product variants

Notify me when it's back in stock

EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024

Key Features

✓Universal AC input / Full range
✓Built-in active PFC function
✓Built-in constant current limiting circuit
✓Protections:Short circuit/ Overload / Over voltage
✓Cooling by free air convection
✓1U low profile 30mm
✓Remote ON-OFF control
✓LED indicator for power on
✓100% full load burn-in test
✓3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RSP-75-12 Power Supply 75W 12V 6.3A	75.6W	12V	6.3A	View
Mean Well RSP-75-7.5 Power Supply 75W 7.5V 10A	75W	7.5V	10A	View
Mean Well RSP-75-5 Power Supply 75W 5V 15A	75W	5V	15A	View
Mean Well RSP-75-48 Power Supply 75W 48V 1.6A	76.8W	48V	1.6A	View
Mean Well RSP-75-3.3 Power Supply 49.5W 3.3V 15A	49.5W	3.3V	15A	View
Mean Well RSP-75-27 Power Supply 75W 27V 2.8A	75.6W	27V	2.8A	View
Mean Well RSP-75-24 Power Supply 75W 24V 3.2A	76.8W	24V	3.2A	View
Mean Well RSP-75-13.5 Power Supply 75W 13.5V 5.6A	75.6W	13.5V	5.6A	View
